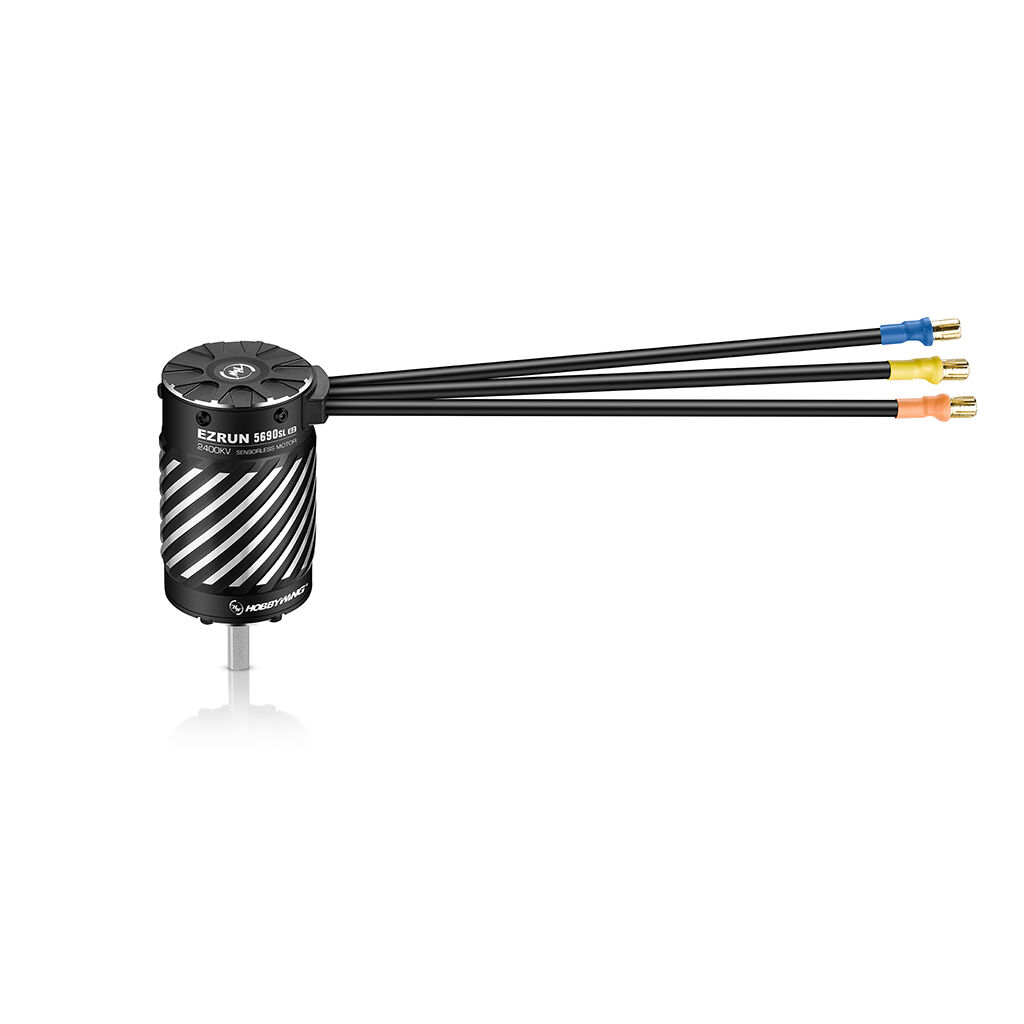

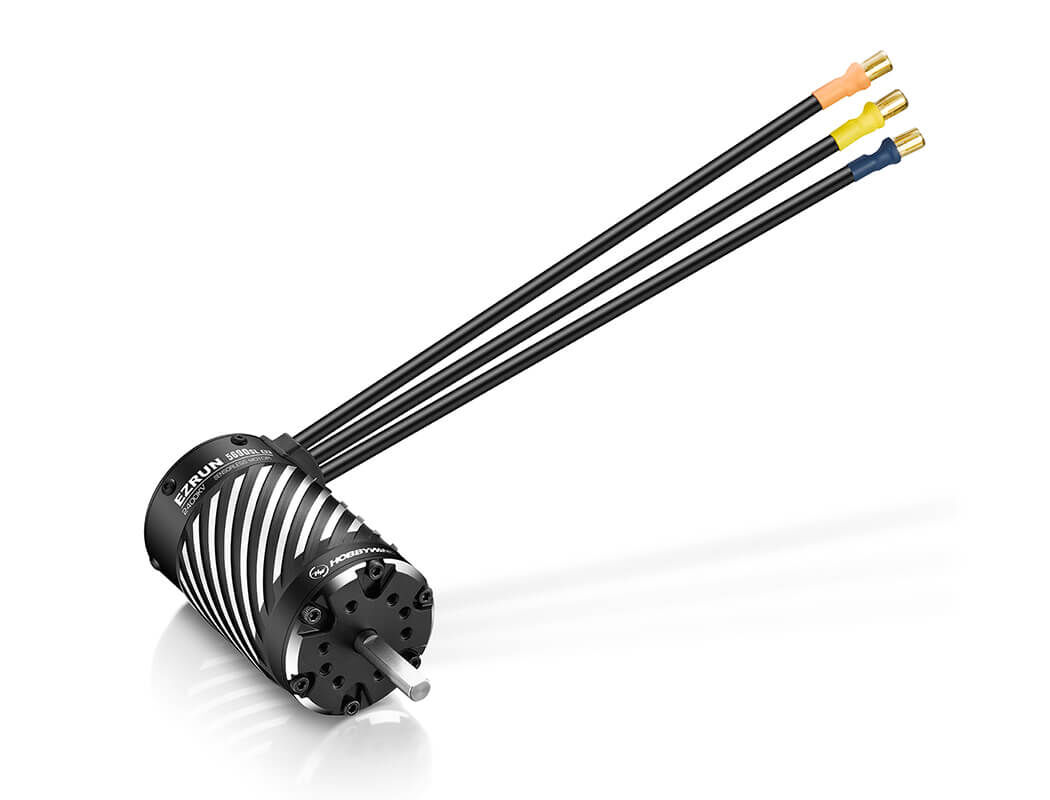

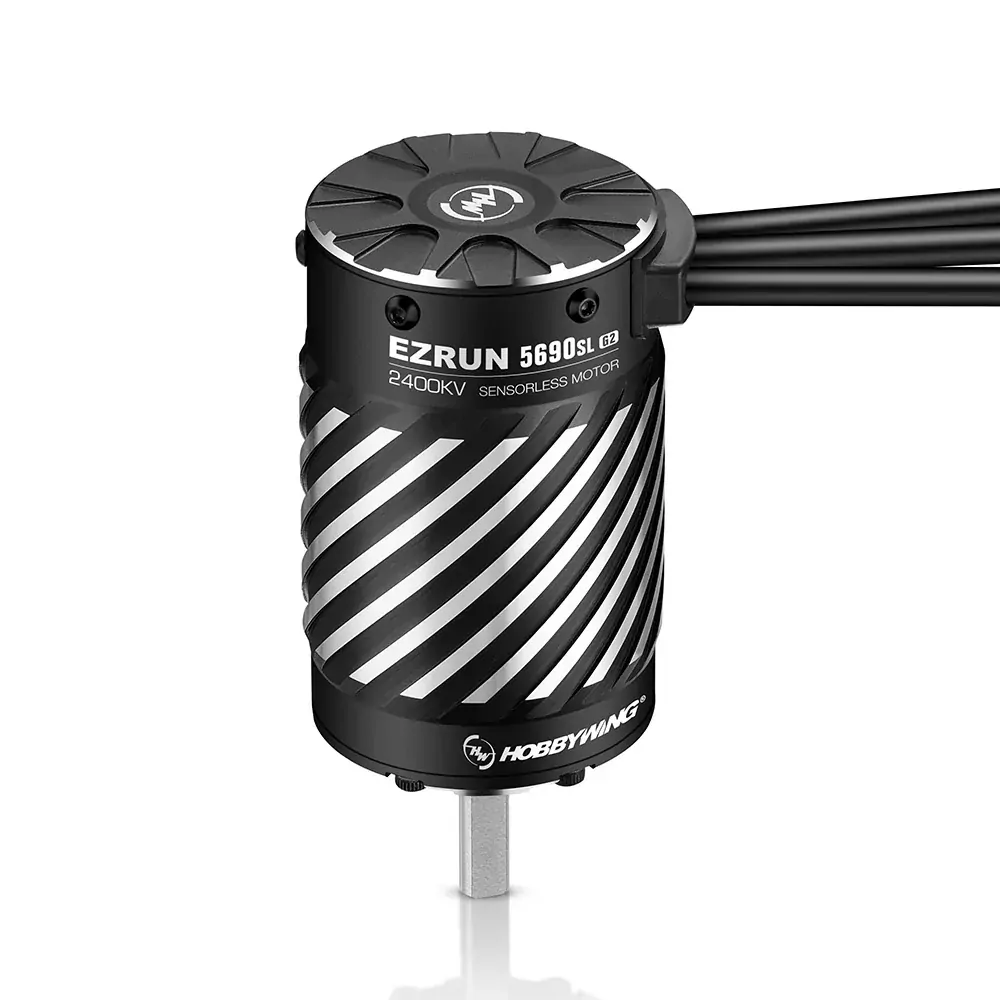

Hobbywing Motor EzRun 5690SL 2400kV Black G2 Sensorless 1/7 & 1/8

Exceptional Power for High-Speed Applications

The motor delivers outstanding power and performance, making it an excellent choice for high-speed 1/7th and 1/8th scale RC vehicles.

High Speed Design

The motor rotor has superior anti-explosion performance and supports a maximum speed of up to 78,000 RPM, which can meet the high rotational speed requirements of high-speed RC vehicles.

Optimized Pairing with EzRun MAX5 HV Plus G2 ESC

The motor is engineered for seamless compatibility with the EzRun MAX5 HV Plus G2 ESC, enabling higher speeds and greater power output for maximum performance.

Modular Construction for Easy Maintenance

Featuring a modular and detachable design, the motor is easy to clean and maintain, significantly extending its operational lifespan while ensuring consistent performance.

Dual Specifications to Suit Various Applications

The motor provides two options: 5690-2400KV and 56118-1600KV.

Innovative and Stylish Design

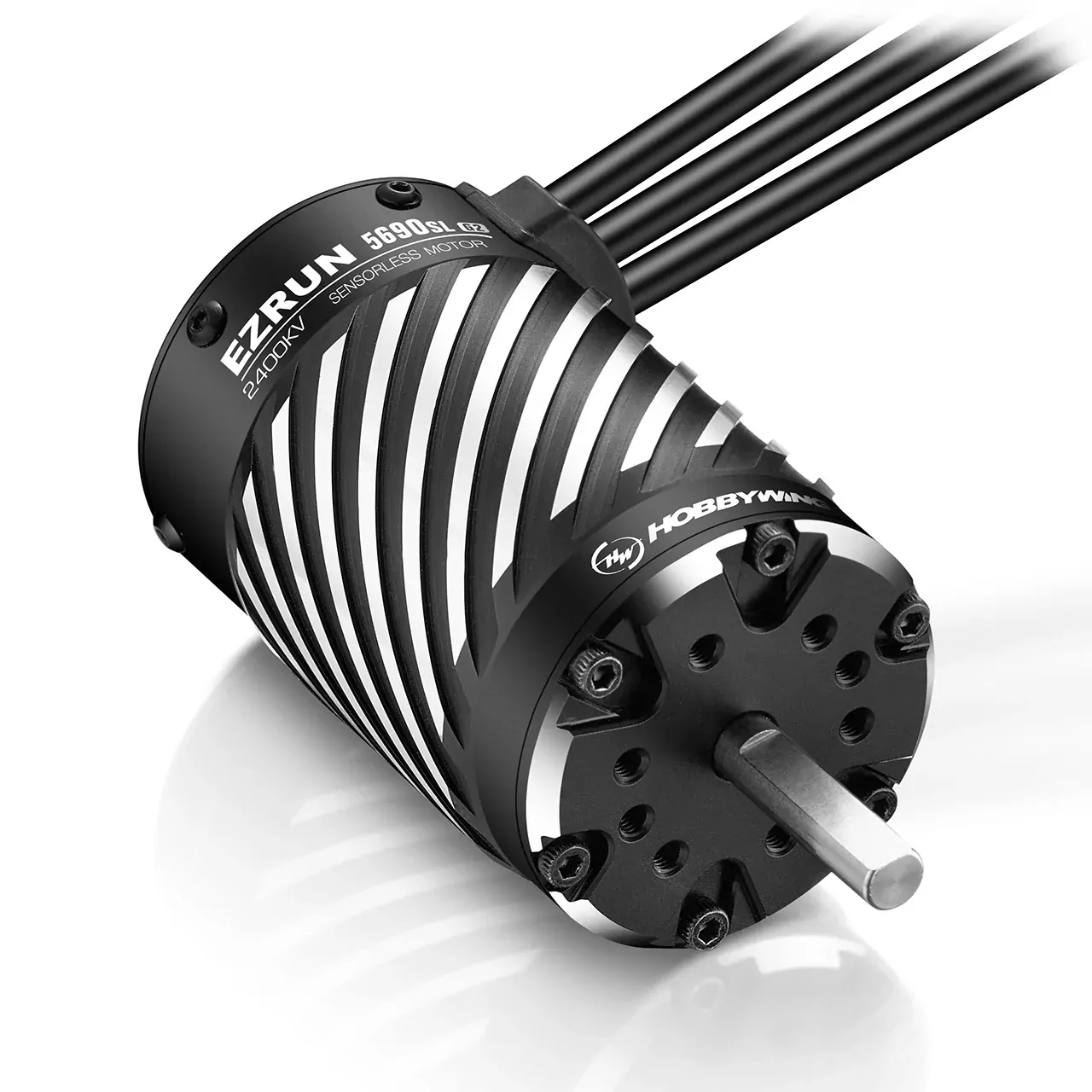

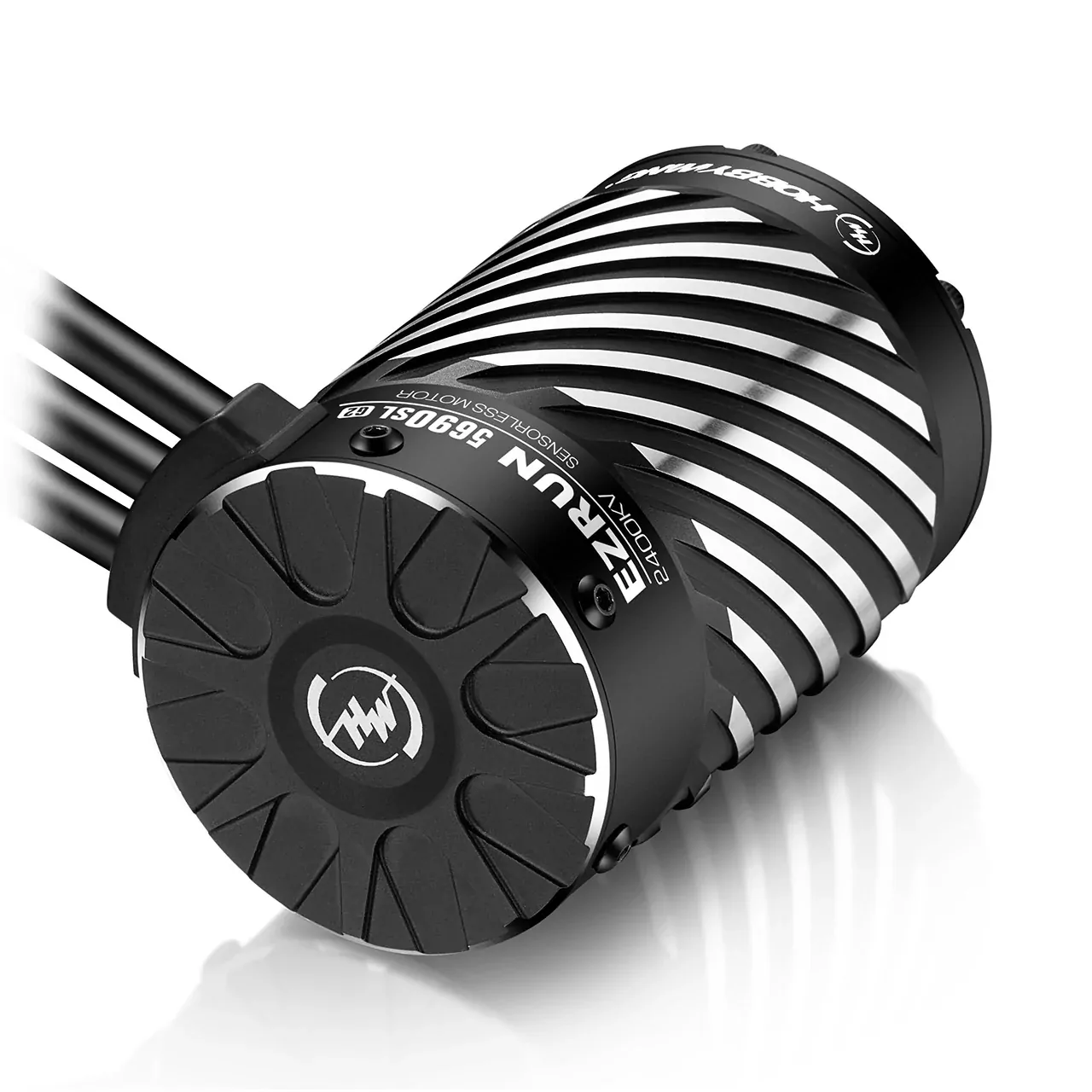

The motor's innovative spiral groove heat sink design not only enhances thermal performance but also provides a striking, modern aesthetic.

High-Quality Materials for Durability

• Constructed using premium materials, the motor offers exceptional reliability and performance:
• CNC-machined Aluminum Housing for High Strength.
• Top-tier Bearings and Ultra-thin Silicon Steel Laminations.
• High-temperature-Resistant Oxygen-free Copper Wires.
• Carbon Fiber-wrapped Explosion-proof Rotor.
• High-toughness Alloy Output Shaft.

Product Specifications

• Scale - 1/7th, 1/8th

• Brushed/Brushless - BL
• Sensored/Sensorless - SL
• Pole Count - 4
• Relevant Parameters
• KV Rating - 2400KV
• LiPo Cells - 6-8S
• No-load Current(A) - 16A
• Size & Weight
• O.D.(mm) - 56
• Length (mm) - 90.5
• Shaft Diameter (mm) - 8
• Weight (g) - 885g
• Front Bearing - D22*D8*T7
• Rear Bearing - D19*D8*T6
• ESC - EZRUN MAX5 HV PLUS G2
• Applications - 1/8th, 1/7th and other model cars for extreme speed applications
