HPI 1/5 Baja 5B Flux 2WD Off Road Buggy Electric Self Build Kit

BUILD YOUR OWN ORIGINAL, AUTHENTIC BAJA 5B FLUX!

HPI large scale fans, we have heard you! The one and only original HPI Baja 5B is BACK and ready for you to build from the ground up! The HPI SBK collection of Self Build Kits grows with the addition of not just one, but TWO 1/5th scale HPI kits! Fans of electric off-road RC will be super excited to build their own brushless-powered 1/5th scale with the HPI Baja 5B FLUX Self Build Kit!

When the HPI Baja 5B buggy was first introduced, large scale RC was very expensive and quite difficult for the average RC hobbyist to experience. Using highly durable parts and innovative design features, HPI brought large scale off-road to new enthusiasts and ushered in a new, BIGGER era of RC!

Now, YOU can build and own the legend! Experience the thrill and excitement of building a car which ends up being over 80cm (nearly 32 inches) long and weighing nearly 10kg (over 21 lb)! Just install your own electronics as you build the Baja 5B FLUX and you'll be ready for any adventure that comes your way!

With extra-tough drivetrain parts taken straight from the gasoline-powered version such as the viscous torque differential, super-durable composite spur gear with internal damping and all-metal drivetrain, the Baja 5B FLUX is ready for up to 8S of raw LiPo power, so you can see speeds of over 50 miles per hour!

The Baja 5B FLUX is also equipped with extra-big and super-tough suspension parts, featuring awesome HPI durability! With its expertly designed molded composite suspension plus extra-long adjustable HD shocks, and massive high impact nylon 3-piece beadlock wheels, the Baja 5B is ready for full-speed racing on any off-road circuit!

The 4mm thick 6061 aluminum monocoque chassis fits a huge battery box and has space for the BIGGEST brushless motors you can find for RC, and also features an adjustable motor mount. Precise steering is provided by a dual-bellcrank rack and cam-type servo saver. Aluminum parts are anodized in cool gunmetal and a sleek FLUX-specific clear polycarbonate body is included in the SBK kit, ready for your custom racing scheme!

The Baja 5B FLUX SBK is a great addition to your HPI collection, as well as a fabulous introduction to large scale buggies!

Baja 5b Flux SBK

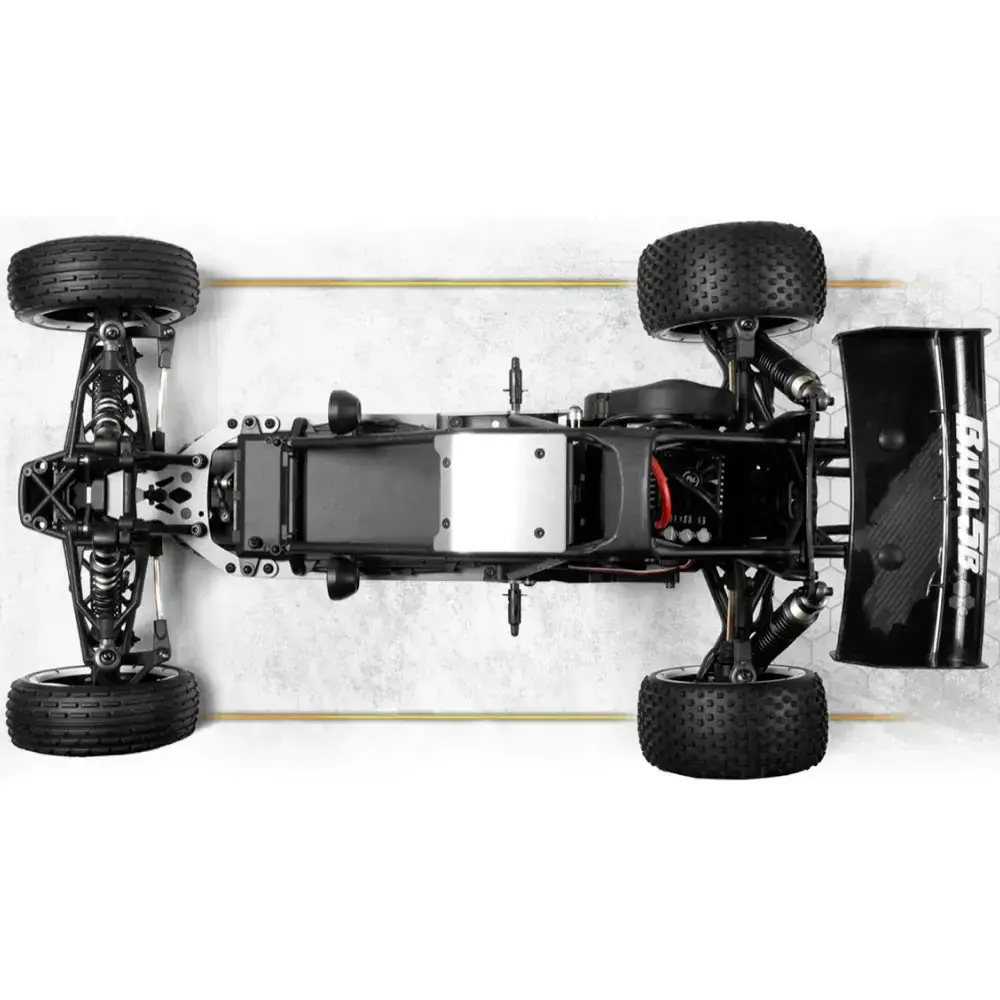

RACING CHASSIS DESIGN & LAYOUT

The narrow channel chassis made from rigid 4mm 6061 aircraft aluminum and gives the HPI Baja 5B FLUX a classic desert racing buggy look and extreme stiffness and durability. The U-shaped chassis is protected at the rear with a thick plastic skid plate for extra protection to the motor and drivetrain.

The tube roll cage is made of high impact nylon and topped with a real aluminum roof to carry on the classic looks. The roll cage is fully functional and protects the motor and internals from crash damage. The roll cage, radio box, body panels, wing, undertray and gear case are all mounted with fast access clips for easy maintenance.

Baja 5b Flux SBK

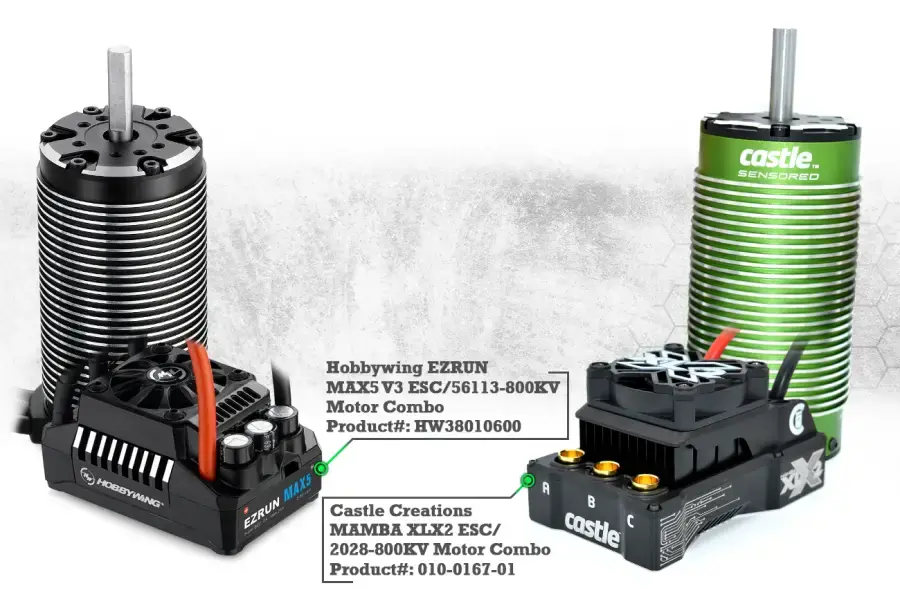

ADD YOUR PREFERRED ELECTRONICS

Building an HPI SBK (Self Build Kit) not only gives you the joy of assembling your own custom vehicle - you also have the opportunity to fit your own electronics package as you go! Whether you buy all-new components or use electronics that you already have on hand, the HPI Baja 5B FLUX is ready and waiting for you to go wild!

Suggested electronic specifications:

Motor: 1/5th scale motor with 800KV rating, maximum 113mm (length) x 56mm (diameter) with 30mm M4 mounting holes
Speed controller: 1/5th scale ESC with 200 amp continuous current rating to match the motor
Battery: total of 4S-8S LiPo, combined maximum size 200 x 84 x 47mm
High-current connectors: matching connectors for the motor, ESC and batteries
Radio system: 2-channel radio & transmitter set with voltage & signal failsafe
Servo: minimum 25kg/cm or 486oz-in rating with 75mm mounting (large scale standard size)
Battery charger: LiPo balance charger suitable for chosen car battery

Baja 5b Flux SBK

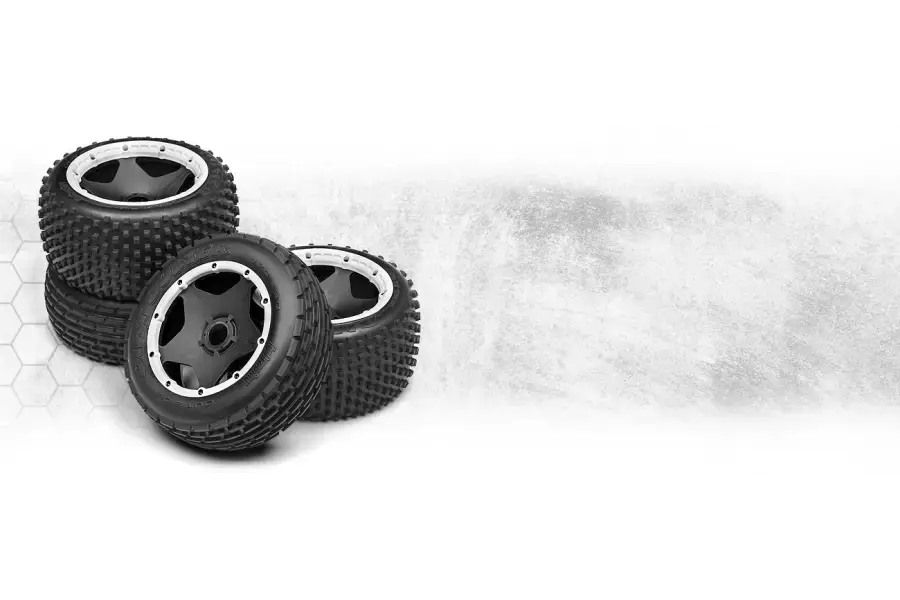

3-PIECE BEADLOK WHEELS & OFF-ROAD RACING TIRES

Specially constructed high-impact nylon 3-piece bead lock wheels are included, featuring NEW inset heavy-duty metal hex hub inserts for massively increased wheel durability. The contrasting beadlock ring is bolted onto the wheel with 20 screws to securely hold the tire in place. No glue is used to mount the tires, which makes changing the tires quick and easy and the wheels can be used again with brand new tires.

To allow the HPI Baja 5B buggies to go anywhere, Dirt Buster off-road tires are included that are ideally suited for off-road conditions. The Dirt Buster S Compound rear tires use a versatile square pin design that sheds mud and gives amazing grip for massive top speed runs, while the Dirt Buster rib tires provide the direction and steering necessary for pinpoint accuracy on the track. The rear tires use a special high-density racing style closed-cell inner foam which are firmer and longer-lasting than standard open-cell foam inserts. The closed cell Insert allows the tires to keep their shape and offer greater grip levels in tougher conditions.

Baja 5b Flux SBK

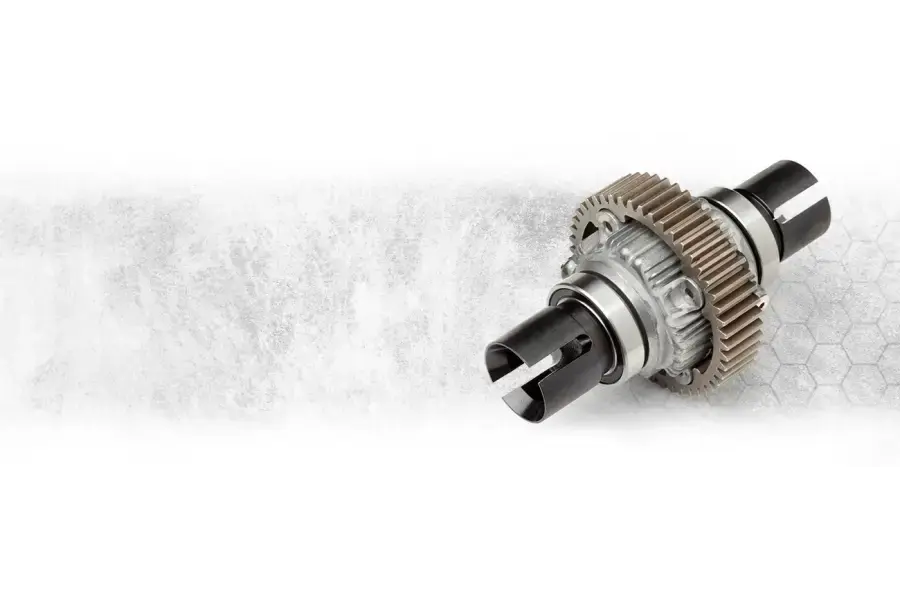

ROCK-SOLID RELIABLE DRIVETRAIN

The legendary HPI Baja 5B Viscous Torque Control differential delivers the power to the rear wheels with smoothness and precision. The differential can be easily tuned by using differential oils of various thicknesses. The metal alloy diff case is finned for extra heat dissipation and to keep the internal gears firmly in place. The diff outdrives or cups are machined from hardened metal for reliable performance in all conditions. The internal gears are also made from hardened metal to handle 8S power, big-air jumps and huge top speeds!




What You Need (Not Included)

  • 2Ch+ Transmitter & Receiver
  • Large Scale Steering Servo
  • Large Scale Brushless Motor and ESC w/ Suitable High-Current Battery Connectors
  • 1 or 2 Matching Battery Packs With w/ Suitable High-Current Battery Connectors
  • Battery Charger and connectors to match ESC w/ Suitable High-Current Battery Connectors
  • Paint
  • Tools



Features

  • Unassembled 1/5th scale electric-powered Off-Road Buggy
  • Ready for your 6S or 8S LiPo electronics
  • Streamlined HPI Baja 5B Flux body design
  • Adjustable motor mount
  • Adjustable HD shock absorbers
  • Monocoque chassis
  • Low CG for superior handling
  • Long travel suspension
  • Viscous torque oil-filled gear differential
  • All-terrain tires
  • Beadlock wheels with metal insert hubs
  • Aluminium rear shock tower
  • Hard plastic skid plates
  • Adjustable rear wing
  • Quick access to all critical maintenance points
  • Dual bellcrank steering
  • Cam type servo saver
  • Hex socket hardware
  • Gunmetal anodizing
  • Full set of rubber-sealed ball bearings
  • Enclosed receiver box



Product Specifications

  • Overall Length 817mm
  • Height: 255mm
  • Width: Front - 460mm; Rear - 480mm
  • Tire Track (to center of tires): Front - 395mm; Rear - 400mm
  • Wheelbase: 570mm
  • Ride Height: 76mm
  • Suspension Travel: Front - 95mm; Rear - 100mm
  • Weight: 9.6kg (21.3lb)
  • Adjustable Camber: front - shims; rear - screw
  • Front caster: adjustable with shim 22 / 25.5* / 29 degrees (* stock)
  • Toe-in: Front adjustable with tie rod; Rear adjustable with inserts 0-4 degrees (3 degrees stock set-up)
  • Aircraft aluminum 6061 T6 monocoque chassis
  • Double wishbone suspension with adjustable roll center F/R
  • Drive system: HD metal gears with sealed gear box (8.382:1 gear ratio)
  • Differential: viscous torque control with 4 pinion gears; sealed diff case with silicone oil
  • Shock absorber: HD Aluminum coilover shock absorber with fully adjustable preload collar
  • Wheel type: 3-piece beadlock design, high impact nylon material with inset heavy-duty metal hex hub



*PLEASE NOTE: This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS Paint series to finish these bodies as standard paints will not adhere and/or cause damage to the body shells surface.*
