Kyosho Ultima 87 JJ Replica 2WD 1:10 Kit 60th Anniversary Limited

Kyosho 60th Anniversary - Romsey 1987 World Championships winning Joel Johnson replica Ultima - Very Limited Edition

Features:

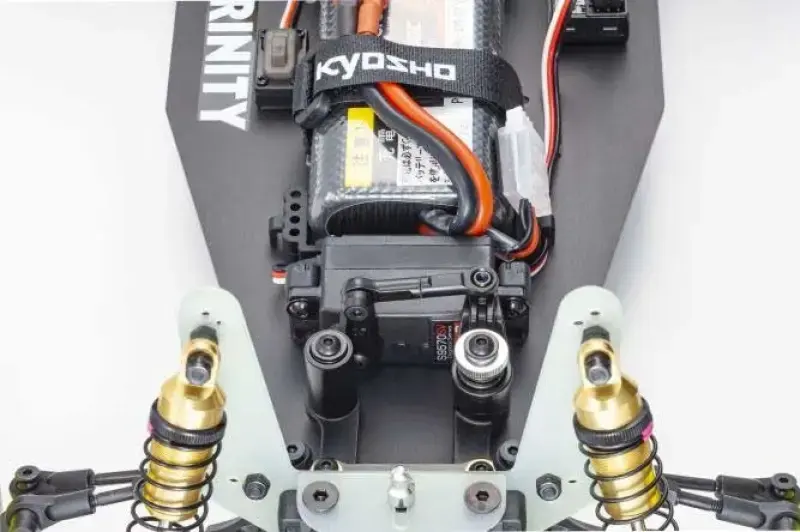

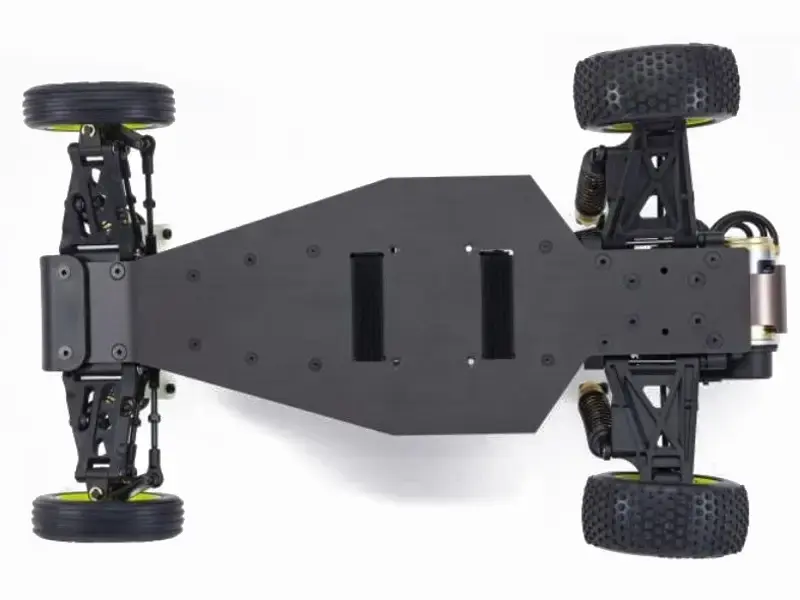

  • Special carbon main chassis with skid angle in the front! New updates for a screw fixture battery holder and servo mount.
  • Machined FRP shock towers!
  • Front and rear gold shocks!! New medium soft springs for the front.

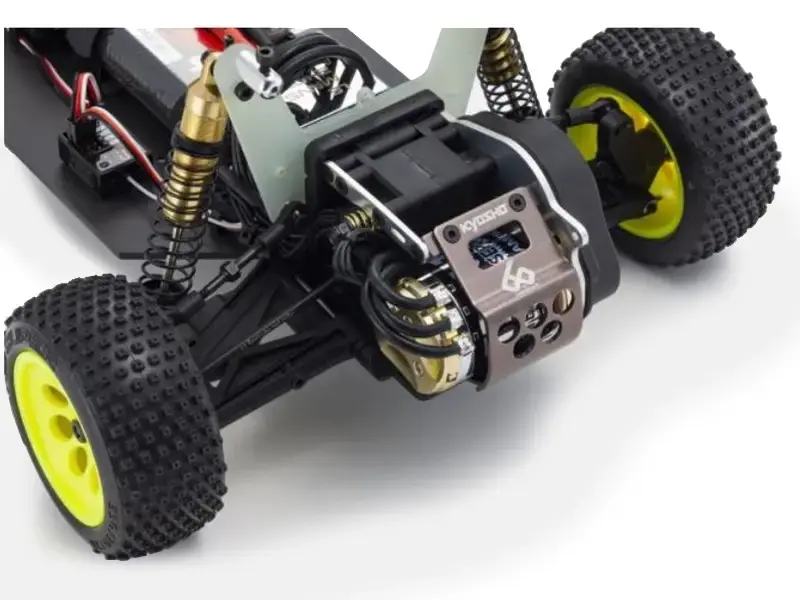

  • Rear aluminum motor guard with special 60th anniversary logo!!.
  • Special limited edition decal set!
  • Wide rear tread!! 2mm offset rear hubs with 1mm washer!
  • Special offset front shafts for increasing forward stability!
  • Ball diff and rear universal swing shafts!
  • Tomahawk body with wing and large side walls!!
  • Turnbuckles for various adjustments!

Technical Data:

  • Length: 405mm
  • Width: 250mm
  • Height: 172mm *Wheelbase: 270mm
  • Tread (F/R): 206mm/214mm
  • Tire Diameter (F/R): φ75mm / φ82mm
  • Tire width (F/R) : 20mm / 36mm
  • Gear Ratio: 8.64 : 1
  • Weight: 1470g

Kit Contents:

  • Pre-assembled Gearbox and Shocks
  • Chassis Parts
  • Clear Body
  • Decals
  • Hex Wrench
  • Cross Wrench
  • Shock Tool
  • Grease and Silicone Oil

Required for Operation:

  • 2CH TX/RX set
  • 1 Standard size servo
  • ESC x 1
  • 540 size brushed motor recommended)
  • 7.2V NiMh Battery or 2S Li-Po pack(ESC needs to be compatible)
  • Charger
