On Sale
5% OFF
SKU: PHD-LW-25MG

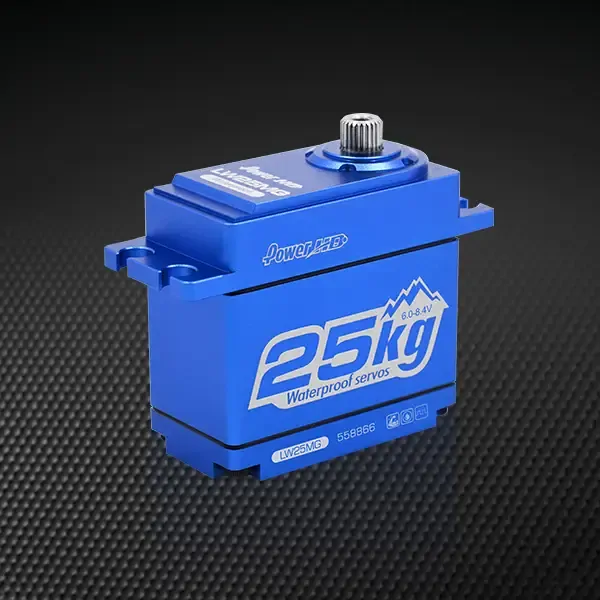

Power HD LW-25MG Standard DC Motor Copper & Aluminum Gear Servo - PHD-LW-25MG
$90.24
or 4 payments of $22.56 with
Info
Price Matchup
Description
Power HD LW-25MG Standard DC Motor Copper & Aluminum Gear Servo
Product Specifications
| Specifications | ||
| Torque(6.0V) | 23.0 kg-cm (319.4 oz/in) | |
| Torque(7.4V) | 25.0 kg-cm (347.2 oz/in) | |
| Speed | 0.16 sec (6.0V) ~ 0.14 sec (7.4V) | |
| Operating Voltage | 6.0 ~ 8.4 DC Volts | |
| Weight | 72 g (2.54 oz)/td> | |
| Bearing Type | Ball Bearing x 2 | |
| Motor Type | DC Motor | |
| Gear Type | Copper & Aluminum | |
| Operating Temperature | -20 ~ 60 | |
| Working frequency | 1520 s / 333hz | |
| Size | 40.7 x 20.5 x 38.6 mm ( 1.60 x 0.81 x 1.52 in) | |
Description
SpecificationsPower HD LW-25MG Standard DC Motor Copper & Aluminum Gear Servo
Product Specifications
| Specifications | ||
| Torque(6.0V) | 23.0 kg-cm (319.4 oz/in) | |
| Torque(7.4V) | 25.0 kg-cm (347.2 oz/in) | |
| Speed | 0.16 sec (6.0V) ~ 0.14 sec (7.4V) | |
| Operating Voltage | 6.0 ~ 8.4 DC Volts | |
| Weight | 72 g (2.54 oz)/td> | |
| Bearing Type | Ball Bearing x 2 | |
| Motor Type | DC Motor | |
| Gear Type | Copper & Aluminum | |
| Operating Temperature | -20 ~ 60 | |
| Working frequency | 1520 s / 333hz | |
| Size | 40.7 x 20.5 x 38.6 mm ( 1.60 x 0.81 x 1.52 in) | |
Description
Power HD LW-25MG Standard DC Motor Copper & Aluminum Gear Servo
Product Specifications
| Specifications | ||
| Torque(6.0V) | 23.0 kg-cm (319.4 oz/in) | |
| Torque(7.4V) | 25.0 kg-cm (347.2 oz/in) | |
| Speed | 0.16 sec (6.0V) ~ 0.14 sec (7.4V) | |
| Operating Voltage | 6.0 ~ 8.4 DC Volts | |
| Weight | 72 g (2.54 oz)/td> | |
| Bearing Type | Ball Bearing x 2 | |
| Motor Type | DC Motor | |
| Gear Type | Copper & Aluminum | |
| Operating Temperature | -20 ~ 60 | |
| Working frequency | 1520 s / 333hz | |
| Size | 40.7 x 20.5 x 38.6 mm ( 1.60 x 0.81 x 1.52 in) | |
Specifications
| SKU | PHD-LW-25MG |
| Barcode # | 6939680252505 |
| Brand | Power HD |
| Shipping Weight | 0.0300kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.010m |
| Shipping Length | 0.080m |
| Shipping Cubic | 0.000064000m3 |
