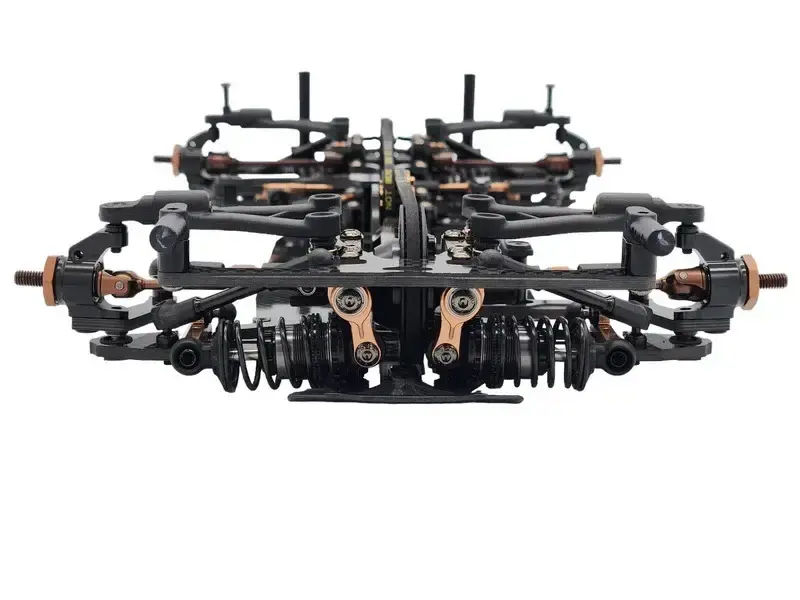

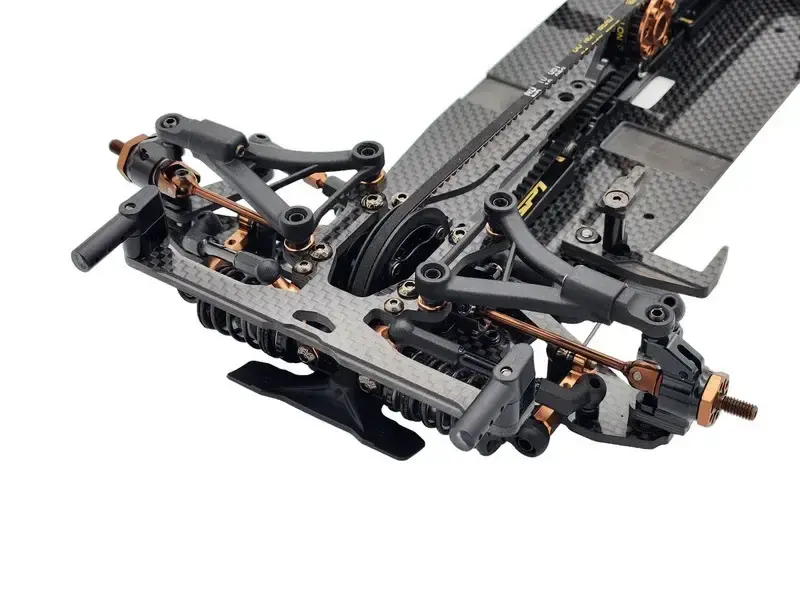

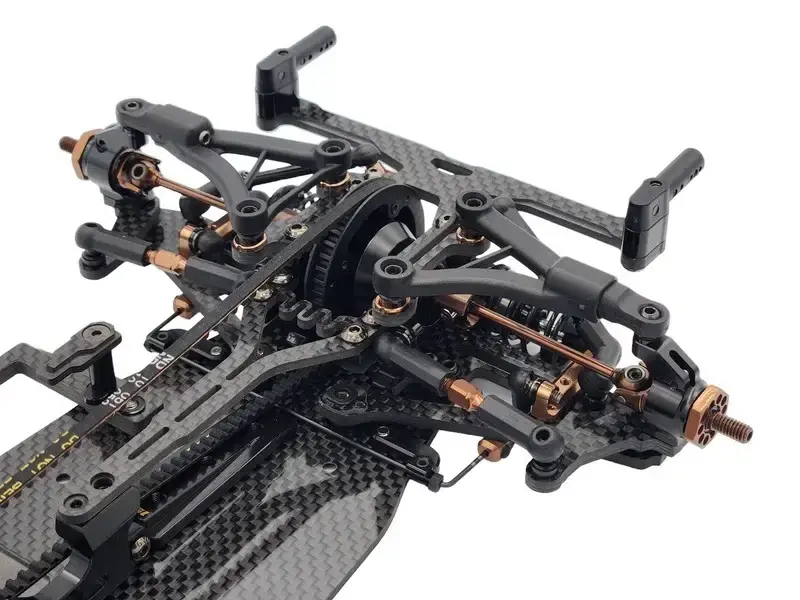

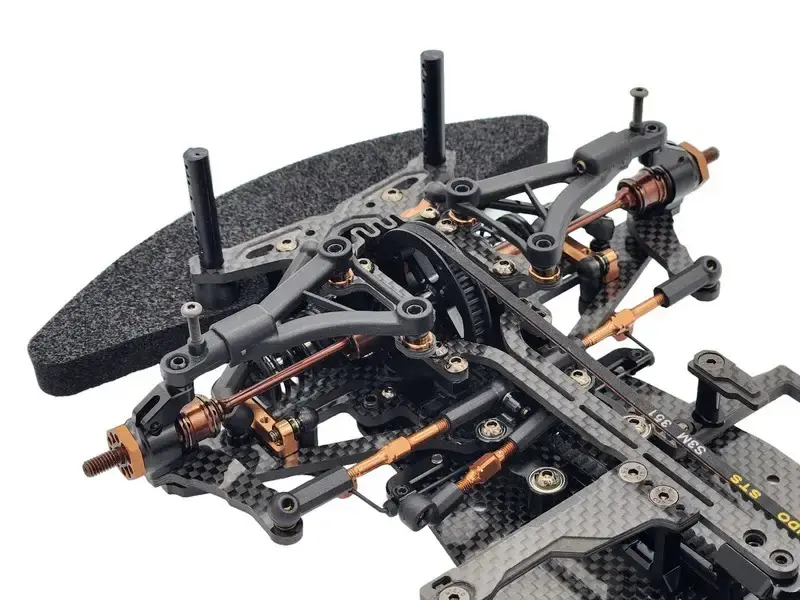

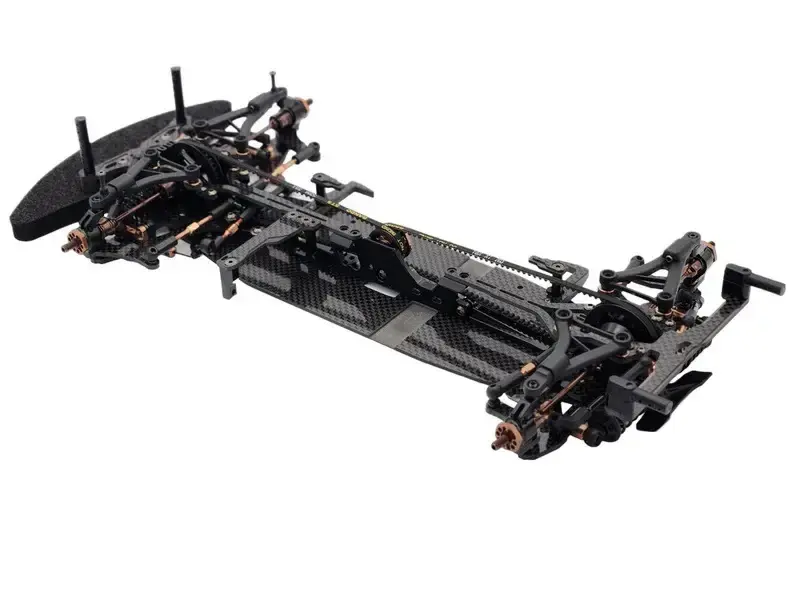

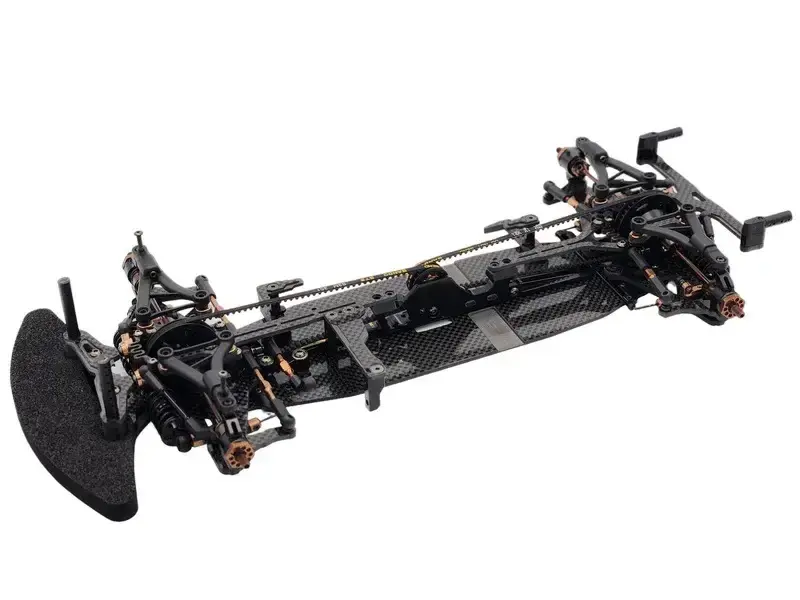

RC MAKER presents the next evolution in touring car design, the SP1! Developed by top touring car racer and RC MAKER Owner, Ryan Maker, the SP1 embodies over 20 years of hobby experience and 8 years in design and manufacturing. This revolutionary chassis is the result of thousands of hours of meticulous design and manufacturing, bringing you a racing machine like no other.

Key Features

• Ultra-Low CG Design: The SP1 features a lay-down push-rod shock absorber and 19mm high topdeck, drastically lowering the center of gravity.
• Under-Arm Anti-Roll Bar: Lowers the CG and allows for easy changes and adjustments.
• Minimized Chassis Width and Length: Reduces ground contact for less scrubbing and improved agility.
• Centrally Located Components: Spur-gear, motor-mount, and suspension components are centrally located to reduce the moment of inertia.
• Composite Upper Arms: Adjustable caster via inserts, providing user-friendly setup options.
• Aluminum Diff and Spool: Designed for durability and efficiency with maximum heat dissipation.
• Adjustable Diff Height and Belt Tension: Easily adjustable via composite eccentrics.
• Built-In Belt Tensioners: Rear and center tensioners for modified racing.
• High-Quality Driveshafts: Hard-coated for maximum longevity and efficiency.
• Premium Shocks and Springs: Manufactured by AXON Japan, ensuring smooth and consistent performance.
• Quick Release Battery System: Allows for easy battery changes and position adjustments.
• Brass Weights: Centrally mounted for optimal weight distribution and car flex tuning.
• Premium Hardware: High-quality screws and bearings for durability and corrosion resistance.
• Global Support Network: RC MAKER provides extensive support and collaboration with customers and team drivers worldwide.

Detailed Descriptions

• Lay-Down Push-Rod Shock Absorber Design: This innovative design significantly lowers the CG by positioning the shock along the arm. The suspension compresses the shock from both ends, providing a progressive nature similar to traditional setups. Adjustability includes shims for leverage changes and a full range of linear and progressive springs for tuning.

• 19mm High Topdeck: Lowering the topdeck reduces the overall CG. This design also softens the topdeck, compensated by increasing its thickness to 2.25mm.

• Under-Arm Anti-Roll Bar: Positioned as low as possible for a lower CG, this system simplifies adjustments and changes, enhancing tweak control.

• Minimized Chassis Width and Length: The short and narrow chassis centralizes weight and reduces scrubbing, making the car more nimble and improving corner speed.

• Composite Upper Arms: Fixed-type caster design with adjustable caster via inserts and easy camber adjustments using a special set screw.

• Aluminum Spool and Diff: Lightweight yet durable, with a spider-gear design and keyed pulleys to minimize wear and ensure efficient performance.

• Adjustable Diff Height and Belt Tension: Two diff heights and seven belt tension positions, adjustable via composite eccentrics.

• Built-In Belt Tensioners: Rear and center tensioners prevent belt skipping under high load, particularly useful in modified racing.

• Driveshafts: Hard-coated components for maximum durability and efficiency, minimizing wear and allowing smooth suspension operation under load.

• Shocks and Springs: High-quality, low-friction shock absorbers with integrated bladders and AXON Japan springs for optimal performance.

• Quick Release Battery System: Twistable tabs and carbon hooks for easy battery changes and position tuning.

• Brass Weights: Included front and rear weights for optimal weight distribution and car flex tuning.

• Premium Hardware: Nickel-coated screws and high-grade ball bearings for maximum durability and rust resistance.

Manufacturing and Support

The SP1 features components manufactured in Australia, Taiwan, and China to the highest tolerance standards. RC MAKER ensures a robust support network, offering setup and assembly assistance, as well as public collaboration with customers and team drivers.

The RC MAKER SP1 Competition Touring Chassis is designed for everyone, from beginners to seasoned racers. It’s easy to drive straight out of the box, with great durability and extensive tuning options to suit any driving style and track condition. Experience the next level of touring car performance with the RC MAKER SP1.
