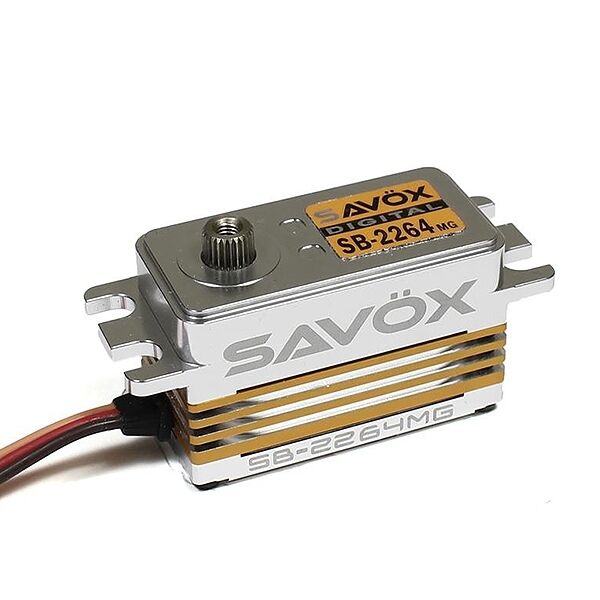

Savox Low profile FMJ servo 15kg @7.4V "High Speed" Brushless Metal Gear Servo - SAV-SB2264MG

Product Information

Combines leading edge technology with super high 12 bit (4096) resolution. Ideal for 1/10 on road vehicles, 1/10 scale off road, and helis. Brushless motor provides longer life and cooler operating temps. Full Aluminum Case, Unique Steel Gears.

Technical Description

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 180mA @6.0V, 220mA @7.4V
• Stall Current (at locked): 2900mA @6.0 V, 3700mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 200 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless

Product Specifications

• Torque @ 6v - 12.0kg/166.8oz-in
• Torque @ 7.4v - 15.0kg/208.3oz-in
• Speed @ 6v - 0.11 sec/60 deg
• Speed @ 7.4v - 0.085 sec/60 deg

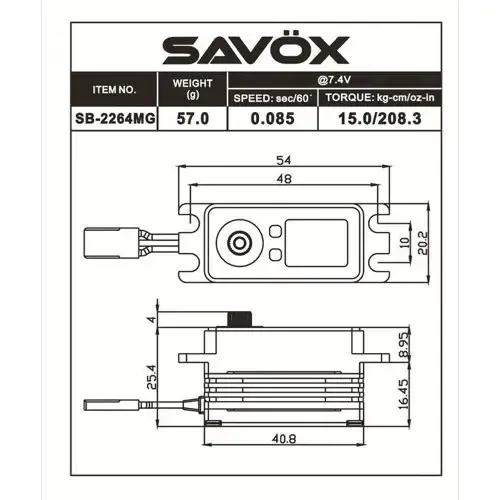

• Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
• Weight: 57.0g
