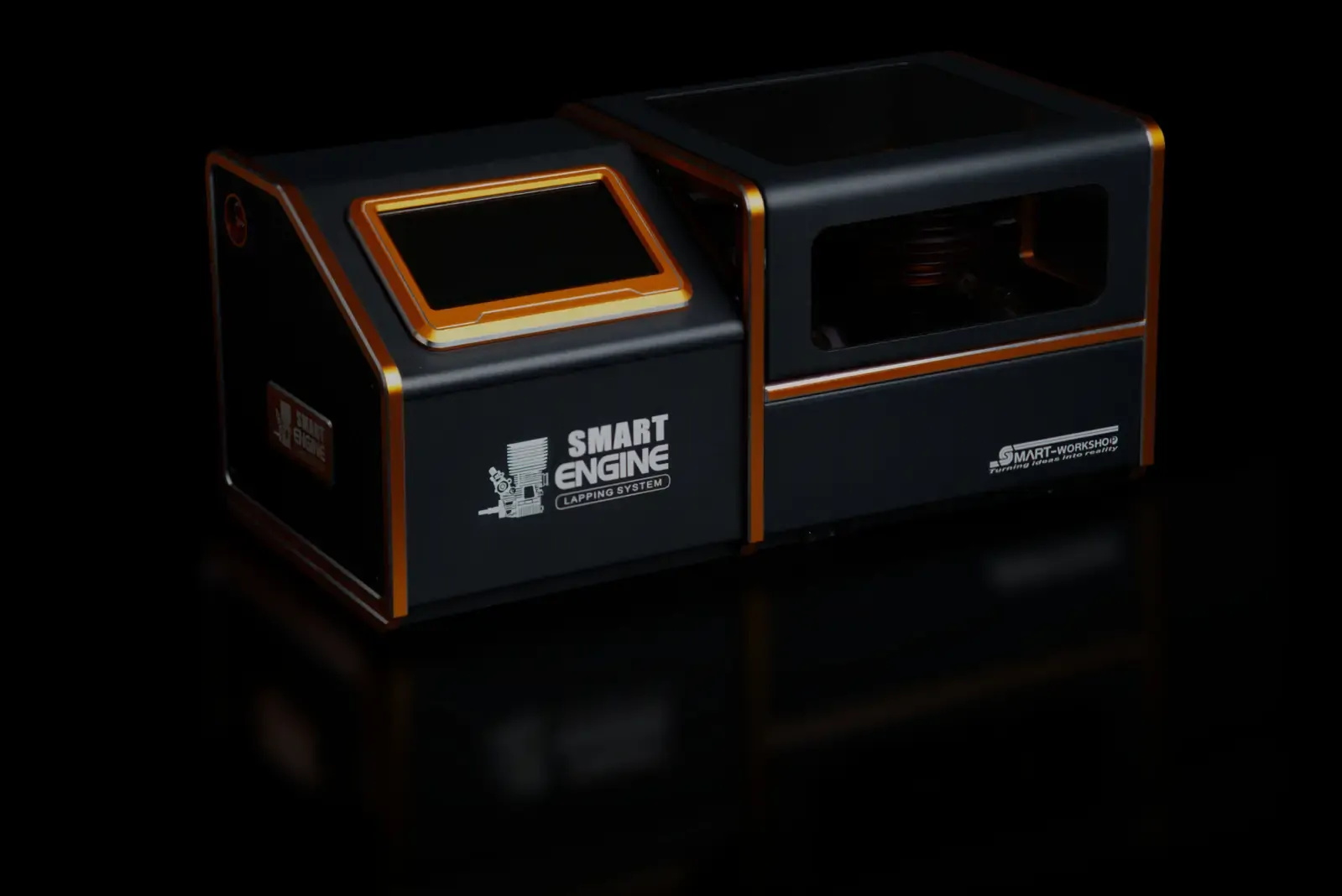

Smart Workshop Engine Lapping System Premium Oil Bath

The system is integrated with a Touch Panel for an easier and user-friendly operating experience. All of the parameters can be adjusted with the touch panel flawlessly and saved for your next break-in. SMART System is not only customizable for a personal break in preference, but it also includes a Parameter Safety Warning to ensure your Parameter Setting is in a "Safe Range". For the hardware, the system had built in sensors to detect the system is working in good conditions as always and it will be warning the user once the system detected any unusual issues.

Automation

Automate the break in process with a modern way

Flexible Parameter

The flexibility of a professional tool is important to user preference

Time Control

Anytime, anywhere. Setup the break in progress to suit your schedule

Safety

Integrate with a Safety program to ensure your parameters are in a "Safe Range"

HEATSINK WITH HEATER

A special heatsink is included with an internal heater to heat up your engine without external tools.

*Only available in Oil Running

INLET & OUTLET

Specially designed Inlet and Outlet port that fits most of the engines in the market and prepares your engine seamlessly.

*Only available in Oil Running

HEAVY-DUTY MOTOR

A clamp-style adapter is included connecting your engine to the heavy-duty lapping motor in an easier way.

OIL FILTER

Filter up the oil before going into your engine. This is one of the most important features of this system, keep the oil clean to avoid any unexpected damage to the engine during break in.

*Only available in Oil Running

SWITCHABLE MODULE

You can switch between Oil Running Module and Oil Bath Module with only one main device.

REMOVABLE COVER

Blocking the oil from the engine while the system operating. Monitoring the engine through the transparent material cover.

*Only available in Oil Bath

OIL HEATER

Heating and controlling the oil temperature for your break in preference.

BUILT IN OIL PUMP

Built-in oil pump for the refill and redrawing of the oil without external tools.

SAFETY COVER

Not only safety, this cover will also avoid the surrounding environment affecting the engine heating and cooling process.

FUSES

The system is protected by fuses, the fuses will prevent the system from overcurrent of an electrical circuit.

Included Item

• SMART Engine Lapping System
• Instruction Manual
• Spare Fuses
• Fuel Line

Compatibility

• 21. Nitro Engine
• 12. Nitro Engine (Required 1/10 engine mount)

What You Need (Not Included)

• Nitro Engine
• Synthetic Oil (at least 1L)
• Power Supply (min 20A & 12V – 13.8V)

Adjustable Parameter

• Engine Heating Temperature
• Engine Cooling Temperature
• Oil Heat Temperature
• RPM (MAX 650 RPM)
• RPM Based On Time
• Duration
• Number of Cycles
• Overheat Protection
• Cutoff RPM

Dimensions

• Height : 158mm
• Depth : 229mm (Oil Running)
• Depth : 160mm (Oil Bath)
• Width : 336mm
