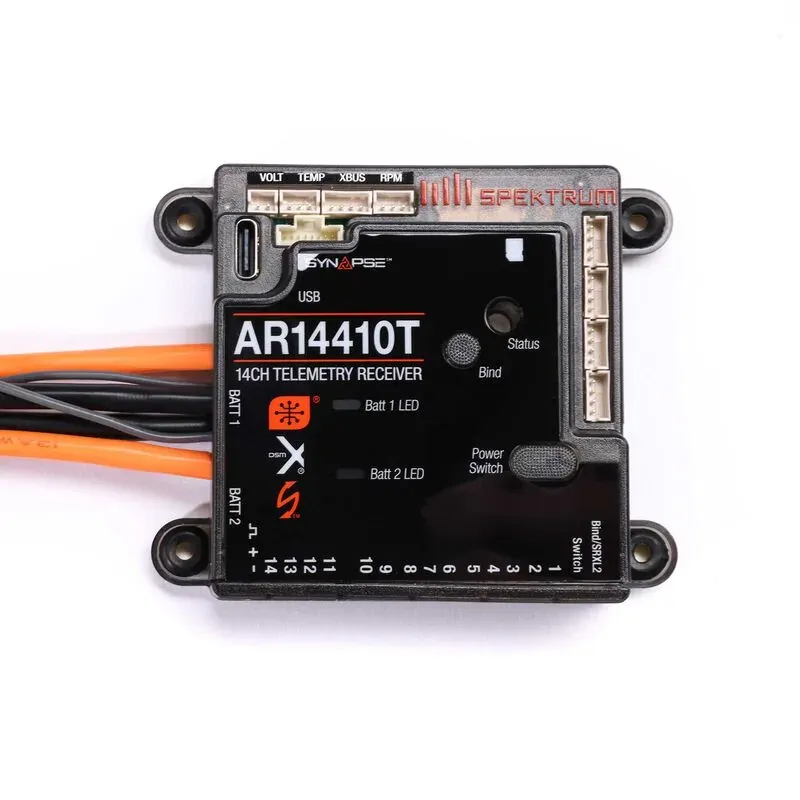

Spektrum AR14410T 14 Channel PowerSafe Telemetry Receiver

The AR14410T is a 14-channel receiver with full-range telemetry that uses the Spektrum™ PowerSafe™ redundant battery system. It features connections for full telemetry support including RPM, Flight Pack Voltage and Temperature, and X-Bus. The receiver also has a built-in vario/altitude sensor and mAh sensors that allow tracking of consumed mAh. It can be powered through the servo bus or 13AWG battery leads with IC3™ connections. It is compatible with the Spektrum Synapse™ AS3X+ / SAFE (SPMAS6000) stabilization module, delivering instantaneous attitude corrections and enhancing flight stability.



Features

  • Compatible with the Synapse™ AS3X+/SAFE Flight Stabilization Module (SPMAS6000, not included)

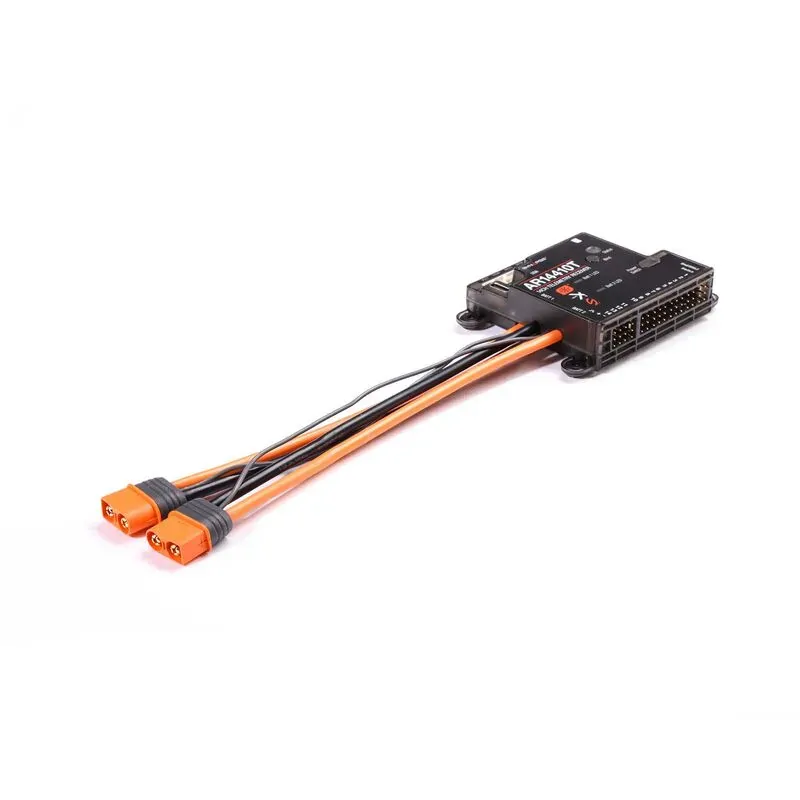

  • Patented PowerSafe™ redundancy system with dual 13 AWG battery leads with IC3 connectors. Perfect for power hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
  • Forward programming allows for easy adjustments to failsafe settings, servo frame rate settings and more
  • Innovative power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter
  • Regenerative servo support for any number of servos
  • USB-C port for easy product registration and firmware updates
  • 12V capable for use with 12-volt servo applications (must be activated via Forward Programming)
  • Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed
  • Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)
  • Integrated status LED provides helpful information during start up, warnings and mode indicators
  • Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
  • Receiver pack energy & voltage sensor and flight log telemetry data available without the need for additional sensors
  • Full range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules
  • Included Soft Switch allows servo current to be routed around the switch, so if the switch fails for any reason, power to the system will not be interrupted
  • Rubber grommet hard mounts and minimalistic labeling helps produce the cleanest model setups
  • Capable of high-speed 11ms frame rates
  • Binding is easier than ever with four options to initiate the bind process
  • Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion

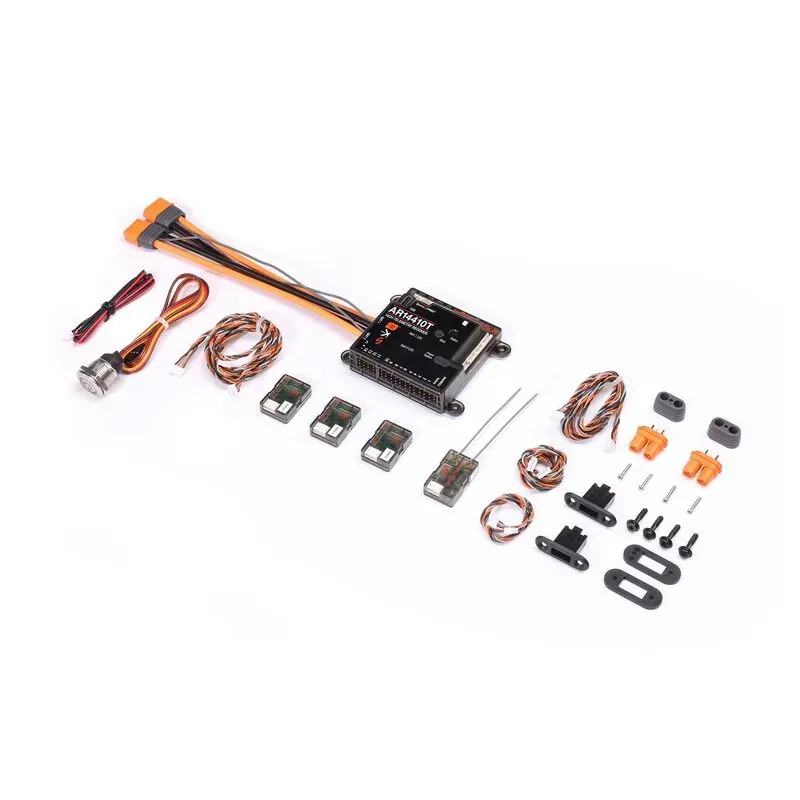

What's In The Box

  • (1) AR14410T 14 Channel PowerSafe Receiver

  • (1) SPM4651T SRXL2 Remote Serial Telemetry Receiver

  • (3) SPM9747 SRXL2 DSMS Remote Receivers

  • (1) 9" SRXL2 Remote Receiver Extension

  • (1) 12" SRXL2 Remote Receiver Extension

  • (1) 24" SRXL2 Remote Receiver Extension

  • (1) 36" SRXL2 Remote Receiver Extension

  • (2) Battery IC3 Connectors

  • (2) Charge Receptacles

  • (1) Aircraft Telemetry Volt Sensor

  • (1) Soft Switch

  • (1) Instruction Manual
