SKU: SPMXAM4620

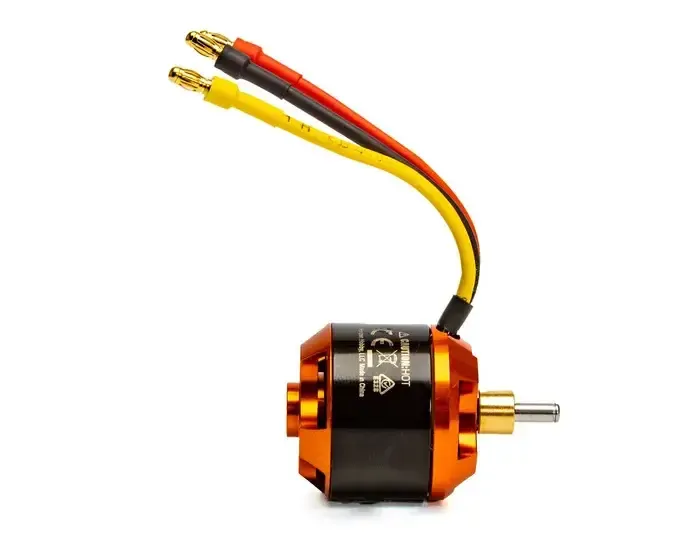

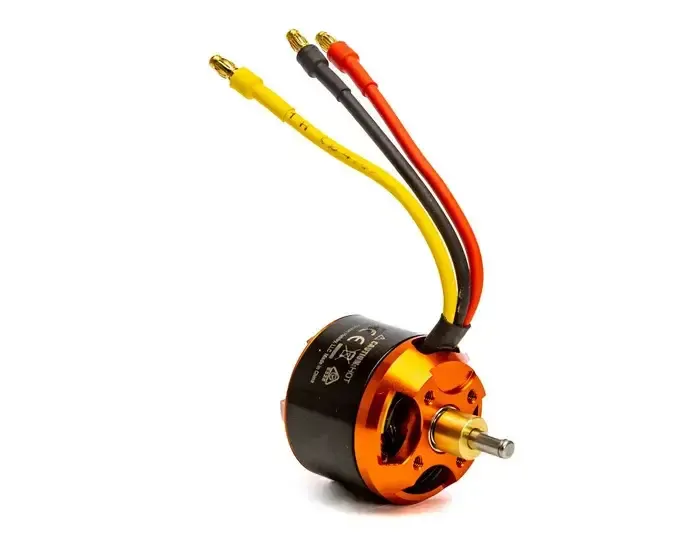

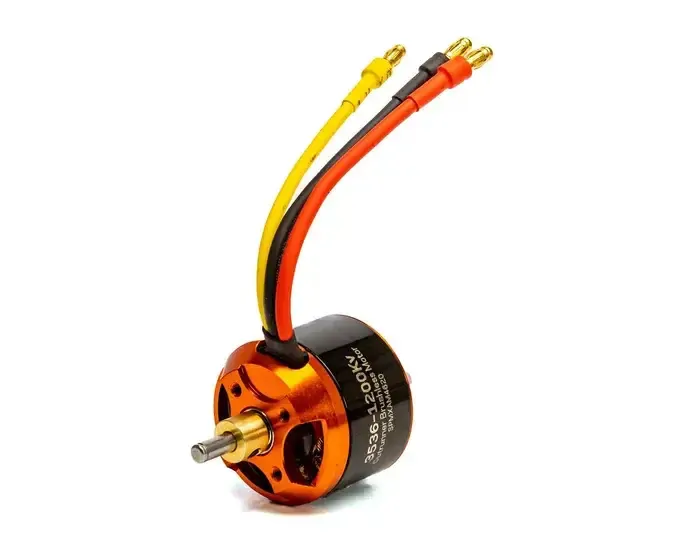

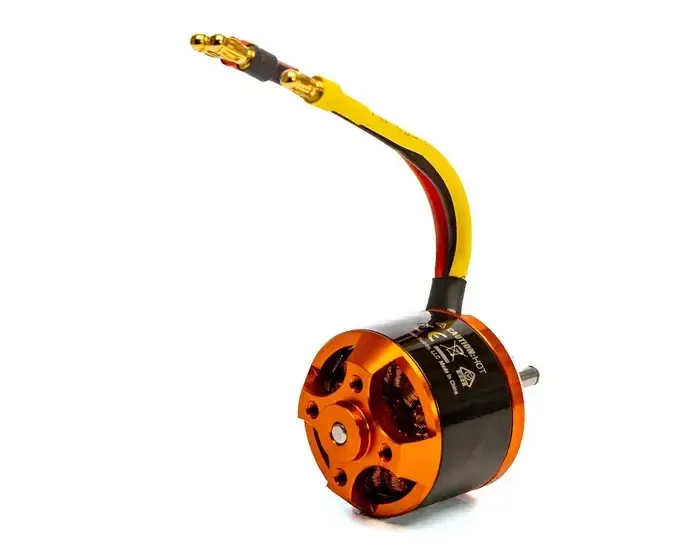

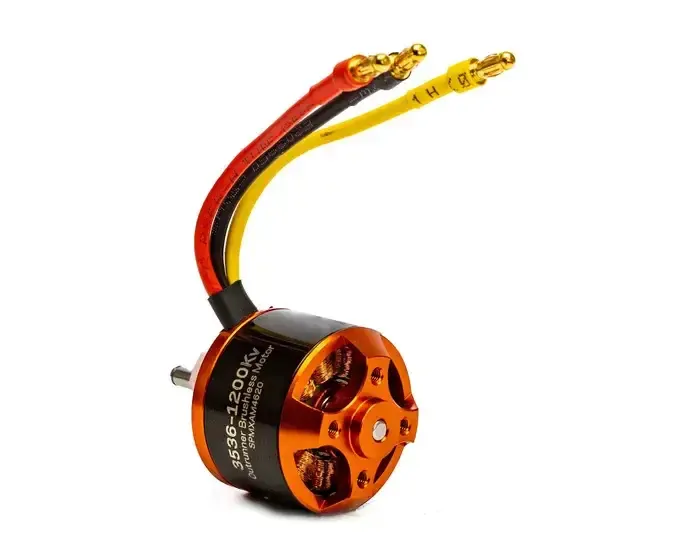

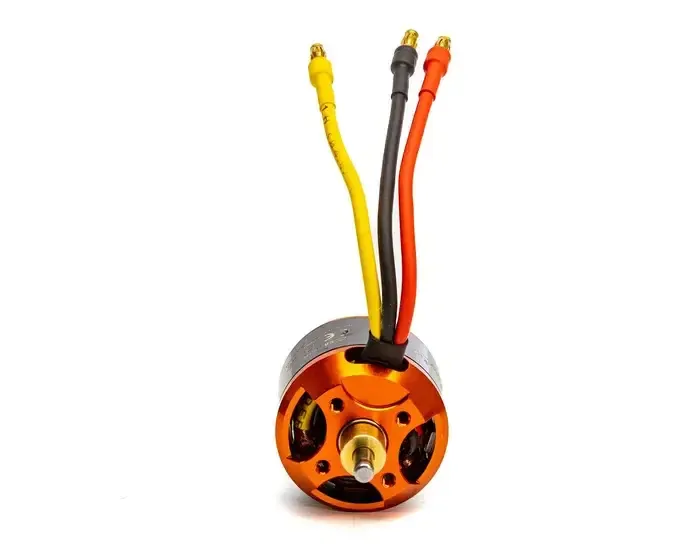

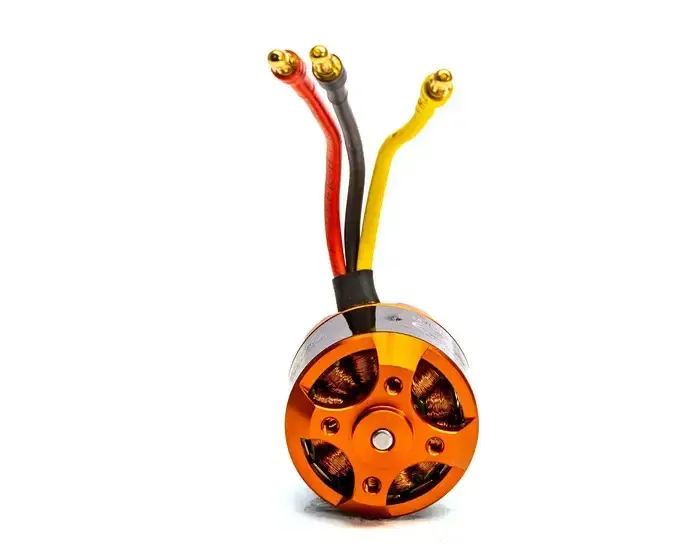

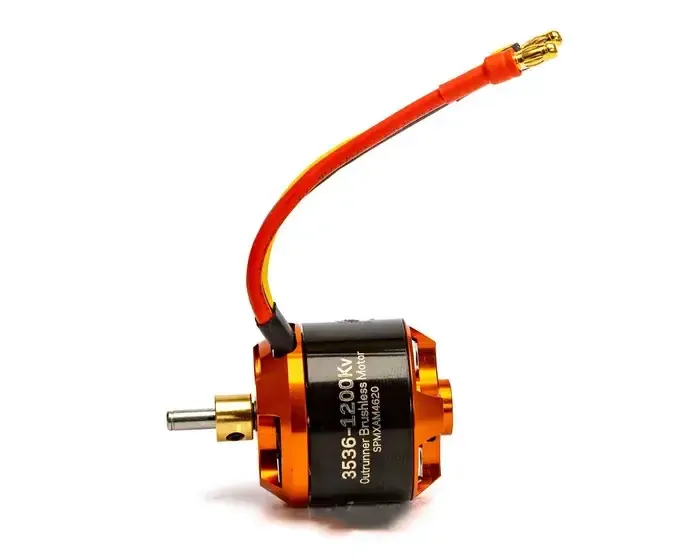

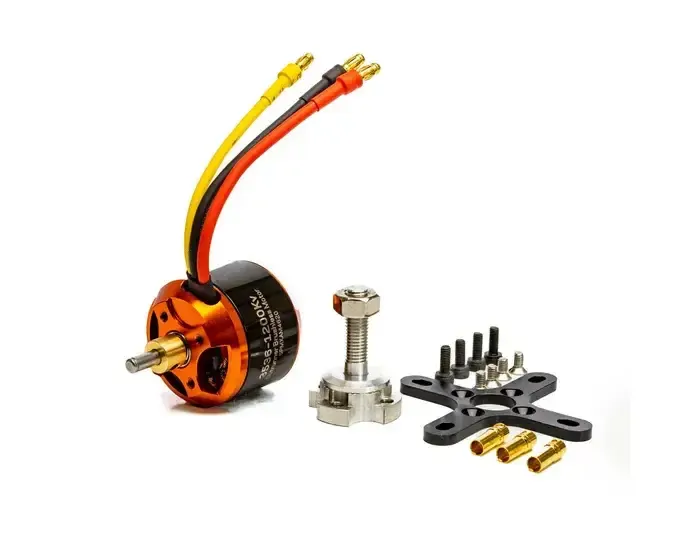

Spektrum Avian 3536-1200Kv Brushless Outrunner Motor - SPMXAM4620
$184.29
or 4 payments of $46.07 with
Info
Price Matchup
Description
Spektrum Avian 3536-1200Kv Brushless Outrunner Motor - SPMXAM4620
Product Information
Take to the Skies with the Spektrum Avian 3536-1200Kv Brushless Outrunner Motor for Fixed-wing Models
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!
Features
- Lightweight design
- Powerful and durable Rare-Earth Neodymium magnets
- 14-pole stator for smooth and precise propulsion
- Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
- Perfect match for the Spektrum Smart Avian 45 amp ESC
- Perfect electric conversion upgrade for .15 size glow combustion power systems
- Recommended Voltage Range – 11.1v - 14.8V / 3-4S LiPo
- Recommended Propeller Range – 10x7 to 11x7 Electric Prop
- Recommended Model Flying weight – 3D 1135g (2.5 lbs) - Sport 1815g (4 lbs)
- Max Wattage – 310w
- Max Current – Max Burst Amps (45A) Max Continuous Amps (35A)
Product Specifications
- Maximum Burst Current: 45A
- Forward: Yes
- Number of Poles: 14
- Application: Sport airplanes up to 4lbs (1815g) and 3D airplanes up to 2.5lbs (1135g)
- RPM/Volt (Kv): 1200
- Bearing: Yes
- Outer Diameter: 1.37" (35 mm)
- Product Length: 1.42" (36 mm)
- Shaft Length: 0.65" (17 mm)
- Motor Size: 3536-1200KvConnector Type: 3.5mm Bullet
- Product Weight: 3.6oz (102g)Input Voltage: 11.1v - 14.8V / 3-4S LiPo
- Motor Type: Brushless - Outrunner
- Shaft Diameter: 0.16" (4 mm)
- Maximum Continuous Current: 35A
- Recommended Prop Range: 10x7 to 11x7 Electric Prop
Description
SpecificationsSpektrum Avian 3536-1200Kv Brushless Outrunner Motor - SPMXAM4620
Product Information
Take to the Skies with the Spektrum Avian 3536-1200Kv Brushless Outrunner Motor for Fixed-wing Models
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!
Features
- Lightweight design
- Powerful and durable Rare-Earth Neodymium magnets
- 14-pole stator for smooth and precise propulsion
- Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
- Perfect match for the Spektrum Smart Avian 45 amp ESC
- Perfect electric conversion upgrade for .15 size glow combustion power systems
- Recommended Voltage Range – 11.1v - 14.8V / 3-4S LiPo
- Recommended Propeller Range – 10x7 to 11x7 Electric Prop
- Recommended Model Flying weight – 3D 1135g (2.5 lbs) - Sport 1815g (4 lbs)
- Max Wattage – 310w
- Max Current – Max Burst Amps (45A) Max Continuous Amps (35A)
Product Specifications
- Maximum Burst Current: 45A
- Forward: Yes
- Number of Poles: 14
- Application: Sport airplanes up to 4lbs (1815g) and 3D airplanes up to 2.5lbs (1135g)
- RPM/Volt (Kv): 1200
- Bearing: Yes
- Outer Diameter: 1.37" (35 mm)
- Product Length: 1.42" (36 mm)
- Shaft Length: 0.65" (17 mm)
- Motor Size: 3536-1200KvConnector Type: 3.5mm Bullet
- Product Weight: 3.6oz (102g)Input Voltage: 11.1v - 14.8V / 3-4S LiPo
- Motor Type: Brushless - Outrunner
- Shaft Diameter: 0.16" (4 mm)
- Maximum Continuous Current: 35A
- Recommended Prop Range: 10x7 to 11x7 Electric Prop
