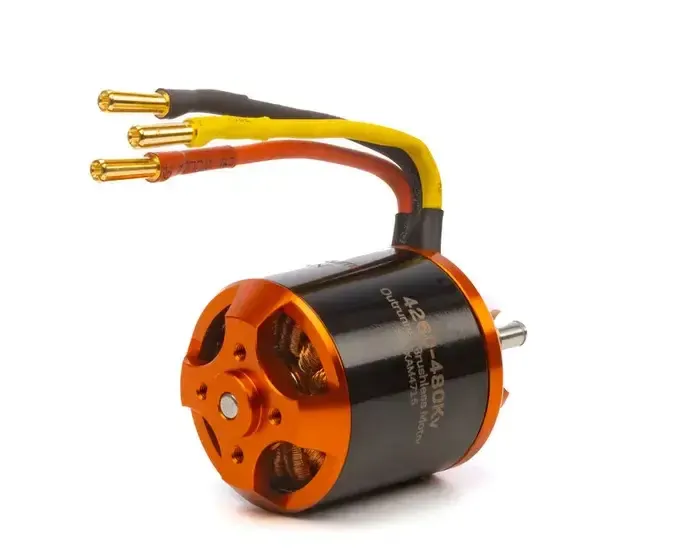

Spektrum Avian 4260-480Kv Brushless Outrunner Motor - SPMXAM4715

Product Information

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Key Benefits

Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features

• Lightweight design
• Powerful and durable Rare-Earth Neodymium magnets
• 14-pole stator for smooth and precise propulsion
• Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
• Perfect match for the Spektrum Smart Avian 60 amp ESC
• Perfect electric conversion upgrade for .55 size glow combustion power systems

Important Specs

• Recommended Voltage Range – 18.5-22.2V / 5-6S LiPo
• Recommended Propeller Range – 13x10 to 15x8 Electric Propeller
• Recommended Model Flying weight – 3D 2720g (6 lbs) - Sport 4310g (9.5 lbs)
• Max Wattage – 810w
• Max Current – Max Burst Amps (105A) Max Continuous Amps (60A)

Product Specifications

• Application: Sport airplanes up to 9.5lbs (4310g) and 3D airplanes up to 6lbs (2720g)
• Connector Type: 4mm Bullet
• Motor Type: Brushless
• Product Length: 2.4" (61 mm)
• Maximum Burst Current: 1850W
• RPM/Volt (Kv): 480
• Outer Diameter: 1.7" (43 mm)
• Shaft Length: 0.67" (17 mm)
• Input Voltage: 18.5-22.2V (5-6S LiPo)
• Shaft Diameter: 0.2" (5 mm)
• Maximum Continuous Current: 830W
• Recommended Prop Range: 13x10E - 15x8E
• Product Weight: 9.5oz (268g)
