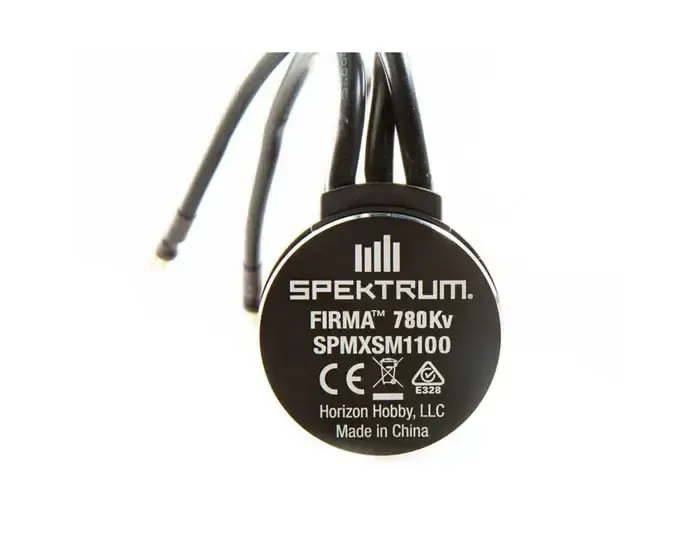

Spektrum Firma 780Kv Brushless Motor - SPMXSM1100



Product Information

The Spektrum Firma 780Kv Brushless Motor is the perfect option for 1/5th scale models looking to run an 8S LiPo powered setup.

Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminium housing with heat sinking fins, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and high-precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors. Perfectly matched to the Firma 160 Smart ESC.



What's in the box?

  • Spektrum Firma 5613-780Kv Sensorless 1/5 Brushless Motor with 6.5mm Gold Plated Bullet Connectors



What You Need

  • Electronic Speed Control such as the Firma 160 Smart ESC



Features

  • Heat sinking designed CNC aluminum housing
  • 8S LiPo power capable
  • Hgh efficiency design
  • High-quality 4-pole sintered rotors
  • Includes 6.5mm gold plated bullet connectors
  • Precision ball bearings and hardened steel 8mm shaft



Product Specifications

  • Maximum Continuous Current: 200A
  • Input Voltage: 12-35.2V
  • Output: 7000W
  • Shaft Diameter: 5/16" (8mm)
  • Weight: 43oz (1220g)
  • Wire Gauge: 10 AWG
  • Cells: 4-8S LiPo
  • Connector Type: 4mm Bullet, 6.5mm Bullet
  • Efficiency: 90%
  • Recommended Speed Control: Spektrum Firma 160 Smart ESC
  • Number of Poles: 4
  • Outer Diameter: 2.2 in (56mm)
  • Motor Type: Brushless, Brushless
  • Overall Length: 4.4" (113mm)
  • RPM/Volt (Kv): 780Kv
  • Bushing Or Bearing: Bearing
