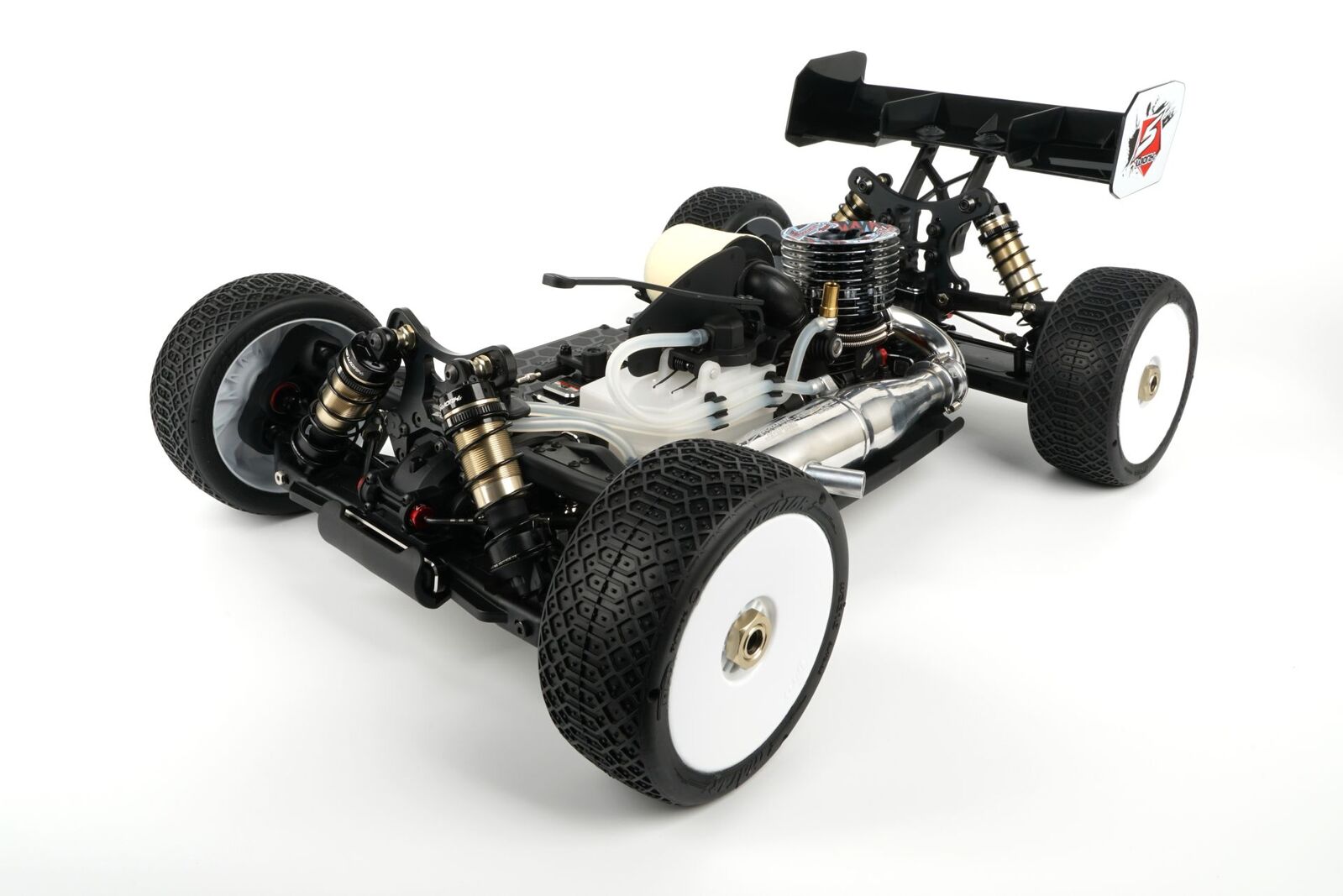

The SWORKz S35-5 1/8 Pro Nitro Buggy Pro Kit represents the next generation of SWORKz competition 1/8 nitro buggy development. Built upon the highly successful S35-4 EVO platform, the all-new S35-5 has been refined to deliver increased corner speed, improved traction, greater precision and more forgiving handling for serious off-road racing.

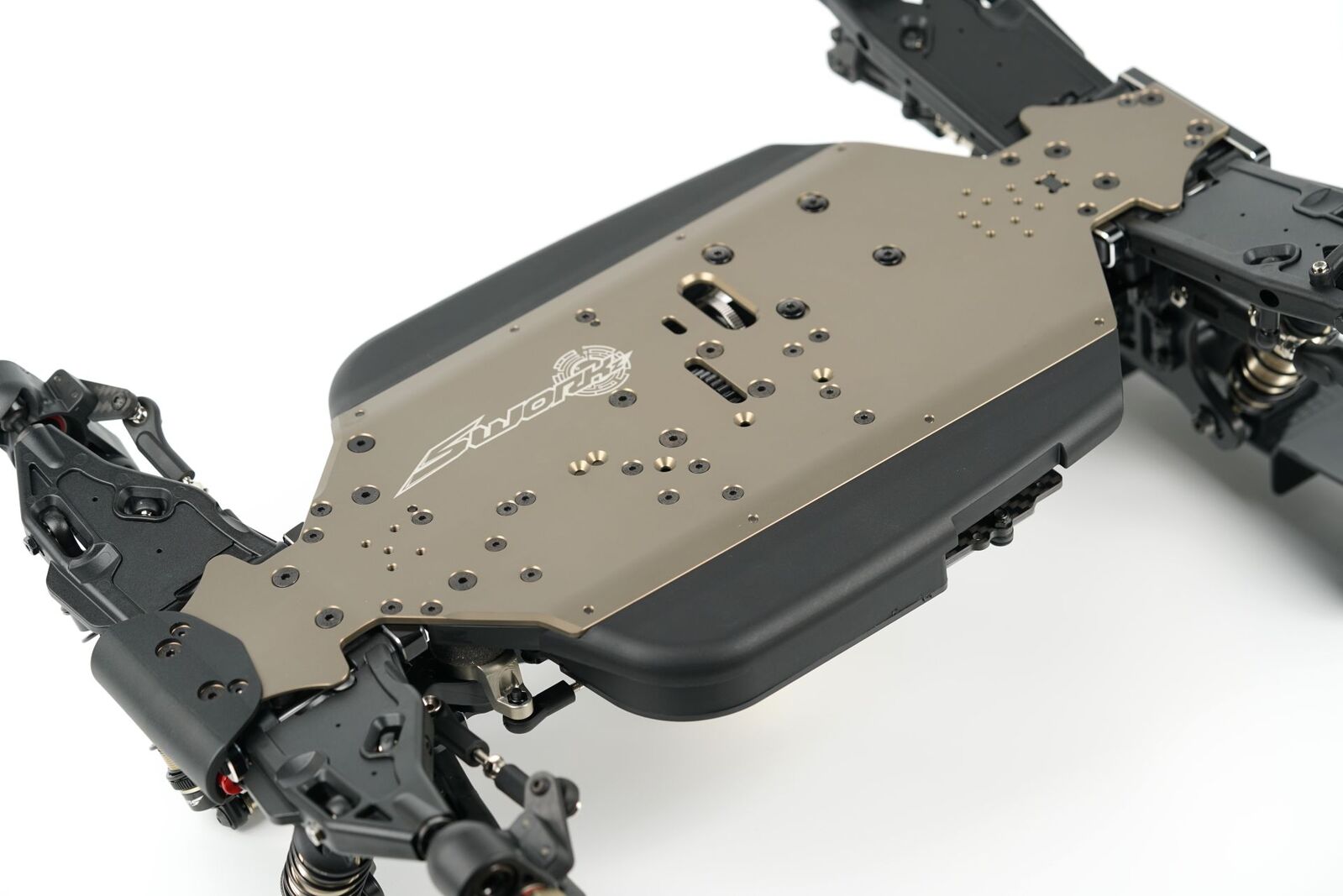

At the heart of the S35-5 is an entirely redesigned T7075 hard-anodised lightweight aluminium chassis. The new shorter chassis layout optimises weight distribution to create a more direct driving feel, improved agility and better overall balance. Combined with numerous lightweight components throughout the buggy, the design helps deliver faster cornering and more consistent lap times.

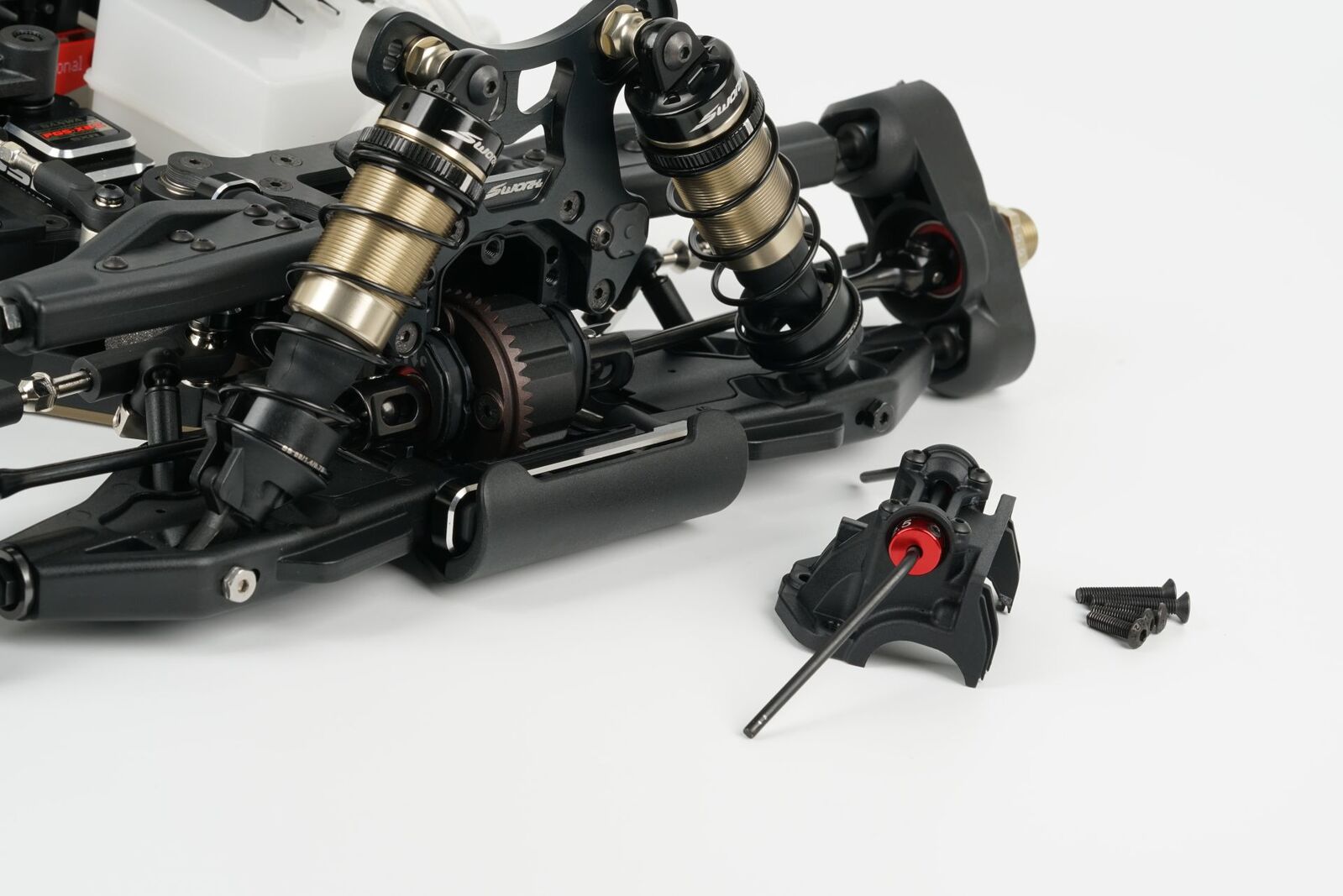

A major development is the new Quick Diff Release gearbox system, designed to make differential changes significantly faster during maintenance and setup adjustments. The S35-5 also introduces an adjustable differential and pinion gear height system, giving racers additional control over drivetrain characteristics for different track conditions.

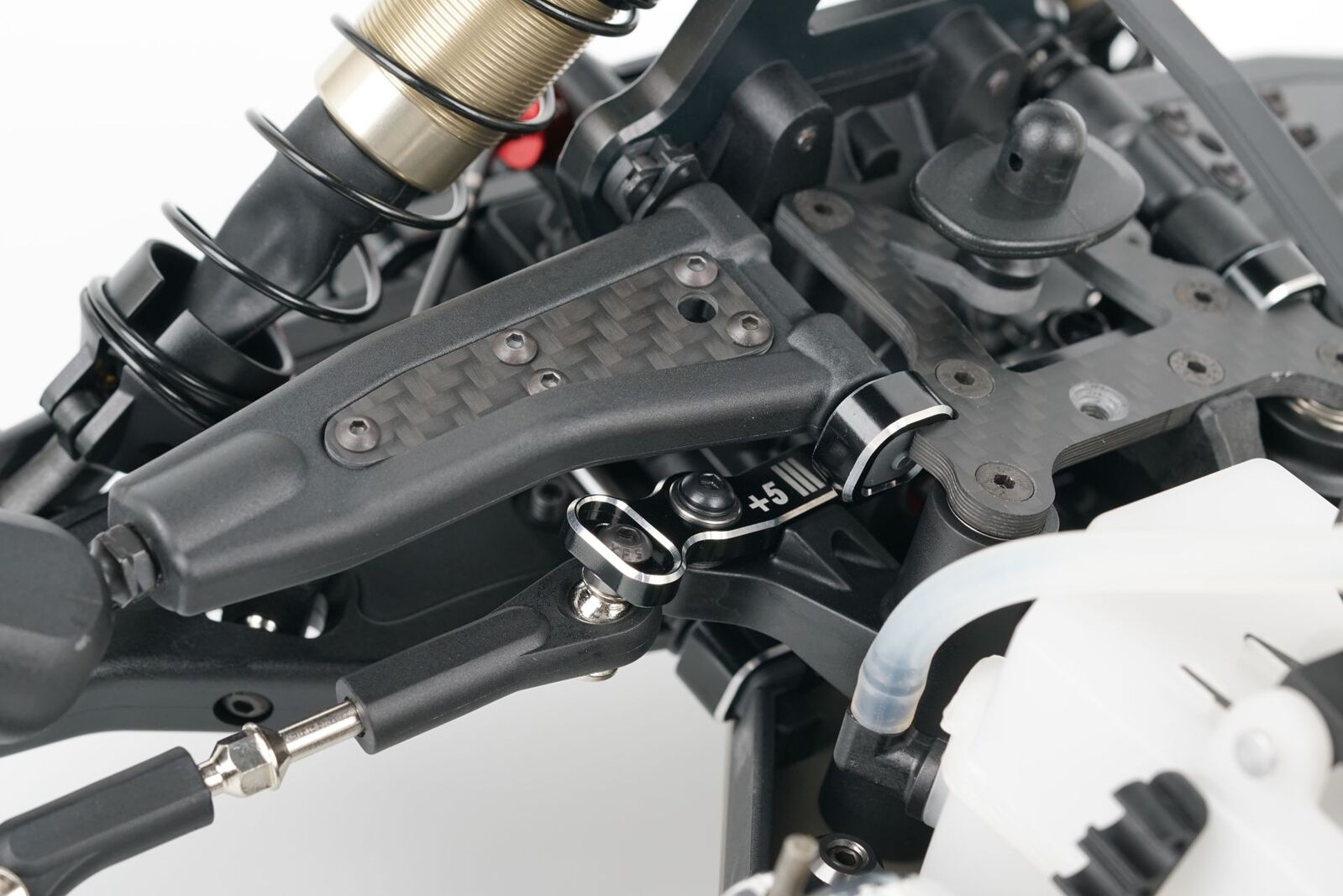

The suspension and handling package has received extensive development. A new ball bearing-guided sway bar system provides exceptionally smooth and precise operation, while the updated steering system and new AL7075 aluminium +5 Ackermann steering plate improve steering response and stability through high-speed corners.

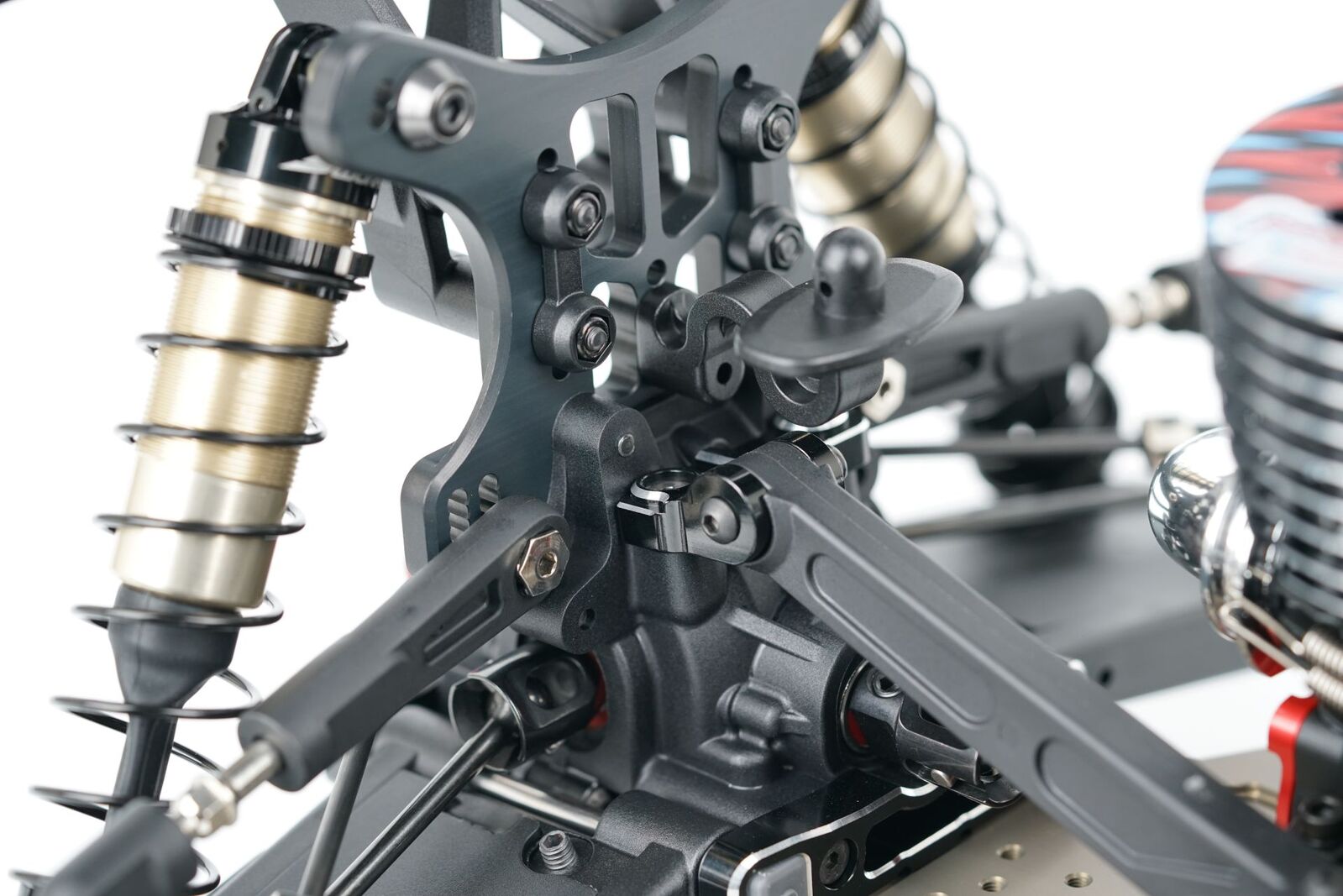

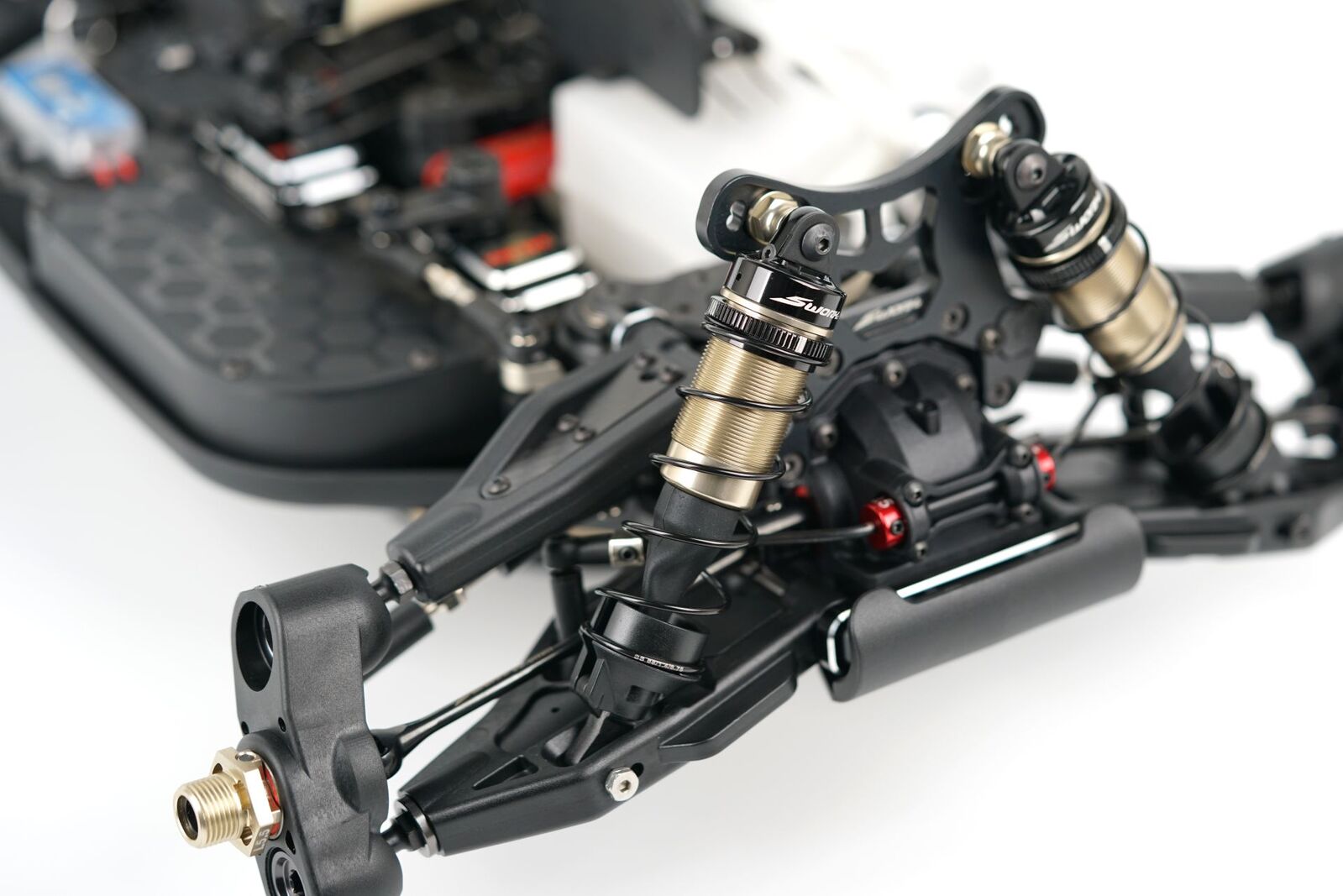

New shock towers provide dual mounting positions, while Samurai Competition shock springs and expanded suspension setup possibilities give racers the flexibility to fine-tune the S35-5 for different surfaces, track layouts and driving styles.

Durability remains a major focus throughout the design. SWORKz uses high-grade T7075 and AL7075 aluminium, precision-manufactured components and advanced production techniques to reduce unnecessary weight while maintaining the reliability required for demanding 1/8 nitro racing.

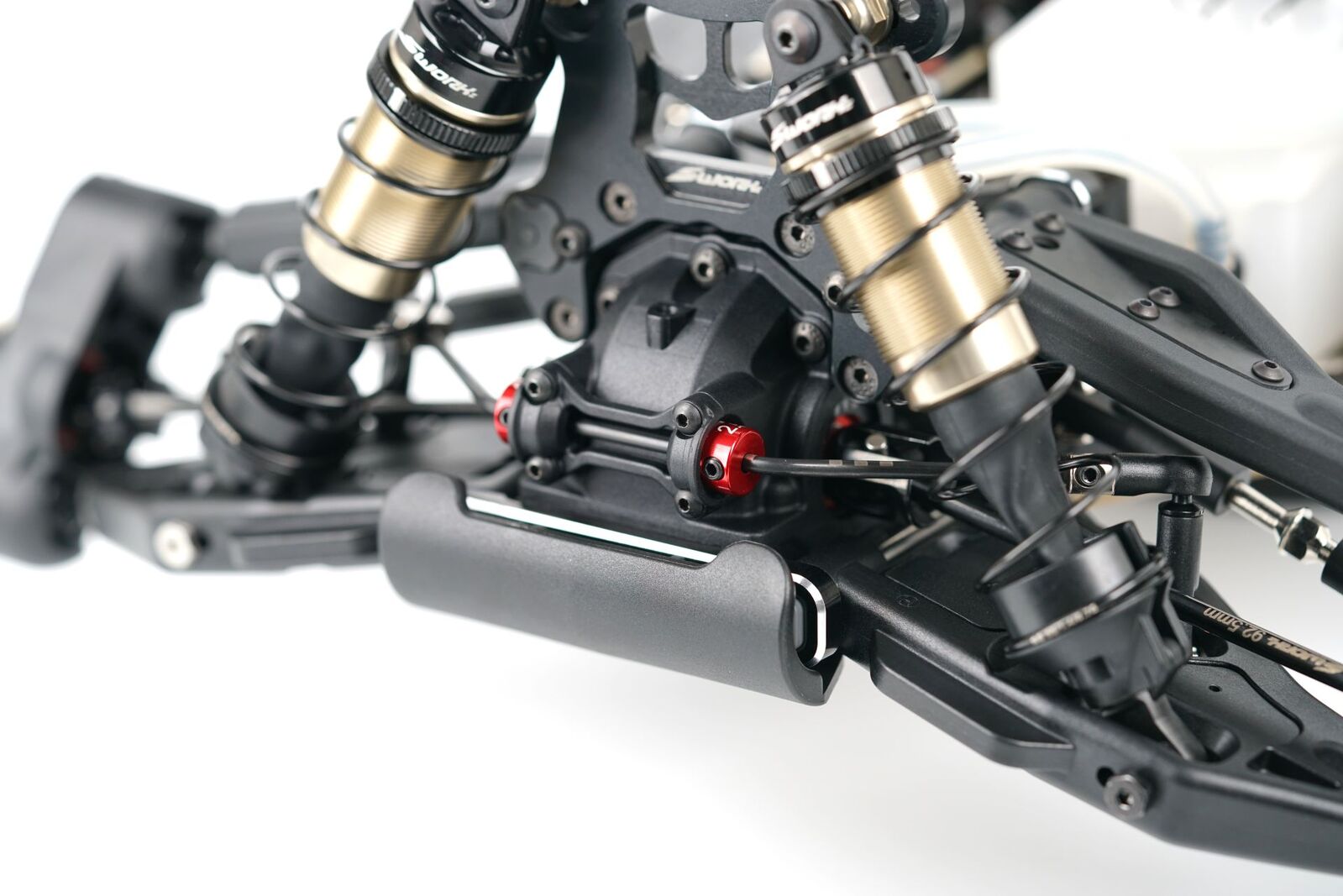

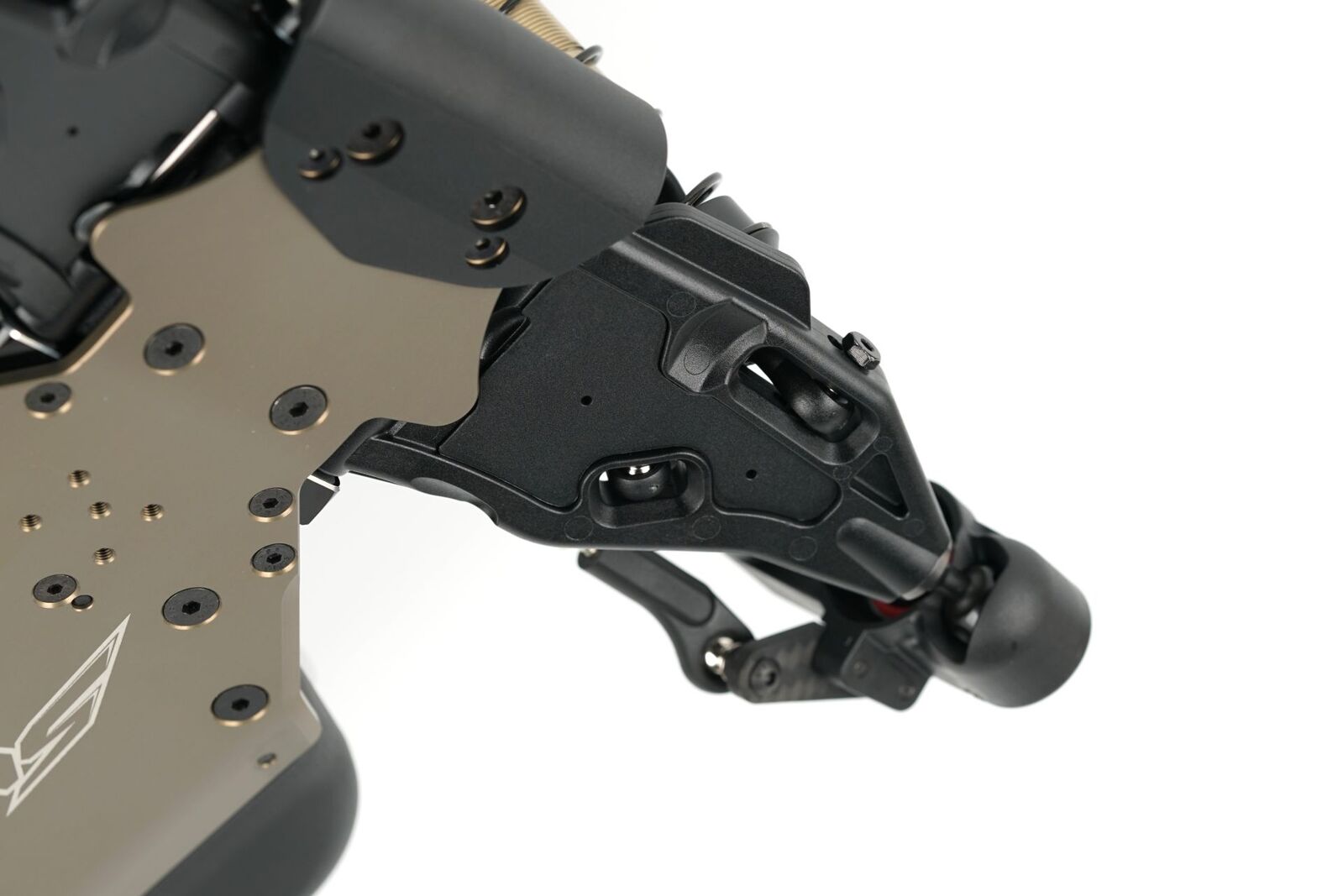

Additional updates include new aluminium Intensity F/F and R/F narrow lower suspension mounts, updated toe-in plates with square inserts, lower suspension arm protection covers and an aerodynamically optimised Falcon ST-5 body shell.

The S35-5 has been developed for racers across a wide range of skill levels. Professional drivers can take advantage of its extensive tuning possibilities, while club and hobby racers benefit from a highly effective base setup designed to perform exceptionally well across a wide variety of tracks.

Available from Campbelltown Hobbies, the SWORKz S35-5 combines speed, precision, consistency and drivability in a modern 1/8 nitro competition buggy designed to push the S35 platform to its next level.

---

Required Items

• 1/8 Scale Nitro Engine
• Suitable Exhaust System
• Steering Servo
• Throttle/Brake Servo
• Receiver
• Radio Transmitter
• Receiver Battery
• Wheels
• Tyres
• Nitro Fuel
• Glow Igniter
• Starter Equipment
• Polycarbonate Paint
• Assembly Tools

---

Specifications

Brand: SWORKz

Model: S35-5 Pro Nitro Buggy

Scale: 1/8

Power Source: Nitro

Drive System: 4WD

Vehicle Type: Competition Off-Road Buggy

Completion Level: Pro Kit

Application: Nitro Off-Road Racing

Chassis: T7075 Hard-Anodised Lightweight Aluminium

Chassis Design: New Short Chassis

Radio Tray: Carbon Plate Style

Gearbox: Quick Diff Release System

Differential Height: Adjustable

Pinion Gear Height: Adjustable

Sway Bar System: Ball Bearing Guided

Shock Towers: Dual Mounting Positions

Shock Springs: Samurai Competition

Ackermann Plate: AL7075 Aluminium +5

Lower Suspension Mounts: Aluminium Intensity F/F & R/F Narrow

Toe-In Plates: Updated with Square Inserts

Suspension Arm Protection: Lower Arm Protection Covers

Body: Falcon ST-5 Aerodynamically Optimised Body Shell

Length: 510mm

Width: 308mm

Height: 220mm

Ground Clearance: 65mm

Wheelbase: 325–330mm

Front Track: 304mm

Rear Track: 306mm

Centre Gear Ratio: 47/13T

Front/Rear Gear Ratio: 43/13T

Race Weight: Approximately 3400g

---

Key Features

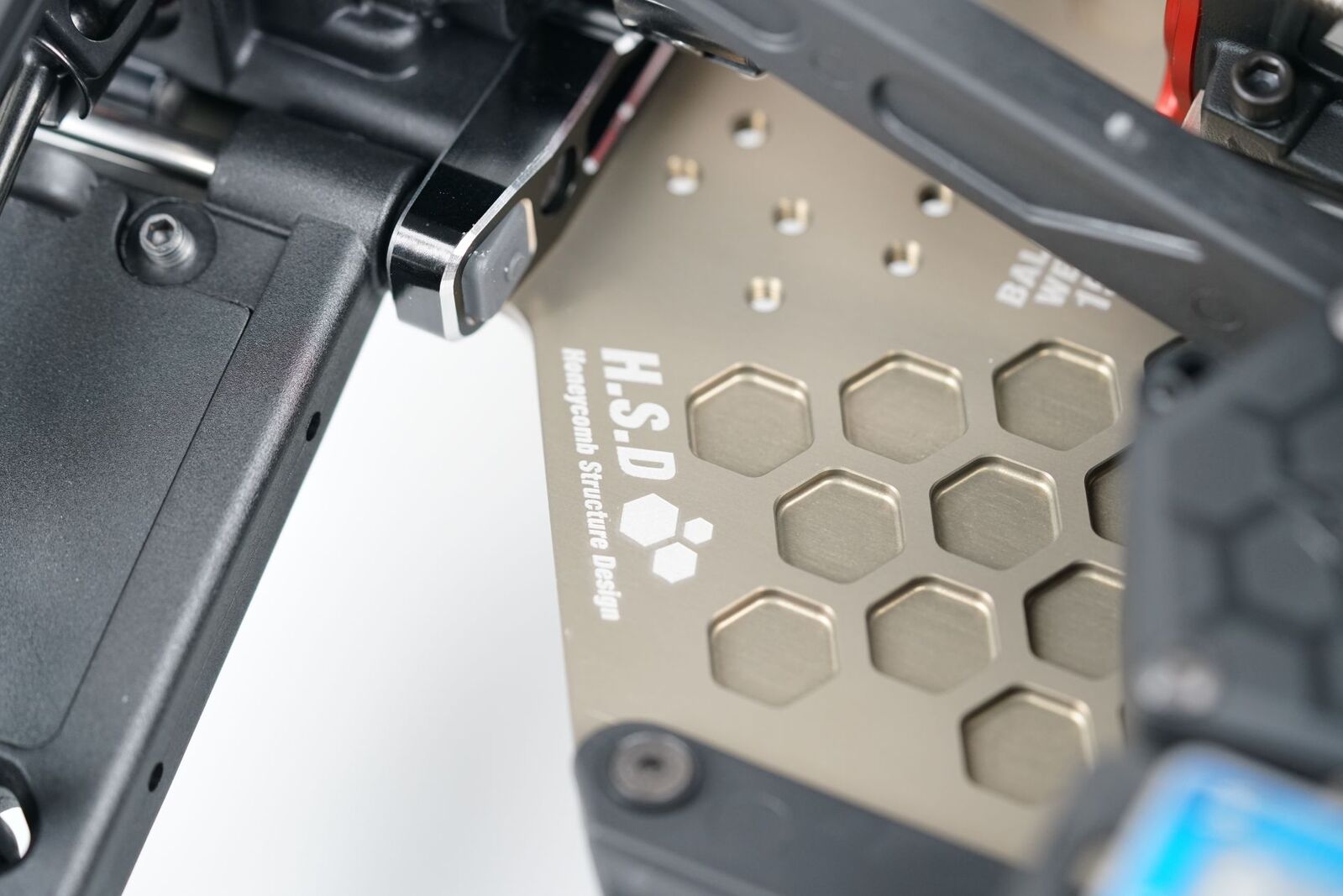

• New T7075 hard-anodised lightweight aluminium chassis
• New shorter chassis design for improved balance and agility

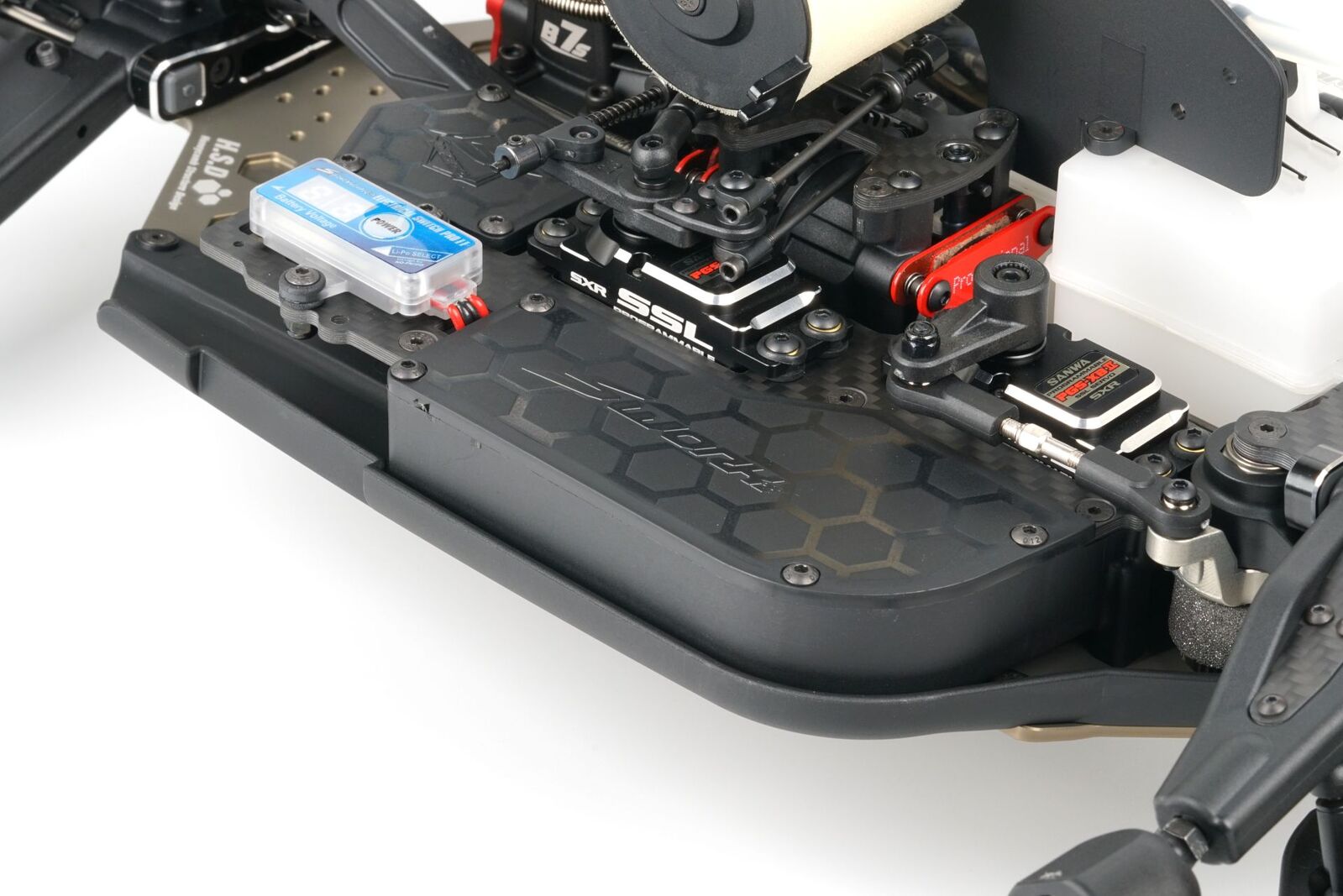

• New carbon plate-style radio tray

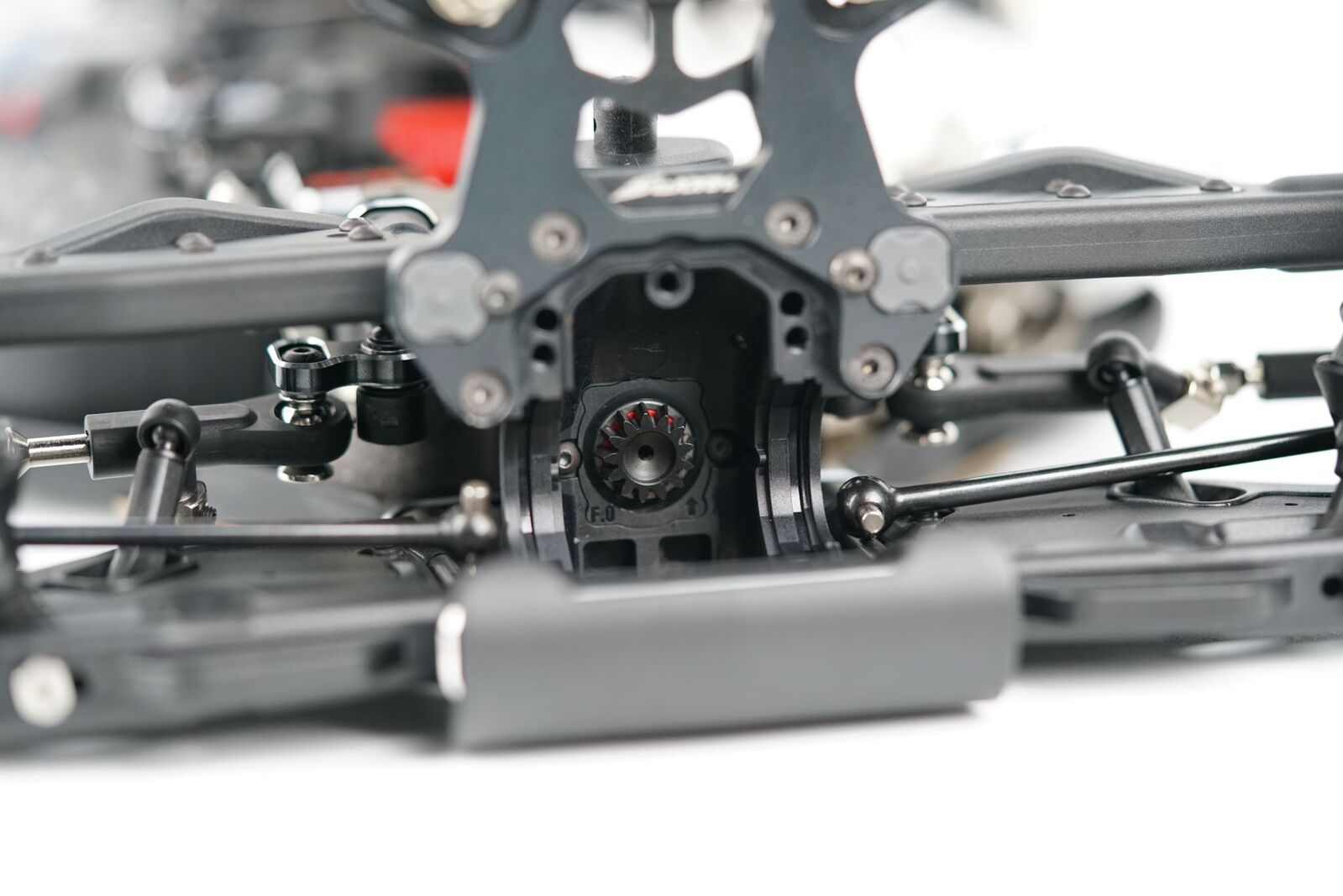

• New Quick Diff Release gearbox system
• Adjustable differential height
• Adjustable pinion gear height
• New ball bearing-guided sway bar system

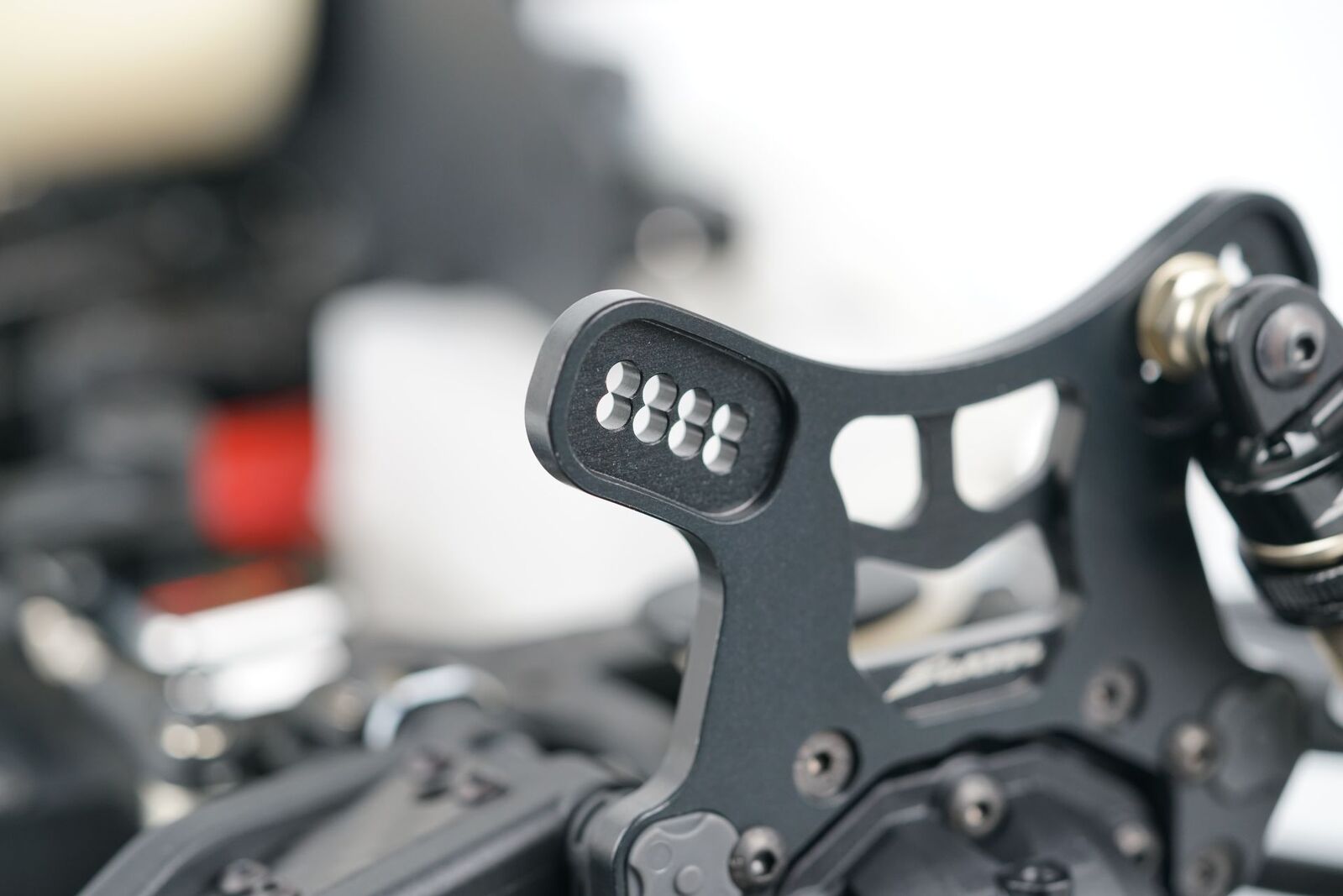

• New shock towers with dual mounting positions
• New Samurai Competition shock springs
• New AL7075 aluminium +5 Ackermann steering plate
• Updated toe-in plates with square inserts

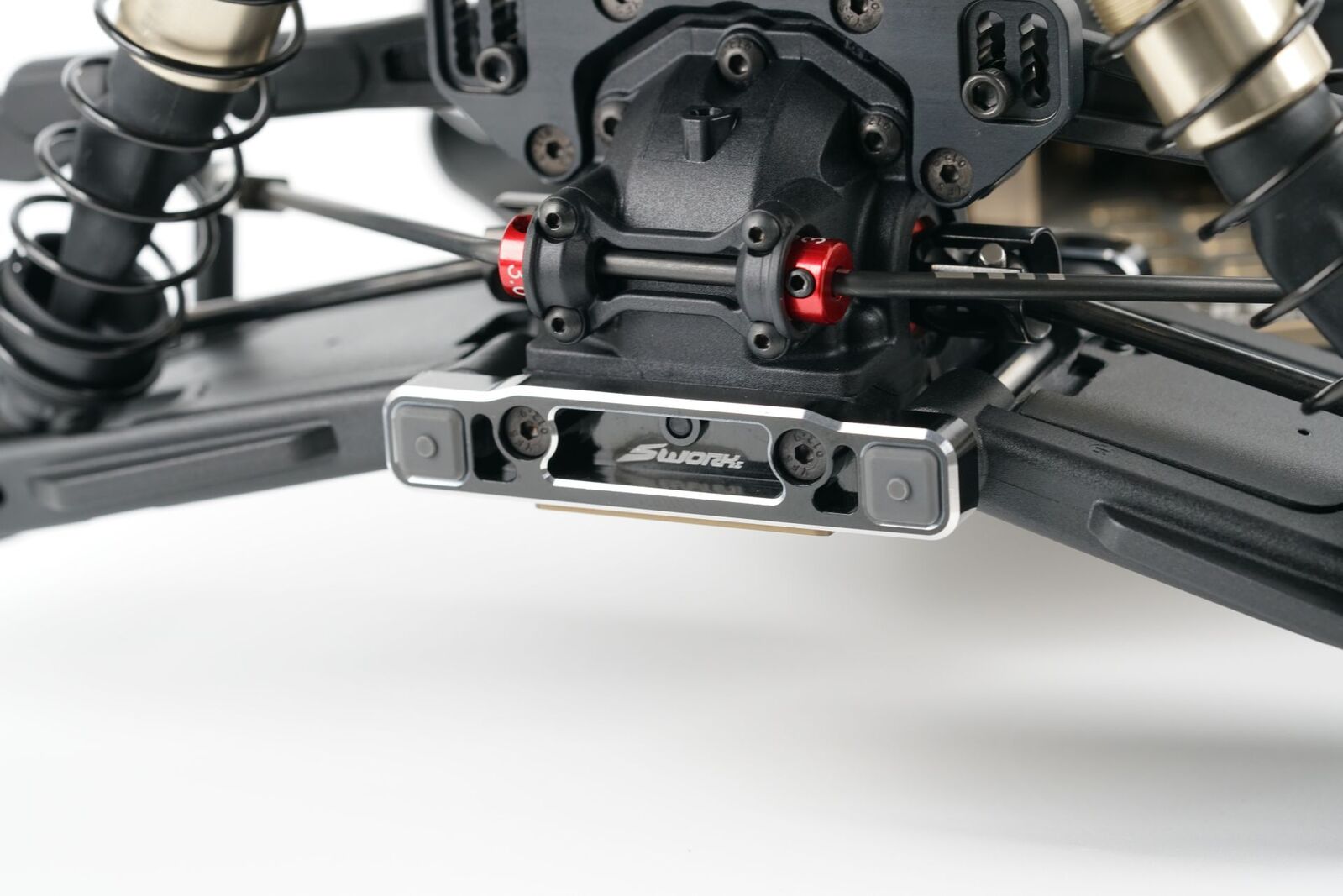

• New aluminium Intensity F/F narrow lower suspension mount
• New aluminium Intensity R/F narrow lower suspension mount

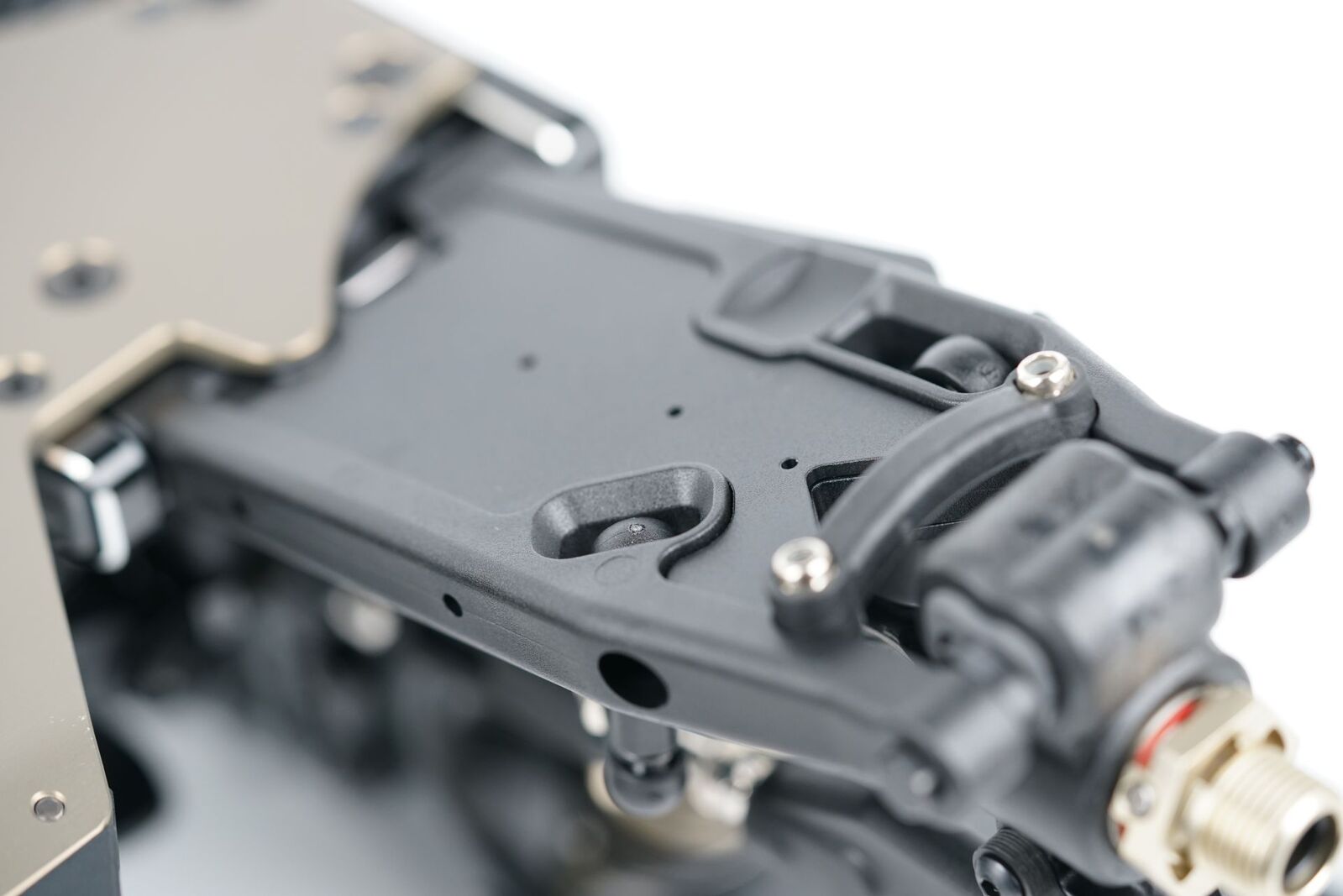

• New lower suspension arm protection covers

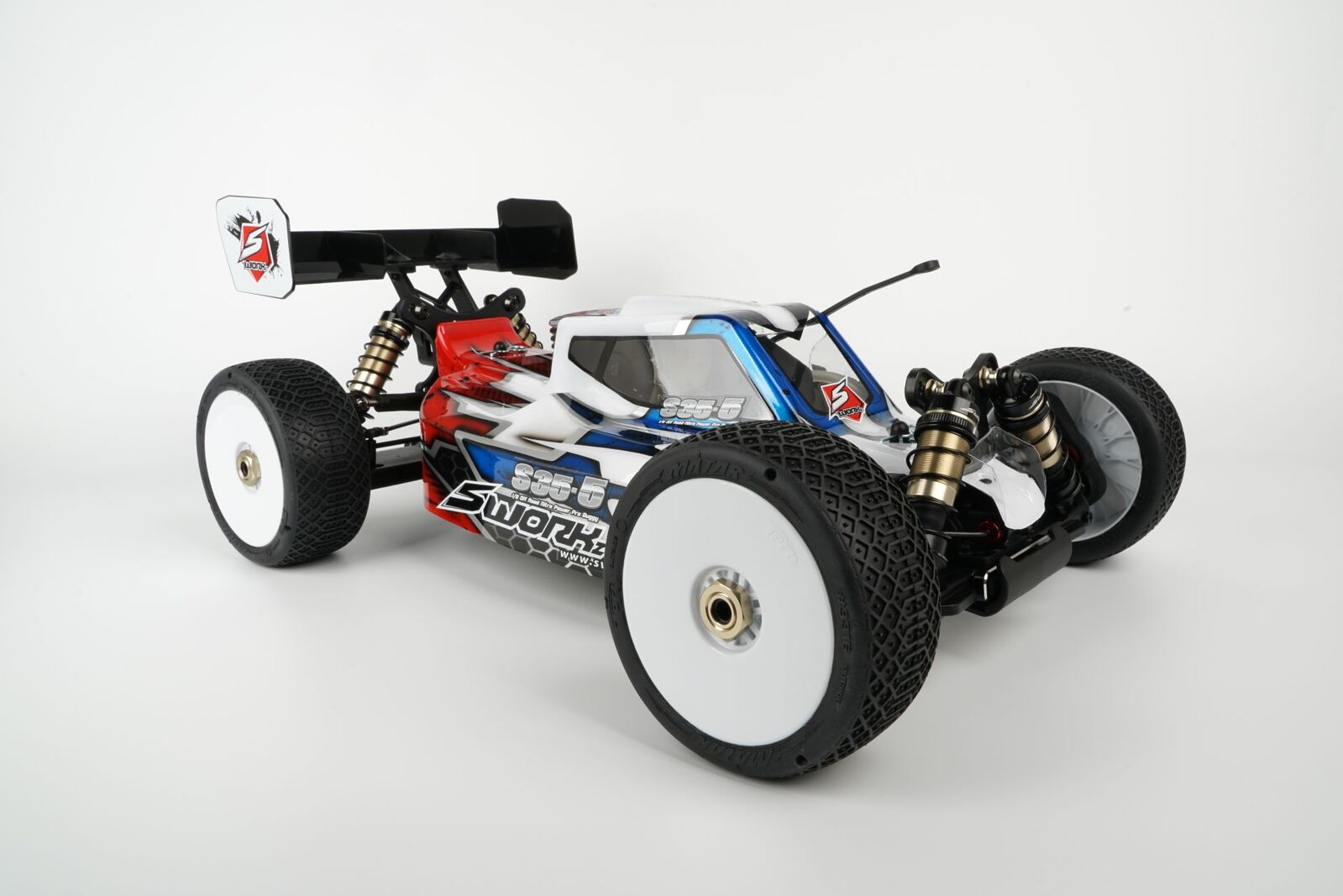

• New aerodynamically optimised Falcon ST-5 body shell
• Refined steering system
• Optimised weight distribution
• Extensive setup and tuning possibilities

Frequently Asked Questions – SWORKz S35-5 1/8 Pro Nitro Buggy Pro Kit

What is the SWORKz S35-5 1/8 Pro Nitro Buggy Pro Kit?

The SWORKz S35-5 is a professional 1/8 scale 4WD nitro off-road competition buggy developed from the successful S35-4 EVO platform. It introduces a new chassis, drivetrain, suspension and steering developments designed to improve speed, precision, traction and drivability.

What is new on the SWORKz S35-5 compared with the previous platform?

The SWORKz S35-5 introduces a new short T7075 aluminium chassis, carbon plate-style radio tray, Quick Diff Release gearbox system, adjustable differential and pinion heights, ball bearing-guided sway bars, new shock towers, Samurai Competition shock springs, updated steering components and the Falcon ST-5 body shell.

What is the Quick Diff Release system on the SWORKz S35-5?

The SWORKz S35-5 features a new Quick Diff Release gearbox system designed to make differential removal and changes faster, helping simplify maintenance and race-day setup adjustments.

Can the differential height be adjusted on the SWORKz S35-5?

Yes. The SWORKz S35-5 features adjustable differential and pinion gear heights, giving racers additional drivetrain tuning options for different track conditions.

What chassis does the SWORKz S35-5 use?

The SWORKz S35-5 uses a new T7075 hard-anodised lightweight aluminium chassis with a shorter design developed to improve weight distribution, balance and agility.

What suspension springs are included with the SWORKz S35-5?

The SWORKz S35-5 features new Samurai Competition shock springs as part of its updated suspension package.

What body is supplied with the SWORKz S35-5 Pro Nitro Buggy?

The SWORKz S35-5 includes the new aerodynamically optimised Falcon ST-5 body shell.

What are the dimensions of the SWORKz S35-5?

The SWORKz S35-5 measures 510mm long, 308mm wide and 220mm high. The wheelbase is adjustable from 325mm to 330mm, with a 304mm front track and 306mm rear track.

How much does the SWORKz S35-5 weigh?

The specified race-condition weight of the SWORKz S35-5 is approximately 3400g.

Is the SWORKz S35-5 Ready-to-Run?

No. The SWORKz S35-5 is supplied as a professional competition kit and requires assembly along with a nitro engine, exhaust system, electronics, wheels, tyres and other equipment needed to complete the buggy.

Who is the SWORKz S35-5 designed for?

The SWORKz S35-5 is designed for competitive 1/8 nitro off-road racers. Professional drivers can take advantage of its extensive tuning possibilities, while club and hobby racers benefit from a highly effective base setup designed to perform across a wide variety of tracks.
