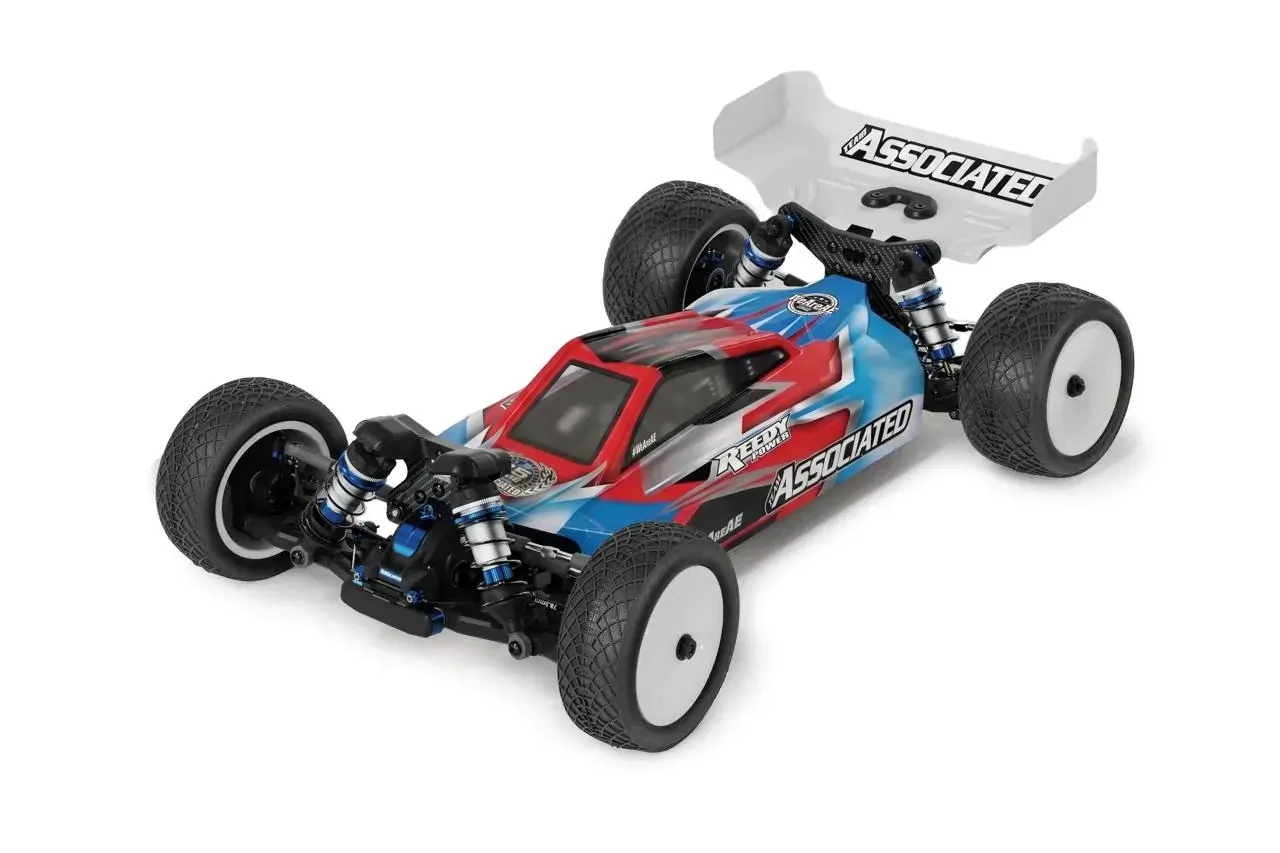

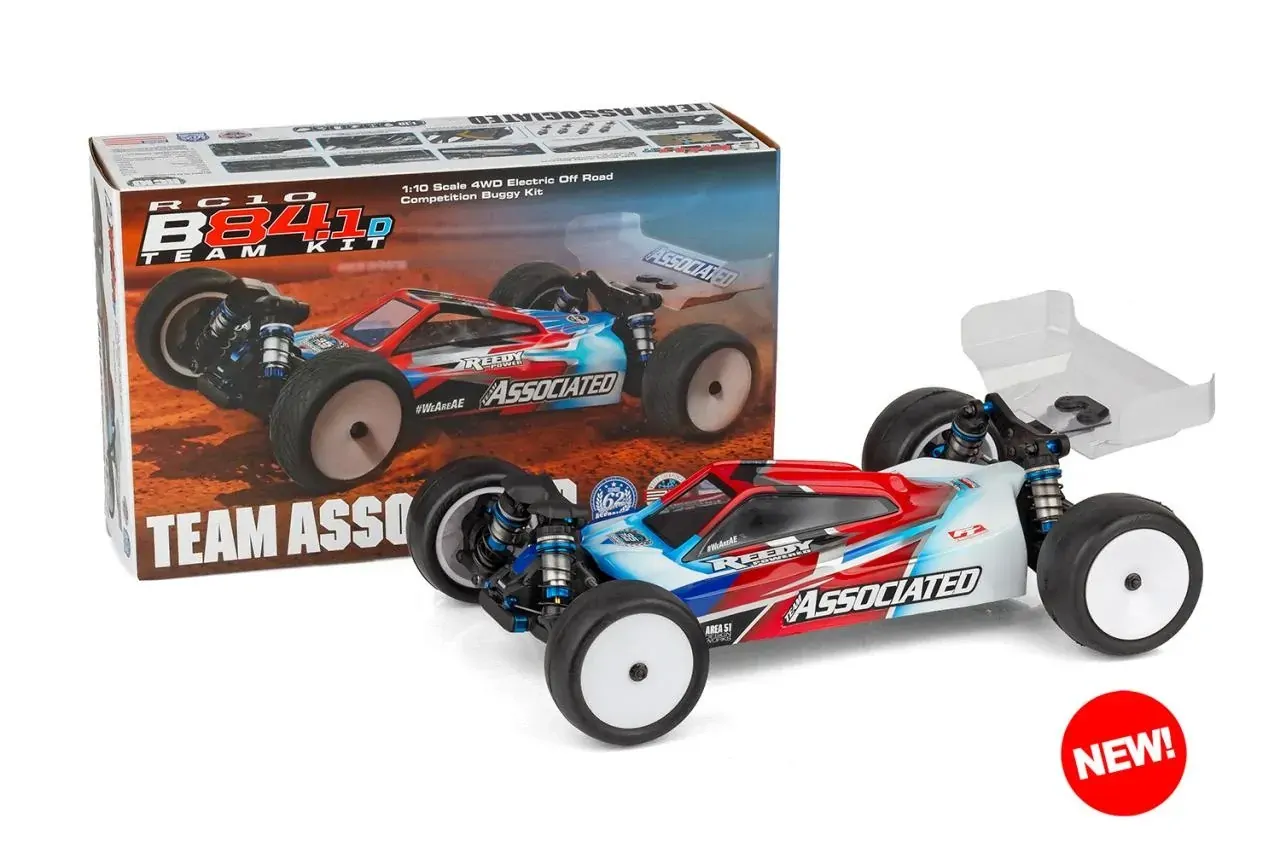

The Team Associated RC10B84.1D Team Kit is a competition-focused 1/10 scale 4WD off-road buggy developed for precision, adjustability and consistent performance across modern race tracks.

The RC10B84.1D builds on Team Associated's latest 4WD platform with updates throughout the chassis, suspension, steering and drivetrain. A new Wide Tongue chassis design improves durability, supported by updated V2 side rails and wider A and B suspension mounts.

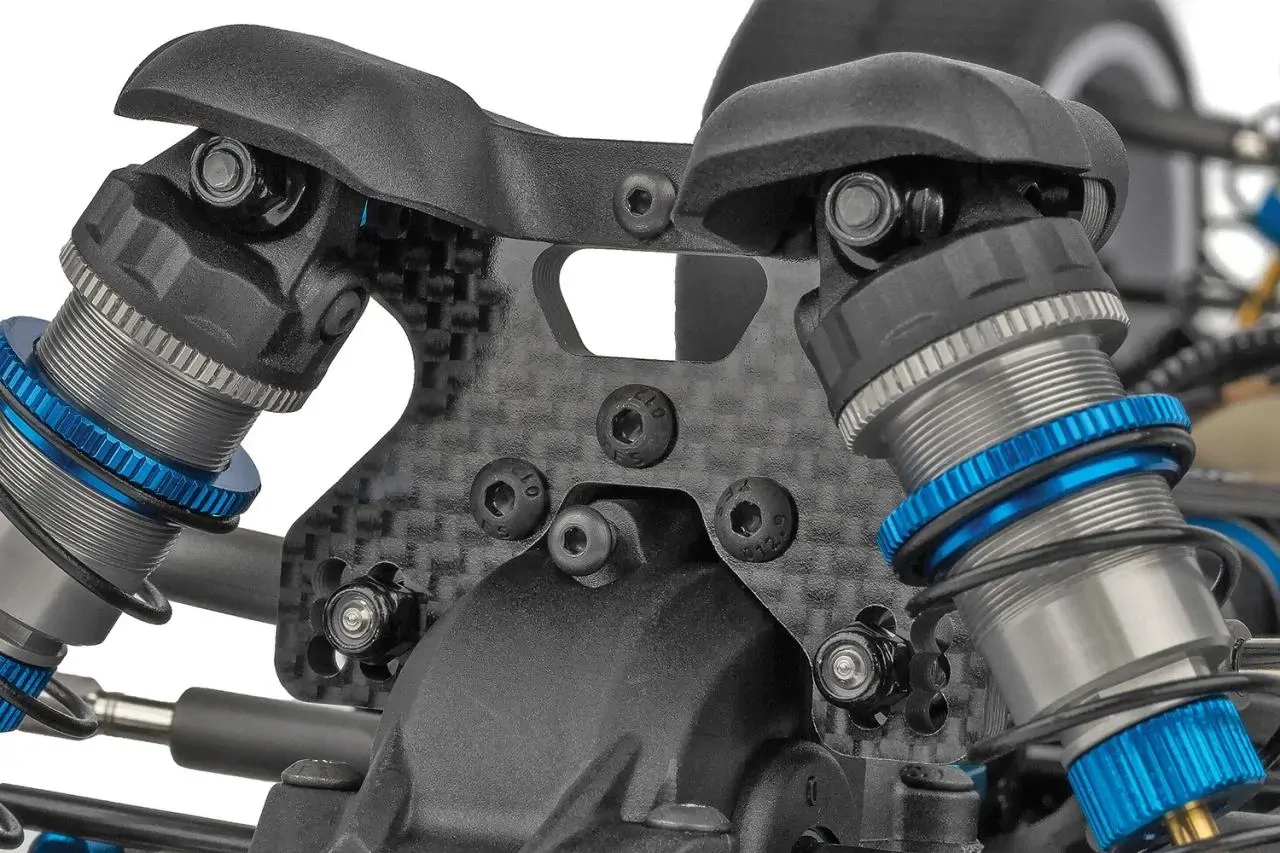

At the front, the B84.1D uses 73mm Gull Wing suspension arms combined with a dedicated carbon fibre front shock tower. A moulded shock tower cover protects the assembly, while a moulded front bumper is included along with an optional bumper design that covers the anti-roll bar mount.

The steering system receives V2 steering posts and bellcranks, designed to reduce vertical movement in the steering rack. Optimised bellcrank and steering rack geometry also improves bump-steer control across different ride heights, helping provide more consistent steering response as chassis setup changes.

Height-Adjustable Gearboxes

Moulded height-adjustable front and rear gearboxes give racers additional drivetrain setup options.

An additional +2 rear gearbox is included specifically for high-grip conditions, expanding the tuning range available for different track surfaces.

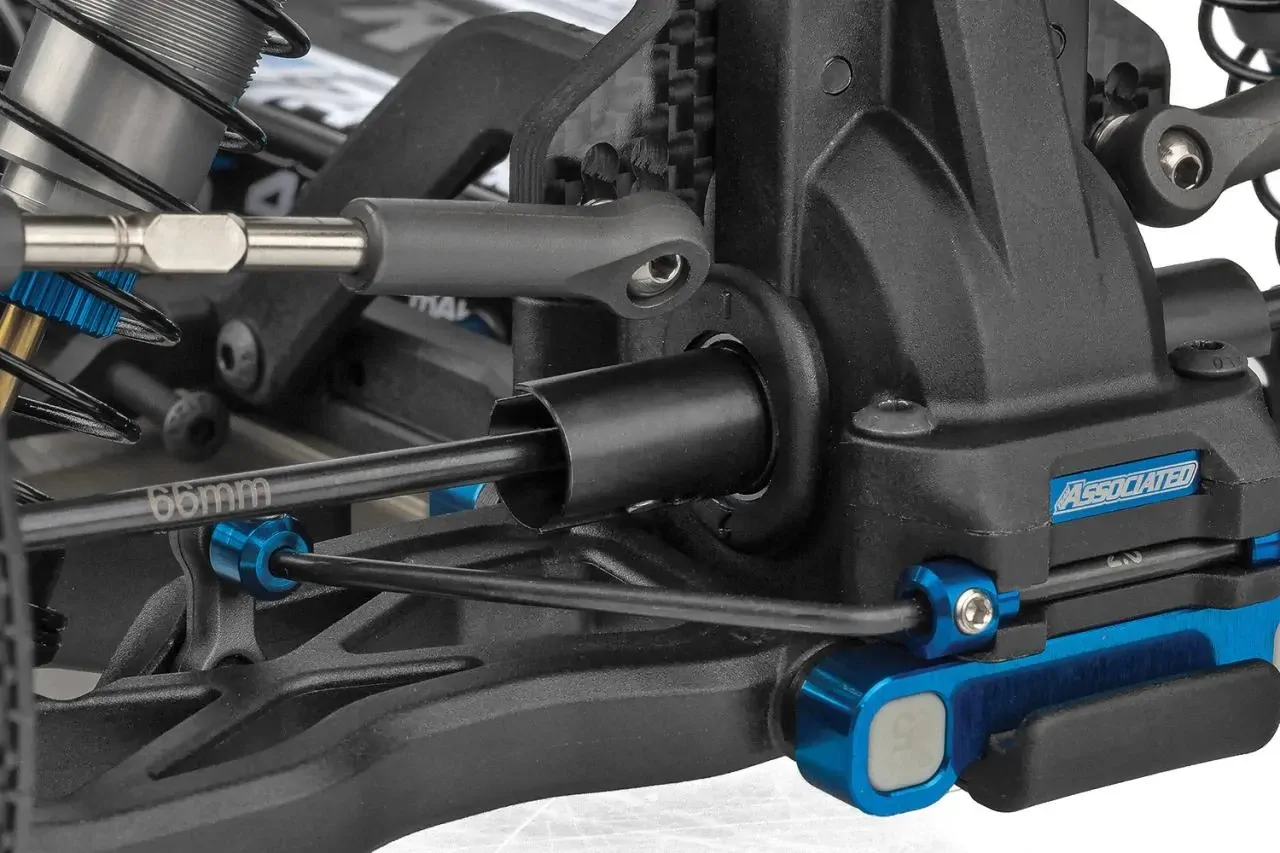

The drivetrain also features long HD rear differential outdrives, 66mm rear CVA bones, moulded ring and pinion gears and a centre differential.

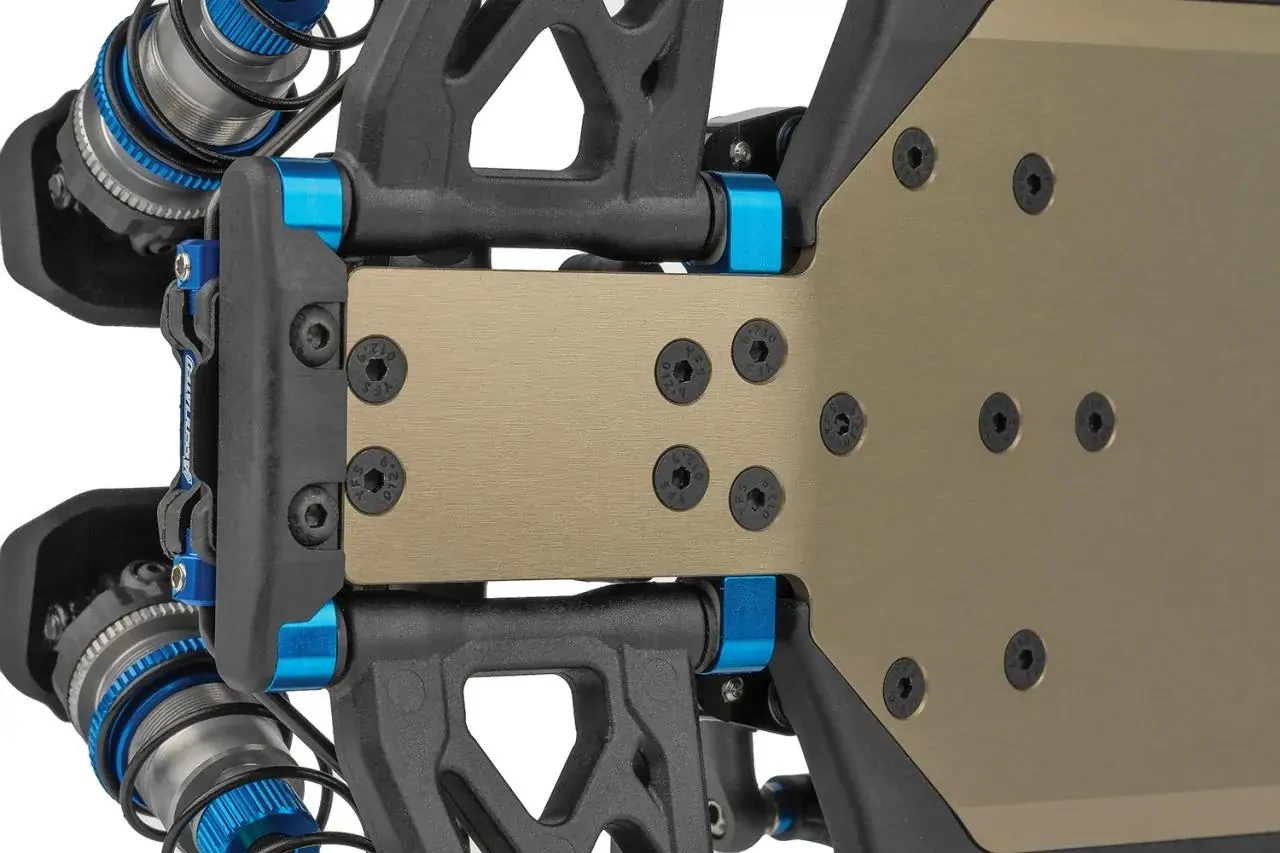

Adjustable Chassis Flex

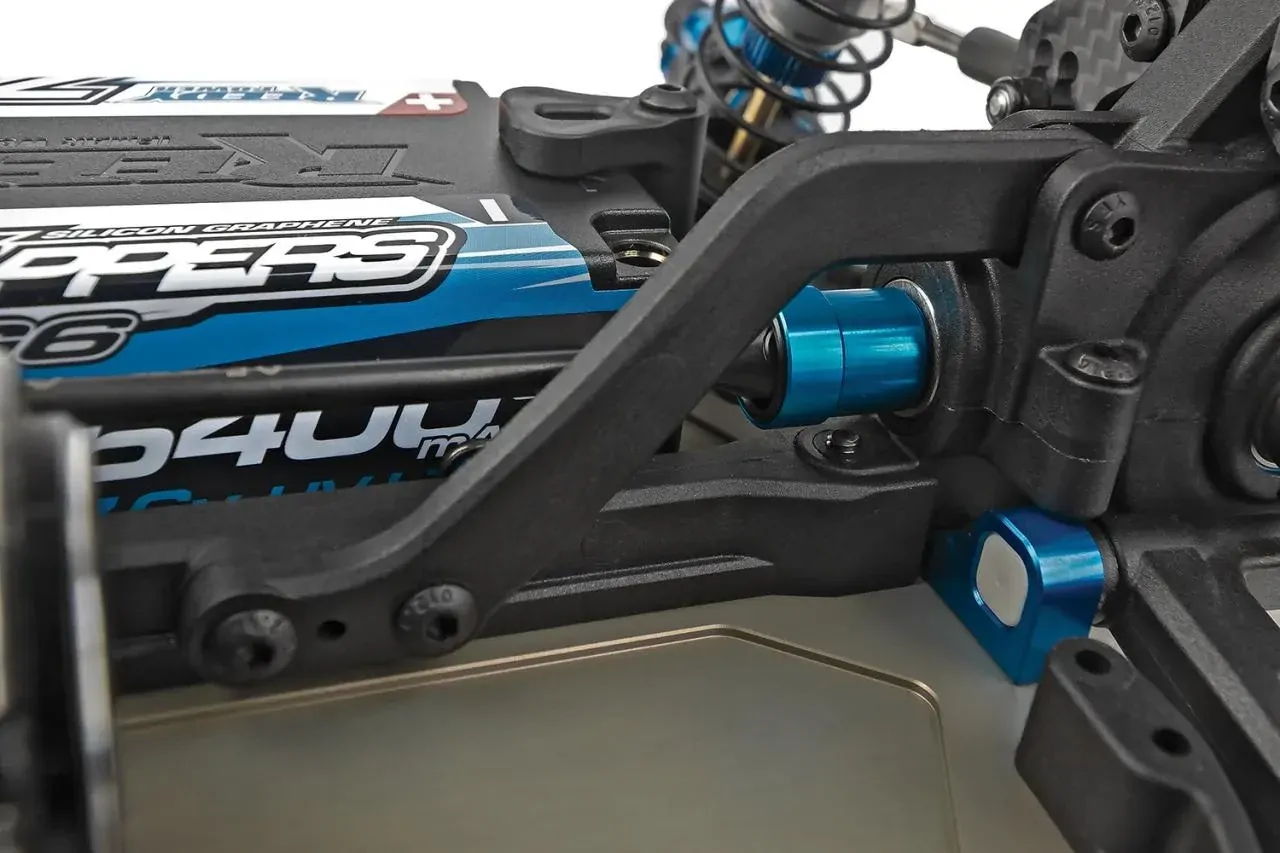

The RC10B84.1D provides extensive chassis flex tuning through upper and lower chassis bracing at both the front and rear.

This allows racers to alter chassis characteristics to suit different grip levels, track surfaces and driving styles.

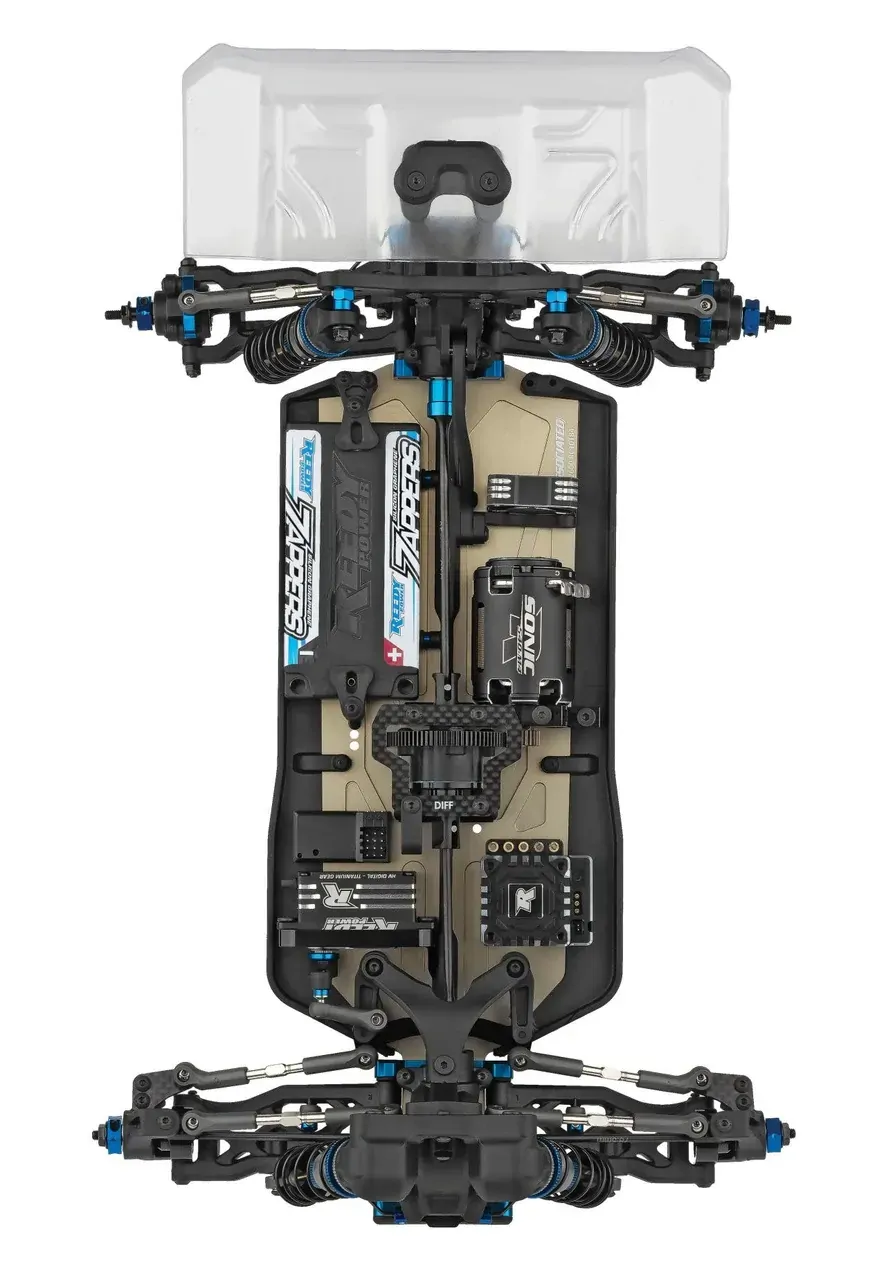

At the centre is a 2.5mm tapered 7075-T6 aluminium chassis with 10 degrees of kick-up and an improved departure angle. The motor can also be positioned forward or rearward to further adjust vehicle weight distribution.

Extensive Suspension Tuning

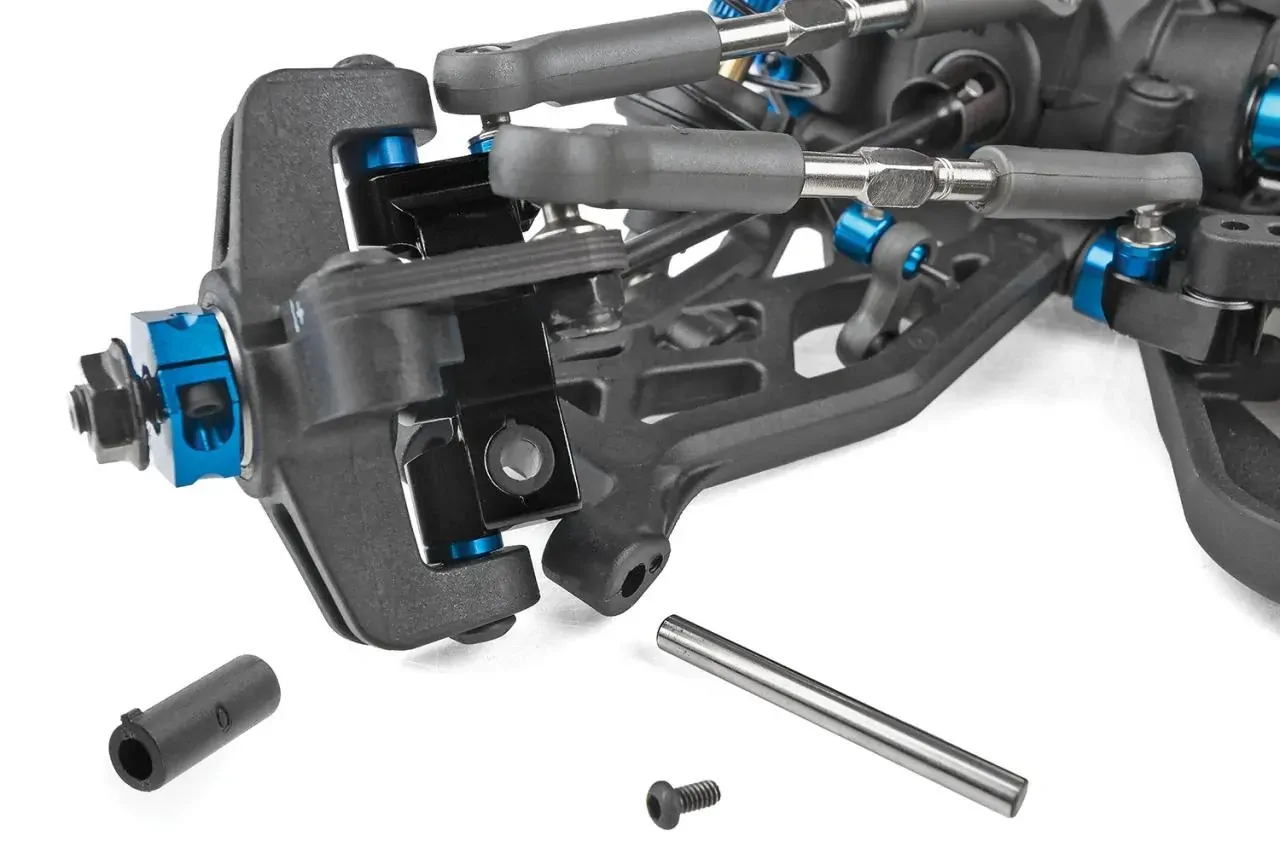

Both standard and HRC High Roll Centre rear hubs are supplied, giving racers additional rear suspension geometry options.

Insert-adjustable caster blocks are also included with 0°, ±1° and ±2° inserts, providing a broad range of front-end geometry adjustments.

New 0.7mm A and D mount shims provide additional suspension setup options.

Adjustable Battery Position

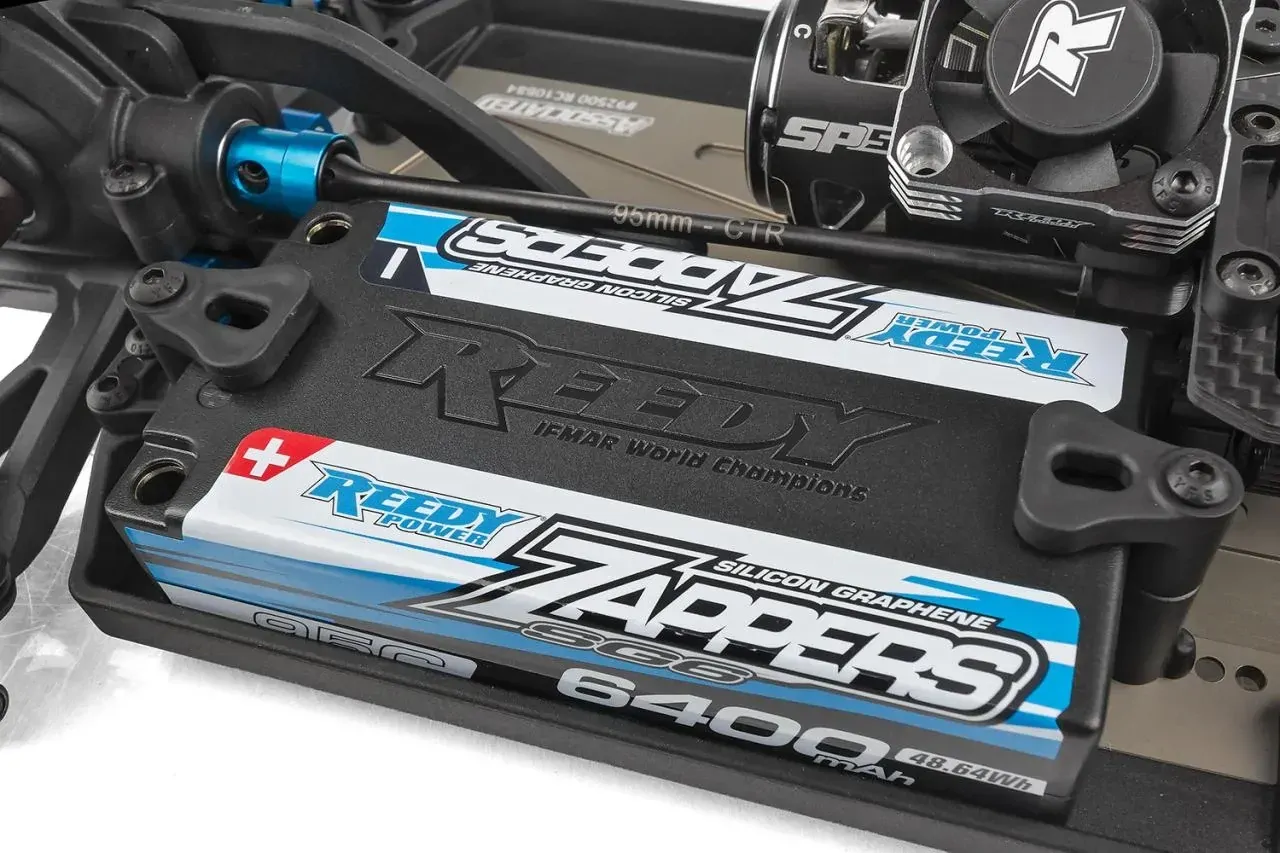

The highly adjustable battery holder uses convenient thumb tabs for quick battery removal.

Battery positioning can be fine-tuned to alter weight bias, allowing racers to adjust chassis balance without major changes to the vehicle.

13mm Big-Bore Shocks

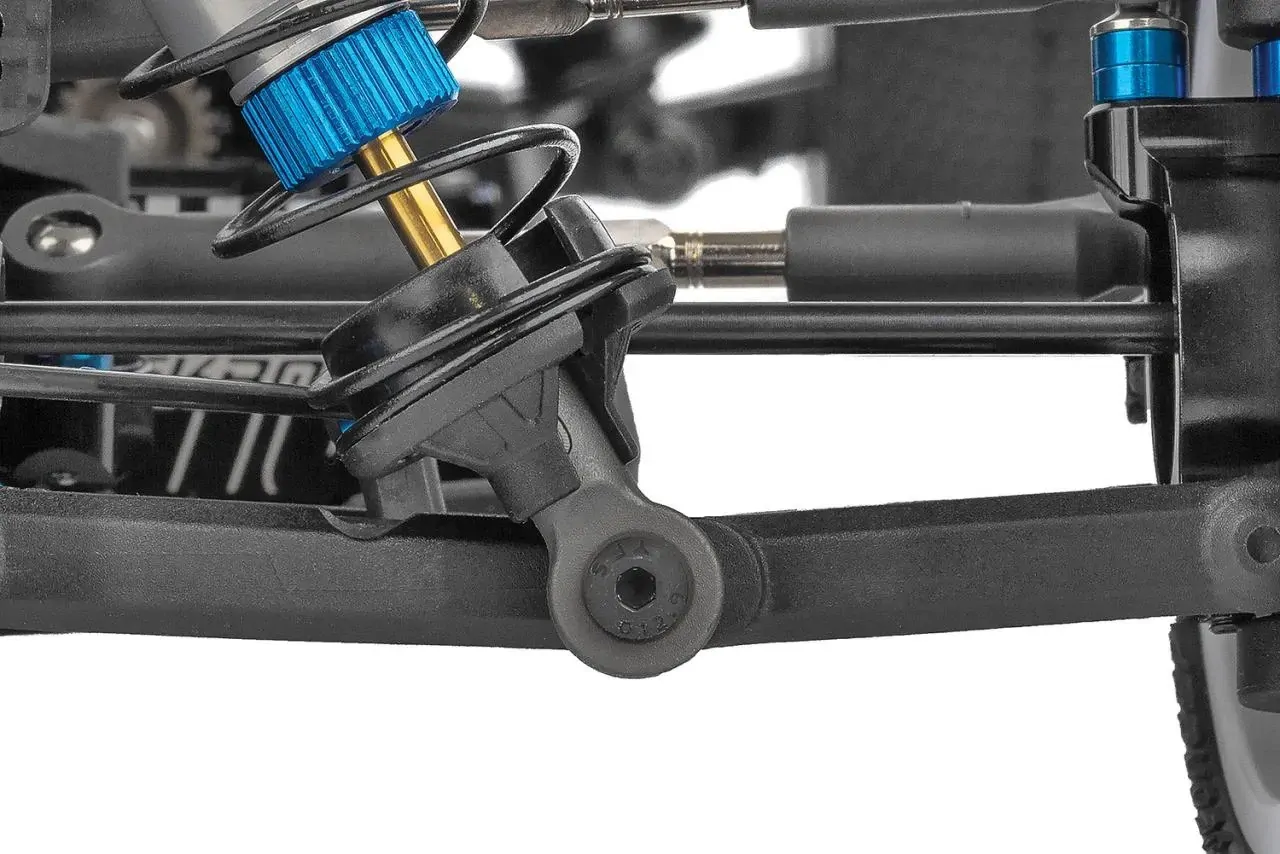

Team Associated's 13mm Big-Bore shocks provide the suspension damping required for modern competition surfaces.

The suspension package is completed with heavy-duty 3.5mm turnbuckles and ballcups, combining strength with precise adjustment.

Low-Profile Aerodynamics

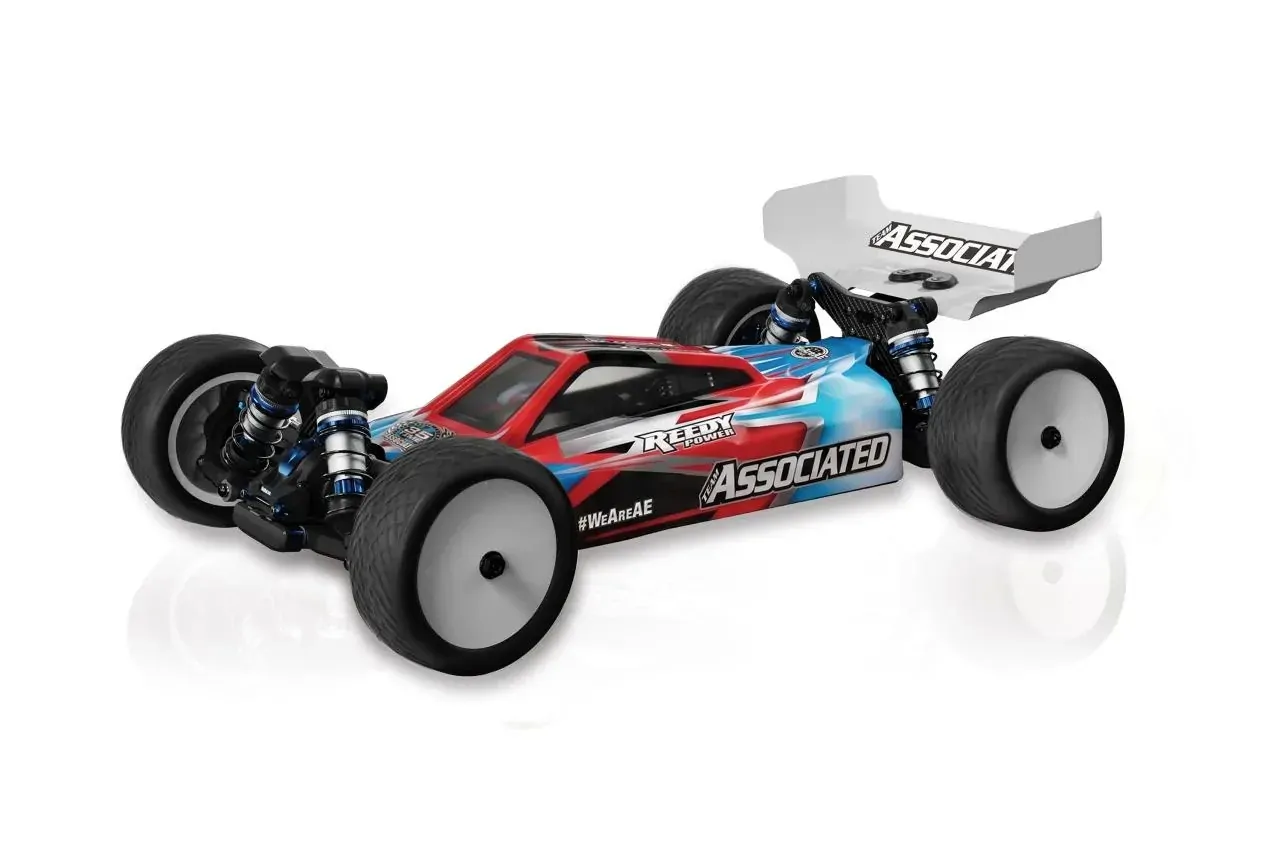

The RC10B84.1D uses a low-profile body together with a 7-inch rear wing.

Two rear wing mounting heights are included, providing another tuning option for adjusting rear aerodynamic characteristics.

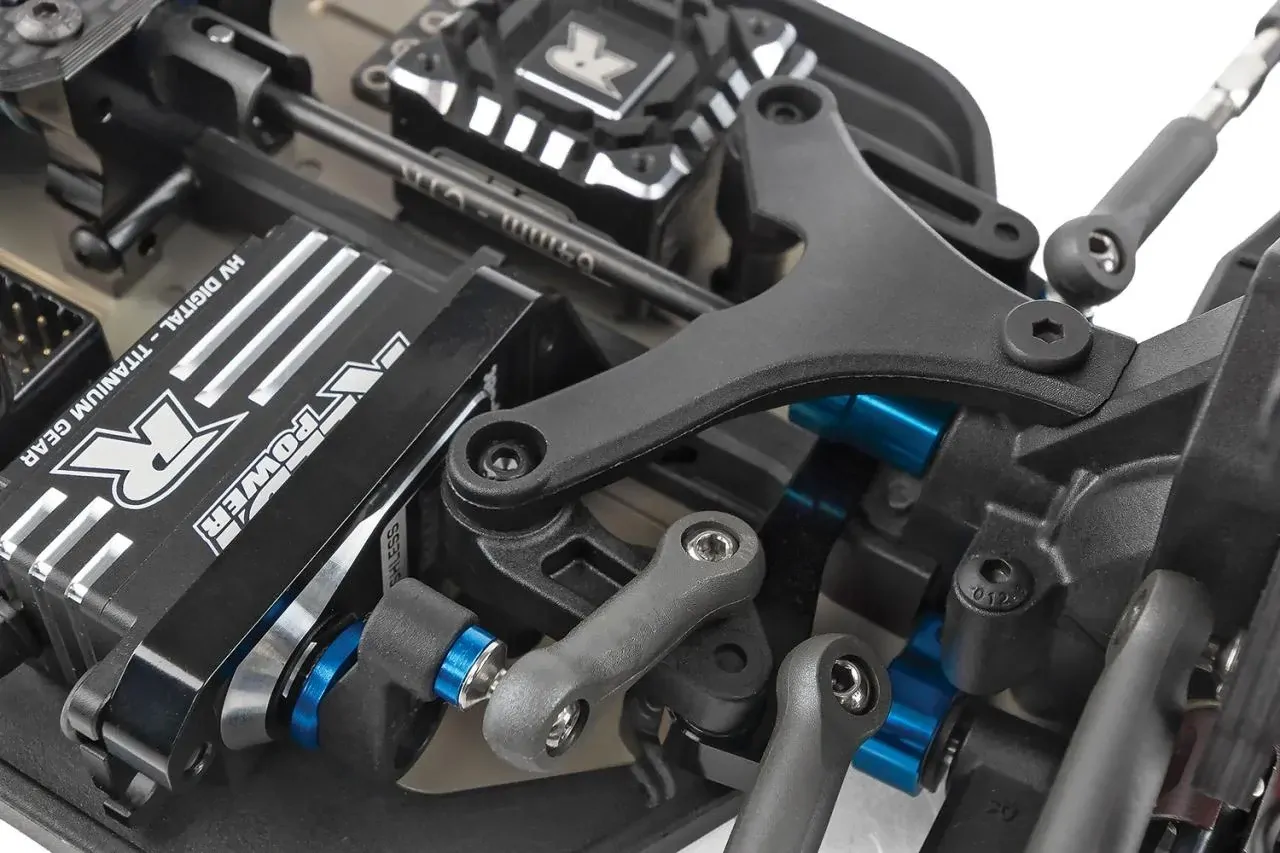

An aluminium centre-mounted servo mount keeps the steering servo securely positioned within the chassis.

Available from Campbelltown Hobbies, the Team Associated RC10B84.1D Team Kit provides competitive 1/10 4WD racers with extensive drivetrain, chassis, suspension and weight-distribution adjustment in a modern race-focused platform.

Required Items

• Brushless Motor
• Pinion Gear
• Electronic Speed Controller (ESC)
• Steering Servo
• Transmitter
• Receiver
• Battery
• Compatible Battery Charger
• Tyres
• Wheels
• Polycarbonate-Specific Paint
• Assembly Tools

Specifications

Brand: Team Associated
Model: RC10B84.1D Team Kit
SKU: 90059
Scale: 1/10
Vehicle Type: Competition Off-Road Buggy
Power Source: Electric
Drive: 4WD
Assembly Level: Kit
Chassis: 7075-T6 Aluminium
Chassis Thickness: 2.5mm Tapered
Chassis Kick-Up: 10°
Chassis Design: Wide Tongue
Side Rails: V2
Front Suspension Arms: 73mm Gull Wing
Front Shock Tower: Carbon Fibre – 73mm Geometry
Front Shock Tower Cover: Moulded
Steering: V2 Posts & Bellcranks
Caster Adjustment: 0°, ±1° & ±2° Inserts
Rear Hubs: Standard & HRC Included
Gearboxes: Moulded Height-Adjustable Front & Rear
Additional Rear Gearbox: +2 High-Grip Option
Rear Differential Outdrives: Long HD
Rear CVA Bones: 66mm
Centre Differential: Included
Ring & Pinion Gears: Moulded
Motor Position: Forward / Rearward Adjustable
Battery Holder: Adjustable with Thumb Tabs
Servo Mount: Aluminium Centre-Mounted
Turnbuckles: 3.5mm
Shocks: 13mm Big-Bore
Rear Wing: 7"
Rear Wing Mount: Two Heights Included
Body: Low Profile
A/D Mount Shims: 0.7mm

Key Features

• New Wide Tongue chassis for increased durability
• V2 side rails
• Wide A and B mounts
• 73mm Gull Wing front suspension arms
• Carbon fibre front shock tower
• Moulded front shock tower cover
• V2 steering posts and bellcranks
• Optimised steering rack geometry
• Improved bump-steer control across different ride heights
• Long HD rear differential outdrives
• 66mm rear CVA bones
• New 0.7mm A and D mount shims
• Moulded front bumper
• Optional bumper covering anti-roll bar mount
• Height-adjustable front and rear gearboxes
• Additional +2 rear gearbox for high-grip conditions
• Upper and lower front chassis bracing
• Upper and lower rear chassis bracing
• Standard rear hubs included
• HRC High Roll Centre rear hubs included
• Adjustable caster blocks
• 0°, ±1° and ±2° caster inserts
• Forward and rearward motor positioning
• Highly adjustable battery holder
• Quick-release battery thumb tabs
• 2.5mm tapered 7075-T6 aluminium chassis
• 10° chassis kick-up
• Improved departure angle
• Centre differential included
• Moulded ring and pinion gears
• Aluminium centre servo mount
• Two rear wing mount heights
• 7-inch rear wing
• Low-profile body
• 3.5mm turnbuckles and ballcups
• 13mm Big-Bore shocks

Recommended Electronics

Servo: Reedy Power RT3507A LP Brushless High-Torque HV Servo – #27179
Battery: Reedy STOCKSTAR 5000mAh 7.4V 160C LCG Shorty – #27611
ESC: Reedy Blackbox 610R Competition ESC – #27016 / #27017
Motor: Reedy Sonic 540-SP5 13.5T Brushless Motor – #27481
Charger: Reedy 1416-C2L Dual AC/DC Competition Balance Charger – #27203

Frequently Asked Questions – Team Associated RC10B84.1D Team Kit 90059

What is the Team Associated RC10B84.1D Team Kit?

The Team Associated RC10B84.1D is a competition-focused 1/10 scale electric 4WD off-road buggy kit featuring extensive chassis, suspension, steering, drivetrain and weight-distribution adjustment.

What chassis does the RC10B84.1D use?

The RC10B84.1D uses a 2.5mm tapered 7075-T6 aluminium Wide Tongue chassis with 10 degrees of kick-up and an improved departure angle.

Does the RC10B84.1D have height-adjustable gearboxes?

Yes. Moulded height-adjustable gearboxes are included at the front and rear. An additional +2 rear gearbox is also supplied for high-grip track conditions.

What front suspension does the Team Associated RC10B84.1D use?

The RC10B84.1D uses 73mm Gull Wing front suspension arms together with a dedicated carbon fibre front shock tower and moulded shock tower cover.

What shocks are included with the RC10B84.1D?

The Team Associated RC10B84.1D includes 13mm Big-Bore shocks.

Does the RC10B84.1D include a centre differential?

Yes. A centre differential is included as standard along with moulded ring and pinion gears.

Can the motor position be changed on the RC10B84.1D?

Yes. The motor can be positioned forward or rearward to help racers fine-tune vehicle weight bias.

Can the battery position be adjusted?

Yes. The RC10B84.1D features a highly adjustable battery holder that allows battery position to be fine-tuned for weight distribution. Thumb tabs provide quick battery removal.

What rear hubs are included with the RC10B84.1D?

Both standard and HRC High Roll Centre rear hubs are included, providing additional rear suspension geometry tuning options.

Can caster be adjusted on the RC10B84.1D?

Yes. Insert-adjustable caster blocks are included with 0 degree, plus or minus 1 degree, and plus or minus 2 degree inserts.

Does the RC10B84.1D require electronics?

Yes. The RC10B84.1D is supplied as a competition kit and requires a motor, ESC, steering servo, transmitter, receiver, battery and charger. Wheels, tyres and polycarbonate body paint are also required.

What rear wing comes with the RC10B84.1D?

The kit includes a 7-inch rear wing and two different rear wing mounting heights for additional aerodynamic tuning.

Can chassis flex be adjusted on the RC10B84.1D?

Yes. Upper and lower chassis bracing at both the front and rear allows racers to fine-tune chassis flex characteristics for different track surfaces and grip levels.
