Description

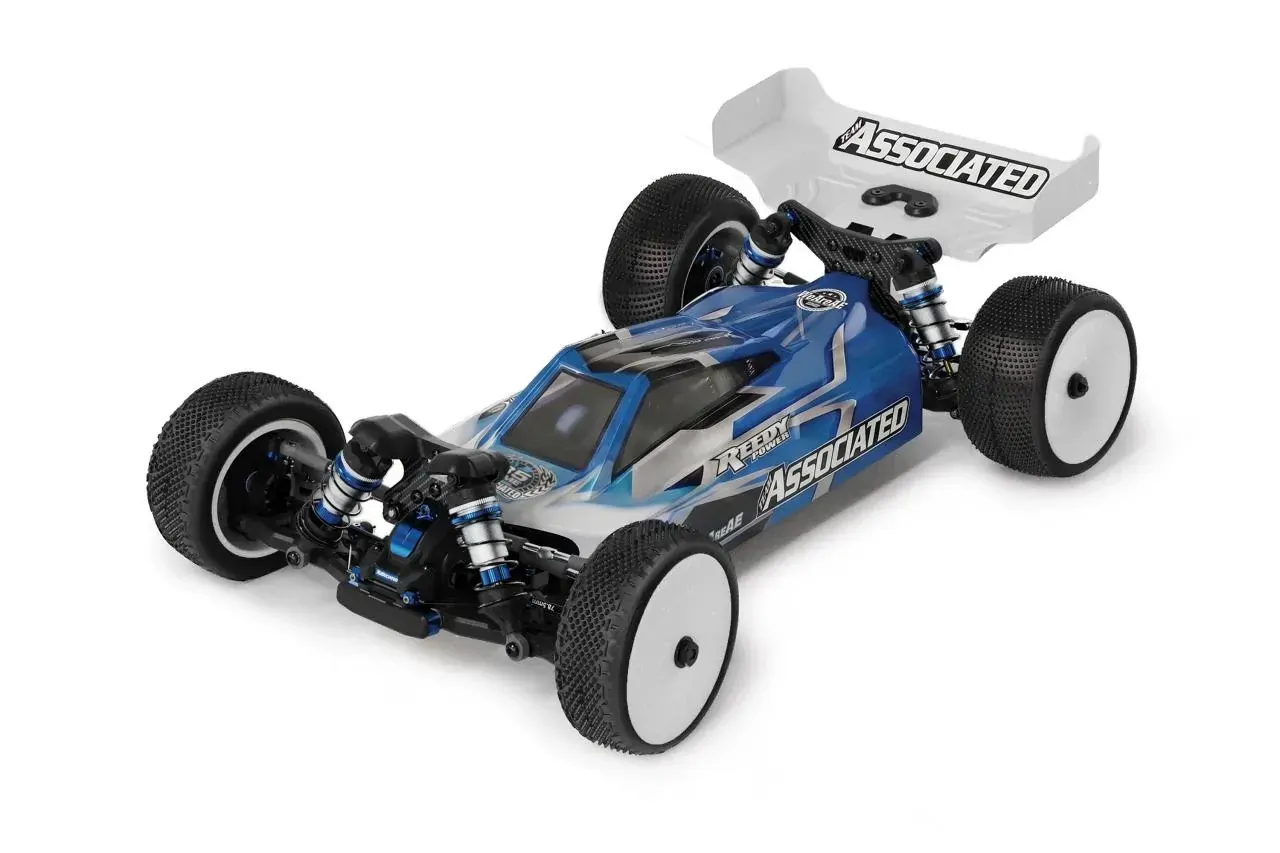

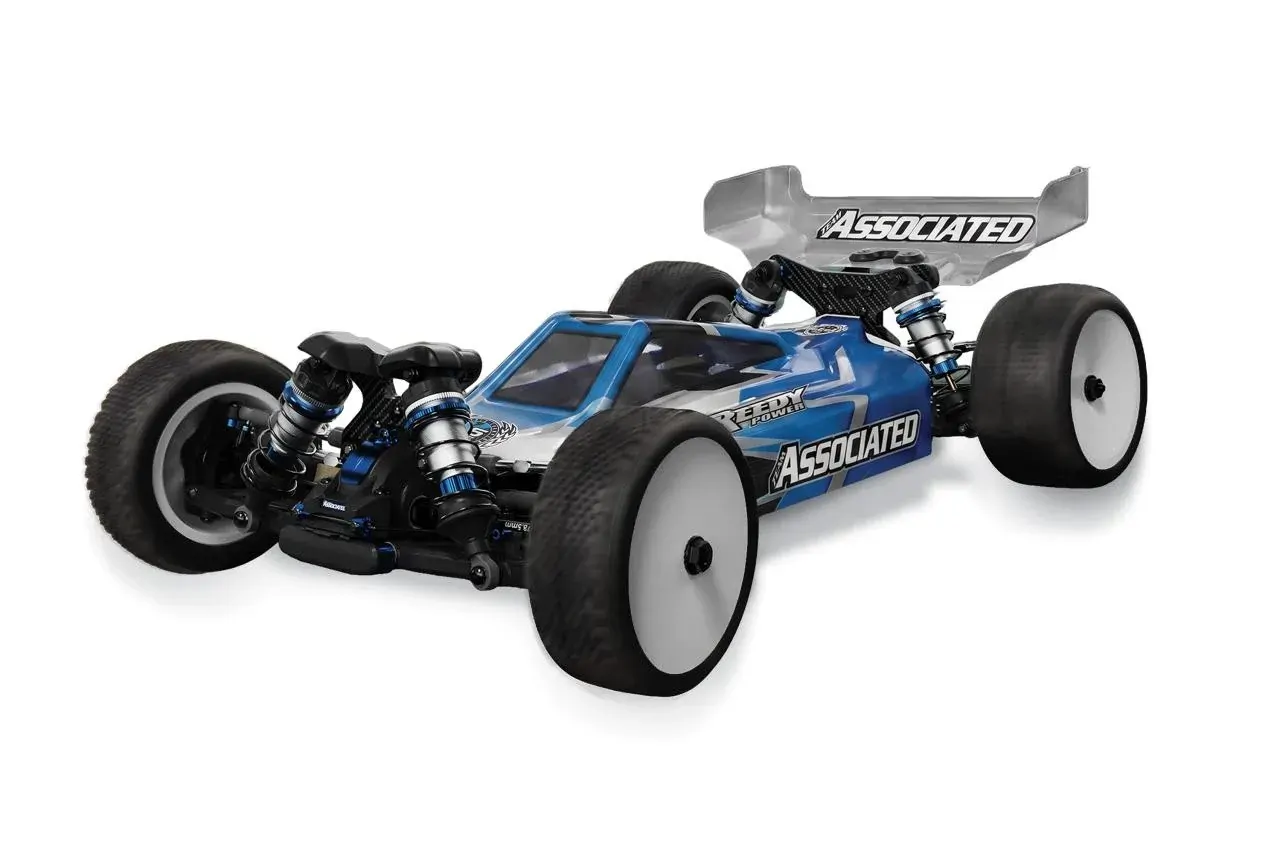

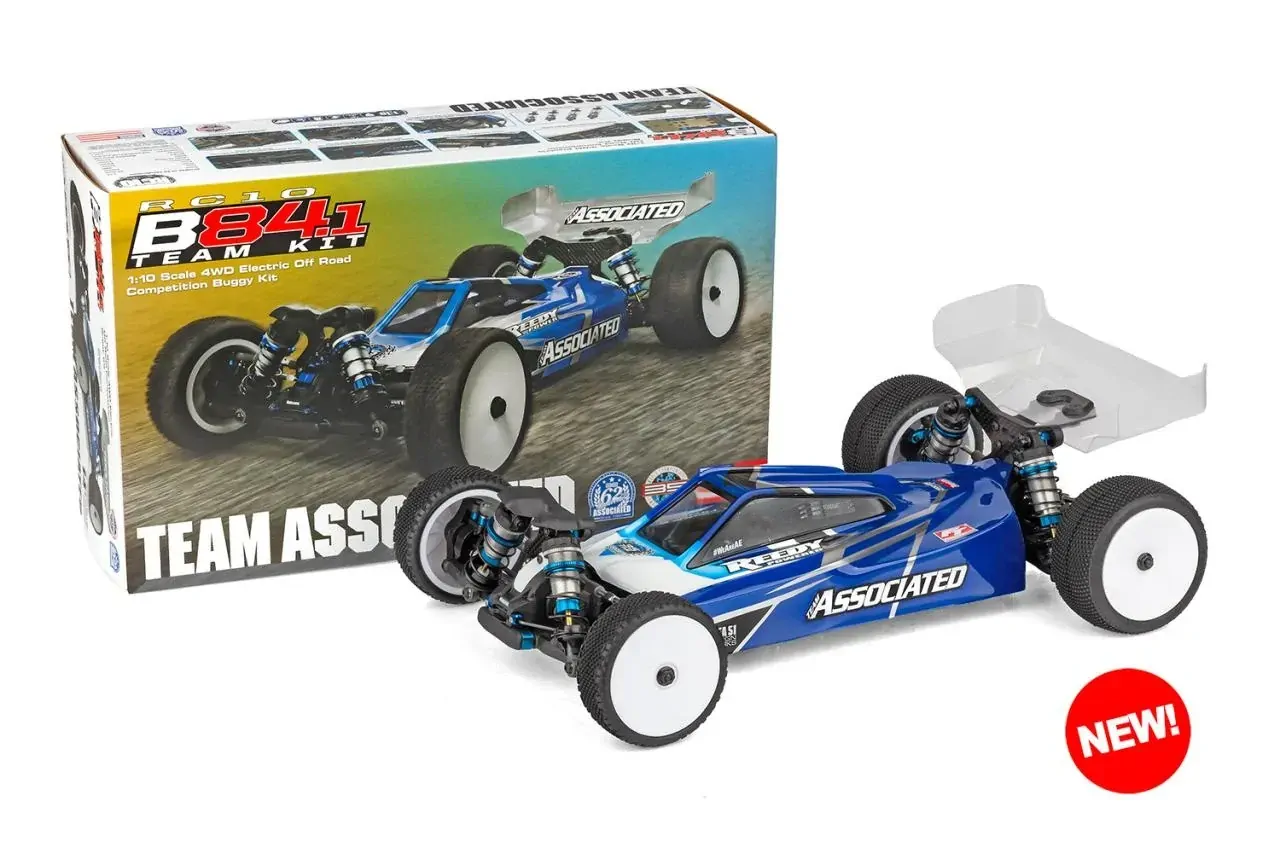

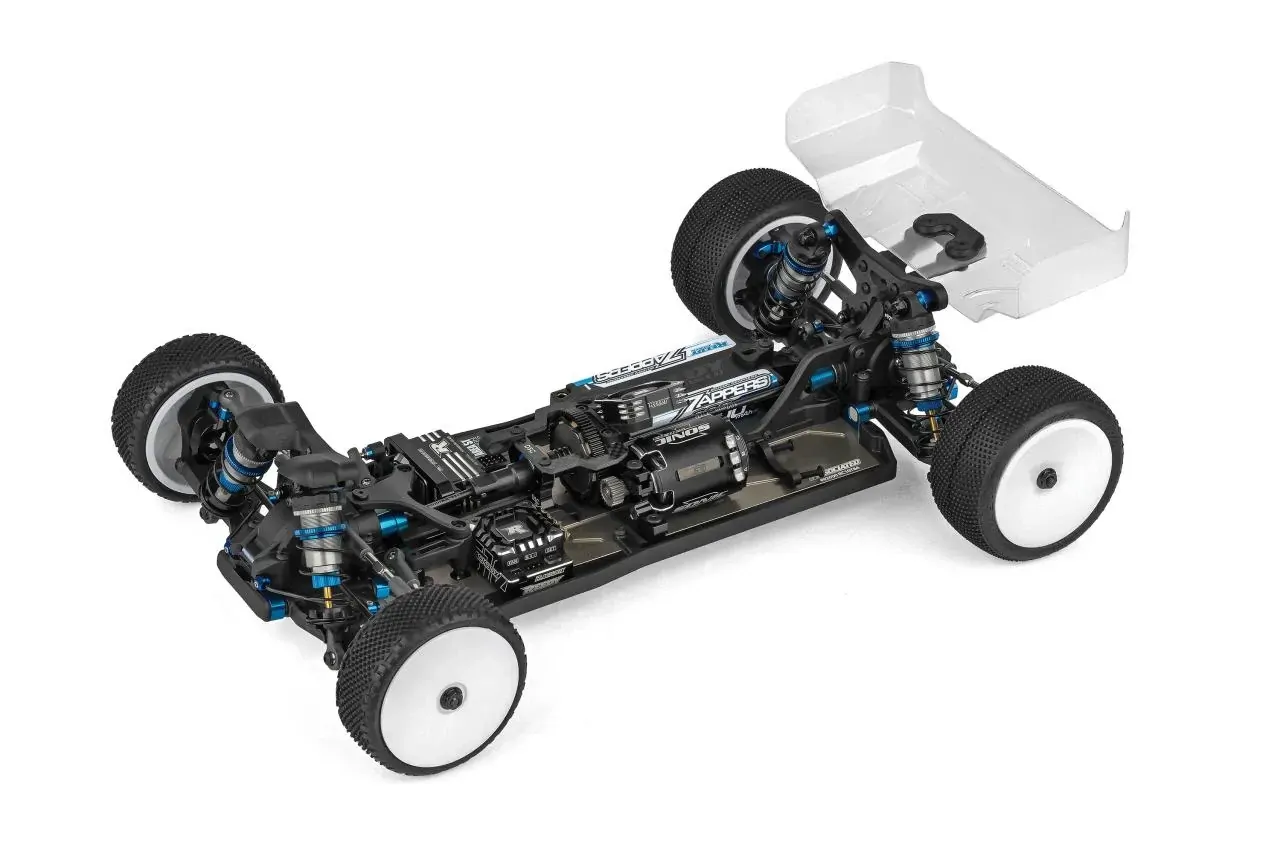

The Team Associated RC10B84.1 Team Kit is the latest evolution of Team Associated's competition 1/10 scale 4WD buggy platform, developed for precision, adjustability and serious off-road racing.

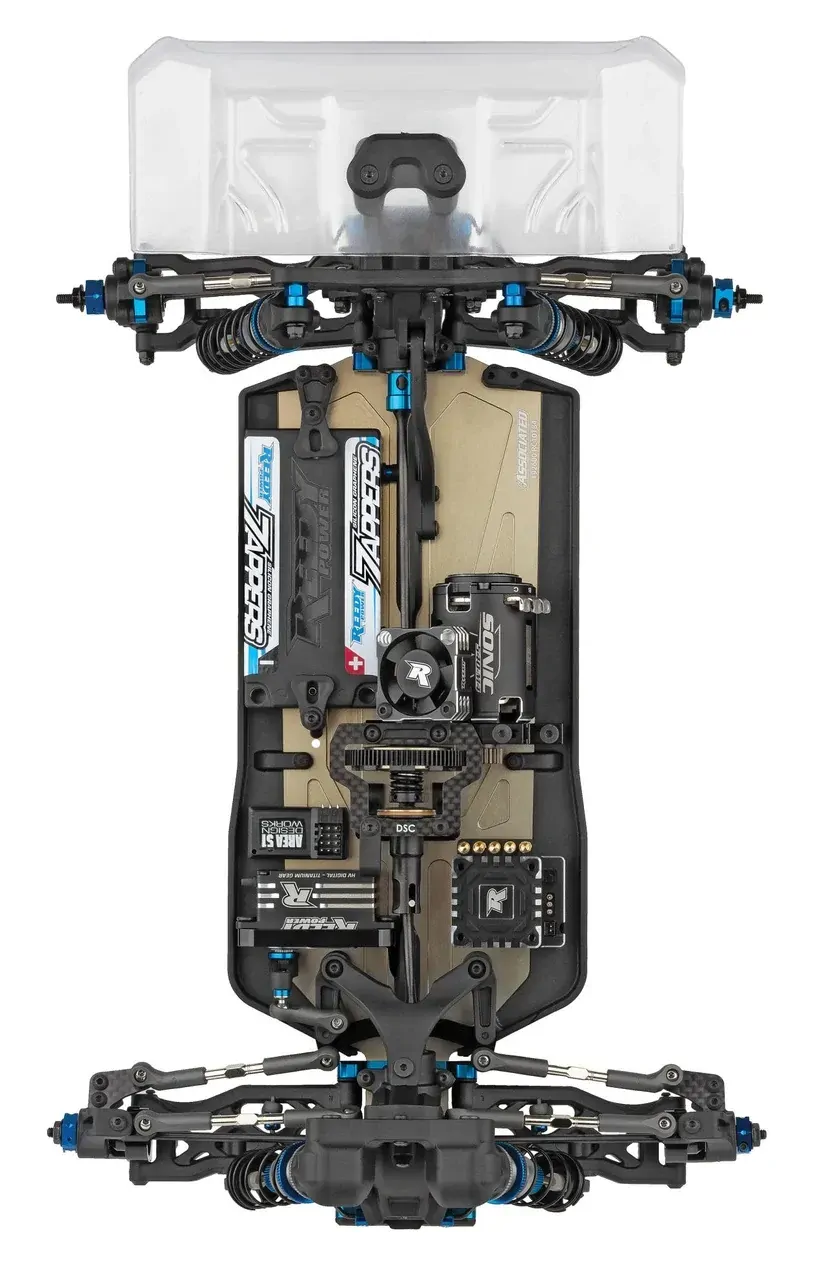

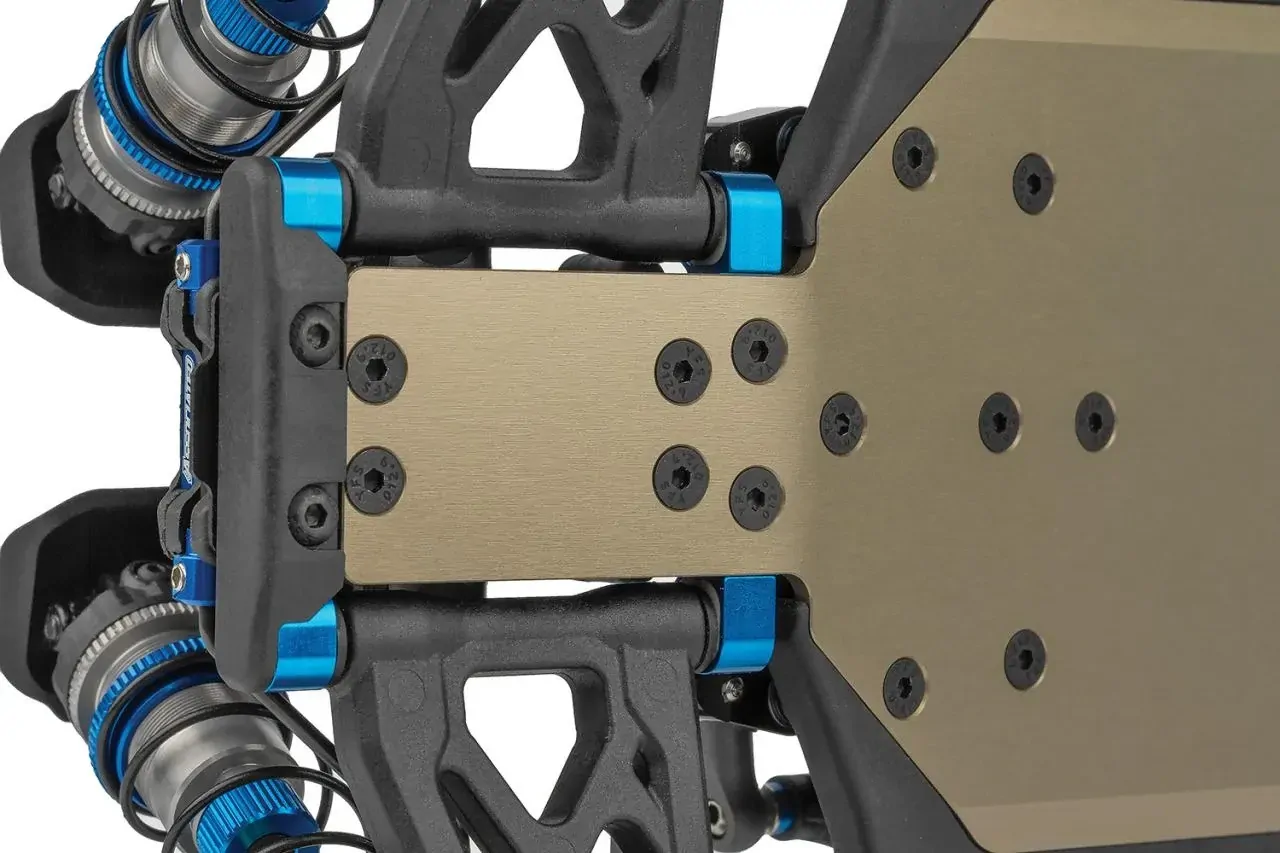

The RC10B84.1 introduces a Wide Tongue chassis design for improved durability, together with revised V2 side rails and wider A and B suspension mounts. The chassis itself is manufactured from 2.5mm tapered 7075-T6 aluminium, featuring 10 degrees of kick-up and an improved departure angle.

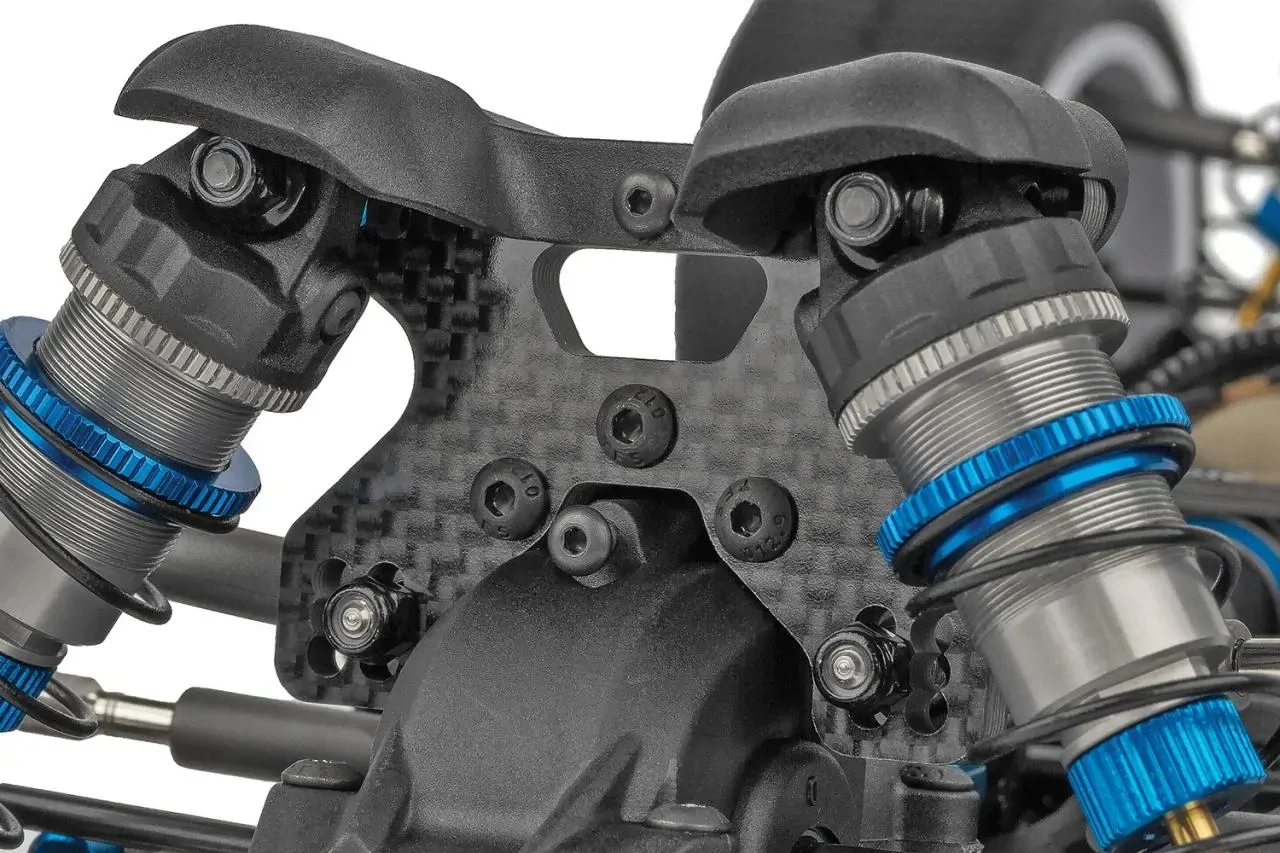

At the front, new 73mm Gull Wing suspension arms work with a dedicated carbon fibre front shock tower designed specifically around the 73mm arm geometry. A moulded front shock tower cover adds protection, while the updated front bumper system includes an optional bumper that covers the anti-roll bar mounts.

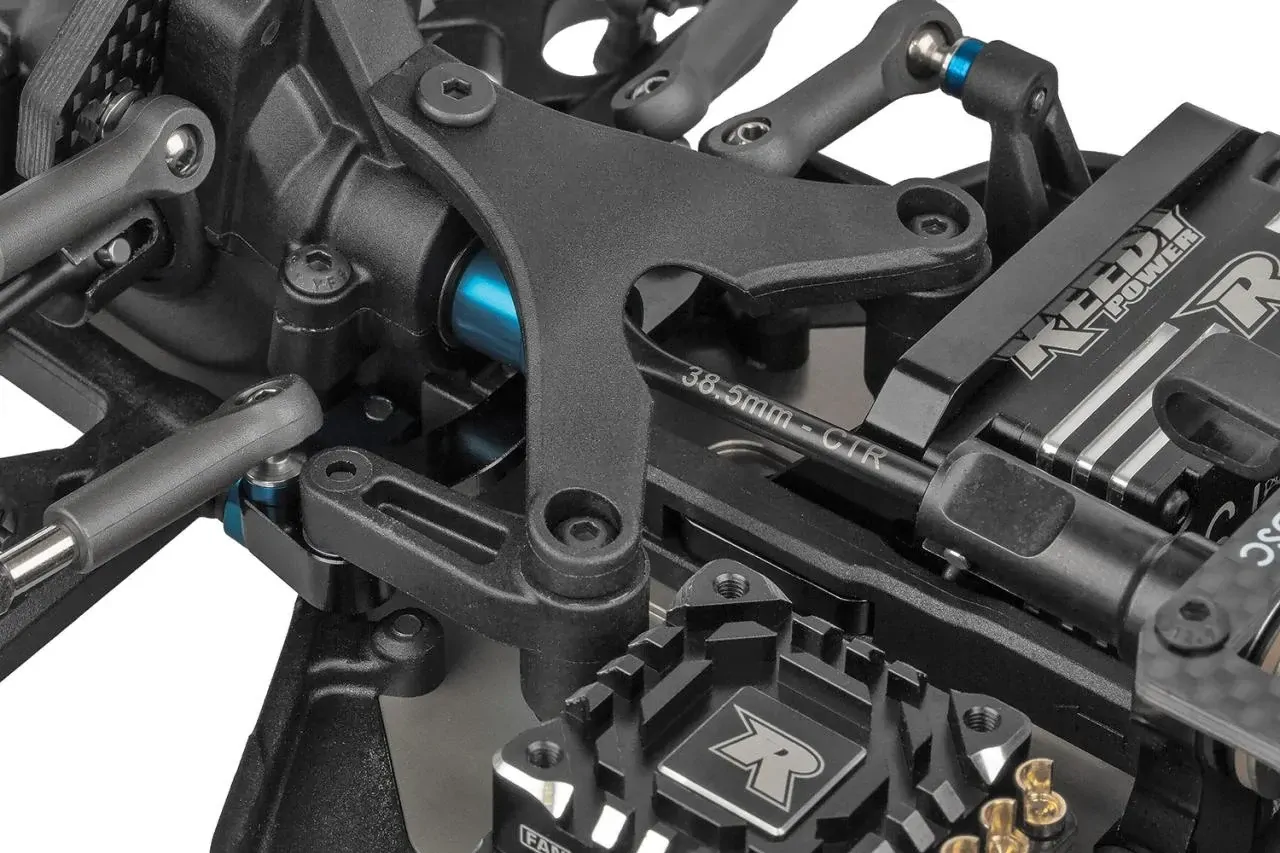

Updated Steering System
The RC10B84.1 features V2 steering posts and bellcranks designed to reduce unwanted vertical movement in the steering rack.
The steering bellcranks and rack geometry have also been optimised to provide improved bump-steer control across different ride heights, helping maintain predictable steering characteristics as chassis setup changes.
Height-Adjustable Gearboxes
Moulded height-adjustable front and rear gearboxes provide additional drivetrain tuning options.
Team Associated also includes an additional +2 rear gearbox for high-grip conditions, allowing racers to adapt drivetrain geometry to different track surfaces.

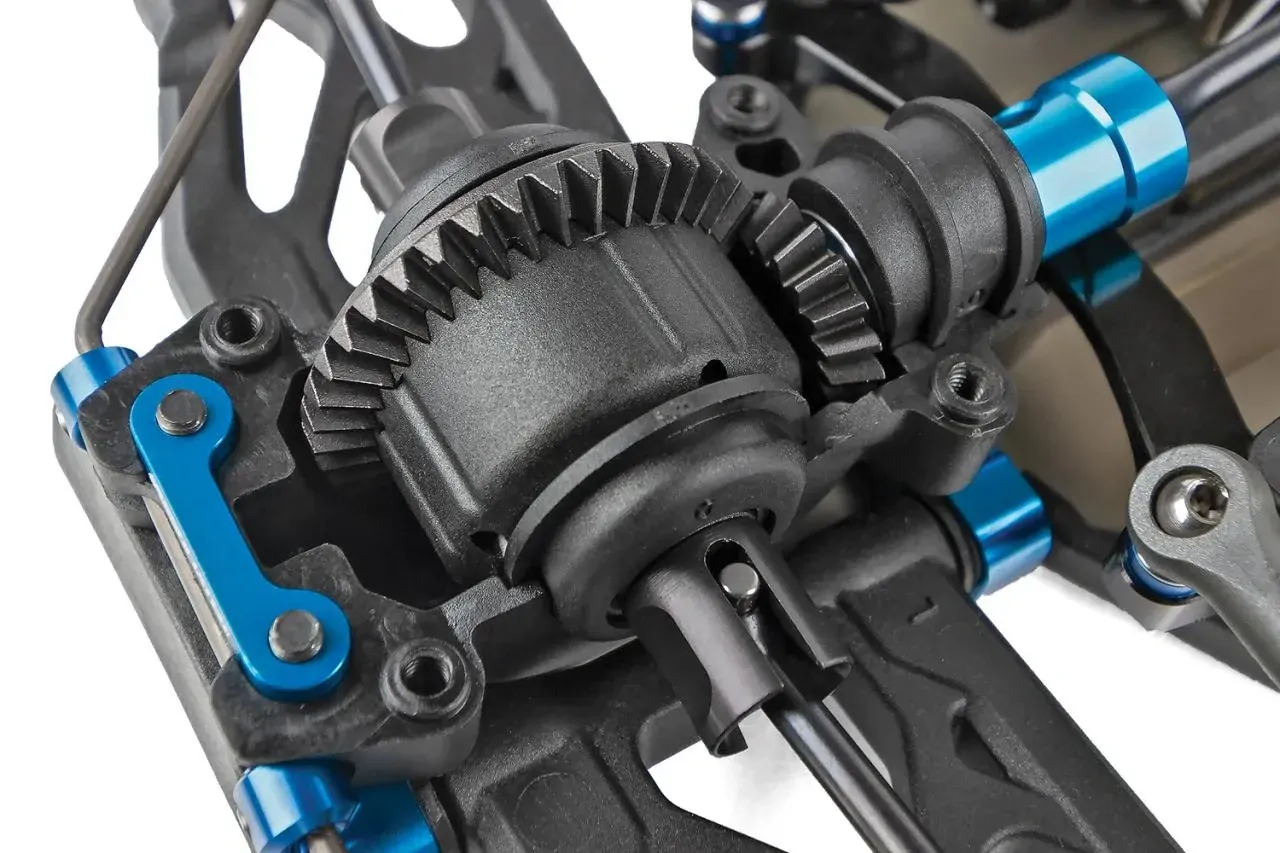

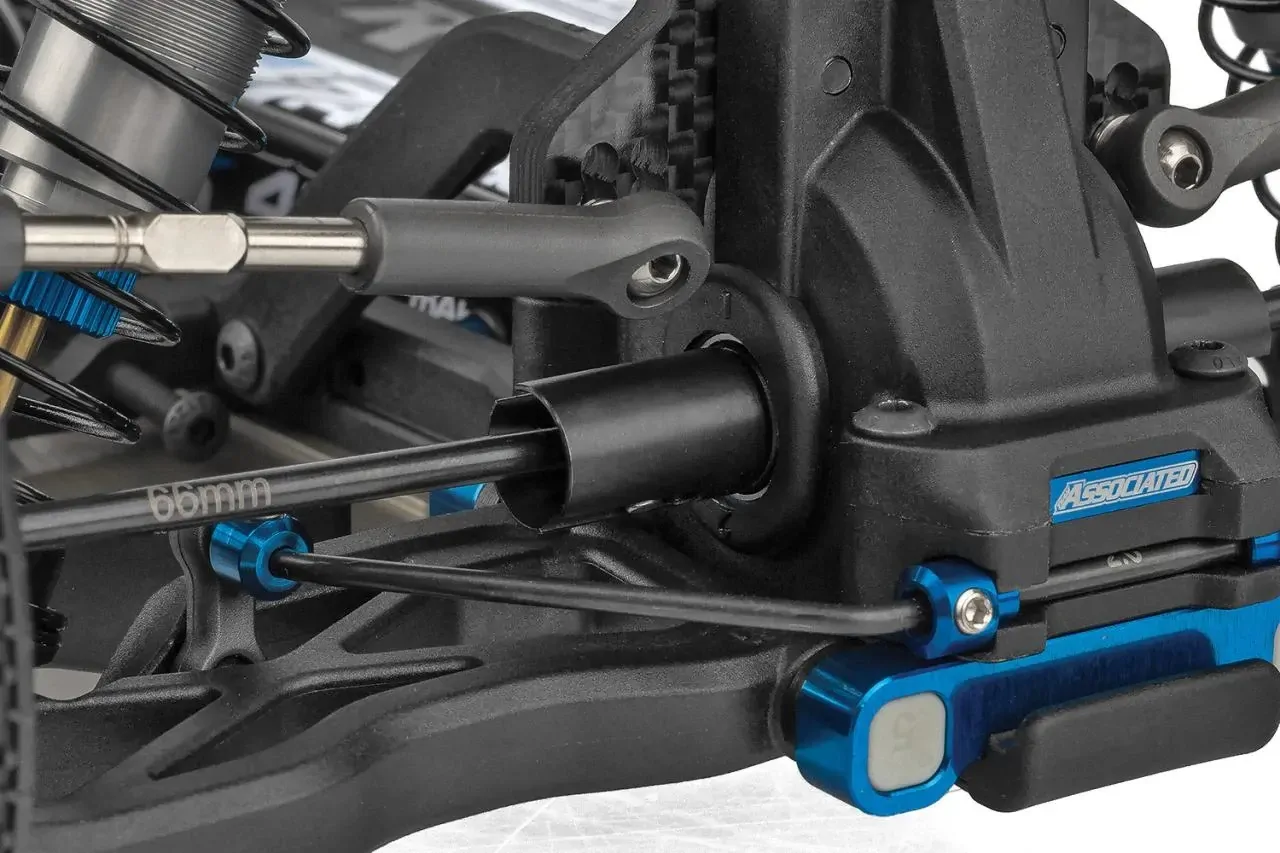

Long HD rear differential outdrives and 66mm rear CVA bones are also included.
Decoupled Slipper Clutch

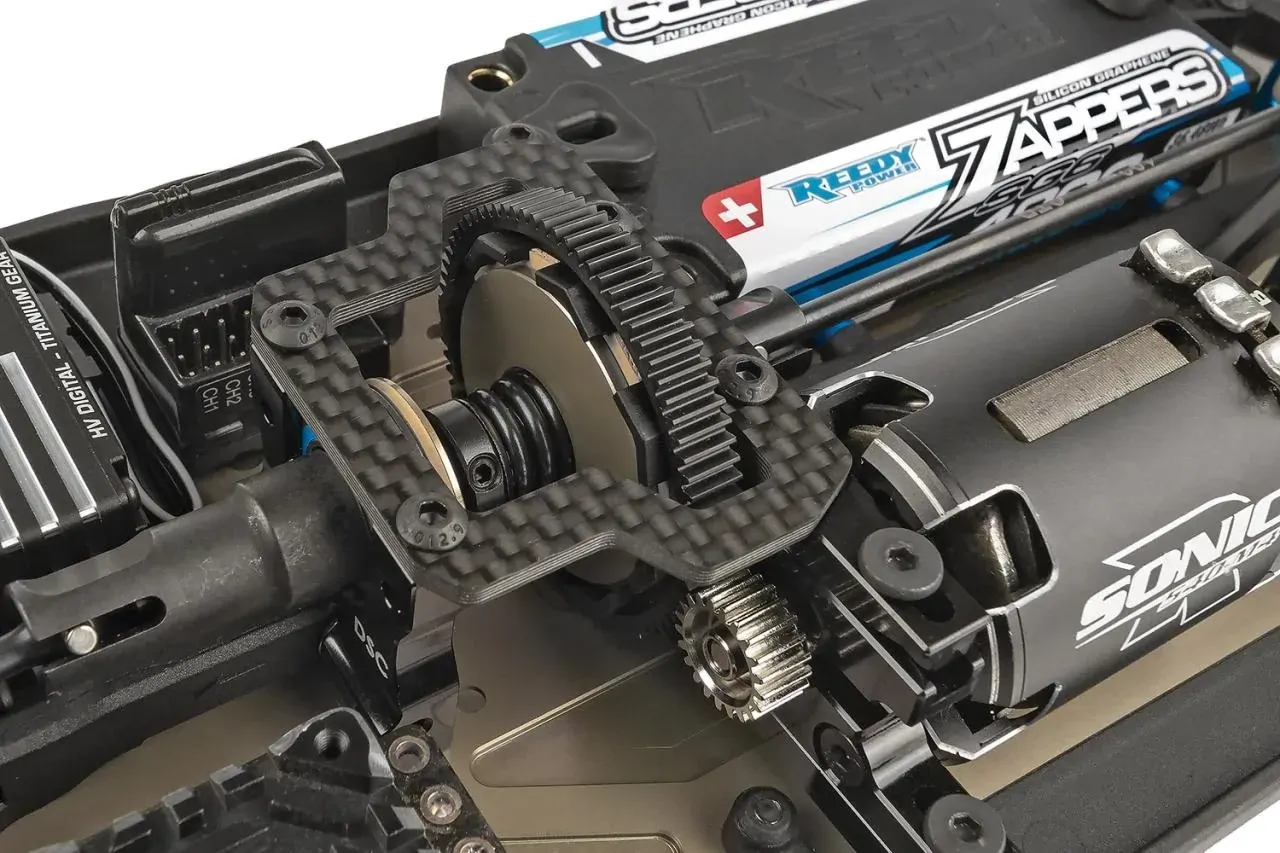

A key feature of the RC10B84.1 is the included decoupled slipper clutch.
This differentiates the RC10B84.1 from the RC10B84.1D, which uses a centre differential. The B84.1's slipper-equipped drivetrain provides racers with a different power-delivery and tuning configuration while retaining the extensive adjustability of the latest B84.1 platform.
Adjustable Chassis Flex

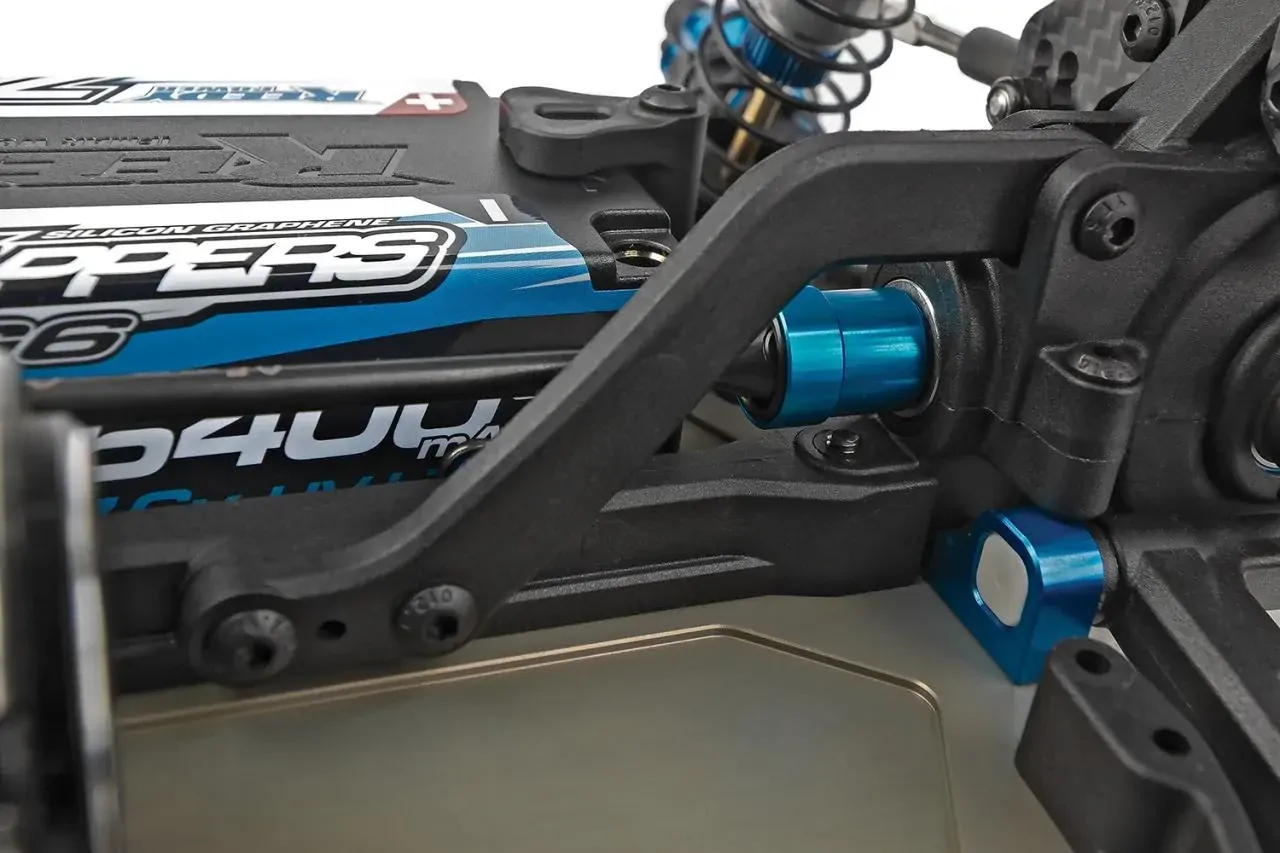

Upper and lower chassis bracing is provided at both the front and rear, allowing racers to fine-tune chassis flex for different surfaces and grip levels.
This gives drivers another way to alter the balance and response of the buggy without changing the fundamental suspension setup.
Extensive Suspension Geometry Adjustment
Both standard and HRC High Roll Centre rear hubs are included.

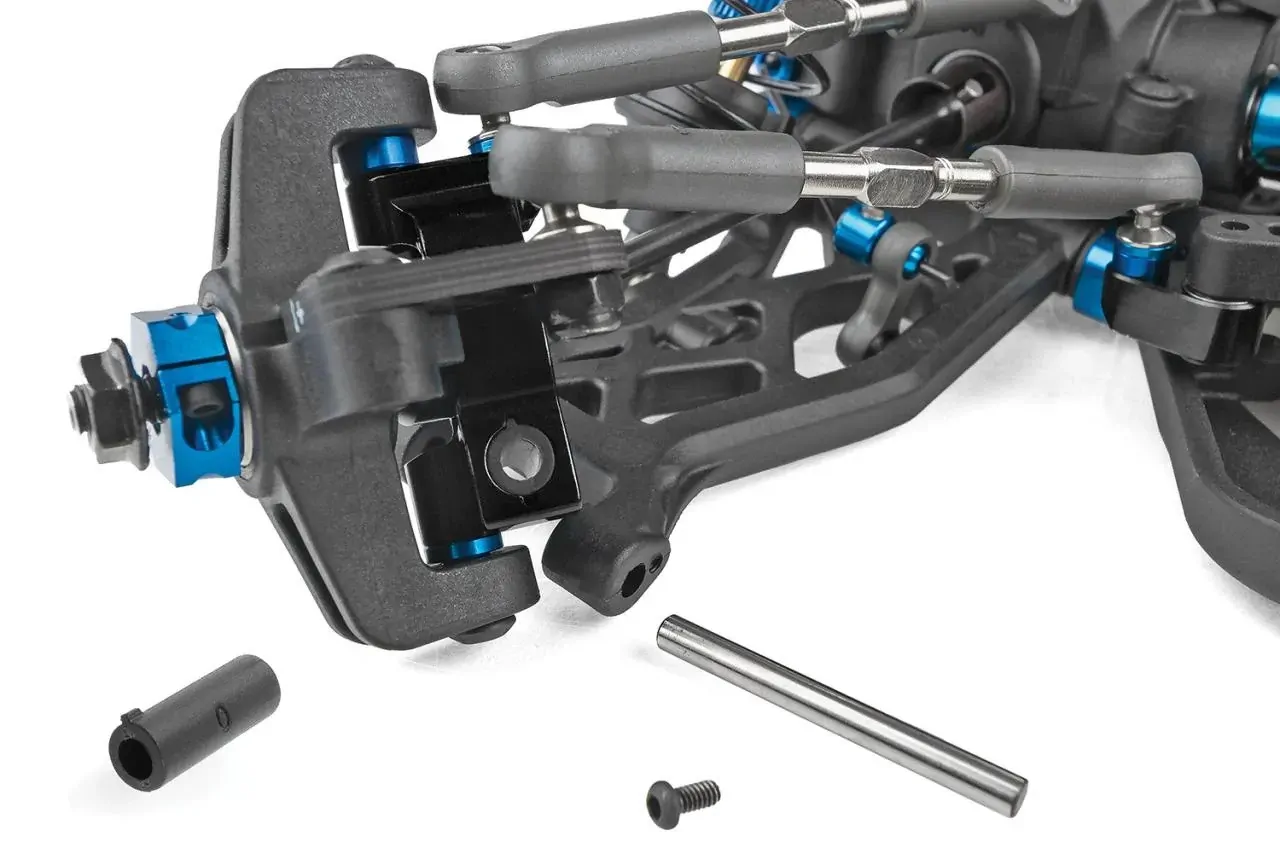

Insert-adjustable caster blocks are supplied with 0°, +1°, -1°, +2° and -2° inserts, providing a broad range of front suspension geometry options.
New 0.7mm A and D mount shims provide additional setup possibilities.

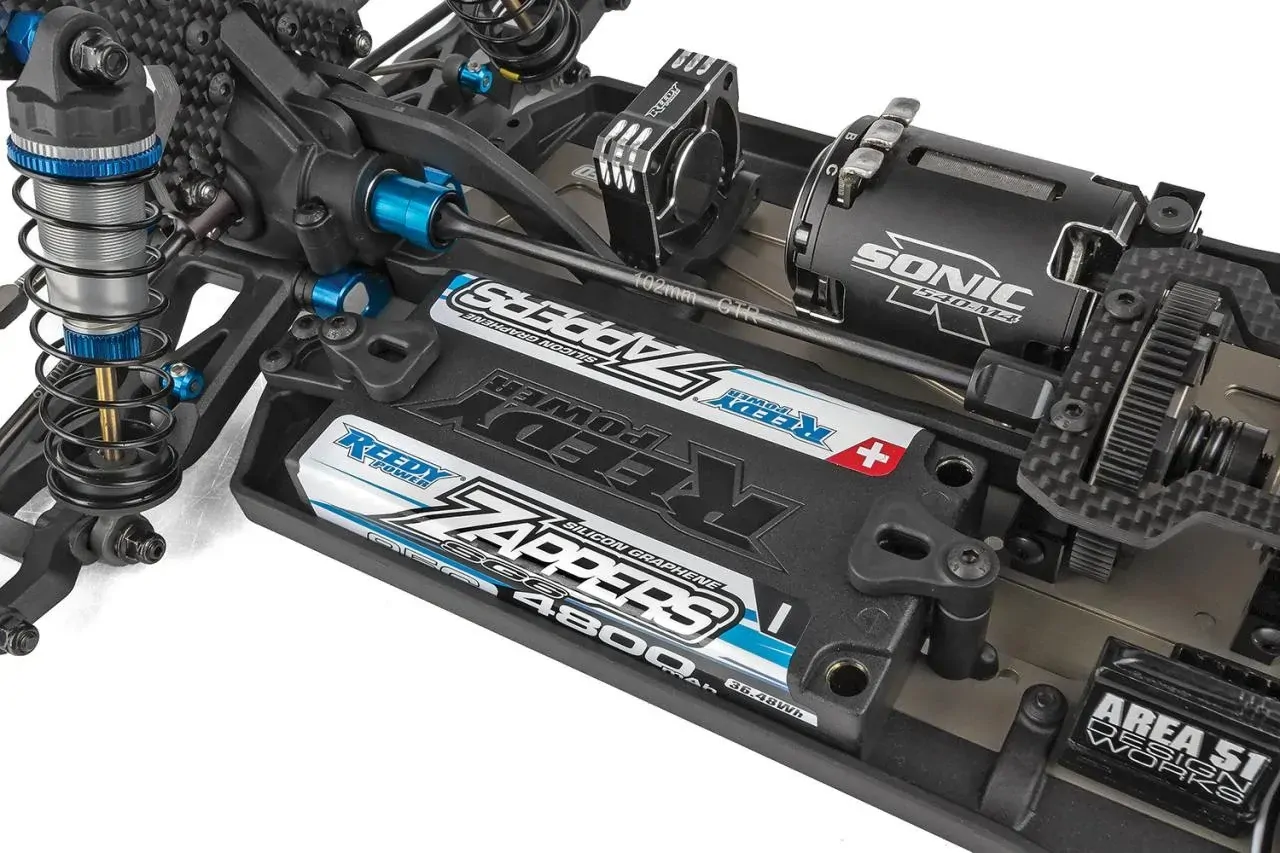

Adjustable Weight Distribution
The motor can be installed in forward or rearward positions, giving racers another method of adjusting weight bias.
The highly adjustable battery holder also allows battery position to be fine-tuned for chassis balance. Integrated thumb tabs make battery removal quick and convenient between runs.

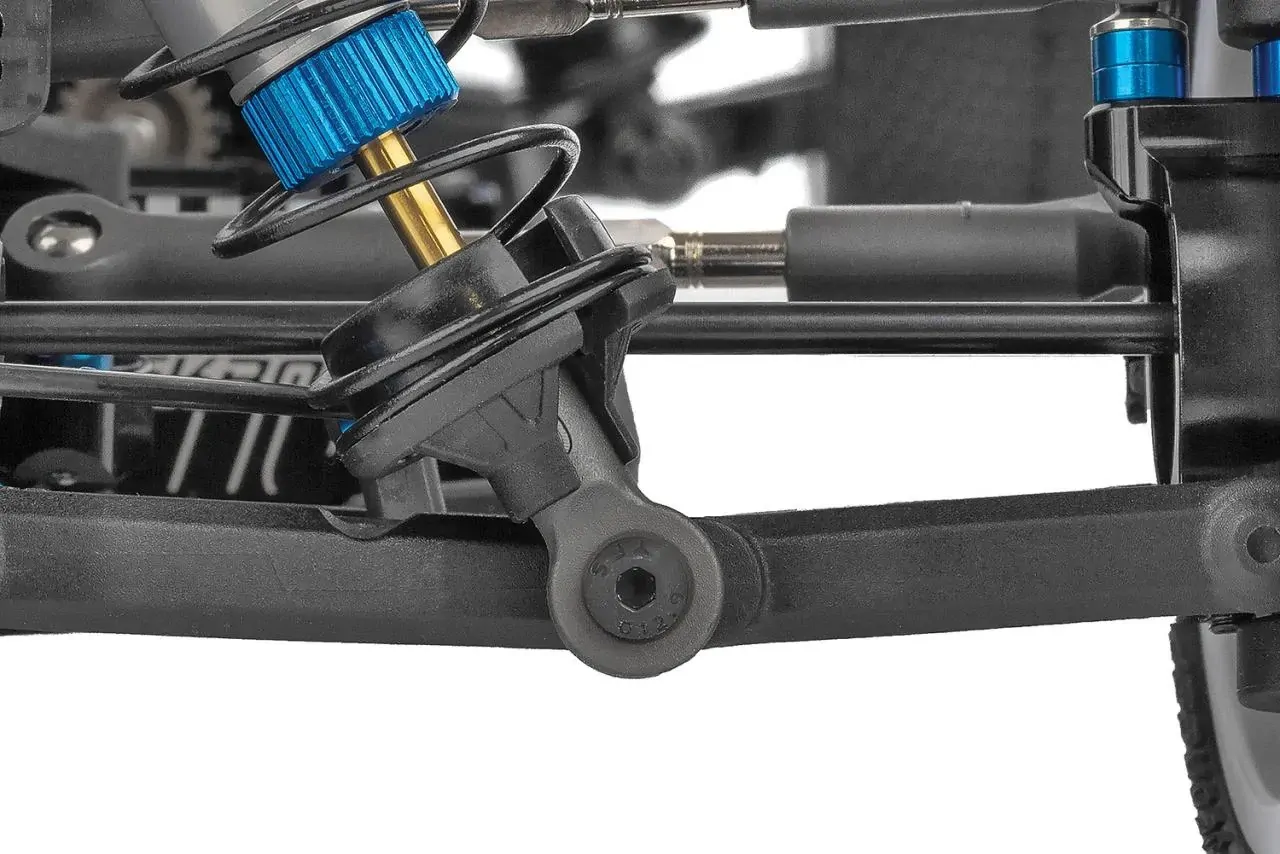

13mm Big-Bore Shocks
Team Associated 13mm Big-Bore shocks provide the suspension damping required for modern competition surfaces.
Heavy-duty 3.5mm turnbuckles and ballcups provide precise camber and toe adjustment while maintaining the durability required for racing.
Low-Profile Aerodynamics
A low-profile body keeps the overall package compact and race-focused.
The included 7-inch rear wing can be mounted at two different heights, giving racers another option for adjusting the buggy's aerodynamic characteristics.

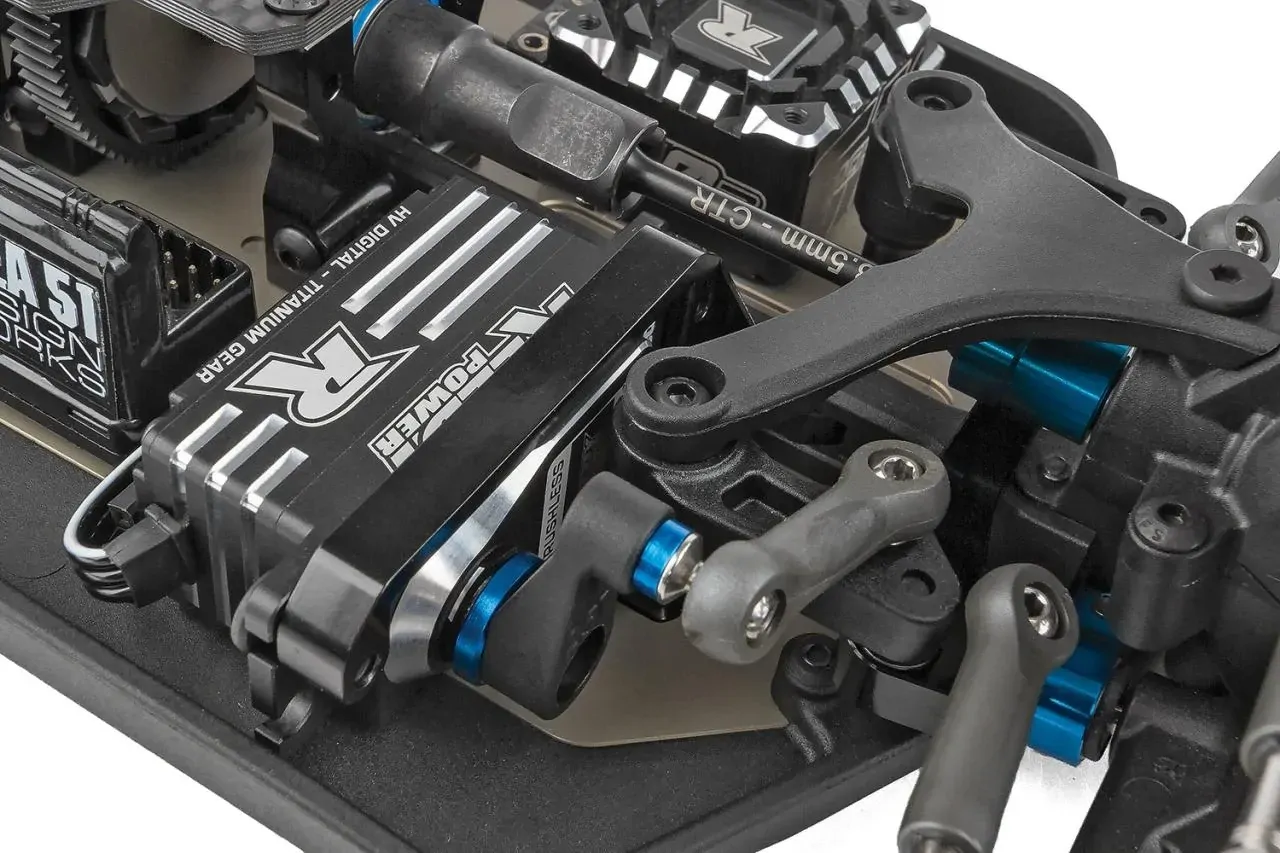

An aluminium centre-mounted servo mount completes the competition-focused chassis layout.
Available from Campbelltown Hobbies, the Team Associated RC10B84.1 Team Kit provides serious 1/10 4WD racers with a highly adjustable competition platform featuring a decoupled slipper clutch, height-adjustable gearboxes and extensive chassis and suspension tuning options.
Required Items
- Brushless Motor
- Pinion Gear
- Electronic Speed Controller (ESC)
- Steering Servo
- Transmitter
- Receiver
- Battery
- Compatible Battery Charger
- Wheels
- Tyres
- Polycarbonate-Specific Paint
- Assembly Tools
Specifications
Brand: Team Associated
Model: RC10B84.1 Team Kit
Scale: 1/10
Vehicle Type: Competition Off-Road Buggy
Power Source: Electric
Drive: 4WD
Assembly Level: Kit
Chassis: 7075-T6 Aluminium
Chassis Thickness: 2.5mm Tapered
Chassis Design: Wide Tongue
Chassis Kick-Up: 10°
Side Rails: V2
A & B Mounts: Wide
Front Suspension Arms: 73mm Gull Wing
Front Shock Tower: Carbon Fibre – 73mm Geometry
Front Shock Tower Cover: Moulded
Steering: V2 Posts & Bellcranks
Caster Adjustment: 0°, ±1° & ±2° Inserts
Rear Hubs: Standard & HRC Included
Gearboxes: Moulded Height-Adjustable Front & Rear
Additional Rear Gearbox: +2 High-Grip Option
Rear Differential Outdrives: Long HD
Rear CVA Bones: 66mm
Slipper: Decoupled Slipper Clutch
Motor Position: Forward / Rearward Adjustable
Battery Holder: Adjustable with Thumb Tabs
Servo Mount: Aluminium Centre-Mounted
Turnbuckles: 3.5mm
Shocks: 13mm Big-Bore
Rear Wing: 7"
Rear Wing Positions: Two Mounting Heights
Body: Low Profile
A/D Mount Shims: 0.7mm
Key Features
- Wide Tongue chassis for improved durability
- V2 side rails
- Wide A and B mounts
- 73mm Gull Wing front suspension
- Carbon fibre front shock tower
- Moulded front shock tower cover
- V2 steering posts and bellcranks
- Reduced vertical steering rack movement
- Optimised steering bellcranks and rack
- Improved bump-steer control
- Long HD rear differential outdrives
- 66mm rear CVA bones
- 0.7mm A and D mount shims
- Moulded front bumper
- Optional bumper covering anti-roll bar mounts
- Height-adjustable front and rear gearboxes
- Additional +2 rear gearbox for high-grip conditions
- Adjustable upper and lower chassis bracing
- Standard rear hubs included
- HRC High Roll Centre rear hubs included
- Insert-adjustable caster blocks
- 0°, ±1° and ±2° caster inserts
- Forward and rearward motor positions
- Adjustable battery position
- Quick-release battery thumb tabs
- 2.5mm tapered 7075-T6 aluminium chassis
- 10° chassis kick-up
- Improved departure angle
- Decoupled slipper clutch
- Aluminium centre servo mount
- Two rear wing mounting heights
- 7-inch rear wing
- Low-profile body
- 3.5mm turnbuckles and ballcups
- 13mm Big-Bore shocks
Recommended Electronics
Servo: Reedy Power RT3507A LP Brushless High-Torque HV Servo – #27179
Battery: Reedy STOCKSTAR 5000mAh 7.4V 160C LCG Shorty – #27611
ESC: Reedy Blackbox 610R Competition ESC – #27016 / #27017
Motor: Reedy Sonic 540-SP5 13.5T Brushless Motor – #27481
Charger: Reedy 1416-C2L Dual AC/DC Competition Balance Charger – #27203
