TLR 22X DC 1/10 2wd Race Buggy Kit Dirt/Clay

Dominate Dirt and Clay Tracks with the TLR 22X DC Race Buggy

Team Losi Racing redefines 2WD competition with the TLR 22X DC 1/10 2WD Race Buggy Kit – the next evolution in a legendary platform. Purpose-built for high-traction dirt and clay tracks, the 22X DC combines innovative design with race-winning DNA to give you the edge right out of the box.

Developed from the World Championship-winning 22 series, the 22X DC offers next-level performance and ease of maintenance. A new laydown gearbox design allows for quick differential and idler gear access without disassembling the entire assembly. The hard-anodized 7075-T6 aluminum chassis is lengthened and optimized for modern, high-grip surfaces, while 13mm big-bore G3 shocks with matching springs deliver smooth landings and responsive cornering.

With premium features like carbon fiber shock towers, refined steering geometry, adjustable kick-up and caster, and Variable Height Axle (VHA) rear hubs, you can precisely dial in your setup for any track condition. Plus, the kit includes a Pro-Line Sector 22X body, front wing, and 7" rear wing for race-ready style and performance.

Whether you're chasing podium finishes or just demanding the best, the TLR 22X DC gives you maximum adjustability and race-proven technology in one complete kit.

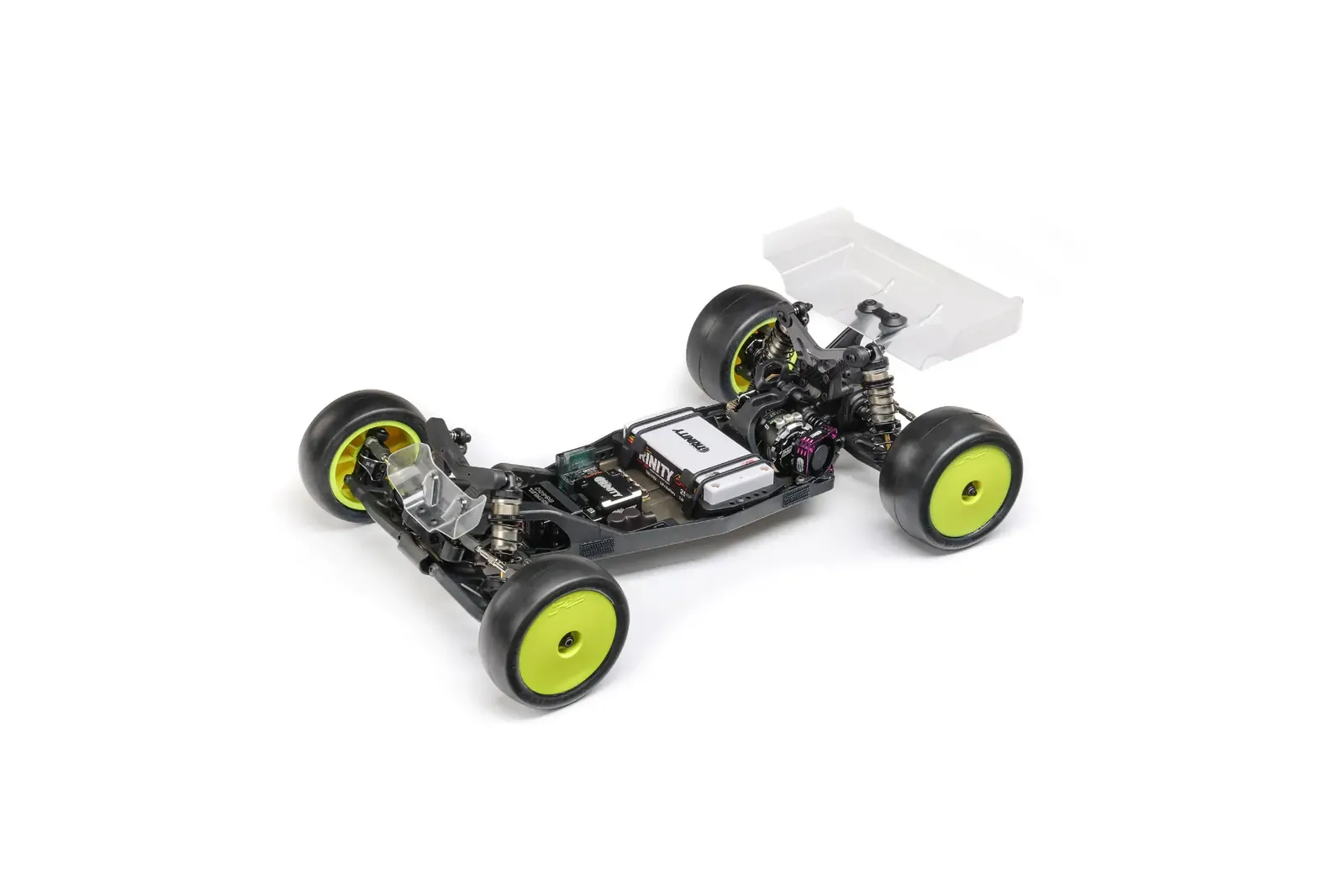

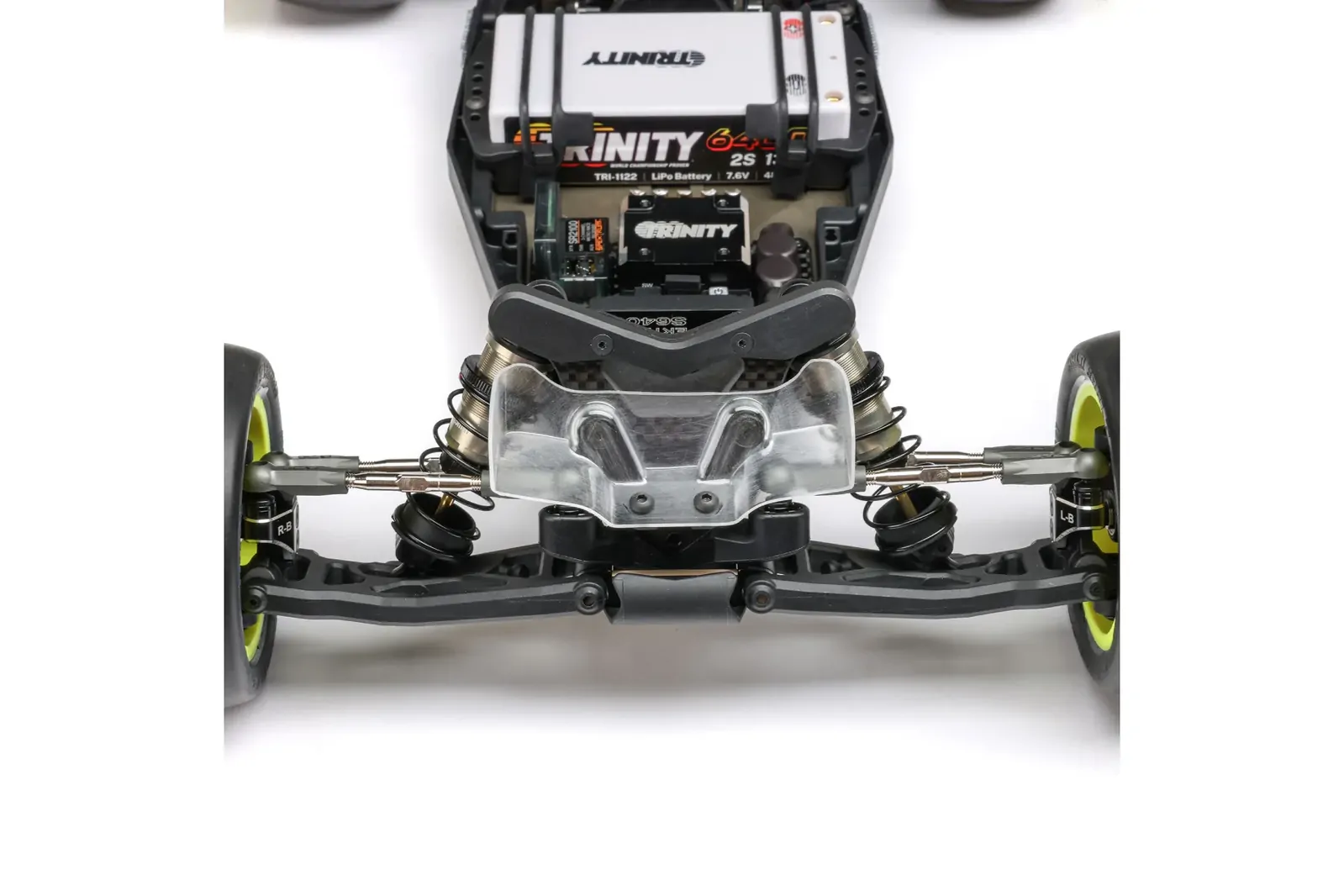

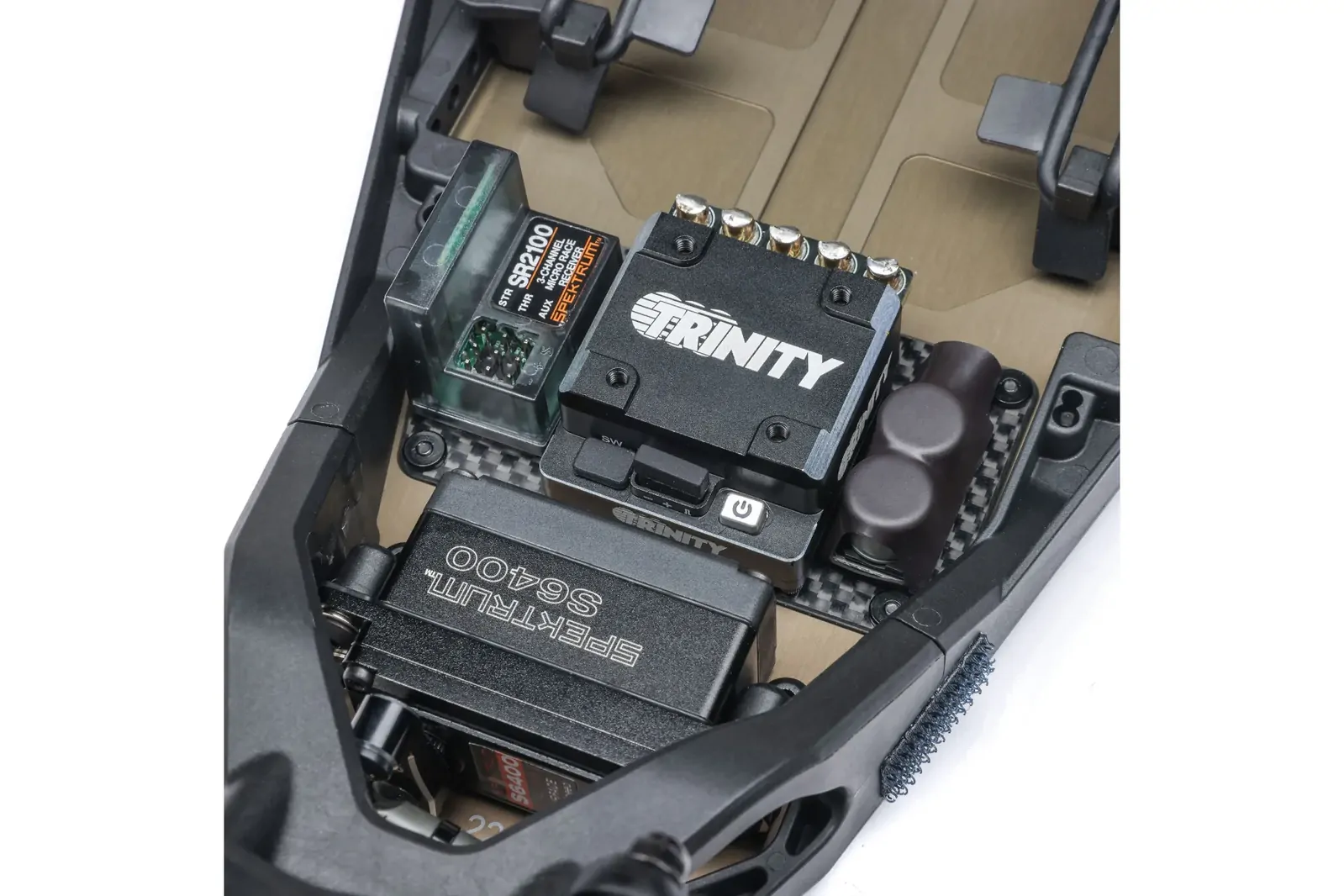

**NOTE: Electronics In Images Are For Reference Purpose Only (All Electronics Not Included)**

Features

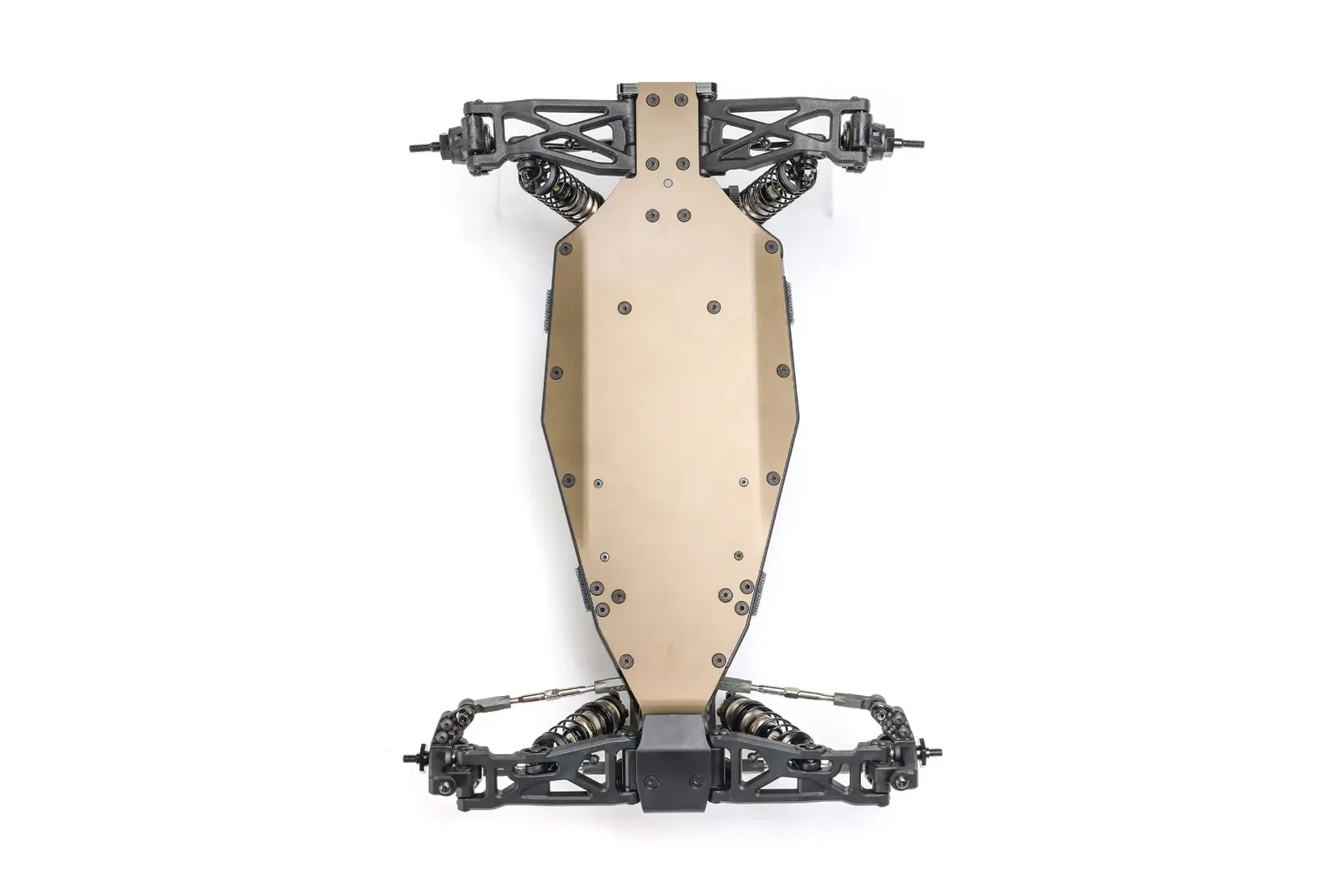

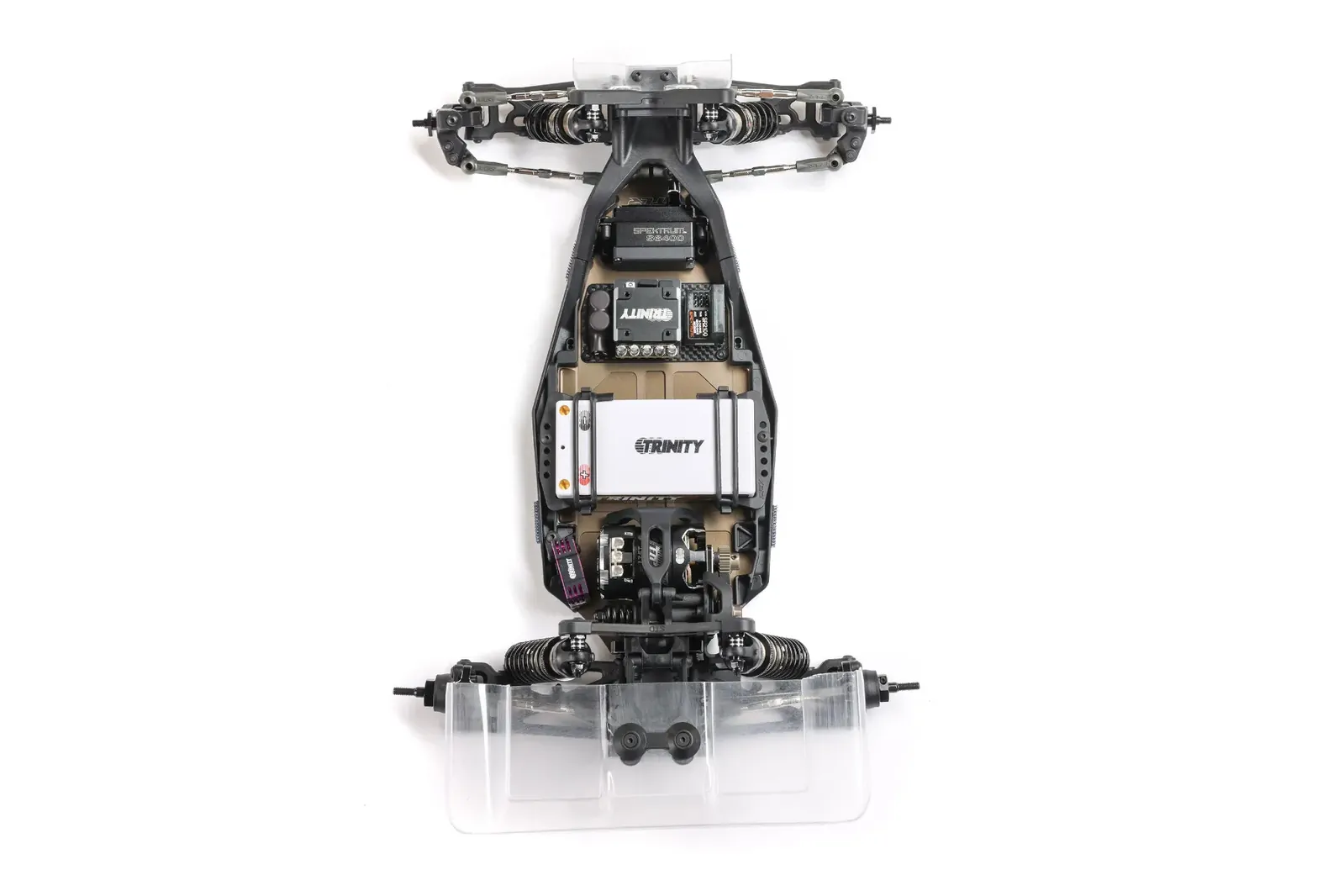

• Hard-anodized 2mm 7075-T6 aluminum chassis for strength and optimized flex
• Laydown transmission with quick-access differential and idler gear

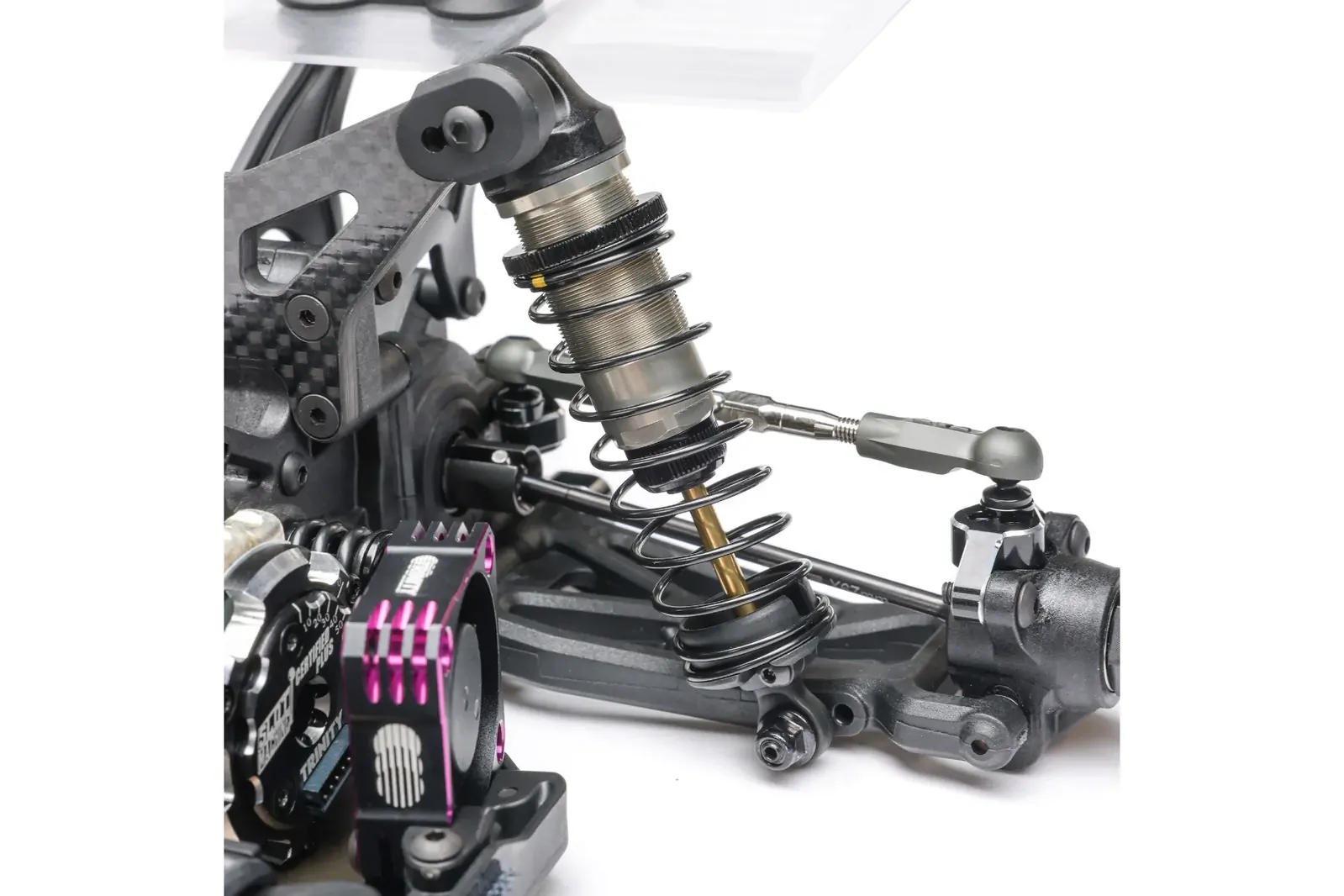

• G3 13mm big-bore shocks and springs for smoother handling
• Adjustable caster (-5° to 5°) and kick-up (20°–25°) with included shims
• Refined steering geometry with multiple kingpin offsets

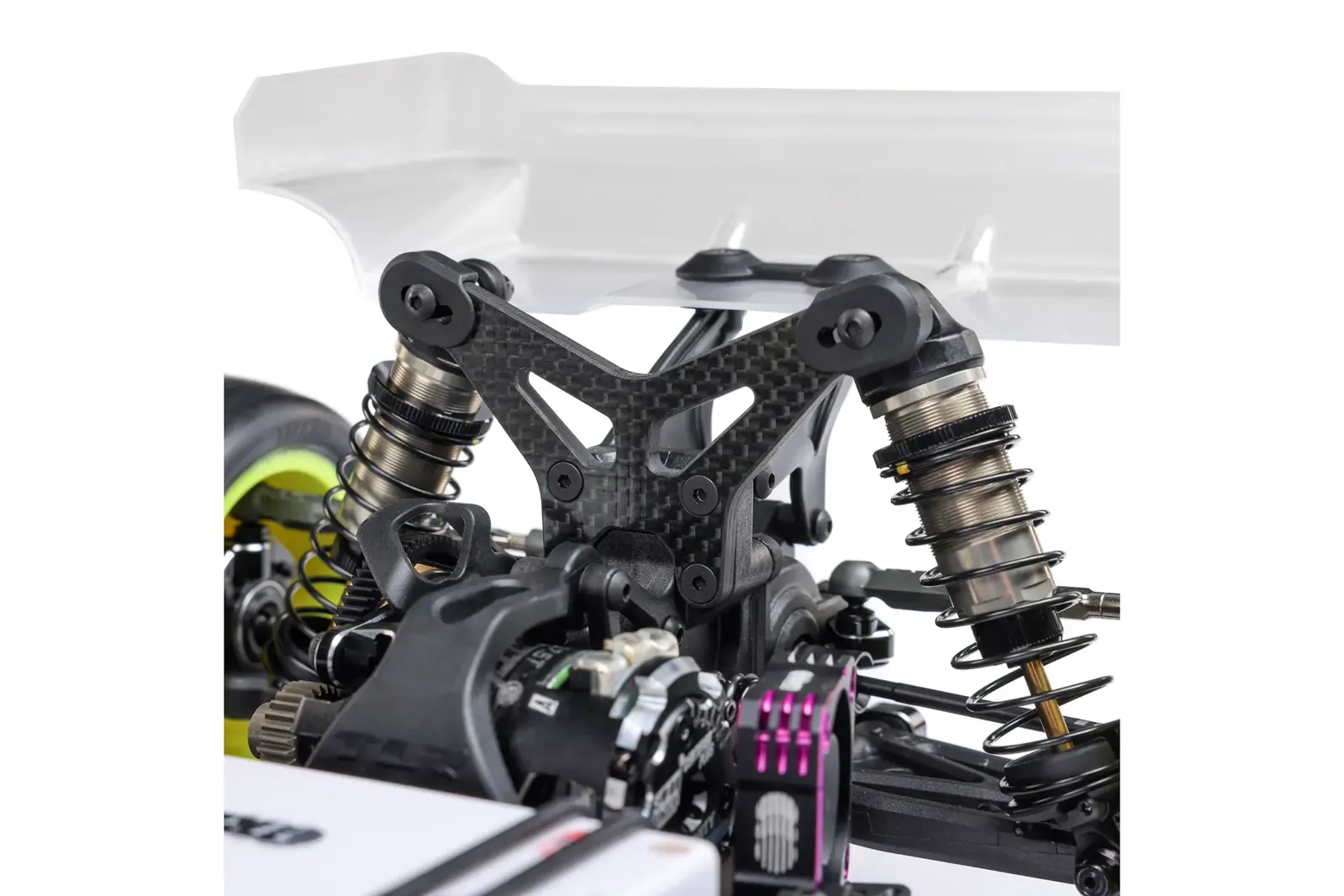

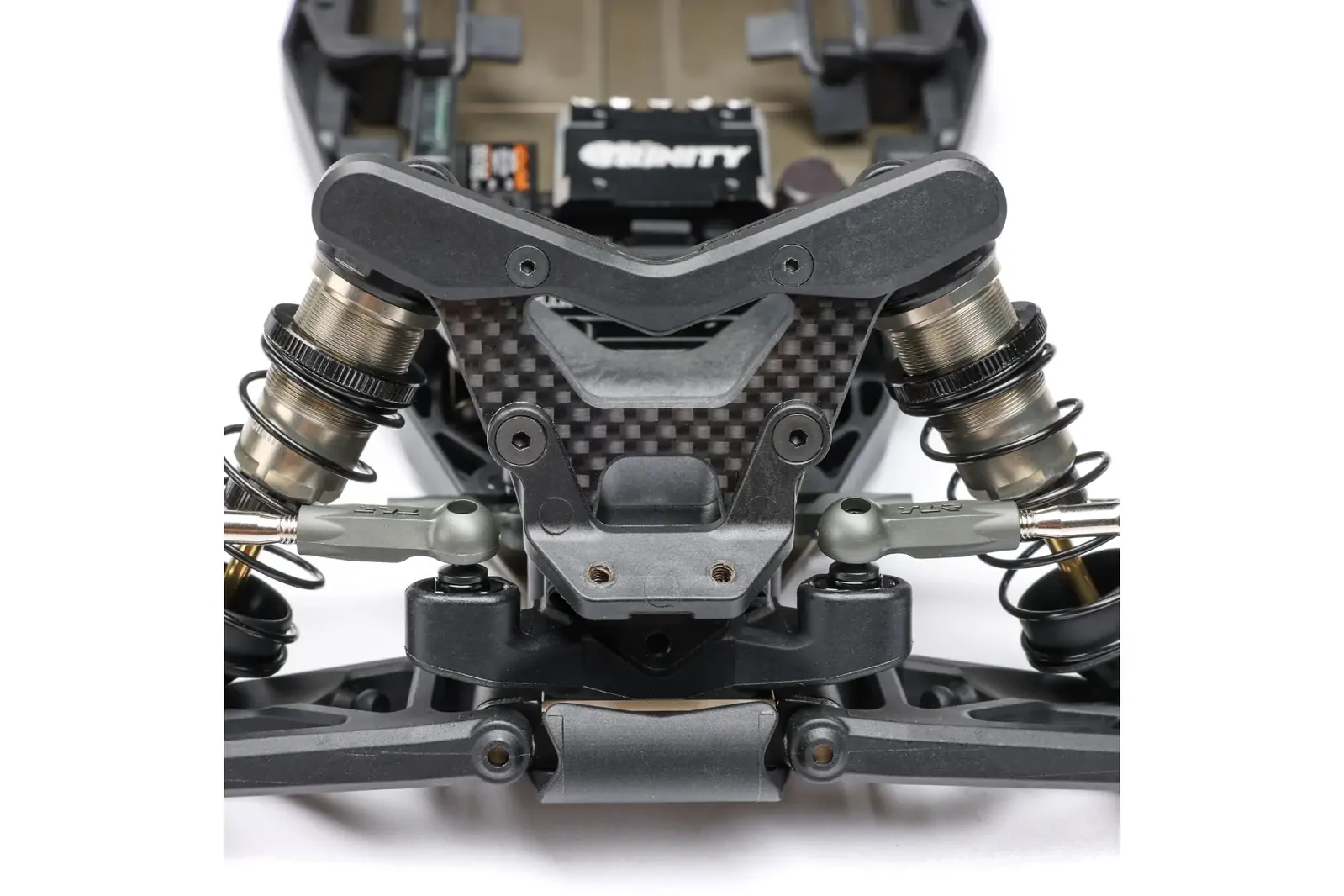

• 4mm carbon fiber shock towers with protective tower covers

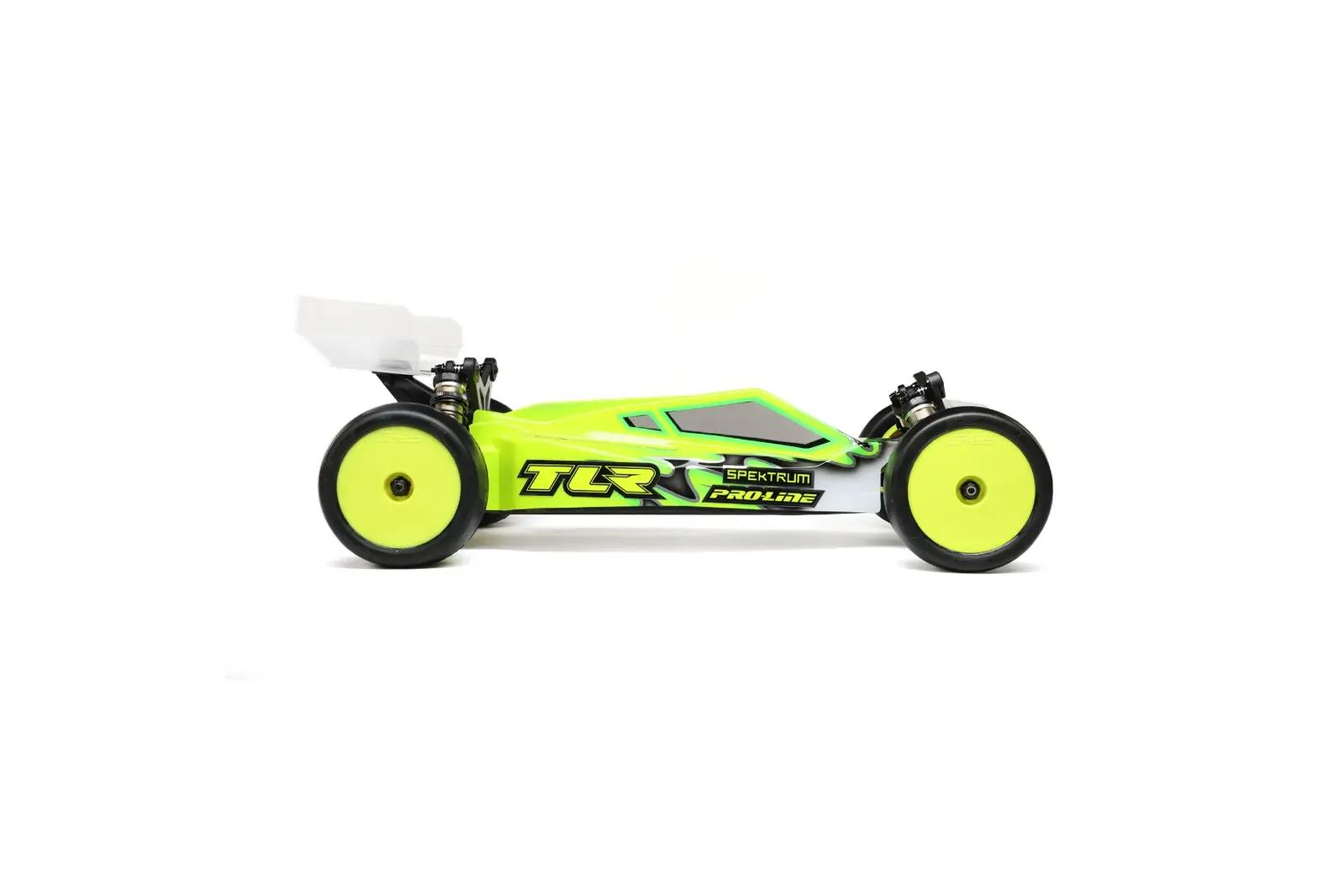

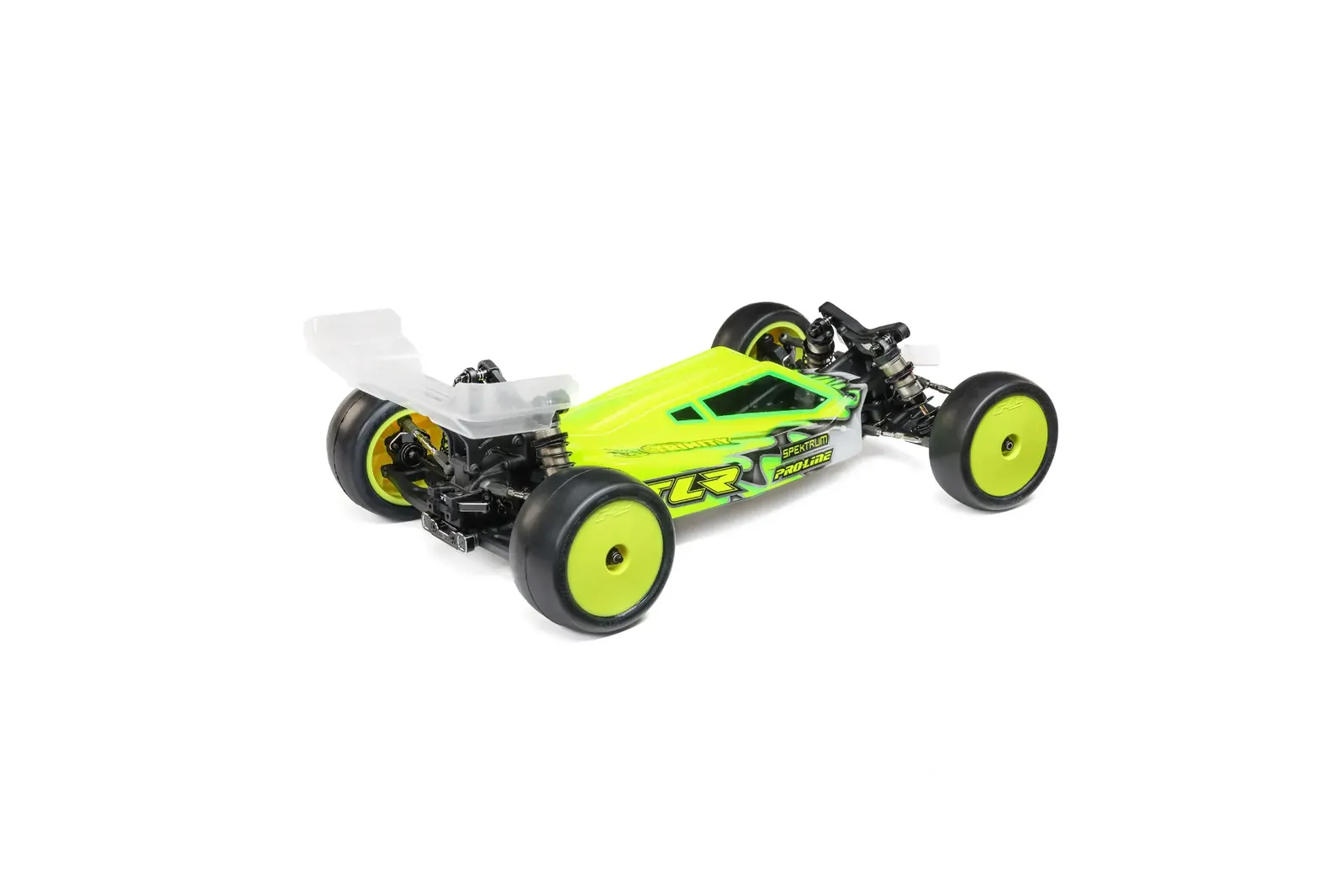

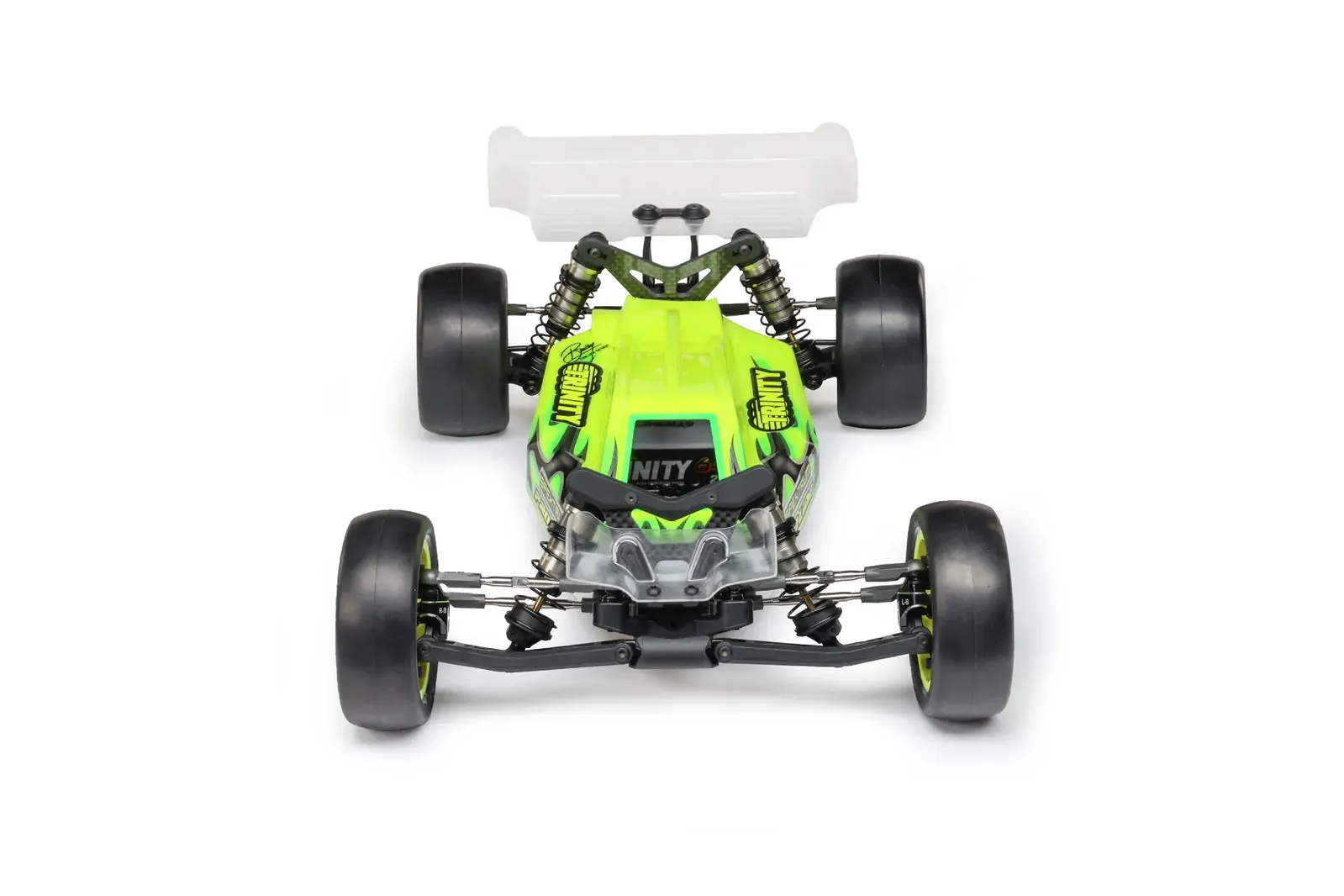

• Pro-Line Sector 22X body, front wing, and Air Force 7” rear wing included
• Standard 2.2” front and rear wheel compatibility
• Glass-filled composite parts with multiple stiffness options

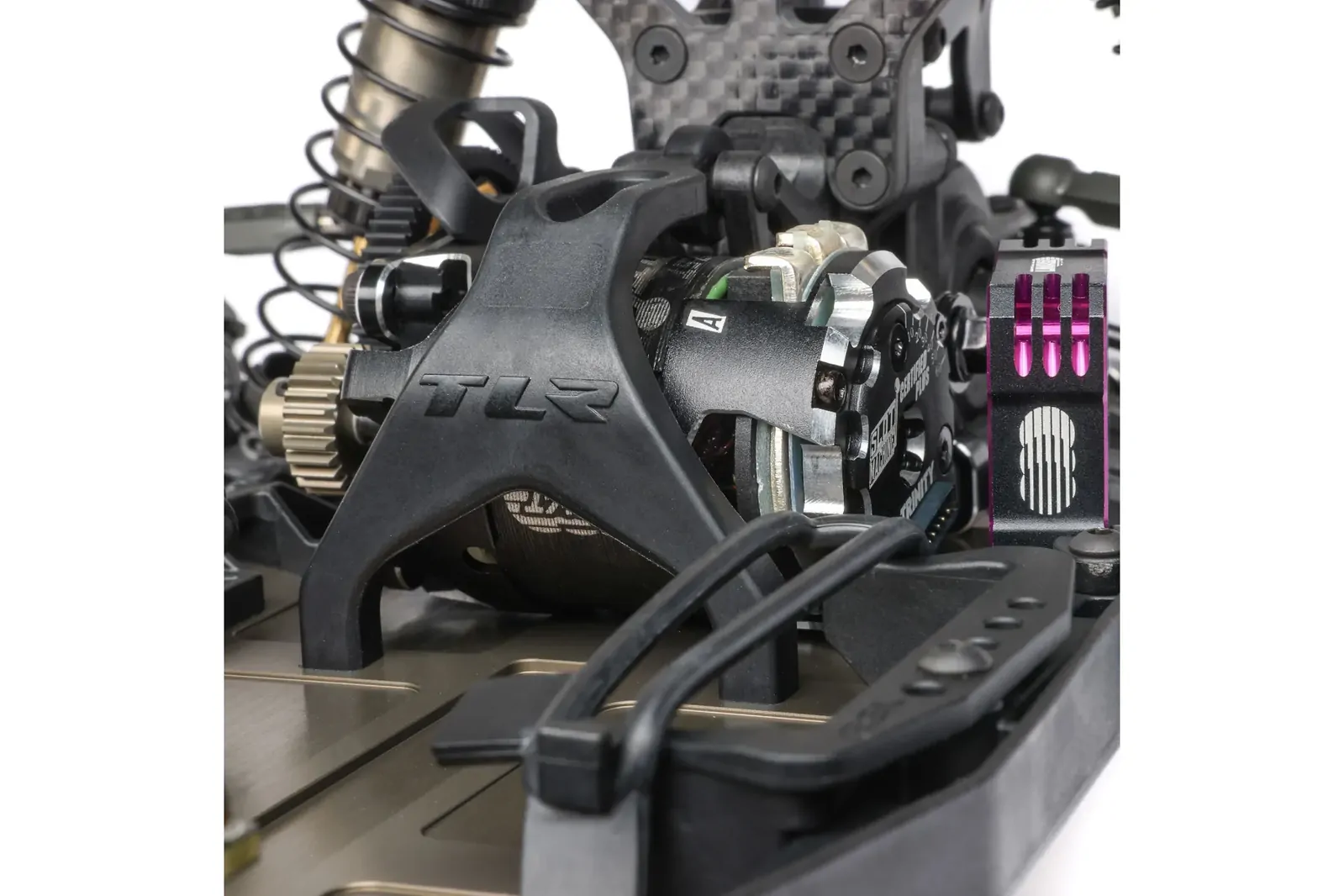

• Built-in motor fan mount for 30mm x 30mm fans
• Super Heavy Duty Slipper (SHDS) for reliable power delivery
• Aluminum components throughout for lightweight strength
• Designed for maximum tunability out of the box

What's In the Box

• (1) Team Losi Racing 22X DC 1/10 Scale 2WD Race Buggy Kit
• (1) Pro-Line Sector 22X Precut Body
• (1) Pro-Line Air Force 7” Rear Wing
• (1) Low-Mount Front Wing
• (1) Product Manual

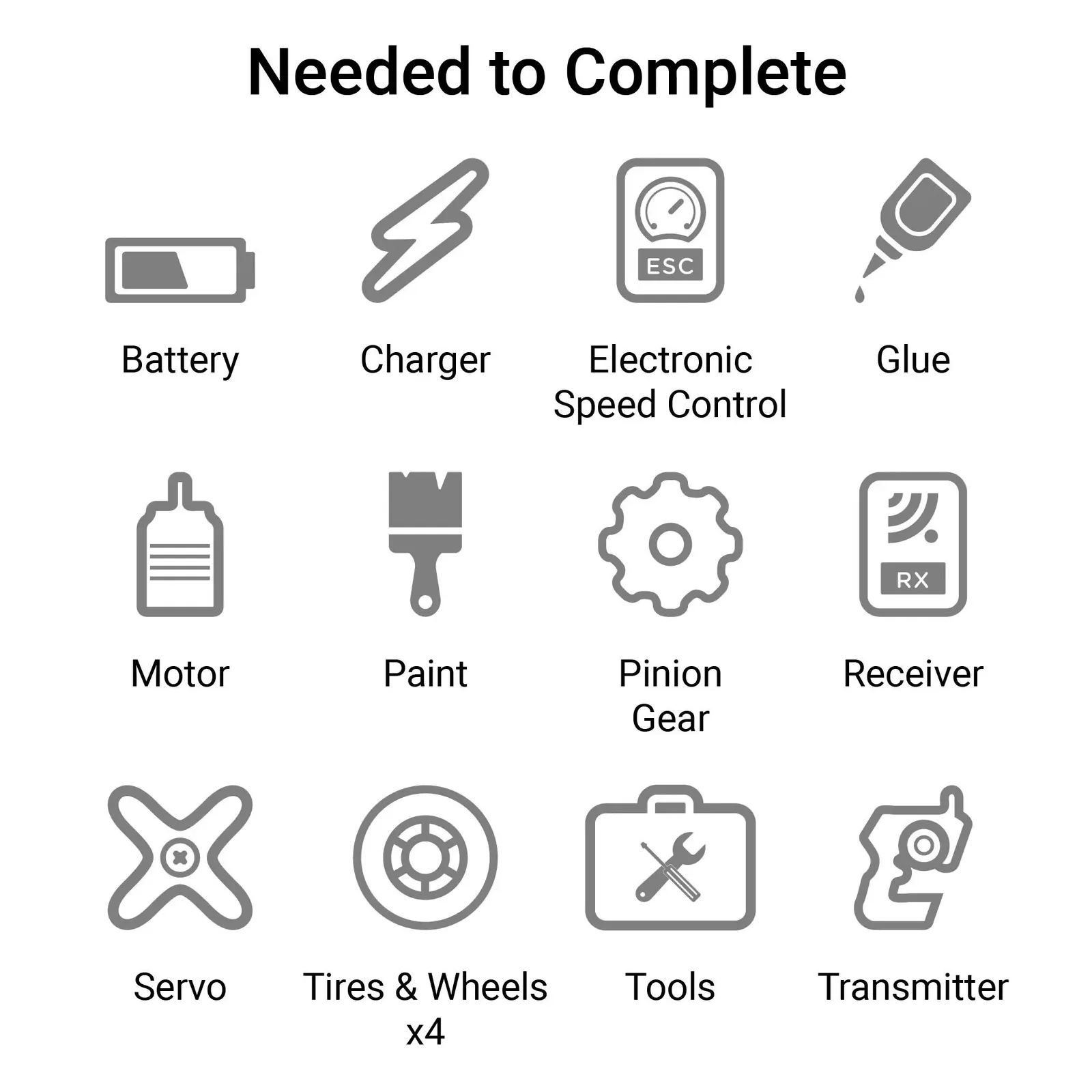

What You Need (Not Included)

• 2-channel transmitter and receiver
• ESC and 540-size motor

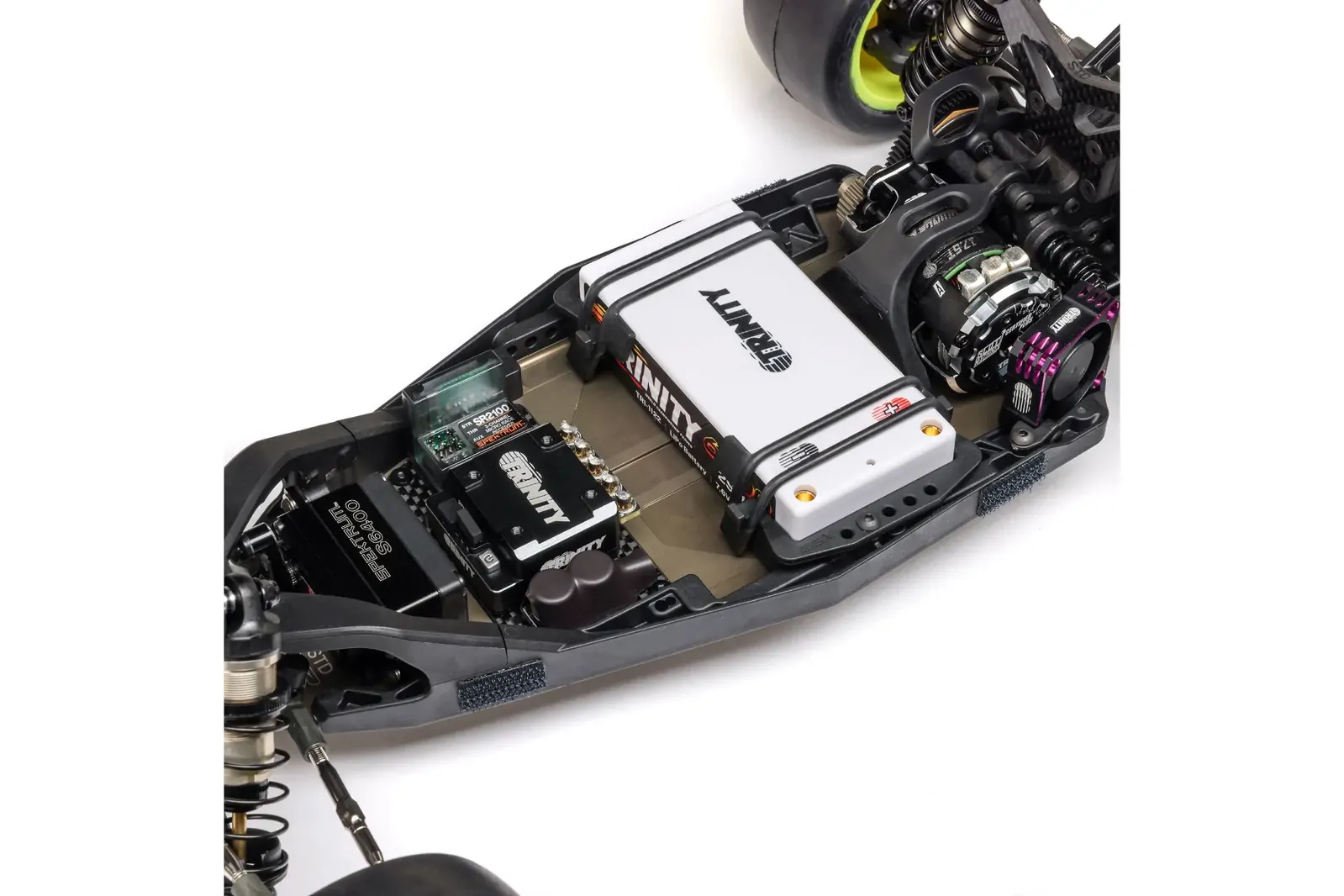

• 2S LiPo Shorty Battery (Max size: 25.1 x 47 x 96mm)
• LiPo battery charger
• Servo and 25T clamping horn
• 48-pitch pinion gear
• 2.2” front and rear buggy wheels and tires
• Polycarbonate paint
• Optional: 30 x 30mm motor fan

Product Specifications

• Approximate Assembly Time : 3-5 Hours
• Body : Pre-cut
• Chassis : 7075-T6 Aluminum Milled Plate 2mm thick
• Completion Level : Kit
• Differential : Ball
• Drivetrain : 2WD
• Front Track : 9.8" (250mm)
• Gear Pitch : 48-Pitch
• Internal Gear Ratio : 2.6:1
• LiPo Compatibility : 2S
• Max Battery Dimensions : 25.1mm x 47mm x 96mm
• Power Type : Electric
• Product Height : 5.8" (147 mm)
• Product Length : 14.6" (371 mm)
• Rear Track : 9.8" (250mm)
• Scale : 1/10
• Shock Type : 13mm big-bore shocks
• Spur Gear : 78
• Vehicle Size : Standard
• Vehicle Type : Buggy
• Wheel Hex Size : 12mm
• Wheelbase : 11.2" (284 mm)
