Hobbywing QuicRun WP12BL45 G2 Brushless ESC 45A 2-3s for 1/12 and 1/14

Product Number

•

• 30107000

Type

• Scale
• Brushed/Brushless
• Sensored/Sensorless
• Waterproof

• 1/12^th、1/14^th
• Brushless
• Sensorless
• Waterproof

Specifications

• Cont./Peak Current
• Input Voltage
• BEC Output

• 45A/200A
• 2-3S
• 6V/7.4V,4A

Wires & Connectors

• Input Wires
• Output Wires
• Input Connectors
• Output Connectors

• Black-14AWG-110mm*1,Red-14AWG-110mm*1
• Black-14AWG-85mm*3
• XT60
• 3.5MM Gold (female)

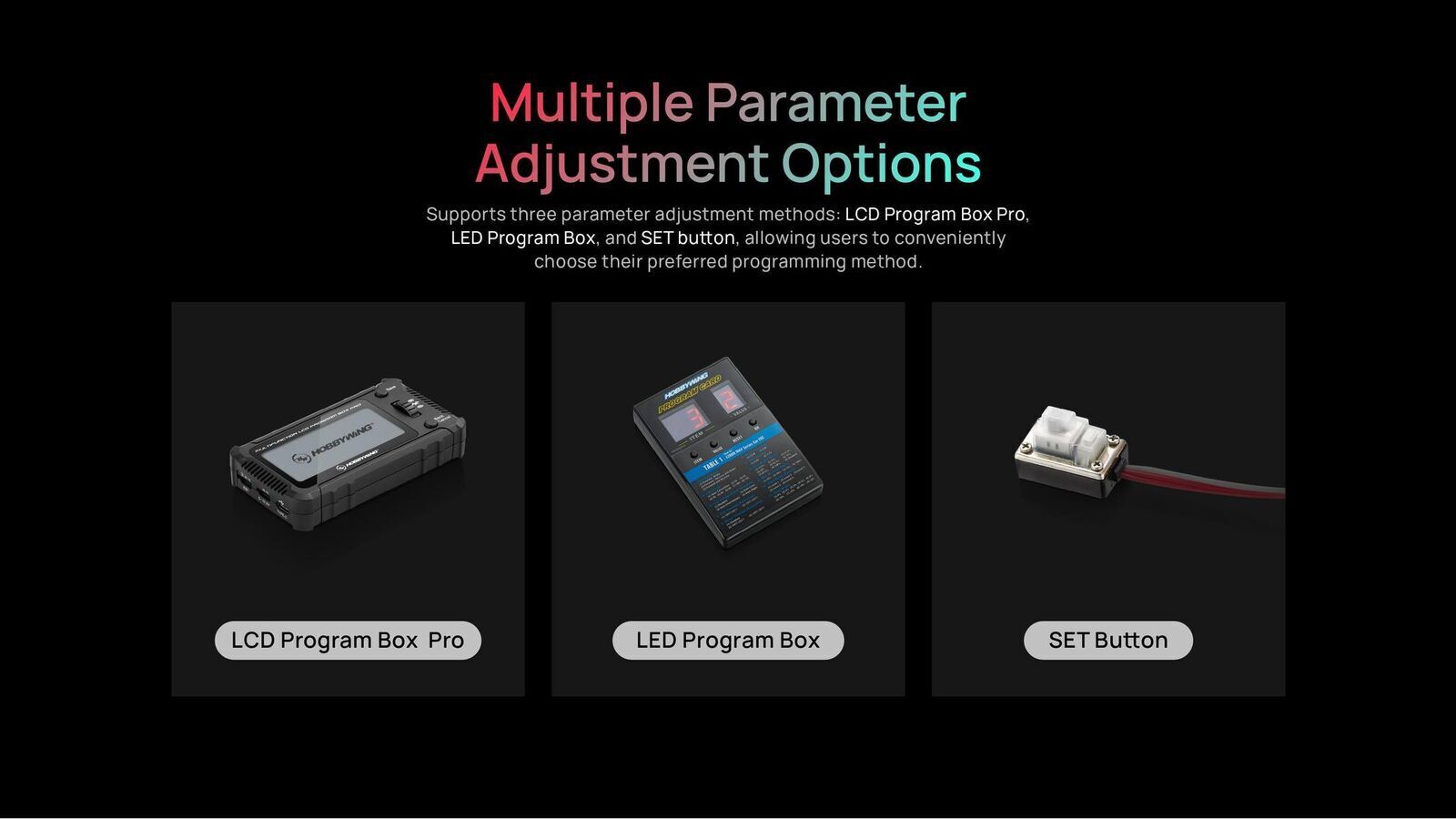

ESC Programing via

• SET Button on ESC
• LED Program Box
• LCD G2 Program Box
• LCD PRO
• OTA Programmer

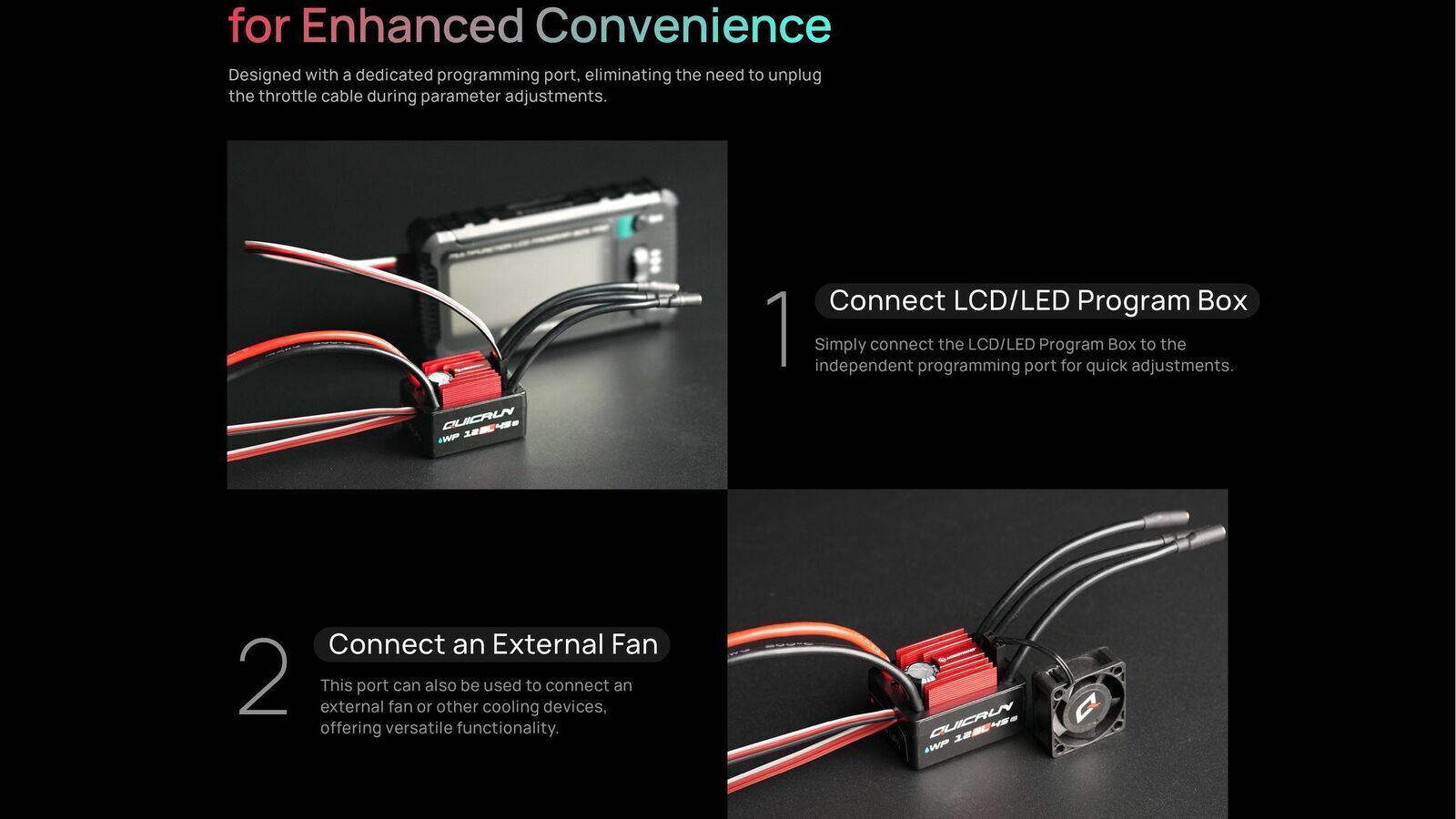

• Program Port

• Supported
• Supported
• Supported
• Supported
• Not Supported
• Independent program port

Data Recording

• Extreme value
• Real-time Data
• Historical data (Graph)

• Not Supported
• Not Supported
• Not Supported

Firmware

• Firmware Upgrade

• Not Supported

Size & Weight

• Size
• Weight

• 39.2*29.2*25.6mm
• 57g( Included wires & connectors)

Applications

• Motors
• Vehicles
• KV Rating/T Count

• Sensorless / Sensored Brushless Motor (only in sensorless mode)
• 1/12^th、1/14^th On-Road & Off-Road
• QUICRUN 2840/2850 G2
