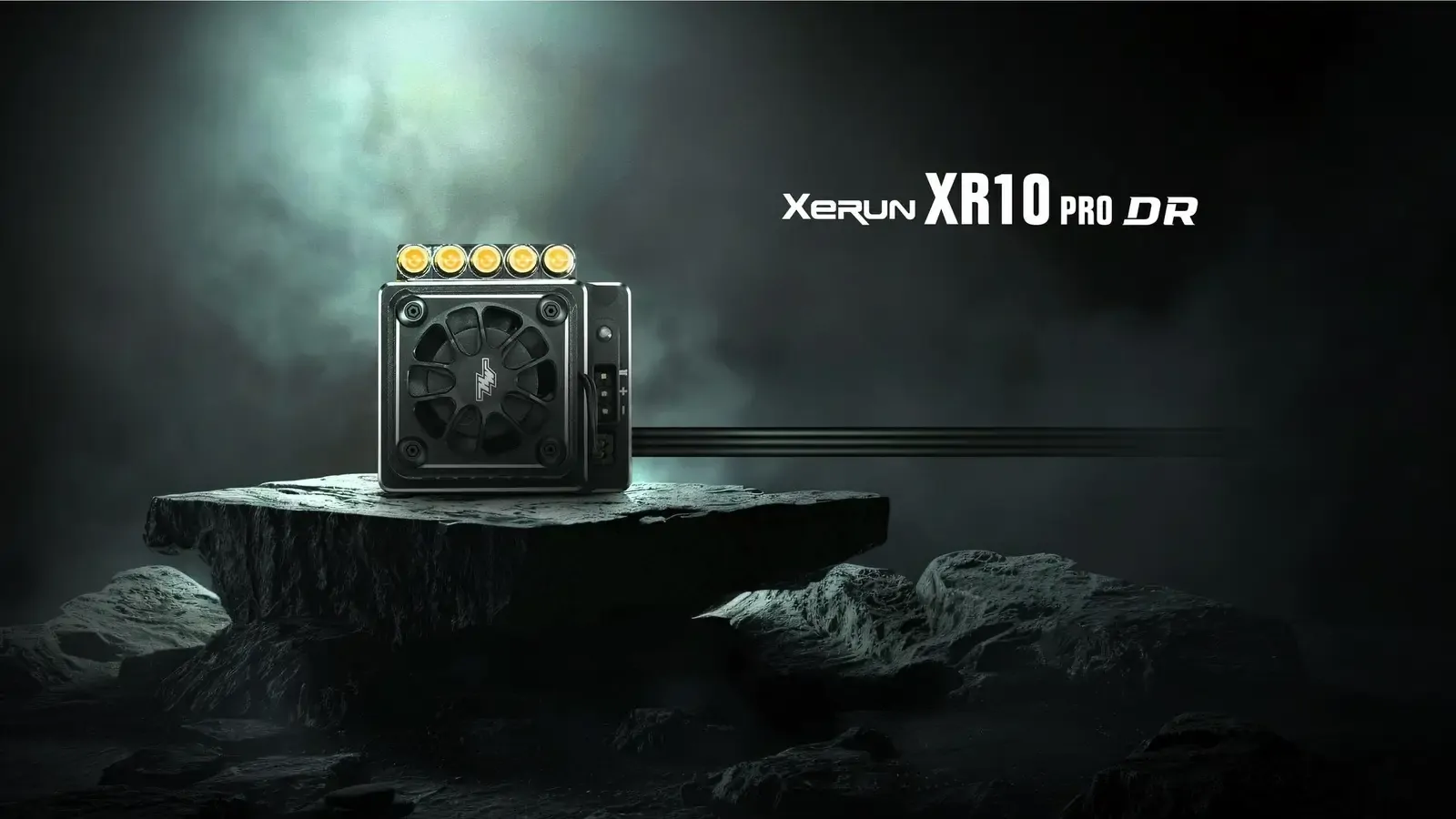

Hobbywing Xerun XR10 PRO DR

Product Type

• Scale: 1/10th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensored
• Waterproof: No

Product Specifications

• Continuous Current: 200A
• Peak Current: 1200A
• Input Voltage: 2S LiPo
• BEC Output: Switch Mode 5V-7.4V @ 5A

Wires & Connectors

• Input Wires:
  • 2 x Black - 10AWG - 200mm
• Output Wires:
  • 3 x Black - 10AWG - 200mm
• Input Connectors: None
• Output Connectors: None

ESC Programming

• SET Button on ESC: Not Supported
• LED Program Box: Not Supported
• LCD G2 Program Box: Supported
• LCD PRO: Supported

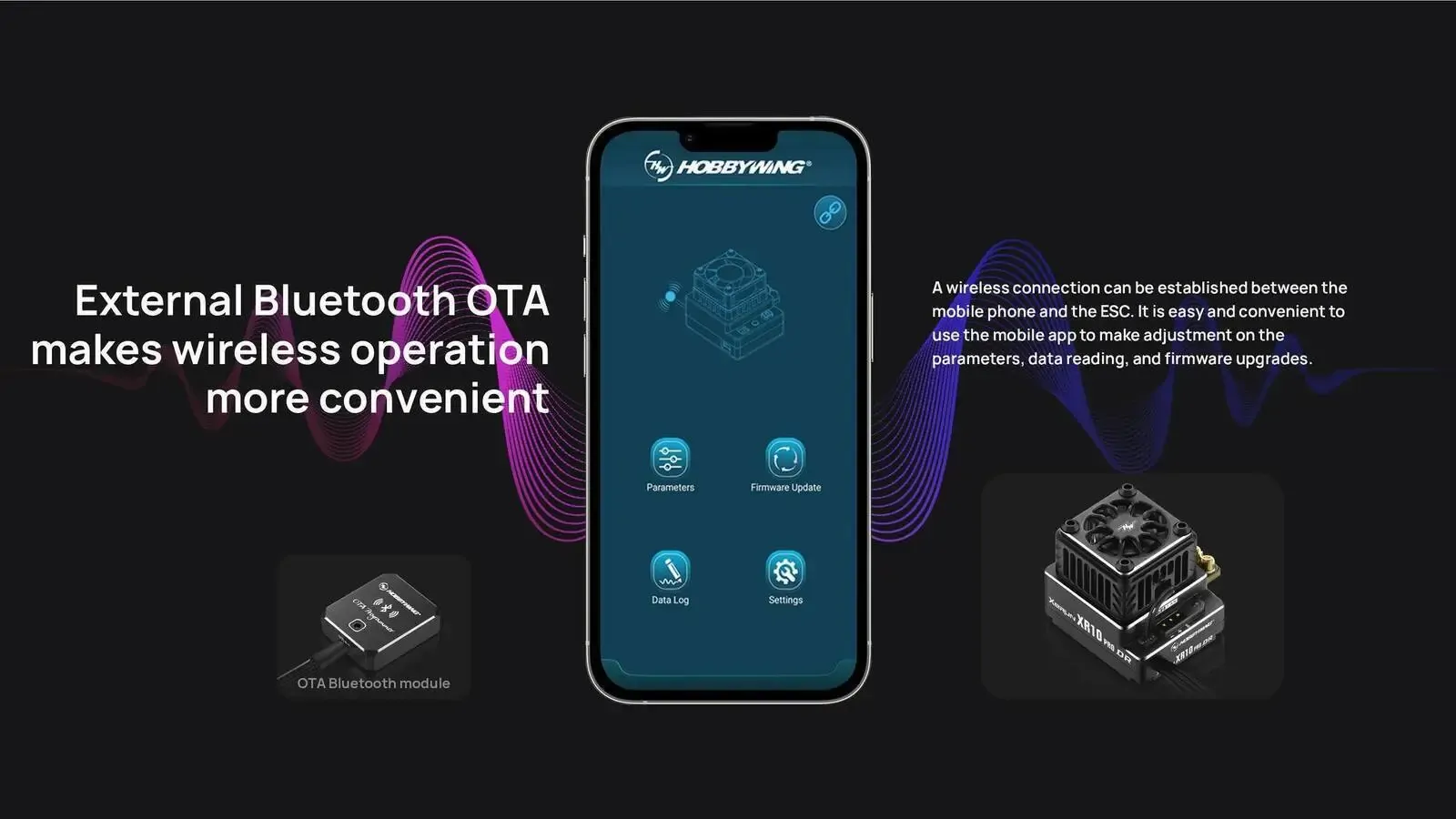

• OTA Programmer: Supported
• Program Port: Separate

Data Recording

• Extreme Value: Supported
• Real-time Data: Supported
• Historical Data (Graph): Supported

Firmware

• Firmware Upgrade: Supported

Size & Weight

• Size: 37.7mm x 37.2mm x 33.2mm
• Weight: 137g (includes wires & connectors)

Applications

• Suitable for 1/10th Drag Racing with SD BL Motors (e.g., XERUN 3652/3662 DRX).
