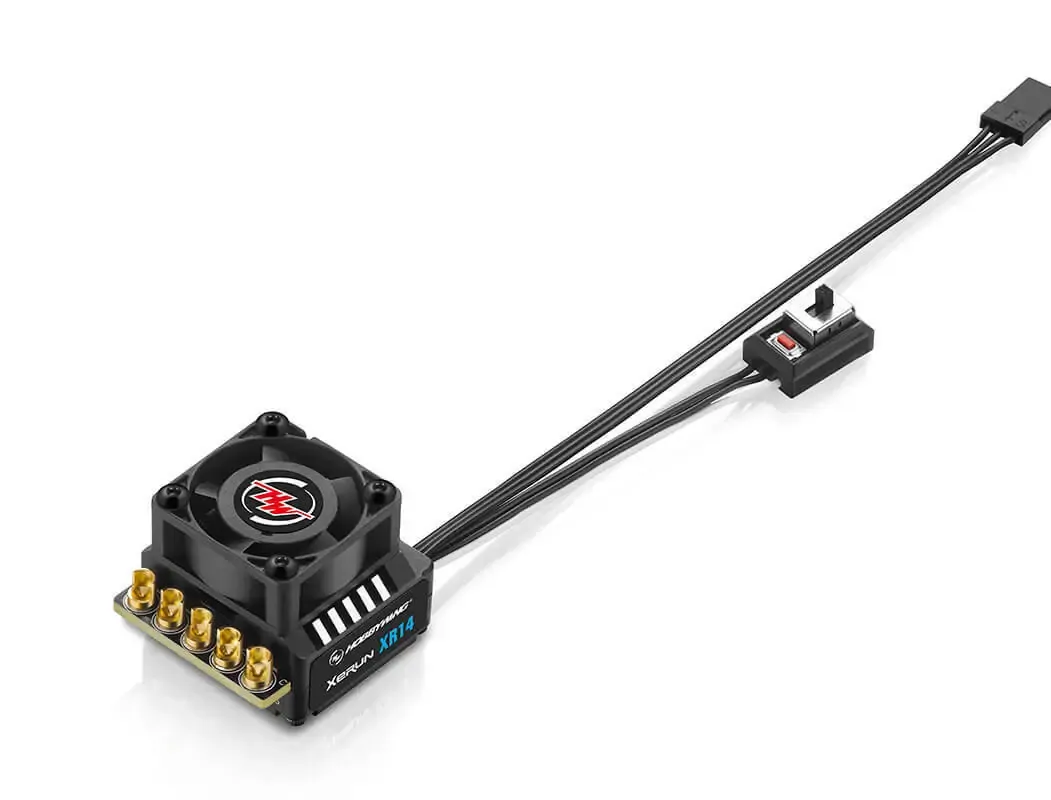

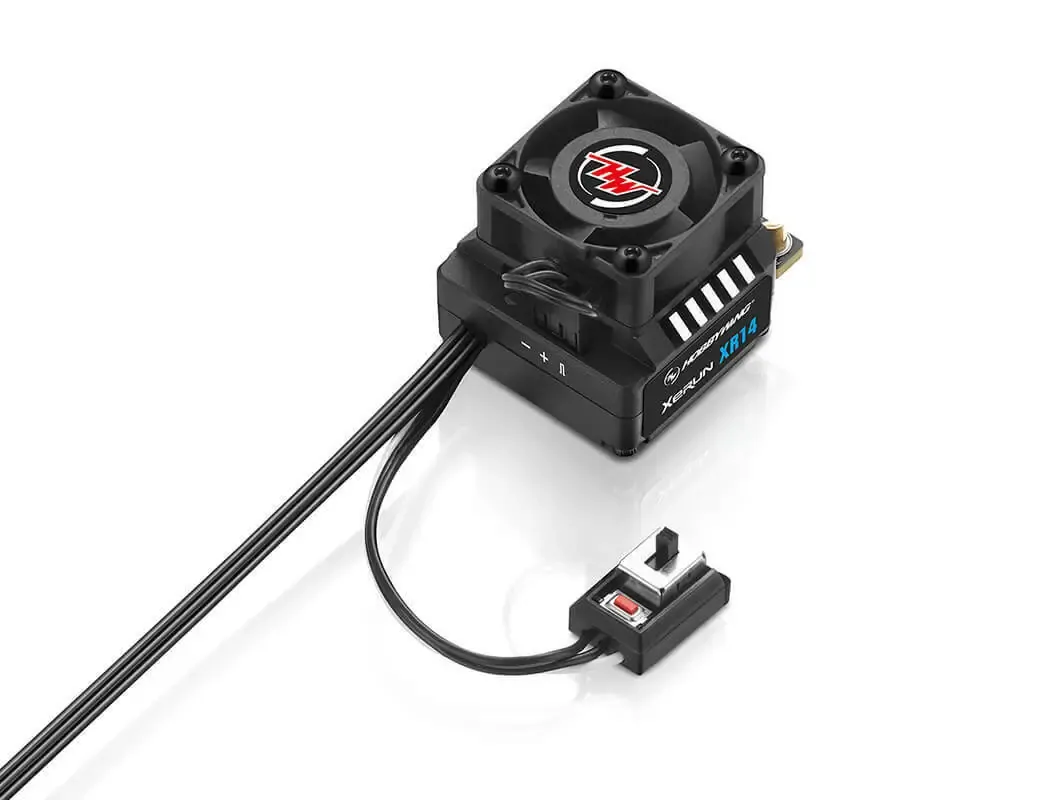

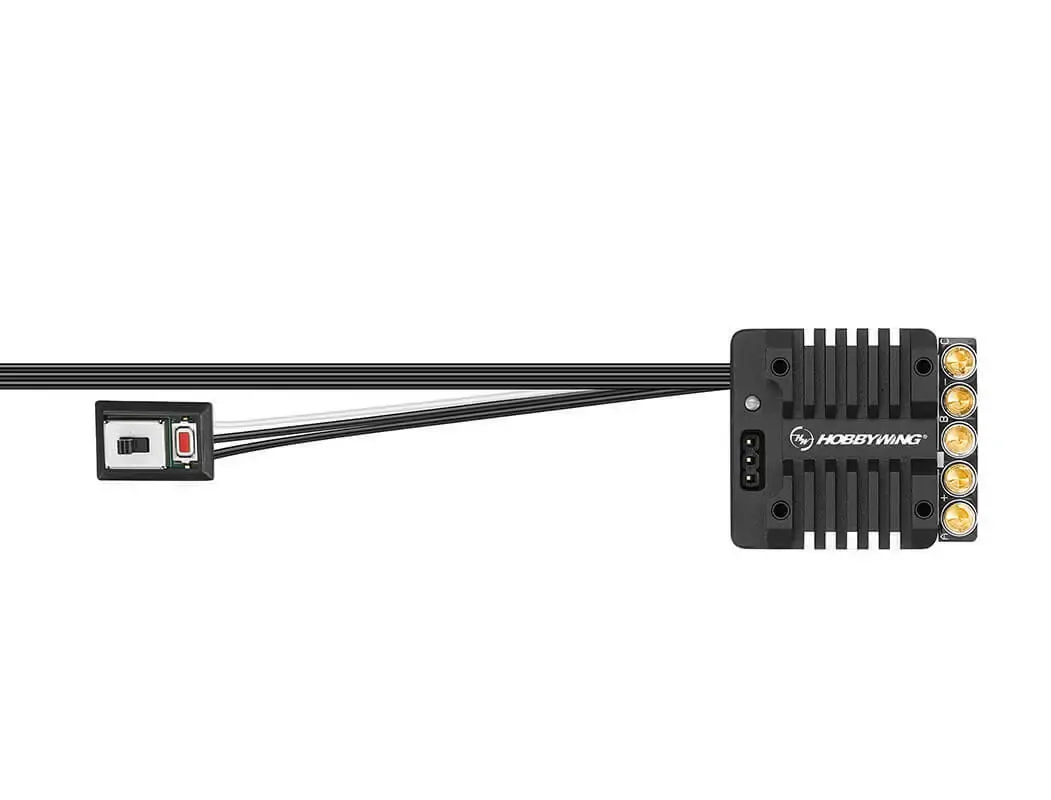

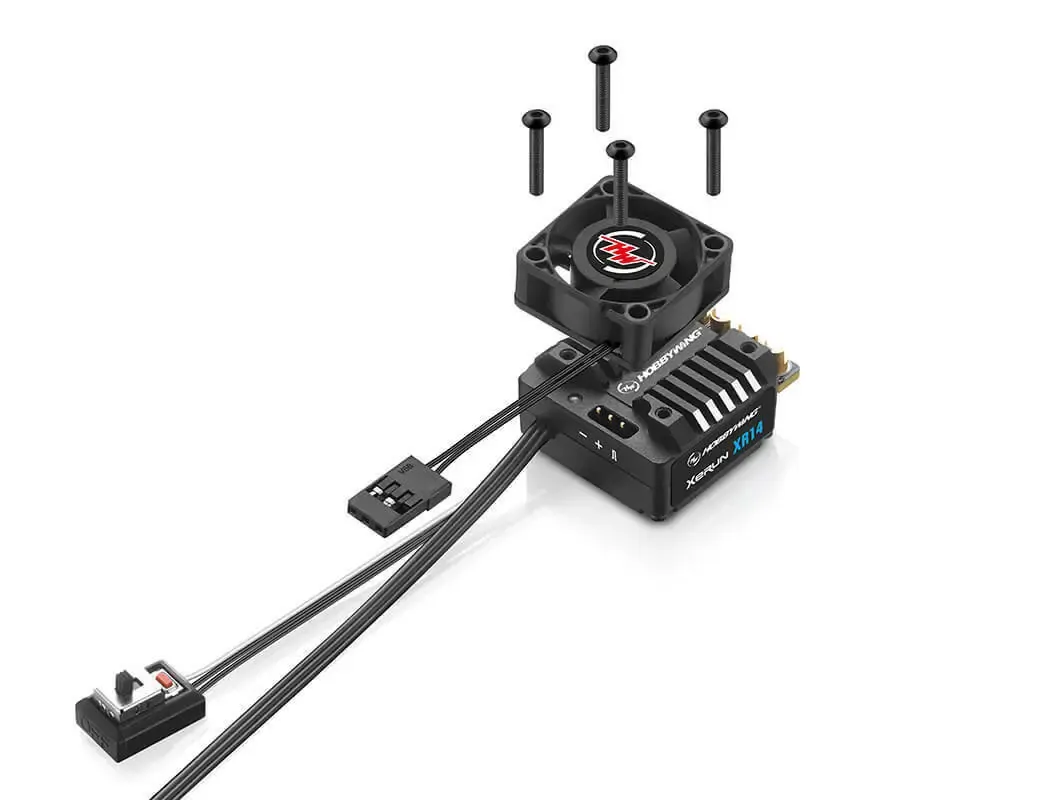

Hobbywing Xerun XR14 Speed Control For 1/14 Scale



Product Specifications

  • Scale: 1/14th?1/12th? 1/10th
  • Brushed/Brushless: Brushless
  • Sensored/Sensorless: Sensored
  • Waterproof: NO
  • Cont./Peak Current: 70A/300A
  • Input Voltage: 2S Lipo
  • BEC Output: Switch Mode 6V/7.4V @4A
  • Input Wires: Black-10AWG-200mm*1 Black-14AWG-175mm*2
  • Output Wires: Black-14AWG-175mm*3
  • Input Connectors: No
  • Output Connectors: No
  • ESC Programing via SET Button on ESC: Not Supported
  • ESC Programing via LED Program Box: Not Supported
  • ESC Programing via LCD G2 Program Box: Supported
  • ESC Programing via LCD PRO: Supported
  • ESC Programing via OTA Programmer: Supported
  • ESC Programing via Program Port: Shared with Fan port
  • Data Recording Extreme value: Supported
  • Real-time Data: Supported
  • Historical data (Graph): Supported
  • Firmware Upgrade: Supported
  • Size: 35.2*31.3*28.5mm
  • Weight: 66g (Included wires)
  • Motors Supported: Sensored/Sensorless Brushless Motors
  • Vehicles: 1/14 Scale Racing, 1/12&1/10 Light load vehicles with zero-timing (blinky) mode
  • KV Rating/T Count: XERUN 2848
