Hobbywing 30105000 EZRun MAX6 V3 1/6 Waterproof Brushless ESC (160A, 3-8S)
SKU: hw30105000
$239.00 13% off RRP
or 4 payments of $109.75 with
Info
Description

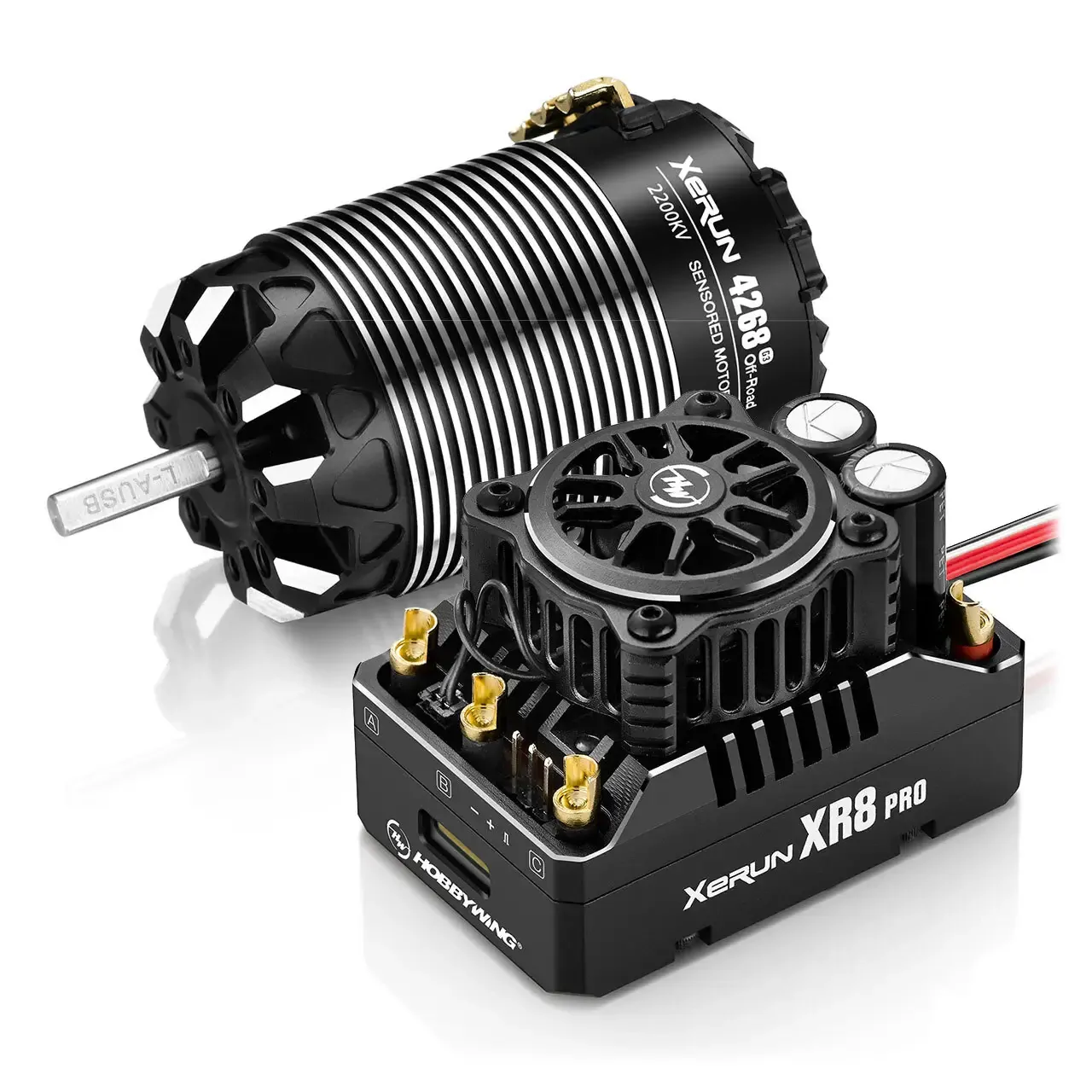

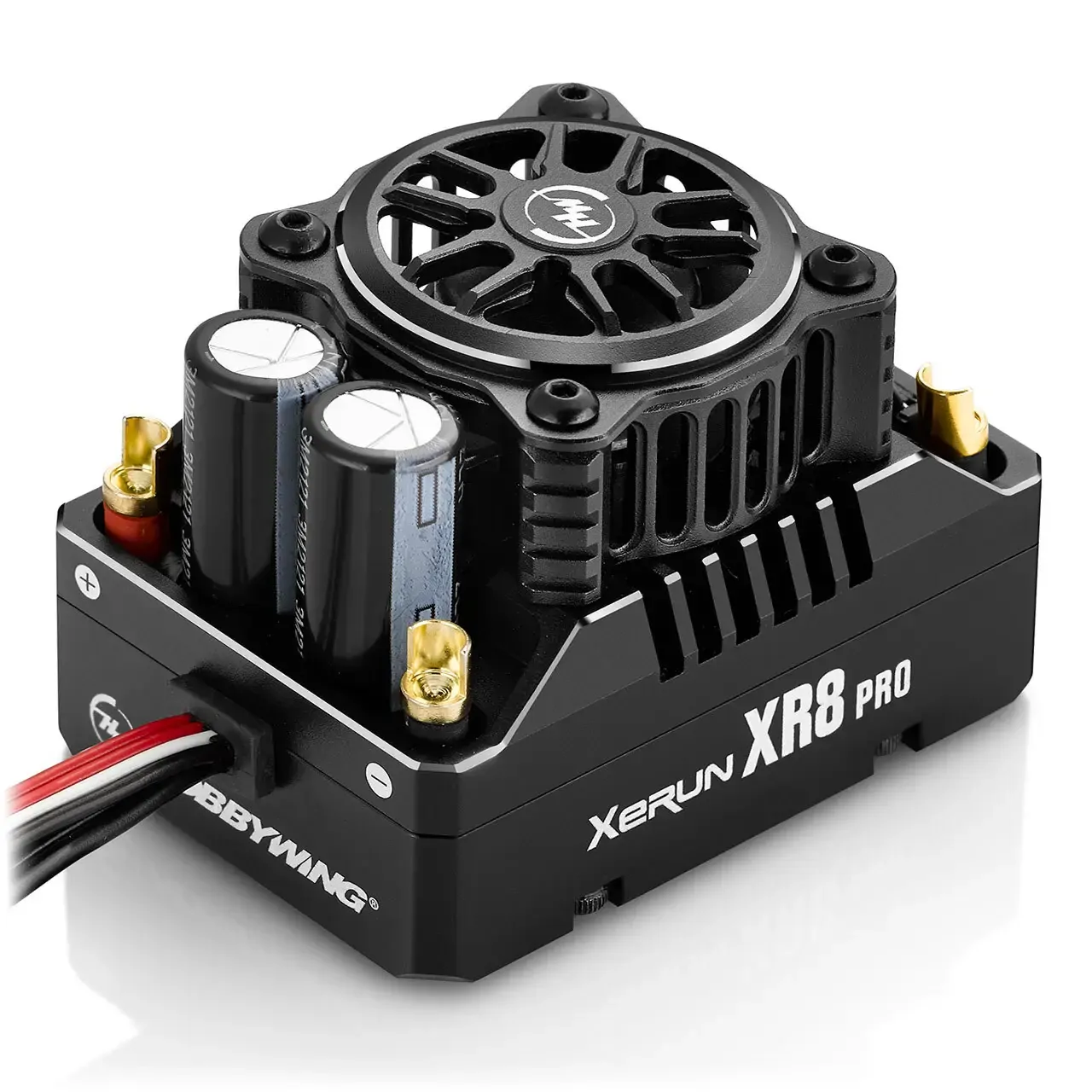

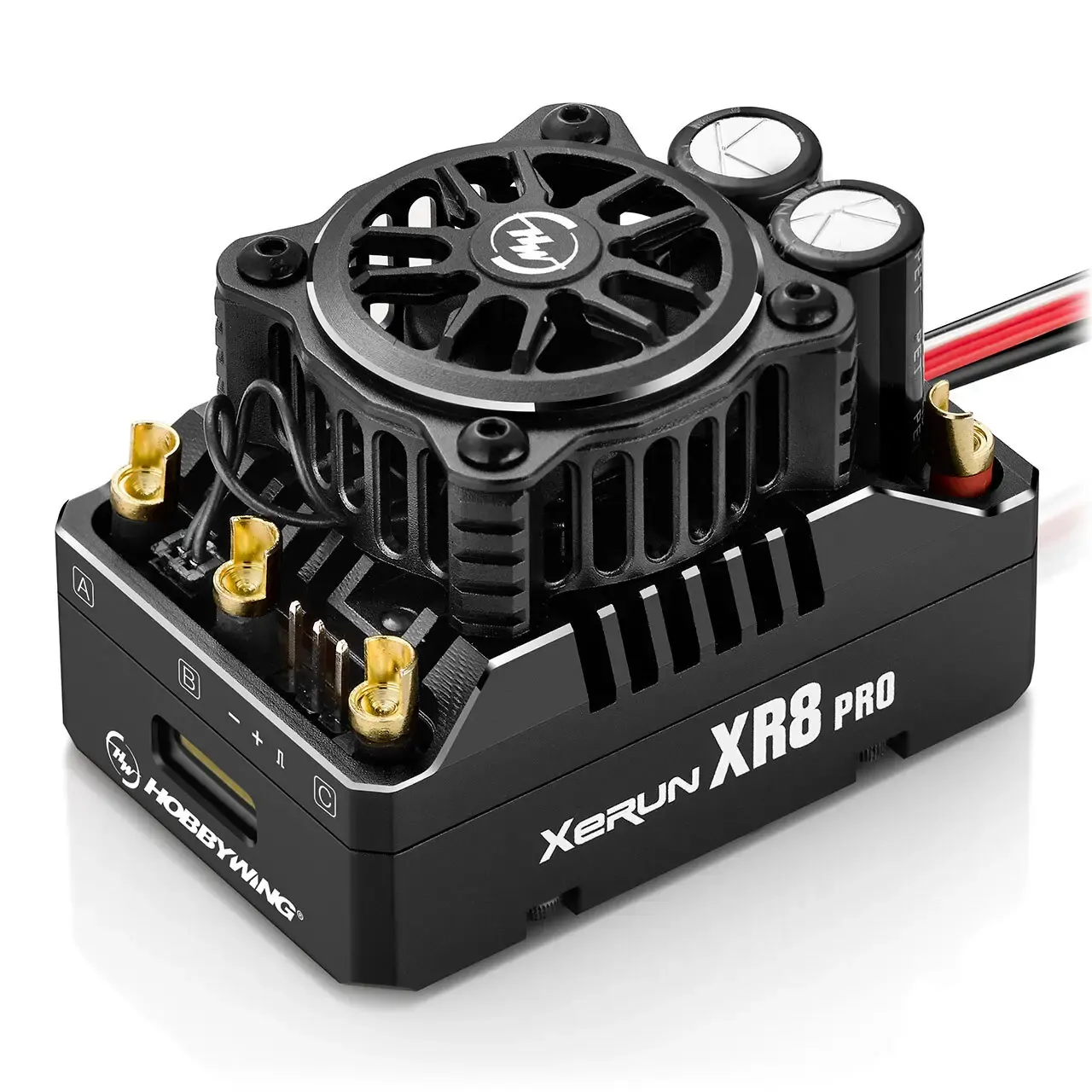

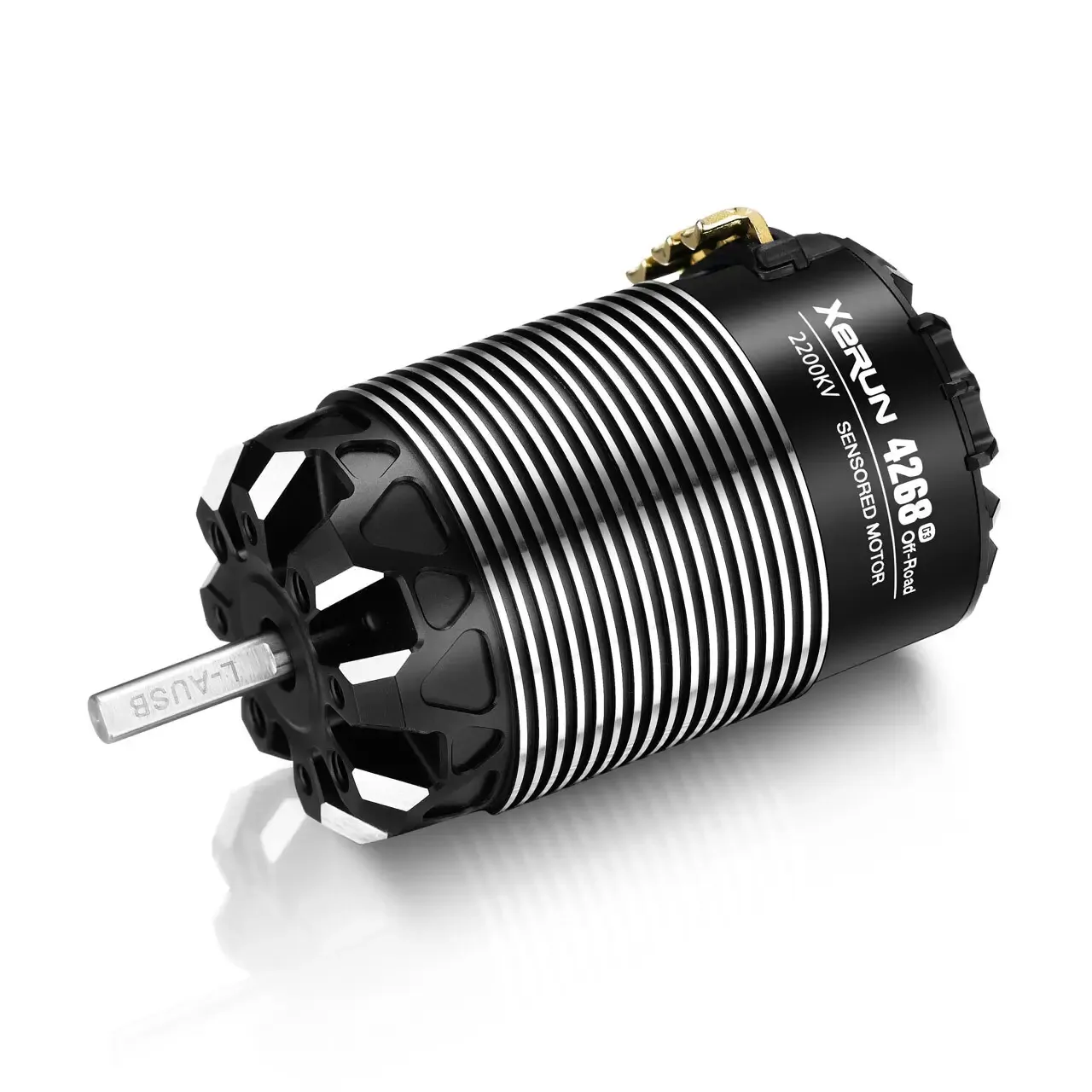

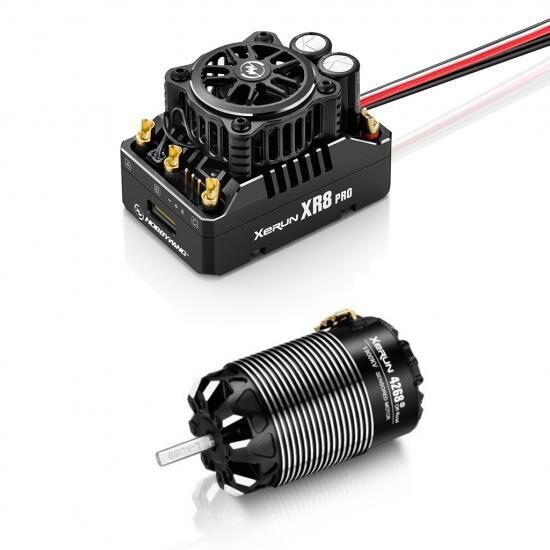

This powerful Xerun combo is specifically designed for 1/8 scale off-road cars and includes the latest generation XR8 Pro ESC. This G3 ESC is 15% smaller, more powerful and with an even lower temperature generation compared to its predecessor. There is also an adjustable BEC that allows the use of a wide variety of servos of Your choice. Fittingly, a 4268 SD G3 motor pairs up with it, which with its 2200kV, like the ESC, is a lot more powerful and efficient than its predecessor. In combination with each other, the result is a 100% sensor-controlled drive system and thanks to the Hall sensor system, this combo results in an overall clean and stable sensor mode run.
| ESC | |
| Type: | Brushless Sensored |
| Current (cont/peak): | 200A/1080A |
| Cells: | 2S-4S LiPo |
| BEC: | 6V/7.4V @ 6A (Switch Mode) |
| Waterproof: | No |
| Programming: | - LCD Programm Box G2 - OTA Bluetooth Programmer - Independent programming port |
| Dimensions: | 54.8x36.8x38.8mm |
| Weight: | 102.8g |
| Application: | 1/8 Off-Road, On-Road, Racing, 1/10 Short Course, Monster Truck |
| Motor | |
| Scale: | 1/8 |
| Type: | Brushless Sensored |
| kV Rating: | 2200kV |
| No-Load Current: | 4.1A |
| Cells: | 2-6S |
| Poles: | 4 |
| Diameter: | 42mm |
| Length: | 67.8mm |
| Shaft Diameter: | 5mm |
| Weight: | 285g |
| Timing: | 20-40 degree (adjustable) |
Description
SpecificationsThis powerful Xerun combo is specifically designed for 1/8 scale off-road cars and includes the latest generation XR8 Pro ESC. This G3 ESC is 15% smaller, more powerful and with an even lower temperature generation compared to its predecessor. There is also an adjustable BEC that allows the use of a wide variety of servos of Your choice. Fittingly, a 4268 SD G3 motor pairs up with it, which with its 2200kV, like the ESC, is a lot more powerful and efficient than its predecessor. In combination with each other, the result is a 100% sensor-controlled drive system and thanks to the Hall sensor system, this combo results in an overall clean and stable sensor mode run.
| ESC | |
| Type: | Brushless Sensored |
| Current (cont/peak): | 200A/1080A |
| Cells: | 2S-4S LiPo |
| BEC: | 6V/7.4V @ 6A (Switch Mode) |
| Waterproof: | No |
| Programming: | - LCD Programm Box G2 - OTA Bluetooth Programmer - Independent programming port |
| Dimensions: | 54.8x36.8x38.8mm |
| Weight: | 102.8g |
| Application: | 1/8 Off-Road, On-Road, Racing, 1/10 Short Course, Monster Truck |
| Motor | |
| Scale: | 1/8 |
| Type: | Brushless Sensored |
| kV Rating: | 2200kV |
| No-Load Current: | 4.1A |
| Cells: | 2-6S |
| Poles: | 4 |
| Diameter: | 42mm |
| Length: | 67.8mm |
| Shaft Diameter: | 5mm |
| Weight: | 285g |
| Timing: | 20-40 degree (adjustable) |
This powerful Xerun combo is specifically designed for 1/8 scale off-road cars and includes the latest generation XR8 Pro ESC. This G3 ESC is 15% smaller, more powerful and with an even lower temperature generation compared to its predecessor. There is also an adjustable BEC that allows the use of a wide variety of servos of Your choice. Fittingly, a 4268 SD G3 motor pairs up with it, which with its 2200kV, like the ESC, is a lot more powerful and efficient than its predecessor. In combination with each other, the result is a 100% sensor-controlled drive system and thanks to the Hall sensor system, this combo results in an overall clean and stable sensor mode run.
| ESC | |
| Type: | Brushless Sensored |
| Current (cont/peak): | 200A/1080A |
| Cells: | 2S-4S LiPo |
| BEC: | 6V/7.4V @ 6A (Switch Mode) |
| Waterproof: | No |
| Programming: | - LCD Programm Box G2 - OTA Bluetooth Programmer - Independent programming port |
| Dimensions: | 54.8x36.8x38.8mm |
| Weight: | 102.8g |
| Application: | 1/8 Off-Road, On-Road, Racing, 1/10 Short Course, Monster Truck |
| Motor | |
| Scale: | 1/8 |
| Type: | Brushless Sensored |
| kV Rating: | 2200kV |
| No-Load Current: | 4.1A |
| Cells: | 2-6S |
| Poles: | 4 |
| Diameter: | 42mm |
| Length: | 67.8mm |
| Shaft Diameter: | 5mm |
| Weight: | 285g |
| Timing: | 20-40 degree (adjustable) |
