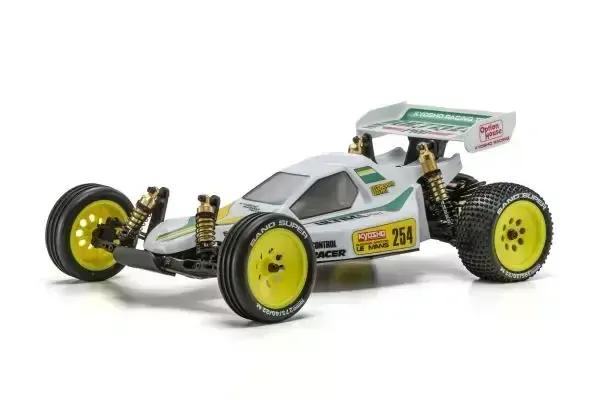

The Kyosho Ultima Pro Vintage Series 1/10 2WD Racing Buggy Kit brings another legendary competition buggy back to life as the 21st release in the Kyosho Vintage Series.

Inspired by the Ultima Pro originally introduced in 1988, this re-release maintains the unmistakable styling, construction and rear-motor character of the original while incorporating carefully selected updates to improve stability, durability and ease of adjustment.

The Ultima name established its racing credentials when Kyosho achieved an incredible first, second and third-place result at the 1987 World Championships. The Ultima Pro followed by refining the successful platform with a flat aluminium main chassis and FRP upper deck, creating an effective combination of structural rigidity and controlled chassis flex.

This modern Vintage Series release combines characteristics of the original 1988 Ultima Pro with the longer front suspension arms and extended wheelbase introduced for the 1989 version. The result is a wider and more stable chassis while retaining the classic rear-motor, rear-wheel-drive configuration that defines the Ultima Pro.

6061 Aluminium & FRP Chassis

The Ultima Pro is built around a newly produced 6061 aluminium main chassis combined with an FRP upper deck.

This double-deck configuration provides the rigidity required for consistent handling while retaining an appropriate level of chassis flex.

Long FRP front and rear shock towers increase available suspension travel, helping the buggy absorb bumps and maintain more consistent tyre contact over uneven off-road surfaces.

Long-Arm Double-Wishbone Suspension

The front suspension uses longer lower arms derived from the later 1989 Ultima Pro. The increased front track width contributes to improved stability, while the rear lower suspension arms allow toe to be adjusted by changing the suspension bushings.

Front and rear turnbuckle links make camber and steering toe adjustments easier without requiring the links to be removed from the vehicle.

Gold-Anodised Oil-Filled Shocks

The suspension is controlled by gold-anodised aluminium oil-filled shock absorbers, capturing the appearance of Kyosho's original high-end racing components.

Modern threaded spring preload adjusters replace the original clamp-style adjustment system, making spring preload faster and more precise to set.

Kyosho Fine Selection shock springs are included for both the front and rear suspension.

Ball Differential & Universal Driveshafts

A ball differential is supplied as standard, providing smooth limited-slip operation and predictable cornering across a variety of off-road surfaces.

Universal rear driveshafts efficiently transfer motor power to the rear wheels while remaining securely connected throughout suspension movement and hard landings.

Updated Steering System

The steering servo position has been rotated 90 degrees compared with the original Ultima Pro.

Combined with a revised servo-saver arm, the new arrangement provides a cleaner steering layout and a more direct, linear steering response.

Ball bearings are used throughout the drivetrain and steering system, including the servo saver.

2.2-Inch Wheels & Vintage Tyres

The Ultima Pro uses 2.2-inch wheels, providing access to a wider range of compatible racing tyres.

The supplied tyres use a medium compound at the front and soft compound at the rear, providing stable cornering and controlled handling on rough off-road surfaces.

New eight-hole wheels reproduce the visual character and offset of the original Ultima Pro design.

Flexible Nylon Rear Wing

While the original Ultima Pro used a polycarbonate rear wing, this Vintage Series release features a flexible nylon rear wing with moulded wing stays.

The updated design provides improved resistance to crash damage while maintaining the classic appearance of the buggy.

Multiple Battery Mounting Options

The chassis provides multiple battery installation configurations.

A conventional round stick-pack battery can be installed across the chassis or mounted lengthwise, allowing owners to experiment with battery positioning.

When using the lengthwise battery configuration, a suitable low-profile steering servo with a short front-to-rear dimension is required.

Authentic Ultima Pro Styling

The kit is completed with an original-style clear polycarbonate Ultima Pro body and a vintage decal scheme inspired by the original early-model packaging.

Combined with its gold shocks, eight-hole wheels, rear-motor layout and classic chassis architecture, the result is an unmistakable recreation of one of Kyosho's most significant competition buggies.

Available from Campbelltown Hobbies, the Kyosho Ultima Pro Vintage Series gives racers, builders and vintage RC collectors the opportunity to experience this legendary 2WD buggy with carefully selected updates for modern use.

Required Items

• 2-Channel Radio Transmitter
• Compatible Receiver
• Steering Servo
• Electronic Speed Controller (ESC)
• 540-Size Electric Motor
• Suitable Drive Battery
• Compatible Battery Charger
• Transmitter Batteries
• Polycarbonate Body Paint
• Standard Modelling Tools for Assembly

Maximum Recommended Equipment Dimensions

Servo: 42 × 21 × 38mm
ESC: 45 × 38 × 27mm
Battery: 140 × 47.5 × 25mm including wiring

Important: When using the battery in the lengthwise configuration, a suitable low-profile steering servo with a short front-to-rear dimension is required.

Specifications

Brand: Kyosho
Model: Ultima Pro
Product Number: 30626
JAN / Barcode: 4548565532025
Series: Kyosho Vintage Series
Vintage Series Number: 21
Scale: 1/10
Vehicle Type: Off-Road Racing Buggy
Power Source: Electric
Drive System: Rear-Wheel Drive / 2WD
Motor Position: Rear
Assembly Level: Kit
Chassis: 6061 Aluminium
Upper Deck: FRP
Shock Towers: FRP Front & Rear
Suspension: Long-Arm Double Wishbone
Shocks: Gold-Anodised Aluminium Oil-Filled
Spring Adjustment: Threaded Preload
Shock Springs: Fine Selection Front & Rear
Differential: Ball Differential
Rear Driveshafts: Universal
Bearings: Full Ball Bearings
Steering Links: Adjustable Turnbuckles
Rear Toe: Adjustable via Suspension Bushings
Rear Wing: Flexible Nylon
Wheels: 2.2" Eight-Hole Style
Front Tyres: Medium Compound
Rear Tyres: Soft Compound
Body: Clear Polycarbonate Ultima Pro
Body Painting: Required
Length: 379mm
Width: 250mm
Height: 140mm
Wheelbase: 280mm
Front Track: 226mm
Rear Track: 210mm
Front Tyre Size: 82 × 27mm
Rear Tyre Size: 86 × 42mm
Gear Ratio: 8.64:1
Approximate Running Weight: 1,600g with Specified Battery
Motor Compatibility: 540-Size Motor – Sold Separately
Expected Release: December 2026

Key Features

• 21st release in the Kyosho Vintage Series
• Reproduction of the legendary Ultima Pro
• Combines characteristics of the 1988 and long-wheelbase 1989 versions
• Classic rear-motor 2WD layout
• New 6061 aluminium main chassis
• FRP upper deck
• FRP front and rear shock towers
• Long-arm double-wishbone suspension
• Increased front track width
• Adjustable rear toe
• Front and rear turnbuckles
• Gold-anodised aluminium oil-filled shocks
• Threaded spring preload adjustment
• Fine Selection shock springs
• Ball differential
• Universal rear driveshafts
• Full ball bearings
• Bearings in servo saver
• Revised steering servo layout
• Flexible nylon rear wing
• Moulded rear wing stays
• 2.2-inch eight-hole wheels
• Medium-compound front tyres
• Soft-compound rear tyres
• Original-style clear Ultima Pro body
• Vintage-inspired decal scheme
• Multiple battery mounting configurations

What's Included

• 1 × Kyosho Ultima Pro Chassis Kit
• 1 × Clear Unpainted Polycarbonate Ultima Pro Body
• 1 × Body Decal Sheet
• 1 × Flexible Nylon Rear Wing
• Front & Rear Tyres
• 2.2" Wheels
• Gold-Anodised Oil-Filled Shock Absorbers
• Fine Selection Shock Springs
• Ball Differential
• Universal Rear Driveshafts
• Full Ball Bearing Set
• 1.5mm Hex Driver
• 2mm Hex Driver
• 2.5mm Hex Driver
• 4mm / 5mm / 5.5mm / 7mm Cross Wrench
• Shock Wrench
• #200 Shock Oil
• Ball Differential Grease
• Assembly Instructions

Frequently Asked Questions – Kyosho Ultima Pro Vintage Series 1/10 2WD Racing Buggy Kit

What is the Kyosho Ultima Pro Vintage Series Kit?

The Kyosho Ultima Pro is the 21st release in the Kyosho Vintage Series. It recreates the legendary Ultima Pro 2WD racing buggy while combining characteristics from the original 1988 model and the longer-wheelbase 1989 version.

Is the Kyosho Ultima Pro Ready-to-Run?

No. The Kyosho Ultima Pro is supplied as an unassembled kit. A radio system, steering servo, ESC, 540-size motor, battery, charger, transmitter batteries and polycarbonate body paint are required separately.

Is the Kyosho Ultima Pro rear-wheel drive?

Yes. The Ultima Pro uses the classic rear-motor, rear-wheel-drive configuration associated with the original competition buggy.

What chassis does the Kyosho Ultima Pro use?

The Vintage Series Ultima Pro features a newly produced 6061 aluminium main chassis combined with an FRP upper deck.

What shocks are included with the Kyosho Ultima Pro?

The kit includes gold-anodised aluminium oil-filled shock absorbers with threaded spring preload adjustment and Kyosho Fine Selection front and rear shock springs.

Does the Kyosho Ultima Pro include a ball differential?

Yes. A ball differential is included as standard to provide smooth limited-slip operation and predictable power delivery.

Does the Kyosho Ultima Pro have universal driveshafts?

Yes. Universal rear driveshafts are included to transfer power to the rear wheels while remaining securely connected throughout suspension movement.

What size wheels does the Kyosho Ultima Pro use?

The Ultima Pro uses 2.2-inch eight-hole style wheels. The kit includes medium-compound front tyres and soft-compound rear tyres.

What body is included with the Kyosho Ultima Pro?

The kit includes an original-style clear polycarbonate Ultima Pro body with a vintage decal scheme inspired by the original early-model packaging. The body requires painting.

Can the battery position be changed on the Kyosho Ultima Pro?

Yes. A conventional round stick-pack battery can be mounted across the chassis or lengthwise. A suitable low-profile steering servo with a short front-to-rear dimension is required when using the lengthwise battery configuration.

What is the wheelbase of the Kyosho Ultima Pro?

The Kyosho Ultima Pro has a 280mm wheelbase, incorporating the longer configuration introduced on the later Ultima Pro.

When is the Kyosho Ultima Pro Vintage Series expected to be released?

The expected release is December 2026.
