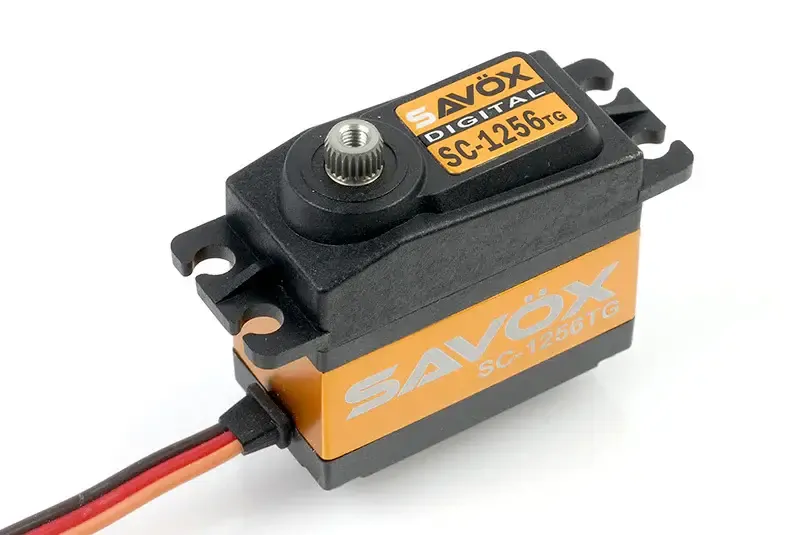

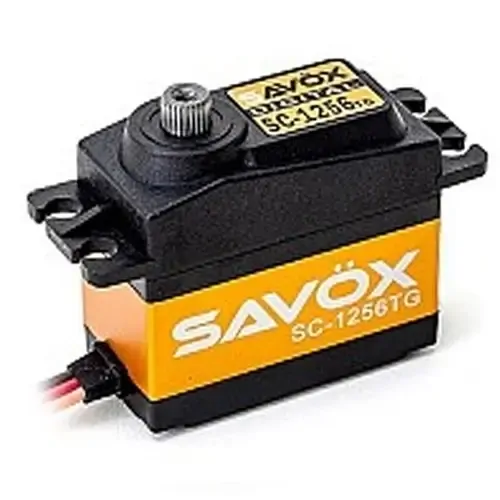

Savox SC1256TG Standard Digital "High Torque" Titanium Gear Servo - SAV-SC1256TG



Product Information

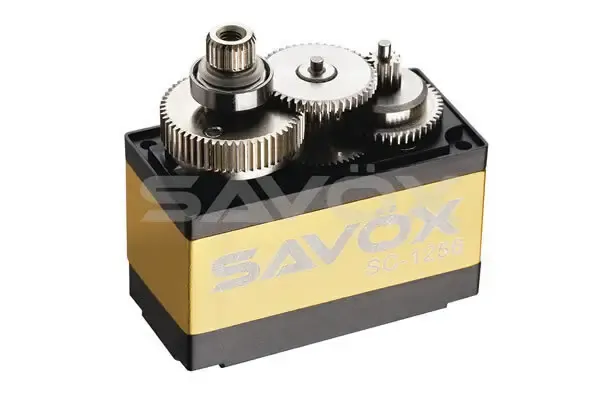

The SC1256TG pushes 277.2 oz of torque and this servo is perfect for those who are running a 4x4 short course truck and don't want to blow their whole wad on their servo. The SC-1256TG sports titanium and metal gears to keep things strong and running smooth.



Features

  • Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears.
  • Super light-weight.
  • Coreless motor provides high speed, incredible efficiency, and low power consumption.
  • Titanium gears ensure long life and durability.
  • The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
  • Ideal for steering applications in 1/8 scale buggies, monster trucks and rock crawlers.



Product Specifications

  • Dimensions(mm): 40.3x20.2x37.2
  • Weight(g):52.4
  • Speed(@4.8V sec/60): .18
  • Torque(@4.8V oz-in): 222.2
  • Speed(@6.0V sec/60): .15
  • Torque(@6.0V oz-in): 277.7
  • Gear: Titanium & Aluminum
  • Bearing: 2BB
  • Case: Aluminum
  • 25 Tooth Spline
  • Frequency: 250-333hz
  • Pulse Width Frequency: 1520
