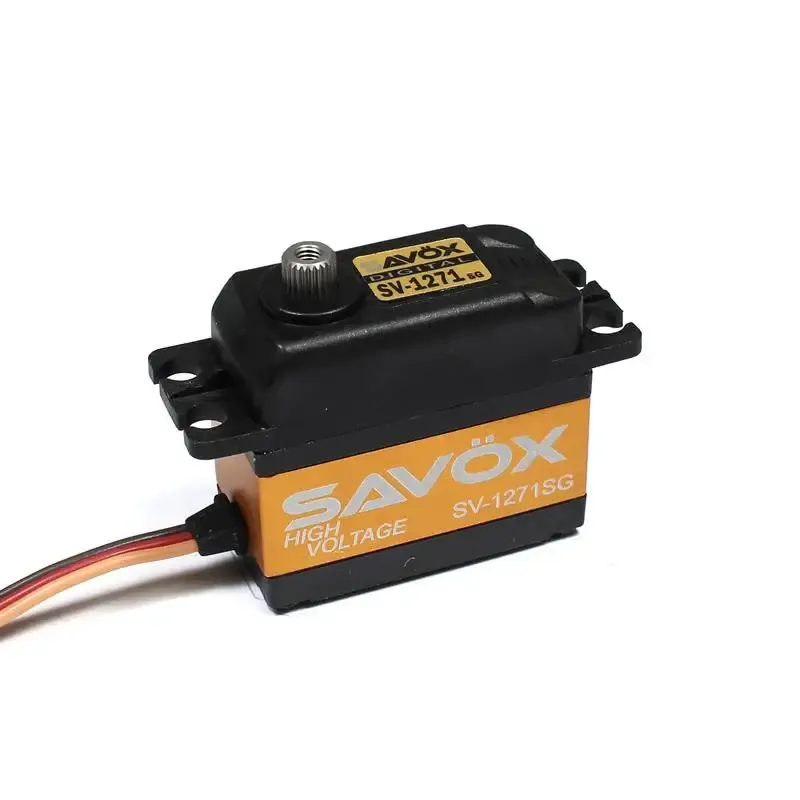

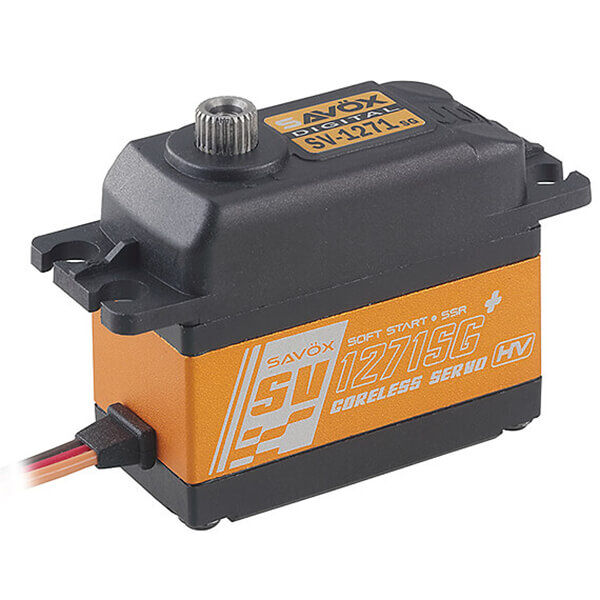

Savox SV-1271SG Standard Digital Steel Gear Servo 25kg (High Voltage) - SAV-SV1271SG



Product Information

The Savox SV-1271SG High Torque, High Voltage Digital Servo is one of the best overall servos you can find. Fast and high torque, the SV1271SG servo is applicable for numerous tasks. Our servos are totally green - from materials to production, these servos are environmentally friendly. Ideal for large-scale airplane, jet, and 1/5th scale surface.



Features

  • Super strong and precisionmAde unique steel gears provide durability and survive heavy use.
  • Capable of HV operation.
  • Fast and high torque for numerous applications.
  • Ideal for large scale aircraft, 1/8 off road, and other off road vehicles.



Product Specifications

  • Torque @6v - 20.0kg/277.7oz-in
  • Torque @7.4v - 25.0kg/347.2oz-in
  • Speed @6v - 0.11 sec/60 deg
  • Speed @6v - 0.08 sec/60 deg
  • Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
  • Weight: 63.0g
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 120mA @6.0V, 150mA @7.4V
  • Stall Current (at locked): 4000mA @6.0V, 5000mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
