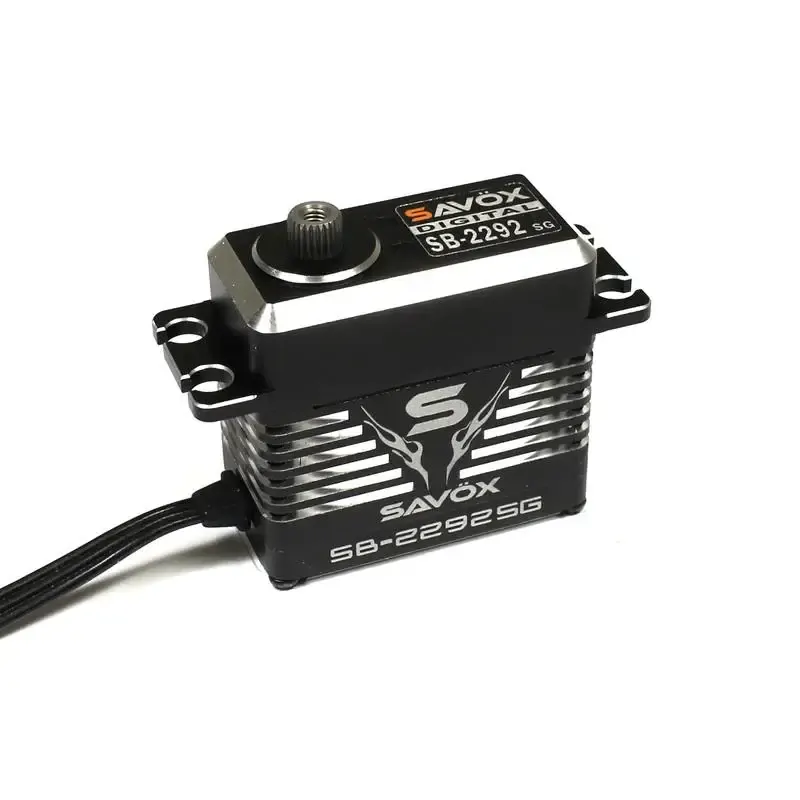

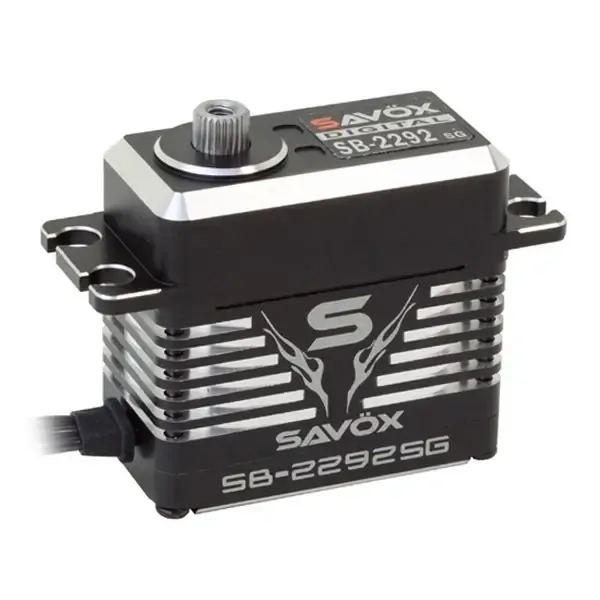

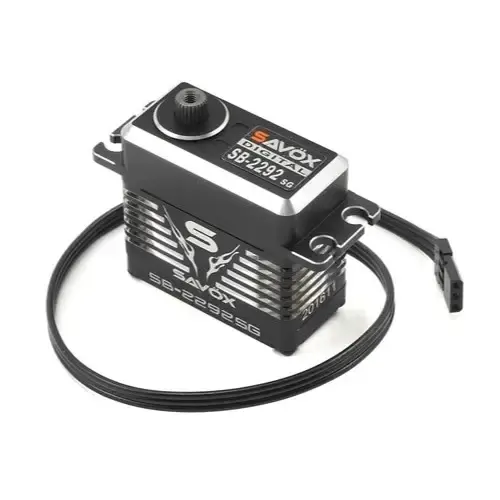

Savox Digital 0.07 speed 31kg/t Servo - SAV-SB2292SG



Product Information

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.





Features

  • Full Aluminum Case
  • 3 Precision Ball Bearings.
  • Unique steel gears



Product Specifications

  • Torque @ 6v - 22.0kg/305.5oz-in
  • Torque @ 7.4v - 31.0kg/430.5oz-in
  • Speed @ 6v - 0.085 sec/60 deg
  • Speed @ 7.4v - 0.07sec/60 deg
  • Dimensions L x W x H mm: 40.3 x 20.2 x 38.7
  • Weight: 81g
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
