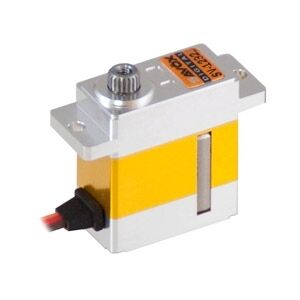

Savox SV1232MG Micro Digital High Voltage Aluminum Case Servo 0.05sec / 69oz @ 7.4V - SAV-SV1232MG



Product Information

The SV-1232MG servo is an extremely fast micro-sized servo ideal for 250-450 size helicopters where speed is essential.



Features

  • Metal gear train ensures durability and longevity.
  • All metal case helps with cooler operating temperatures.
  • Capable of high voltage use.
  • Extremely fast for quick response.



Product Specifications

  • Torque @ 6v - 4.0kg/55.5oz-in
  • Torque @ 7.4v - 5.0kg/69.4oz-in
  • Speed @ 6v - 0.06 sec/60 deg
  • Speed @ 7.4v - 0.05 sec/60 deg

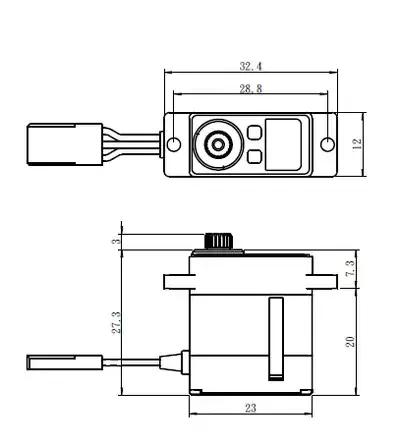

  • Dimensions L x W x H (mm): 23.0 x 12.0 x 27.3
  • Weight: 23.0g
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 120mA @6.0V, 180mA @7.4V
  • Stall Current (at locked): 1800mA @6.0V, 2200mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 180 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 165° (800 → 2200 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
