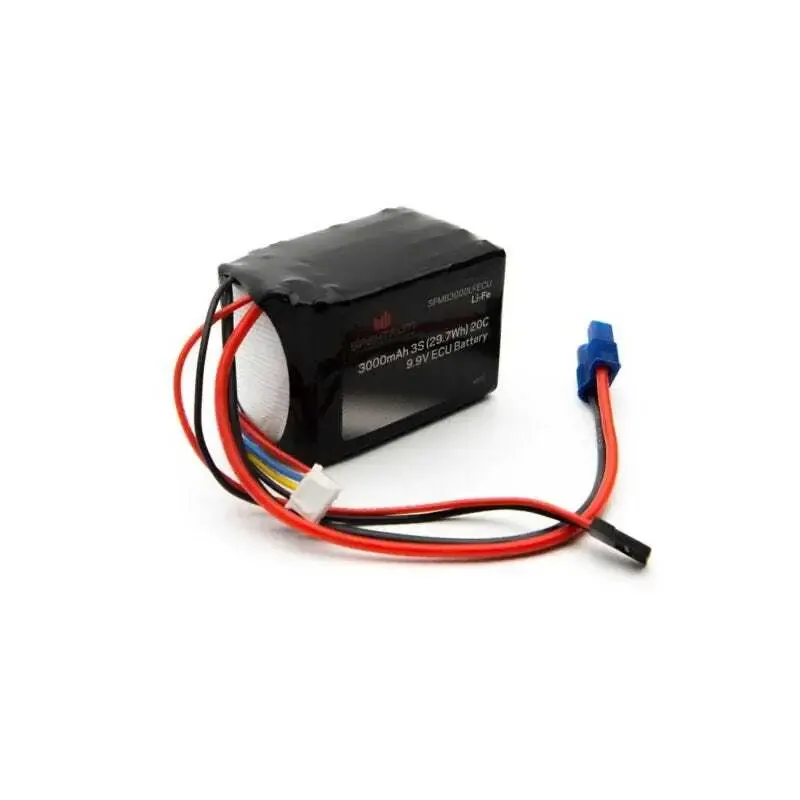

Spektrum 3000mAh 3S 9.9V LiFe ECU Battery - SPMB3000LFECU



Product Information

Spektrum's 3000mAh 3S ECU battery is a high-quality 9.9V Li-Fe battery designed specifically for turbine Electronic Control Unit (ECU) use. Today's turbine engines require reliable ECU power to ensure optimum performance from startup to shutdown.



Features

  • 9.9V nominal voltage is specific to modern turbine engine ECU requirements without risking over-voltage, or the inconvenience of a failed start from a low 2S Li-Po pack
  • High discharge capability (continuous 60A) makes the pack suitable for the high current draw of the turbine start sequence
  • Long lifespan Li-Fe battery chemistry provides excellent working lifespan
  • Convenient size is easy to place in a model and will provide up to 6 starts of todays modern turbine engines



Product Specifications

  • Maximum Charge Rate: 1C
  • Minimum Discharge Voltage: 9.6V (3.2V per cell)
  • Length: 2.91 in (74mm)
  • Maximum Continuous Discharge Current: 60A
  • Battery Balance Connector: JST_XH
  • Capacity: 3000mAh
  • Application: Turbine Engine Electronic Control Unit (ECU)
  • Height: 1.73 in (44mm)
  • Connector Type: EC3, Universal
  • Cell Configuration: 3S1P
  • Maximum Continuous Discharge Rate: 20C
  • Width: 1.81 in (46mm)
  • Discharge Lead Length: 5.91 in (150mm)
  • Maximum Charge Current: 3A
  • Hard Case: No
  • Watt Hours: 29.7Wh
  • Weight: 9.6 oz (270g)
  • Battery Type: LiFe, LiFe (3.3V per cell)
  • Normal/Standard Charge Rate: 1C
  • Shape: Square
  • Normal/Standard Charge Current: 3A
  • Battery Voltage: 9.9V
