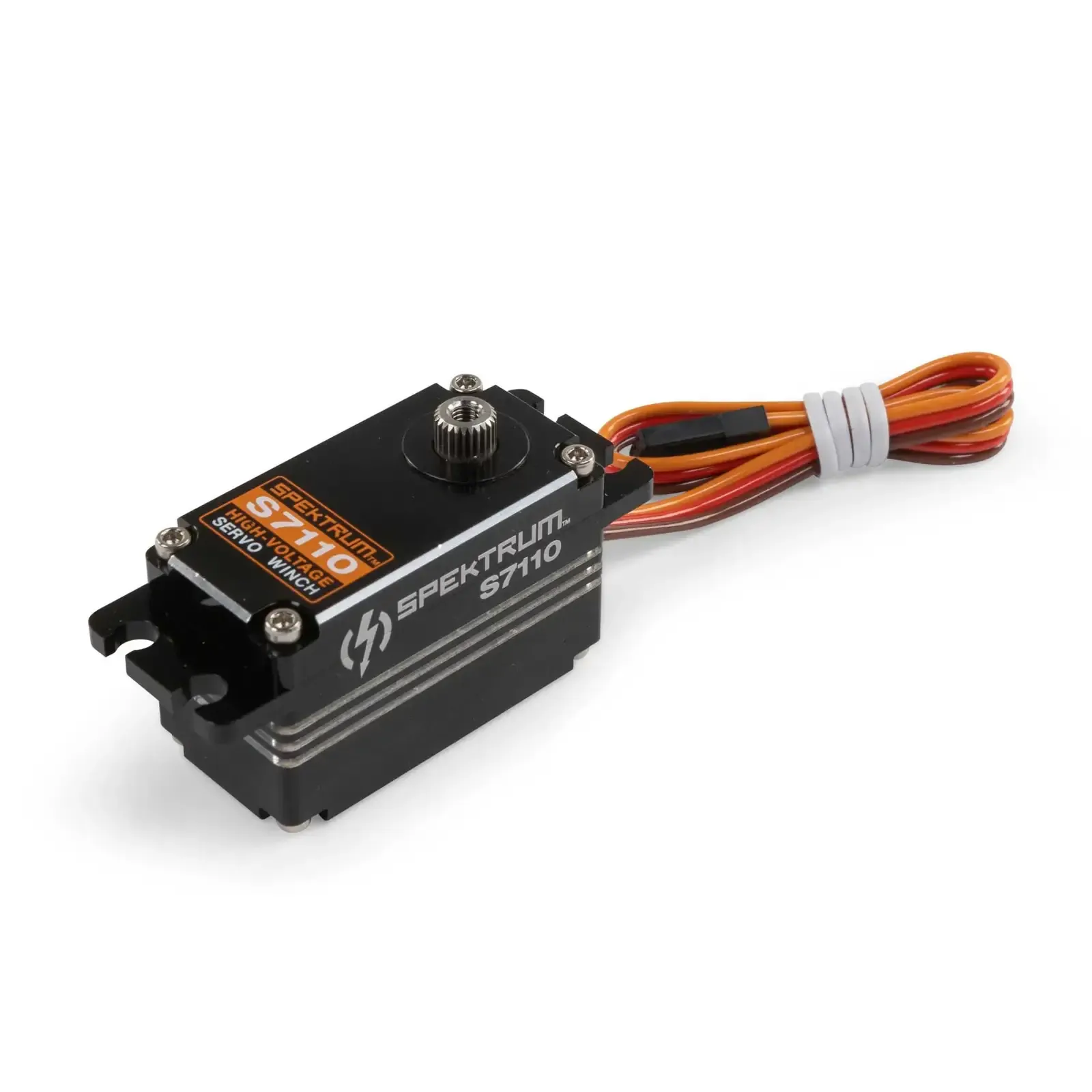

Spektrum Spektrum 1/10 Servo Winch

The Spektrum servo winch offers incredible performance for 1/10th scaler and crawlers.

The Spektrum servo winch offers incredible performance for 1/10th scaler and crawlers. High voltage capable, the servo winch can produce 160 oz of torque at 155RPM at 7.4V input. It's low-wear, metal gear drive train is powered b a brushless motor and bearing supported for smooth operation. Like all Spektrum servos, the S7110 Servo Winch delivers reliability, consistency, and performance that is second to none.



Features

  • Design for 1/10th Scalers and Crawlers
  • 6V to 8.4V Operating Voltage
  • Durable and long-lasting brushless motor
  • High Torque (130oz-in @ 6V, 160oz-in @ 7.4V, and 180 oz-in @ 8.4V)
  • All Aluminum servo case for heat dissipation
  • 7' feet of line with scale recovery hook included
  • Built-in Integrated brushless controller for easy set up and installation
  • Precise metal internal gears
  • Waterproof
  • 25 teeth output shaft
  • Includes everything needed to start winching

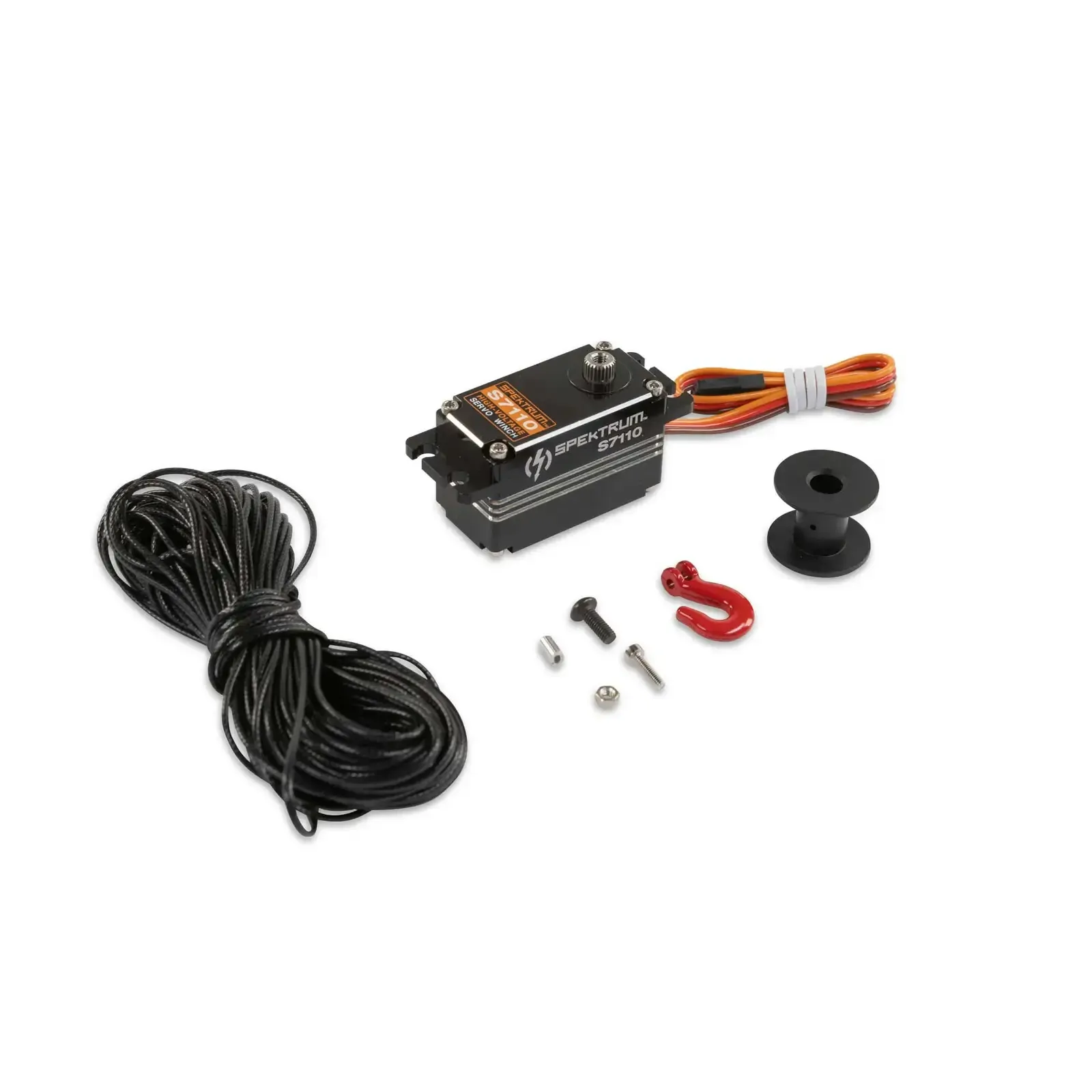

What's In The Box

  • (1) S7110 High Voltage Servo Winch
  • (1) Scale recovery hook
  • (1) Aluminum spool
  • (1) 7’ Fiber line



Product Specifications

  • Programmable: No
  • Spline Count: 25 - Tooth
  • Current Draw Idle: 2mA
  • Wire Gauge: 22 AWG

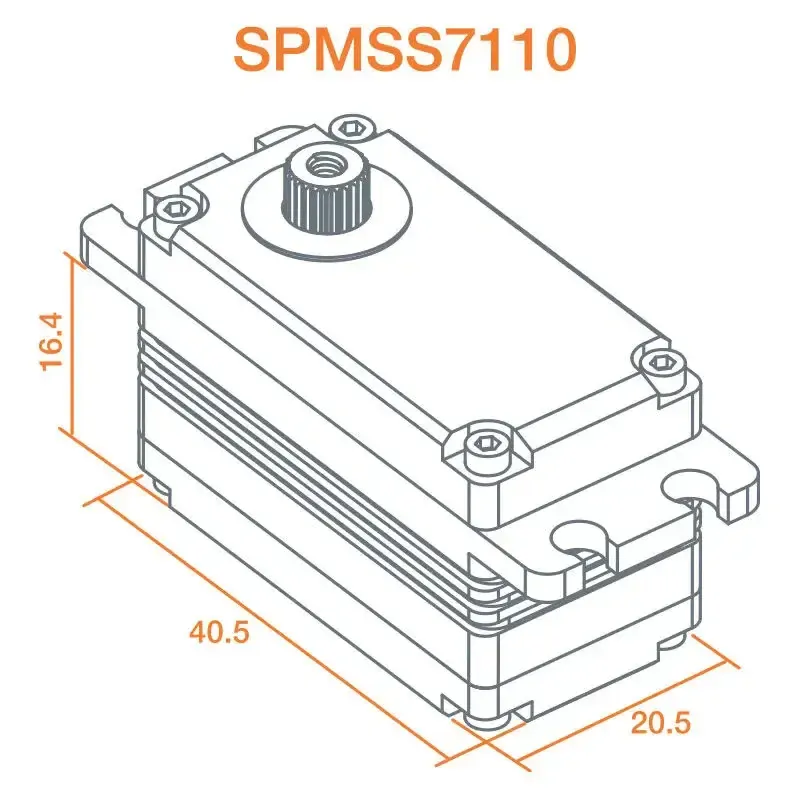

  • Product Width: 0.8" (20 mm)
  • Bearing: Ball Bearing
  • Gear Type: Metal
  • Connector Wire Length: 7.48" (190 mm)
  • Connector Type: Universal
  • Product Height: 0.99" (25 mm)
  • Servo Size Category: Standard
  • Servo Operating Voltage: 6.0 - 8.4V (HV)
  • Maximum Servo Speed: 123RPM @ 6.0V, 155RPM @ 7.4V
  • Servo Type: Digital
  • Bushing Or Bearing: Bearing
  • Current Draw Stall: 1.6A @ 6.0V, 1.8A @ 7.4V, 2A @ 8.4V
  • Product Weight: 2oz (57g)
  • Rotation Range: 360 Degree Continuous
  • Application: 1/10 Rock Crawlers- Winch
  • Maximum Servo Torque: 130oz/in @ 6.0V, 160oz/in @ 7.4V, 180oz/in @ 8.4V
  • Product Length: 1.59" (40 mm)
  • Input Voltage: 6.0V ~ 8.4V
