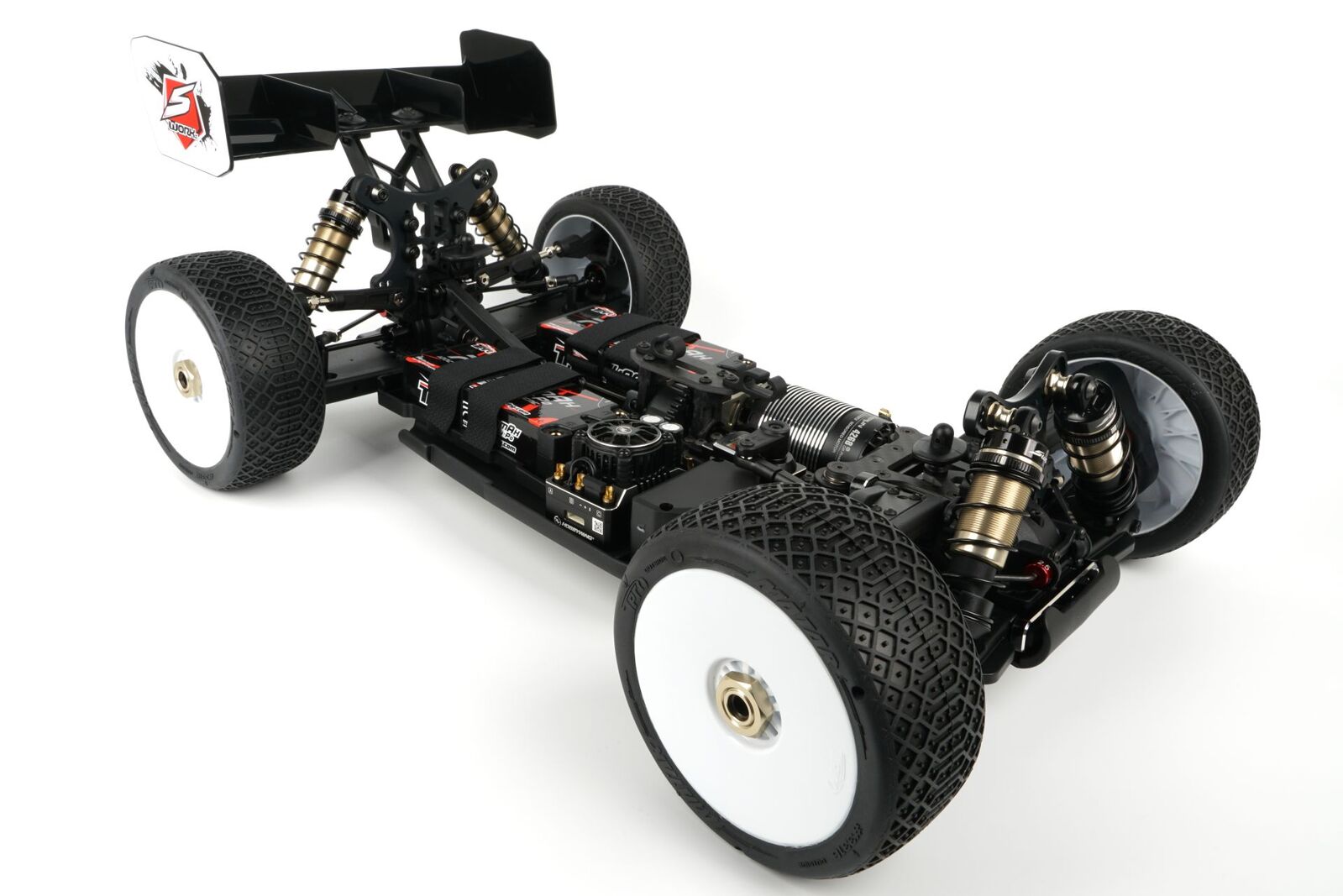

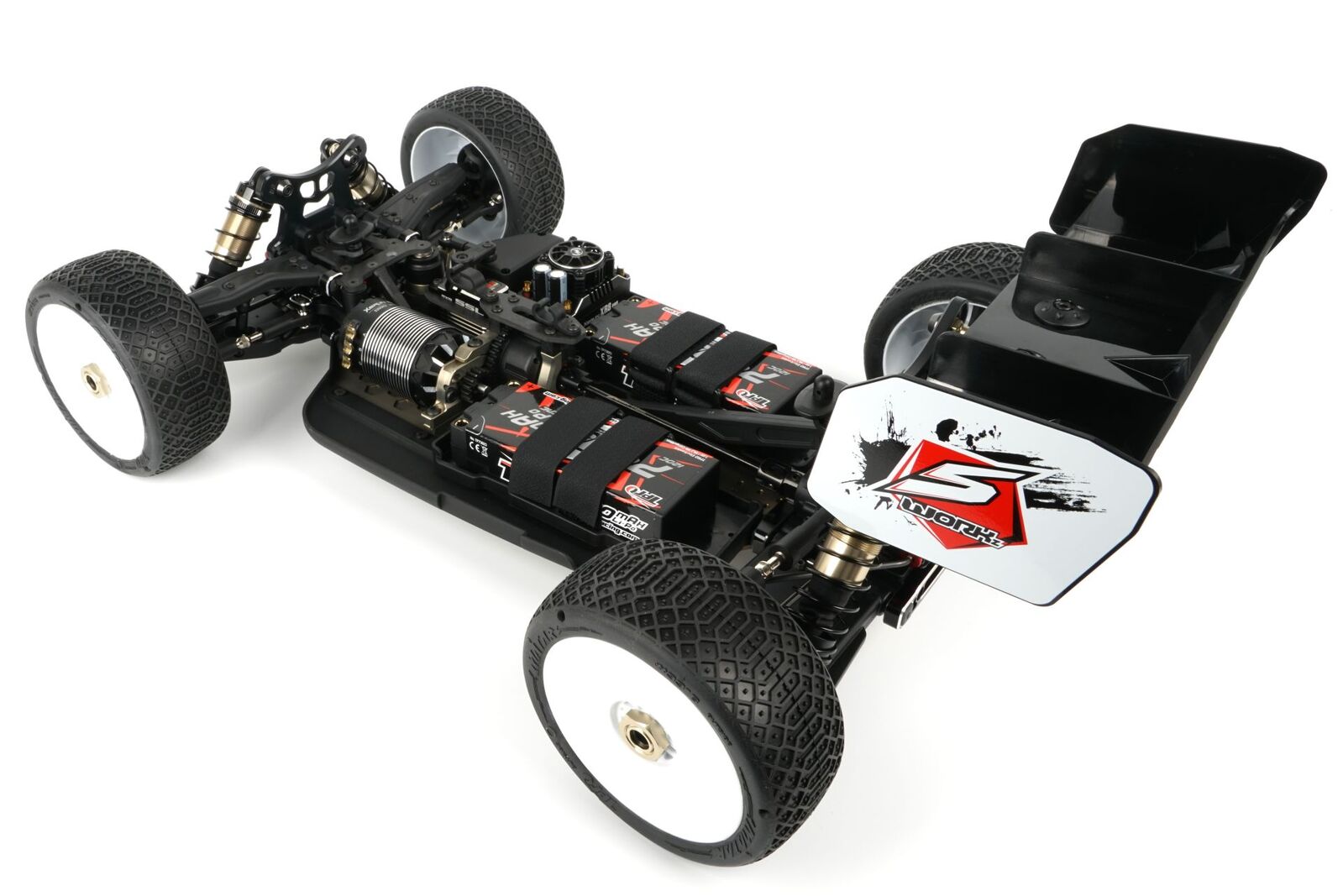

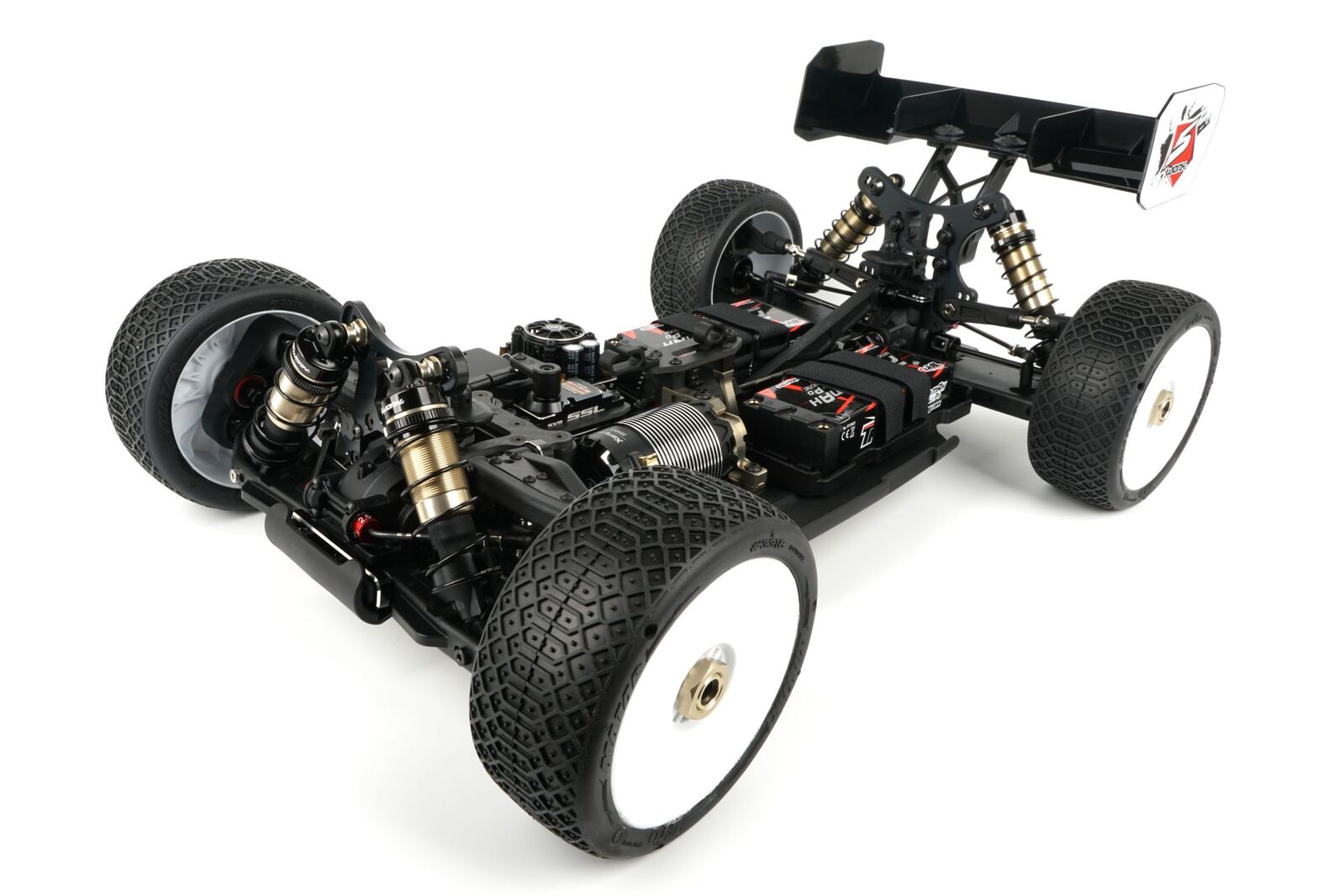

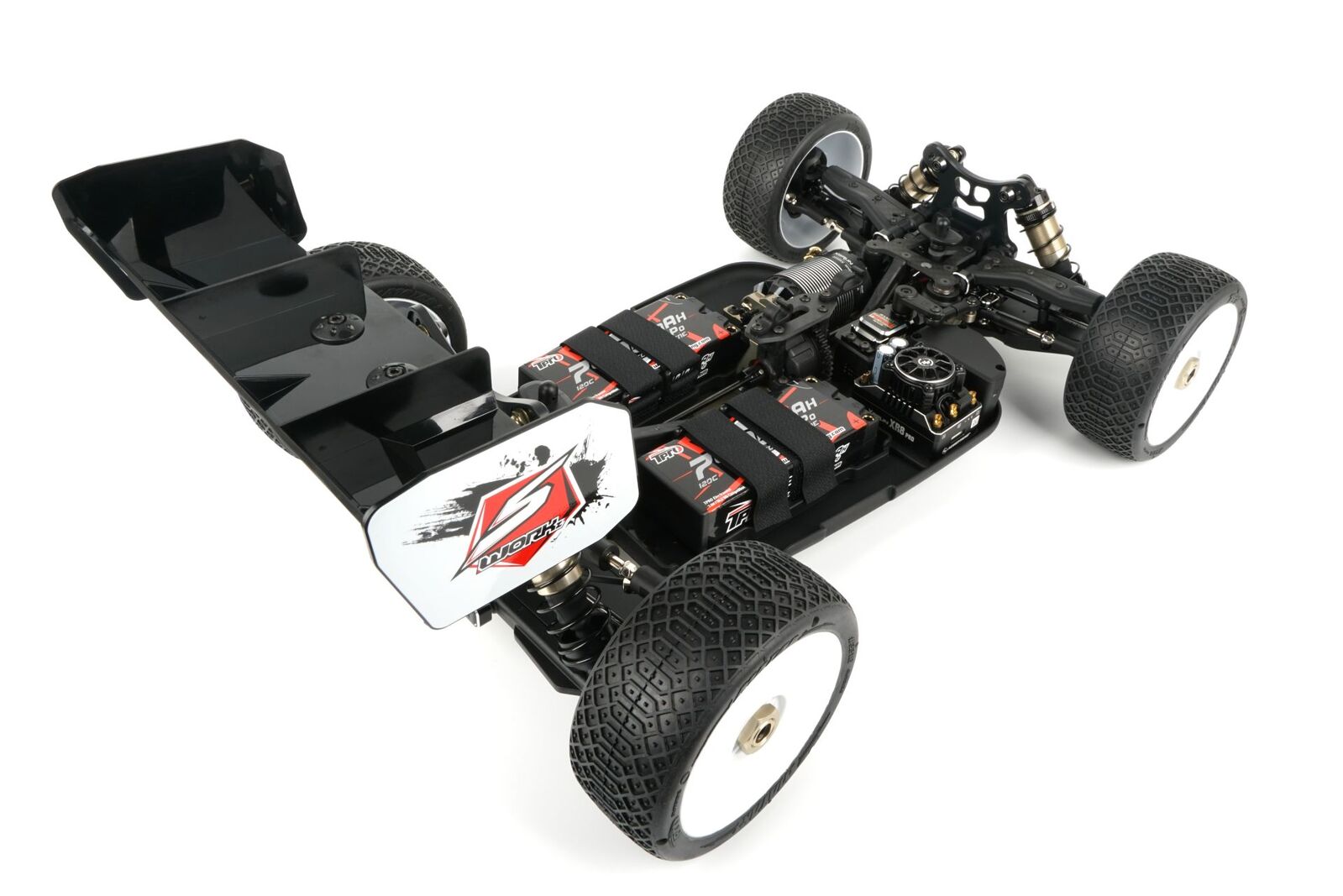

The SWORKz S35-5e 1/8 Brushless Power Pro Buggy Kit represents the next generation of SWORKz electric off-road racing performance. Developed from the highly acclaimed S35-4e EVO platform, the S35-5e combines refined handling, extensive adjustability and advanced race technology for today's competitive 1/8 electric buggy racer.

The proven geometry of the previous generation has been carefully refined to deliver increased corner speed, improved traction and more forgiving handling. The result is a buggy designed to feel easier and more predictable to drive while providing the performance potential required for serious competition.

At the centre of the S35-5e is a completely redesigned T7075 hard-anodised lightweight aluminium racing chassis. The new short-chassis configuration features optimised weight distribution and numerous lightweight components to improve overall balance, responsiveness and agility. The battery and electronics layout has also been optimised specifically for electric racing.

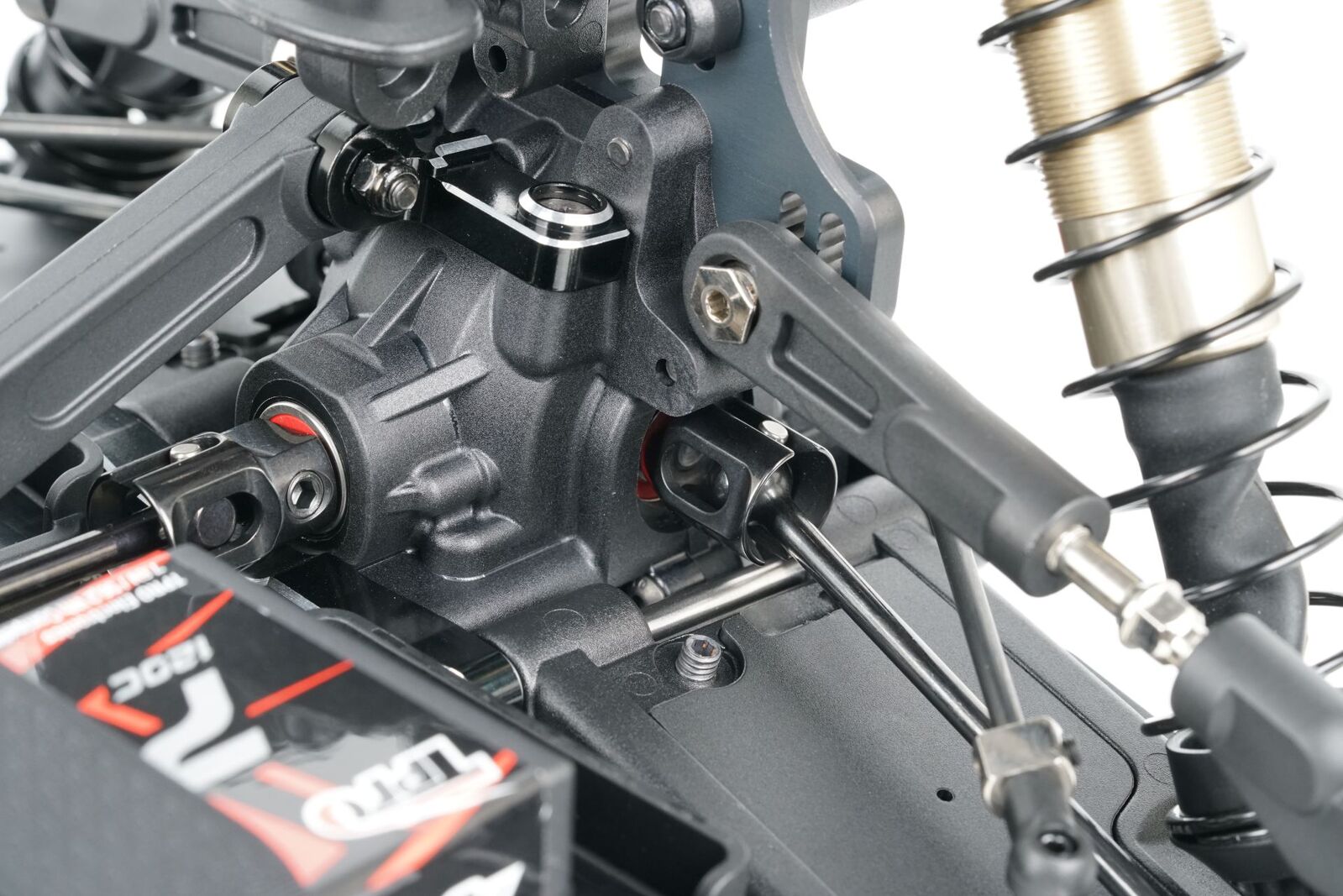

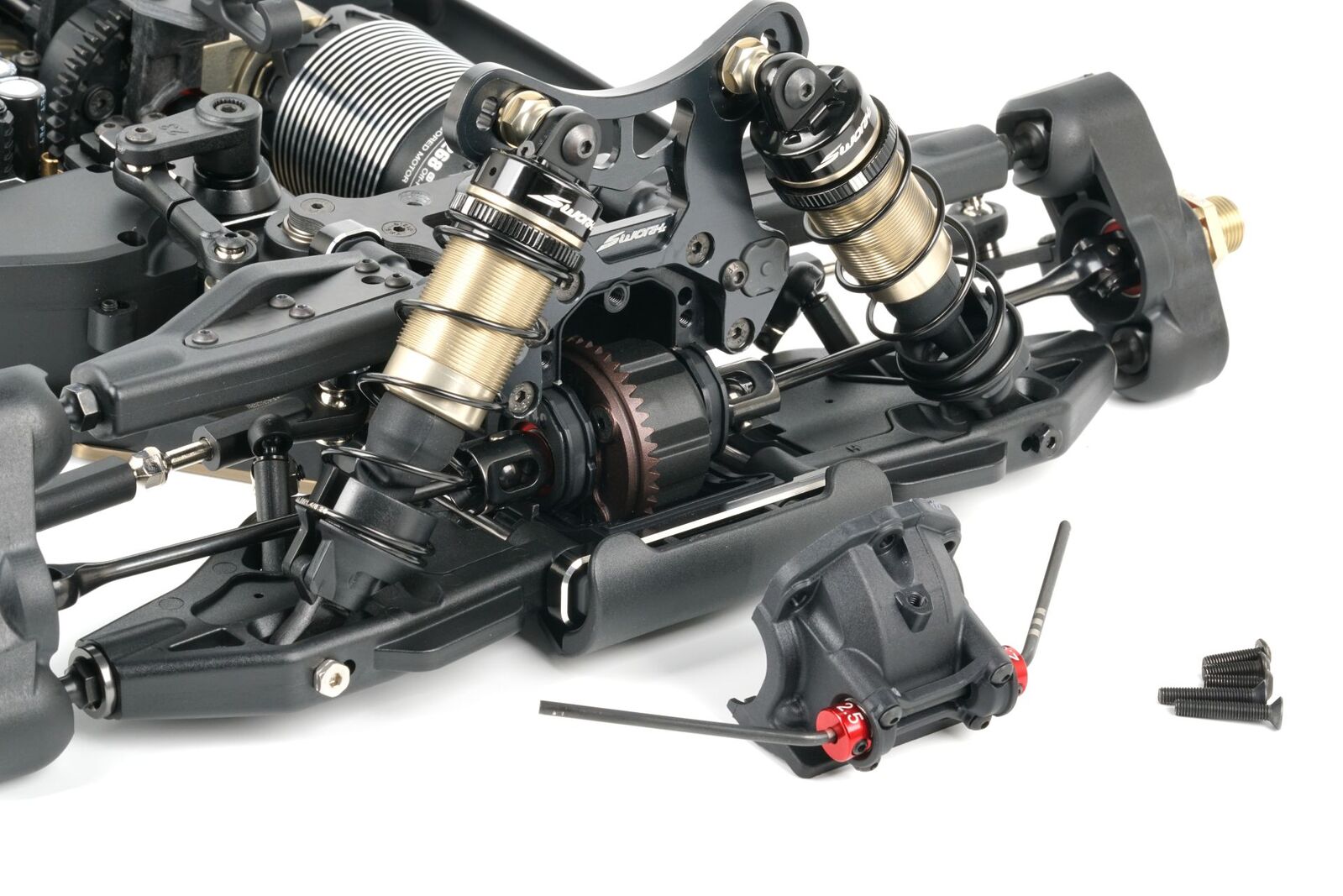

A major development is the new Quick Diff Release Gearbox System, providing faster and more efficient access to the differentials and significantly reducing maintenance time between races. Racers can also adjust the differential and pinion gear height, adding another valuable tuning option for adapting the buggy to changing track conditions.

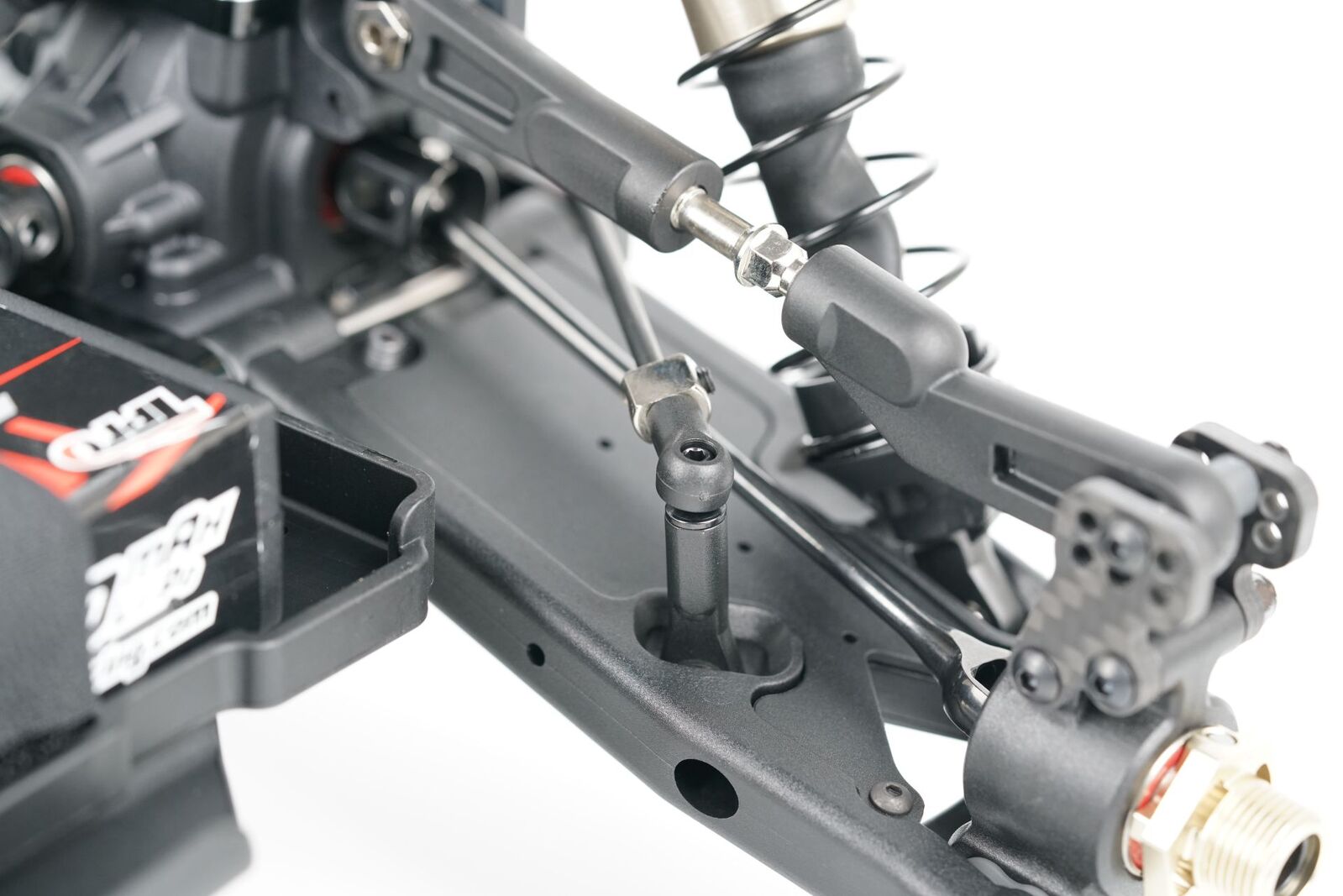

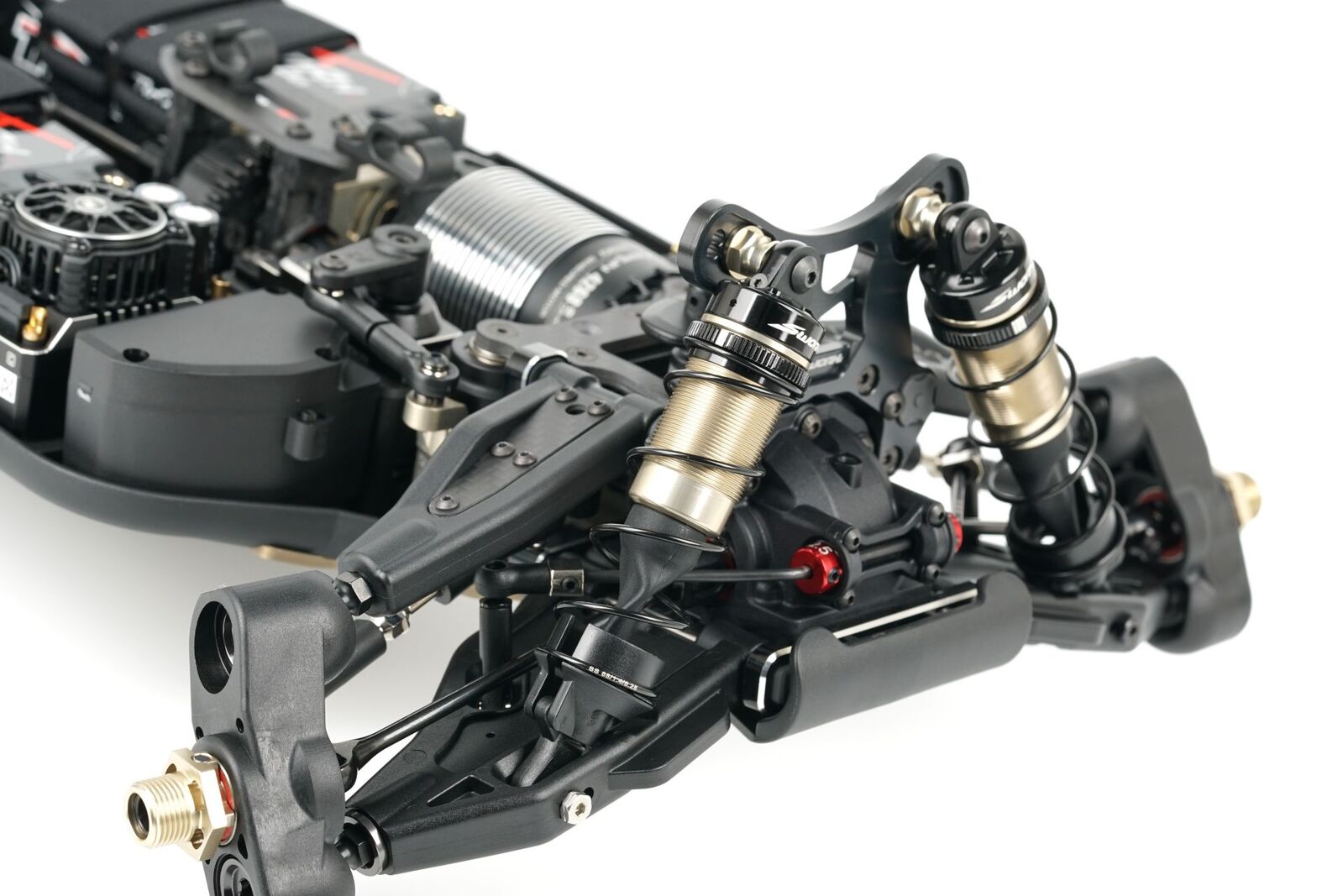

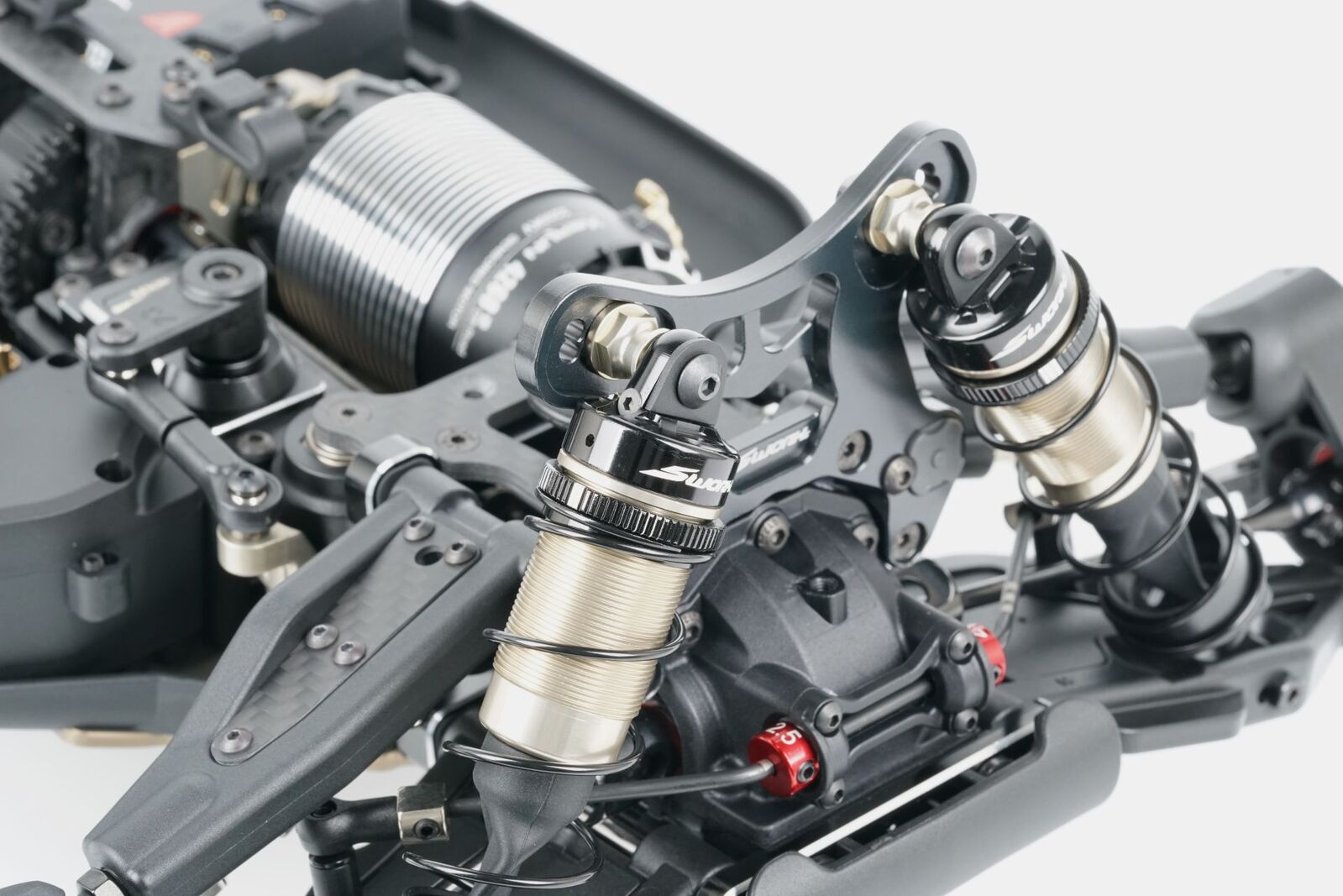

Suspension performance has been extensively developed with a new ball bearing-guided sway bar system for exceptionally smooth and precise operation. New shock towers provide dual mounting positions, while the latest Samurai Competition Shock Springs expand the available setup options for tuning traction, stability and cornering characteristics.

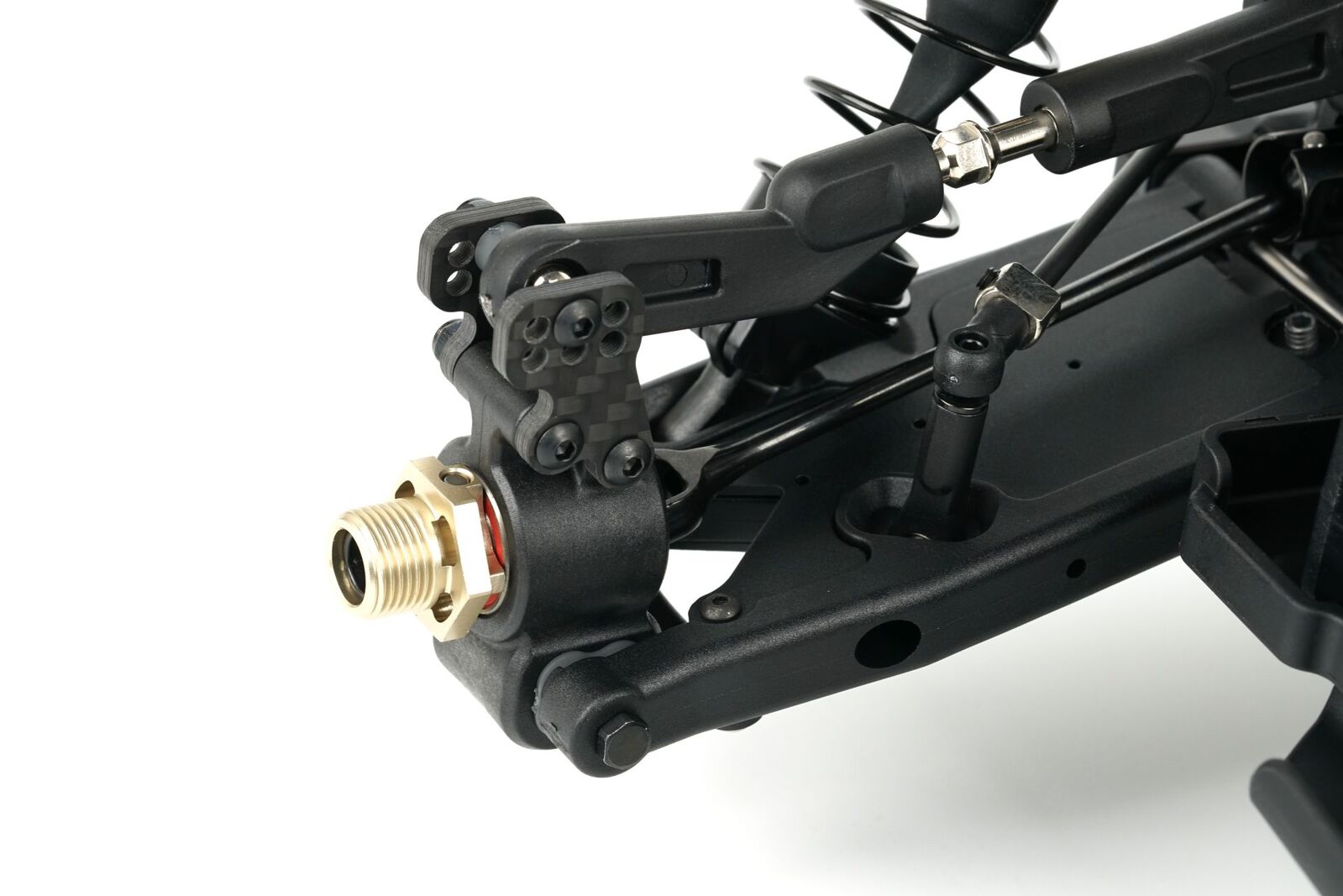

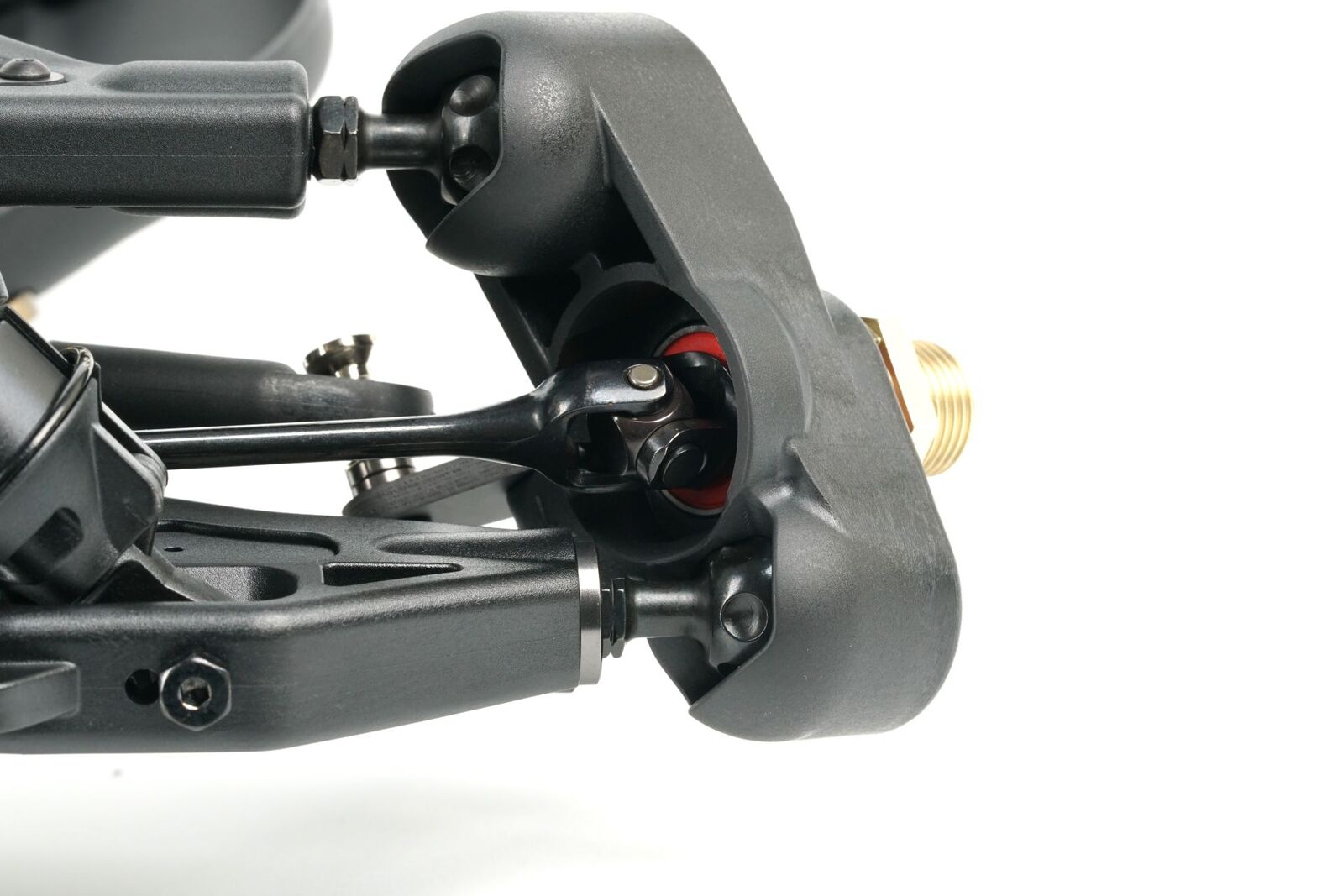

The updated steering system includes a new AL7075 aluminium +5 Ackermann steering plate, giving racers additional control over steering characteristics. Updated toe-in plates with square inserts, new aluminium Intensity F/F and R/F narrow suspension mounts and lower suspension arm protection covers further enhance the S35-5e's race-focused design.

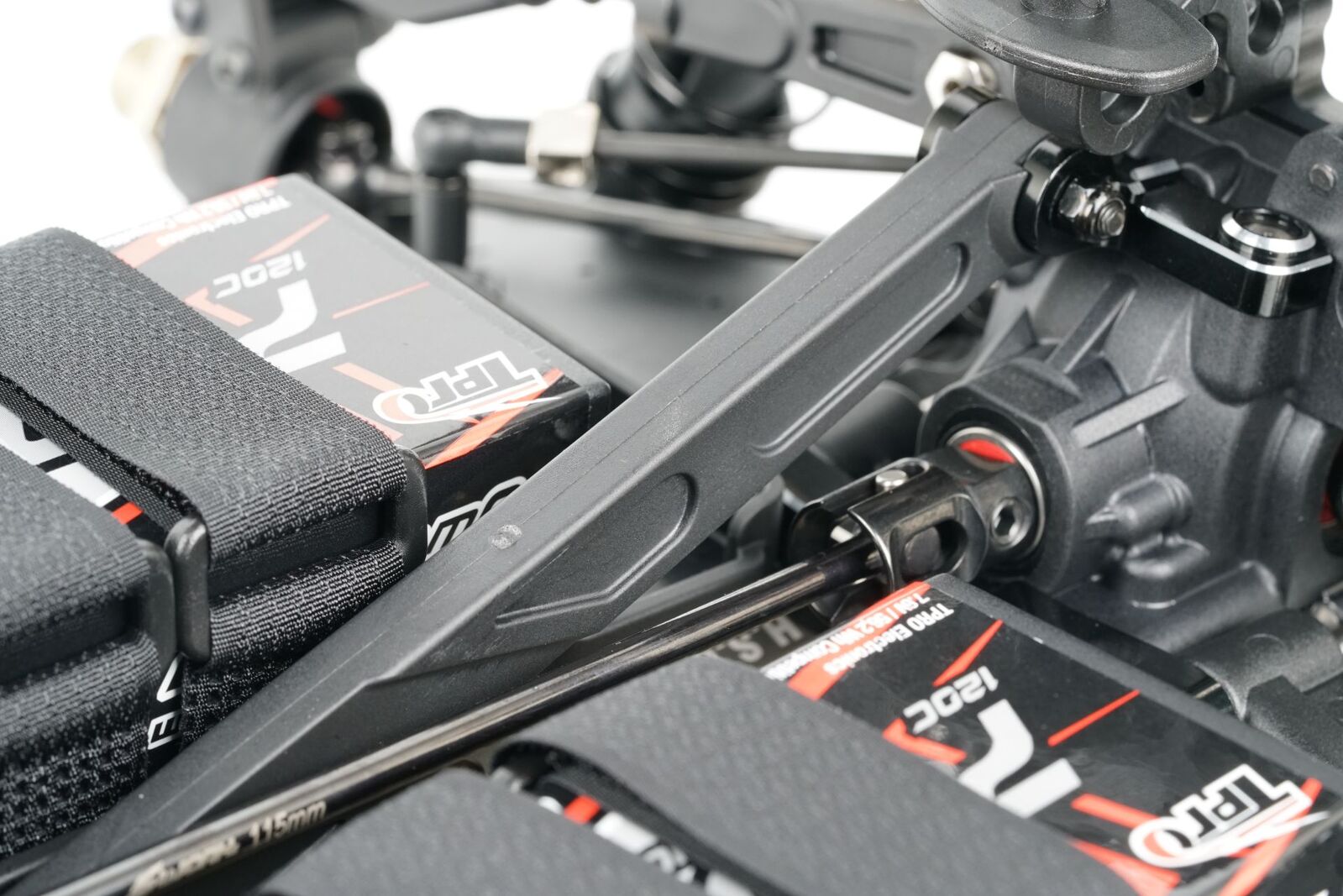

An all-new carbon plate-style radio tray has been developed specifically for the electric platform. The layout provides clean electronics installation, improved chassis flex characteristics, reduced weight and easier maintenance access.

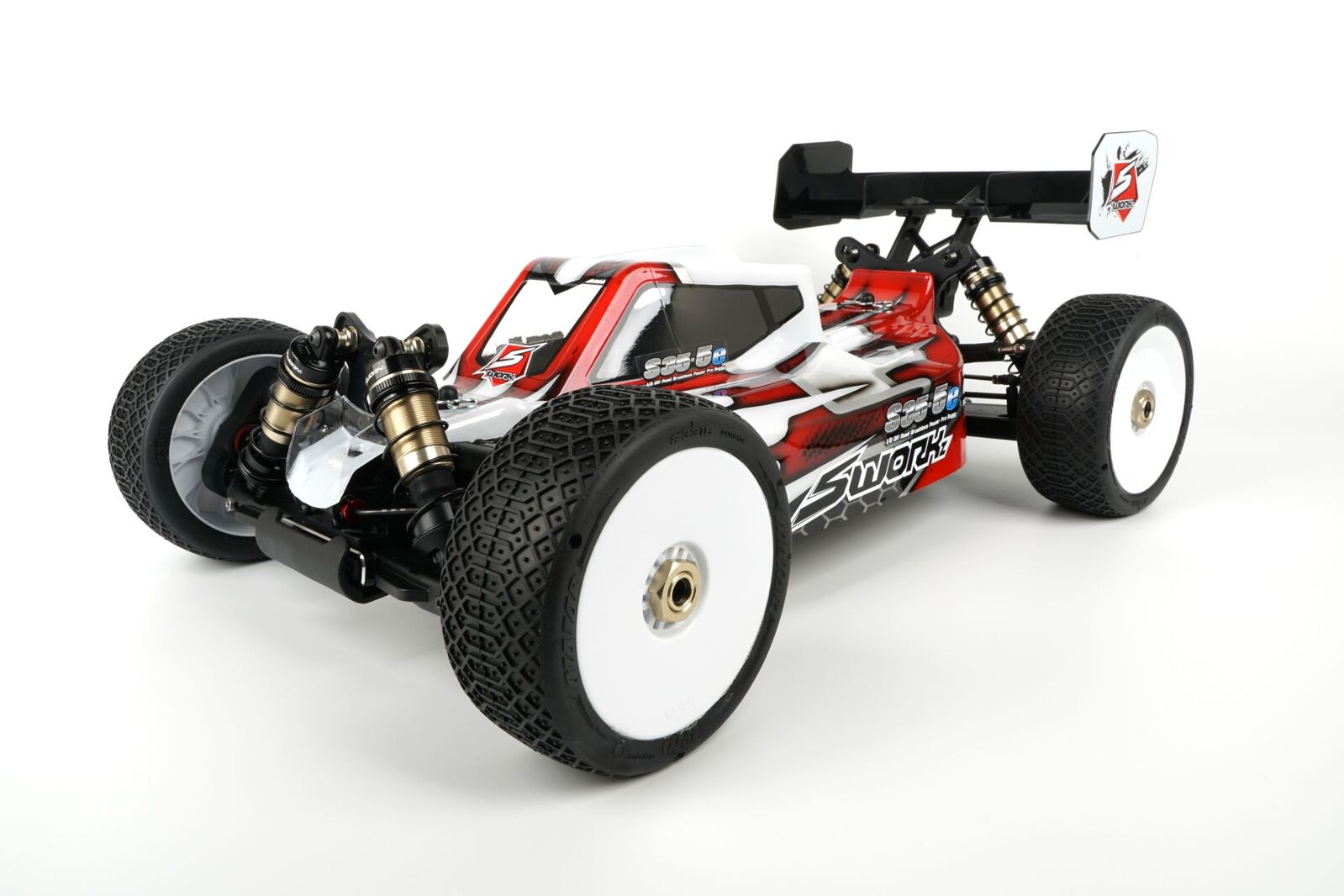

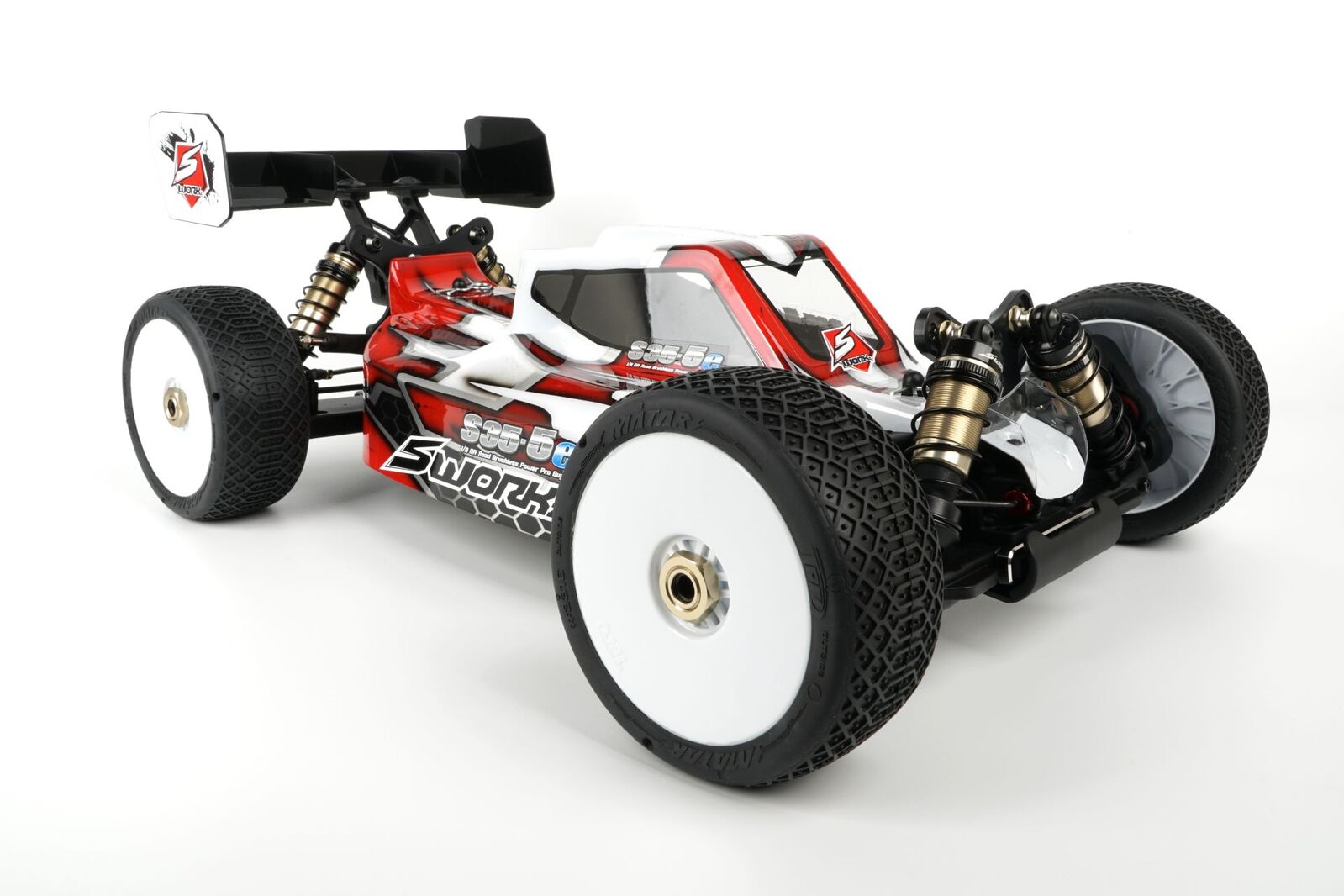

The S35-5e also features an easy-access motor mount system, making motor installation and maintenance faster, while the aerodynamically optimised Falcon ST-5E body shell completes the new-generation electric package.

Manufactured using premium materials including high-grade T7075 and AL7075 aluminium with precision-machined components throughout, the S35-5e combines lightweight construction with the durability and reliability demanded by competitive racing.

Whether you're a professional racer searching for every possible setup advantage or a club racer looking for a competitive platform with an effective base setup, the SWORKz S35-5e has been developed to deliver an exceptional balance of performance, durability and drivability.

Available from Campbelltown Hobbies, the SWORKz S35-5e represents the next evolution of the S35 electric buggy platform and sets a new benchmark for modern 1/8 electric off-road racing.

Required Items

• 1/8 Scale Brushless Motor
• Compatible Brushless ESC
• Steering Servo
• Radio Transmitter
• Receiver
• LiPo Battery
• Compatible LiPo Charger
• Wheels
• Tyres
• Polycarbonate Paint
• Assembly Tools
• Tyre Glue

Specifications

Brand: SWORKz
Model: S35-5e
Scale: 1/8
Power Source: Electric / Brushless
Drive System: 4WD
Vehicle Type: Competition Off-Road Buggy
Completion Level: Pro Kit
Application: Electric Off-Road Racing
Chassis: T7075 Hard-Anodised Lightweight Aluminium
Chassis Design: New Short Chassis
Radio Tray: Carbon Plate Style
Gearbox: Quick Diff Release System
Differential Height: Adjustable
Pinion Gear Height: Adjustable
Sway Bar System: Ball Bearing Guided
Shock Towers: New Design with Dual Mounting Positions
Shock Springs: Samurai Competition
Ackermann Plate: AL7075 Aluminium +5
Toe-In Plates: Updated with Square Inserts

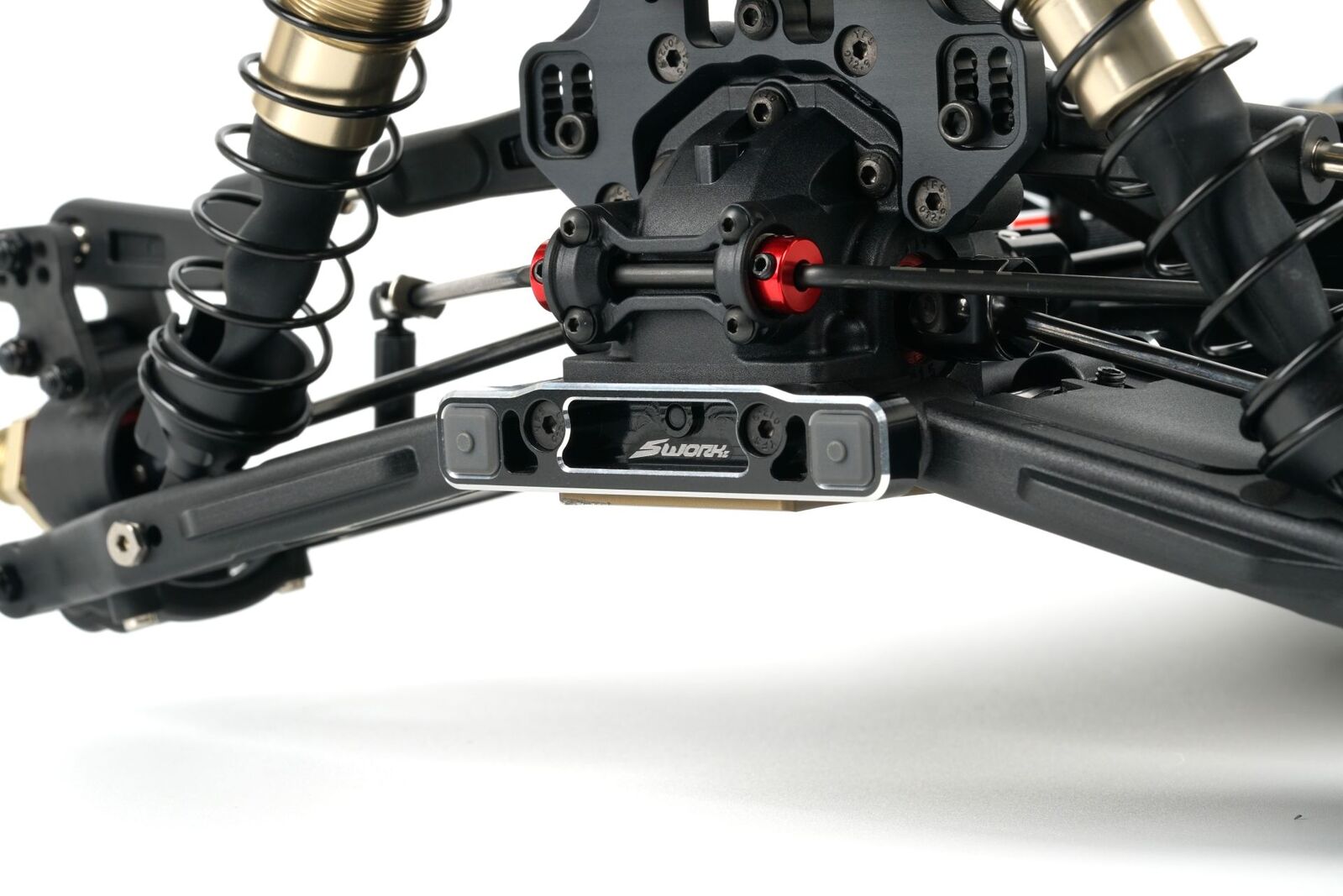

Lower Suspension Mounts: Aluminium Intensity F/F & R/F Narrow
Suspension Arm Protection: Lower Arm Protection Covers
Body: Falcon ST-5E Aerodynamically Optimised Body Shell
Motor Mount: Easy Access
Battery Layout: Optimised Electric Racing Layout
Electronics Layout: Optimised Electric Racing Layout
Length: 510mm
Width: 308mm
Height: 220mm
Ground Clearance: 65mm
Wheelbase: 325–330mm
Front Track: 304mm
Rear Track: 306mm
Centre Gear Ratio: 46/15T
Front/Rear Gear Ratio: 43/13T
Race Weight: Approximately 3680g

Key Features

• New T7075 hard-anodised lightweight aluminium chassis
• New short chassis design
• New carbon plate-style radio tray
• New Quick Diff Release gearbox system
• Adjustable differential height
• Adjustable pinion gear height
• New ball bearing-guided sway bar system
• New shock towers with dual mounting positions
• New Samurai Competition shock springs
• New AL7075 aluminium +5 Ackermann steering plate
• Updated toe-in plates with square inserts
• New aluminium Intensity F/F and R/F narrow suspension mounts
• New lower arm protection covers
• New aerodynamically optimised Falcon ST-5E body shell
• Optimised battery layout
• Optimised electronics layout
• Easy-access motor mount system
• Refined steering system
• Optimised weight distribution
• Extensive race setup possibilities

Frequently Asked Questions – SWORKz S35-5e 1/8 Brushless Power Pro Buggy Kit

What is the SWORKz S35-5e 1/8 Brushless Power Pro Buggy Kit?

The SWORKz S35-5e is a professional 1/8 scale 4WD electric off-road competition buggy developed from the successful S35-4e EVO platform. It features a redesigned chassis, drivetrain, suspension, steering and electronics layout for modern electric racing.

What is new on the SWORKz S35-5e compared with the previous S35-4e EVO platform?

The SWORKz S35-5e introduces a new short T7075 aluminium chassis, carbon plate-style radio tray, Quick Diff Release gearbox system, adjustable differential and pinion heights, ball bearing-guided sway bars, new shock towers, Samurai Competition shock springs, updated steering components and a Falcon ST-5E body shell.

What is the Quick Diff Release system on the SWORKz S35-5e?

The SWORKz S35-5e Quick Diff Release Gearbox System is designed to provide faster and easier differential access, reducing maintenance time and making race-day setup changes more efficient.

Can the differential and pinion height be adjusted on the SWORKz S35-5e?

Yes. The SWORKz S35-5e features adjustable differential and pinion gear height positions, giving racers additional drivetrain tuning options for different track conditions.

What chassis does the SWORKz S35-5e use?

The SWORKz S35-5e uses a new T7075 hard-anodised lightweight aluminium short chassis designed to improve weight distribution, balance, responsiveness and agility.

How is the SWORKz S35-5e optimised specifically for electric racing?

The SWORKz S35-5e features an optimised battery and electronics layout, a new carbon plate-style radio tray and an easy-access motor mount system developed specifically for the requirements of 1/8 electric off-road racing.

What suspension springs are included with the SWORKz S35-5e?

The SWORKz S35-5e features new Samurai Competition Shock Springs together with redesigned shock towers featuring dual mounting positions for expanded suspension tuning.

What body does the SWORKz S35-5e include?

The SWORKz S35-5e features the new aerodynamically optimised Falcon ST-5E body shell developed for the electric buggy platform.

What are the dimensions of the SWORKz S35-5e?

The SWORKz S35-5e measures 510mm long, 308mm wide and 220mm high with 65mm ground clearance. Its wheelbase is adjustable from 325mm to 330mm, with a 304mm front track and 306mm rear track.

How much does the SWORKz S35-5e weigh?

The specified race-condition weight of the SWORKz S35-5e is approximately 3680g.

Is the SWORKz S35-5e Ready-to-Run?

No. The SWORKz S35-5e is supplied as a professional competition kit and requires assembly along with a brushless motor, ESC, steering servo, radio equipment, battery, charger, wheels, tyres and other completion items.

Who is the SWORKz S35-5e designed for?

The SWORKz S35-5e is designed for competitive 1/8 electric off-road racers. Professional drivers can take advantage of its extensive tuning possibilities, while club racers benefit from a highly competitive and forgiving base platform.
