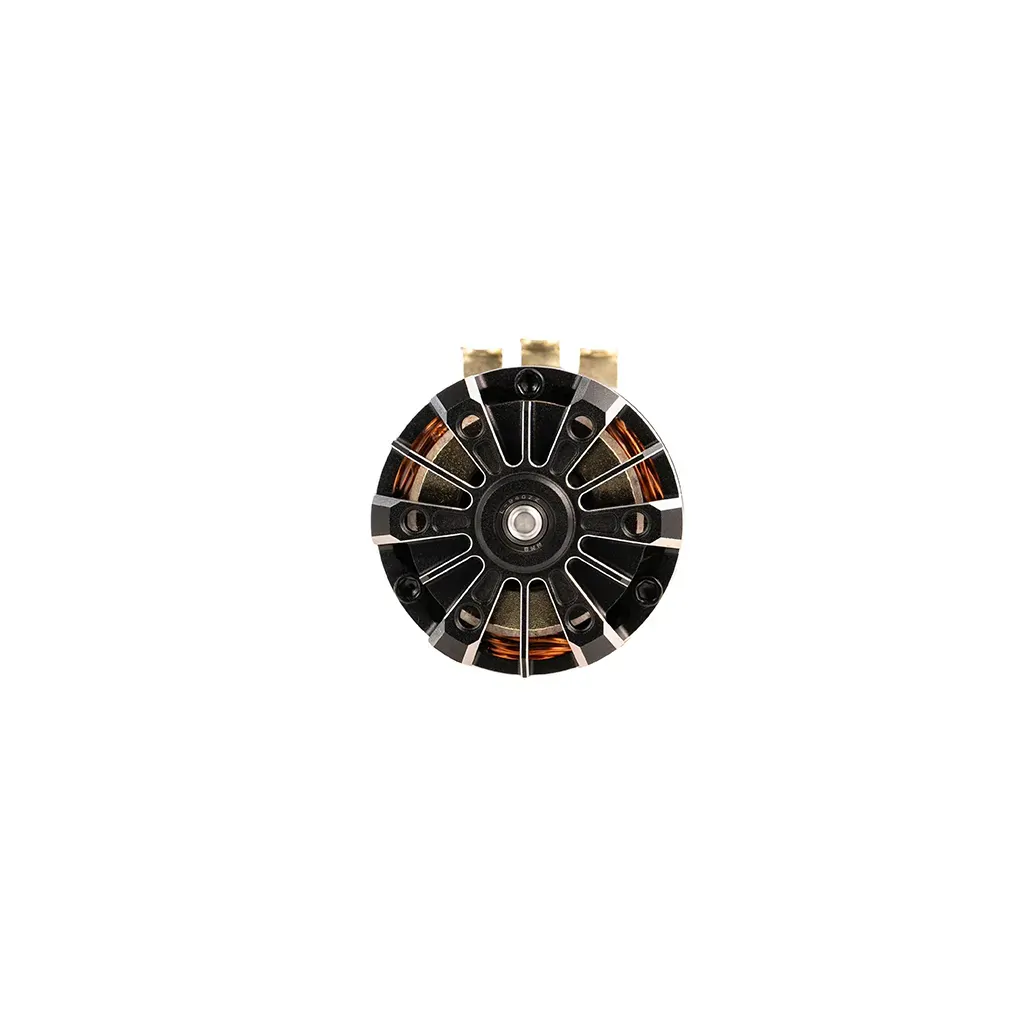

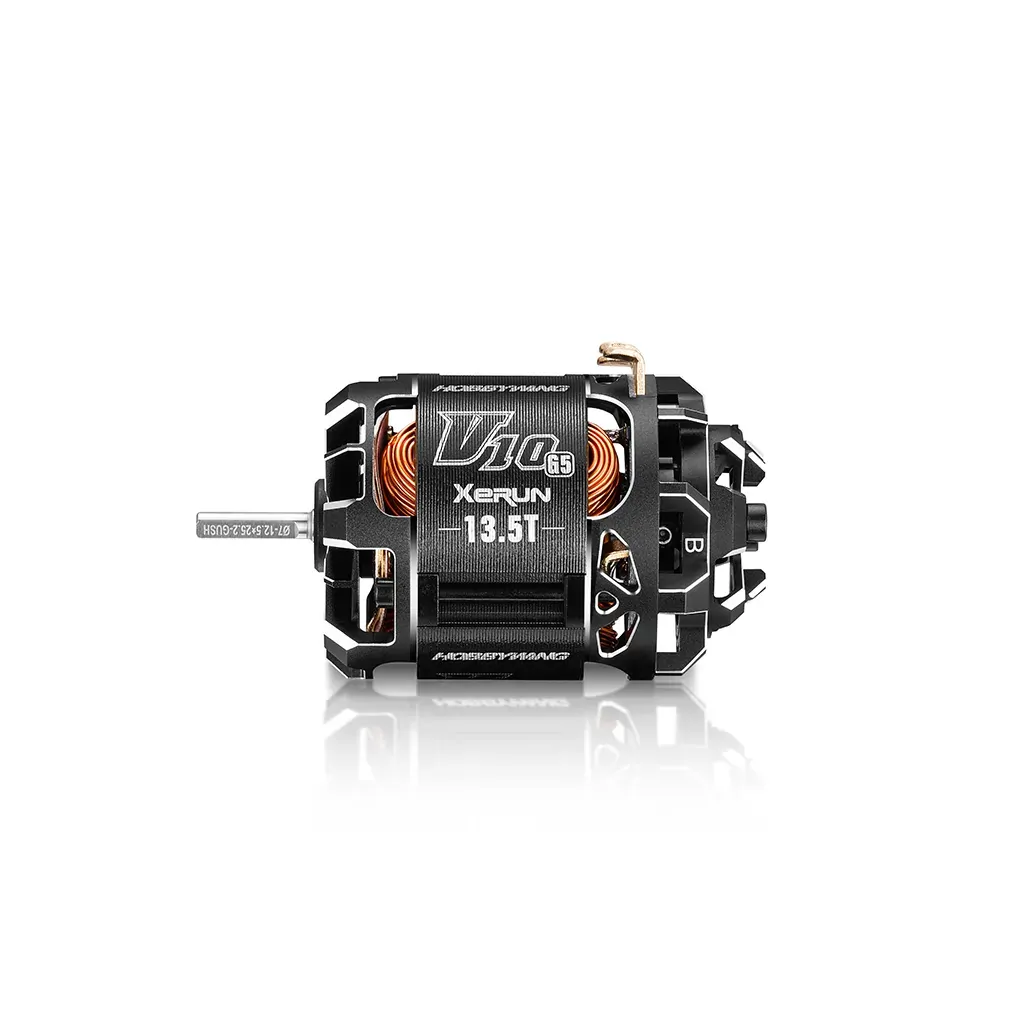

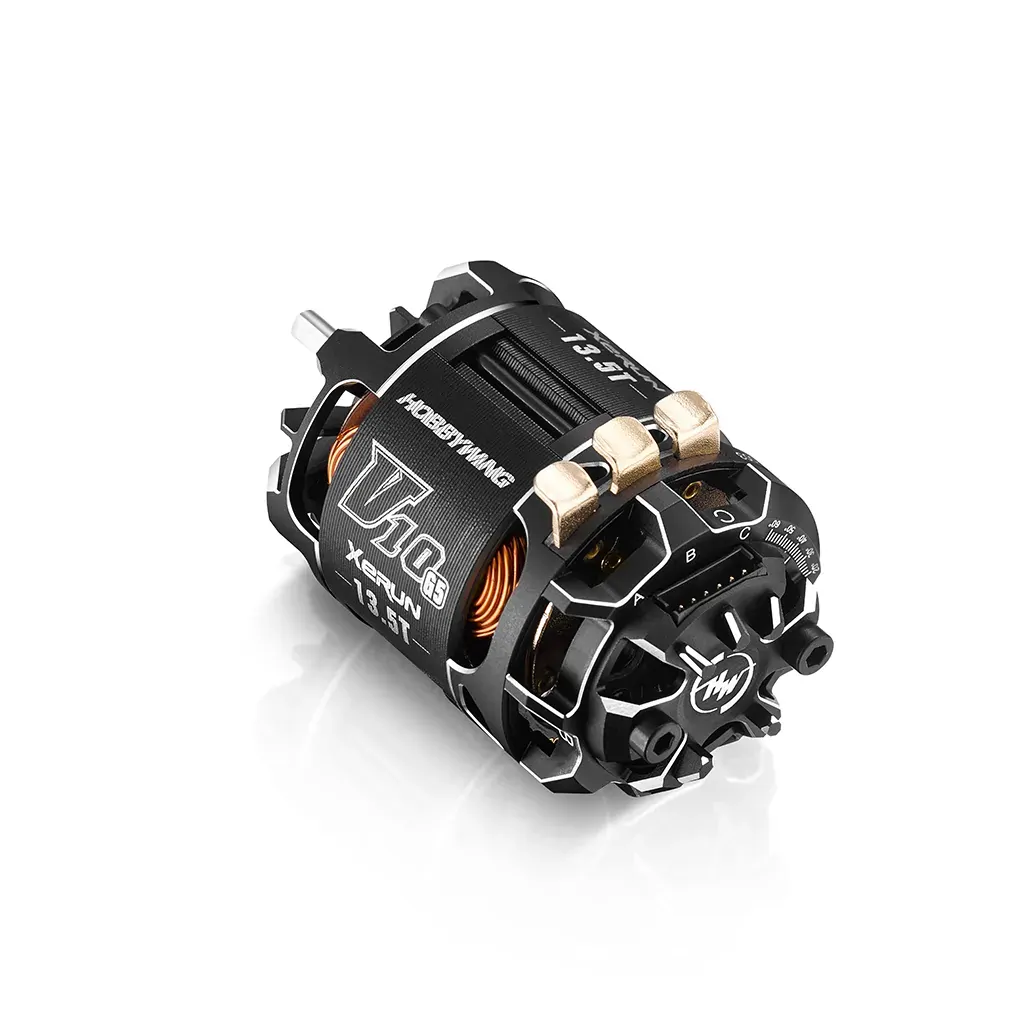

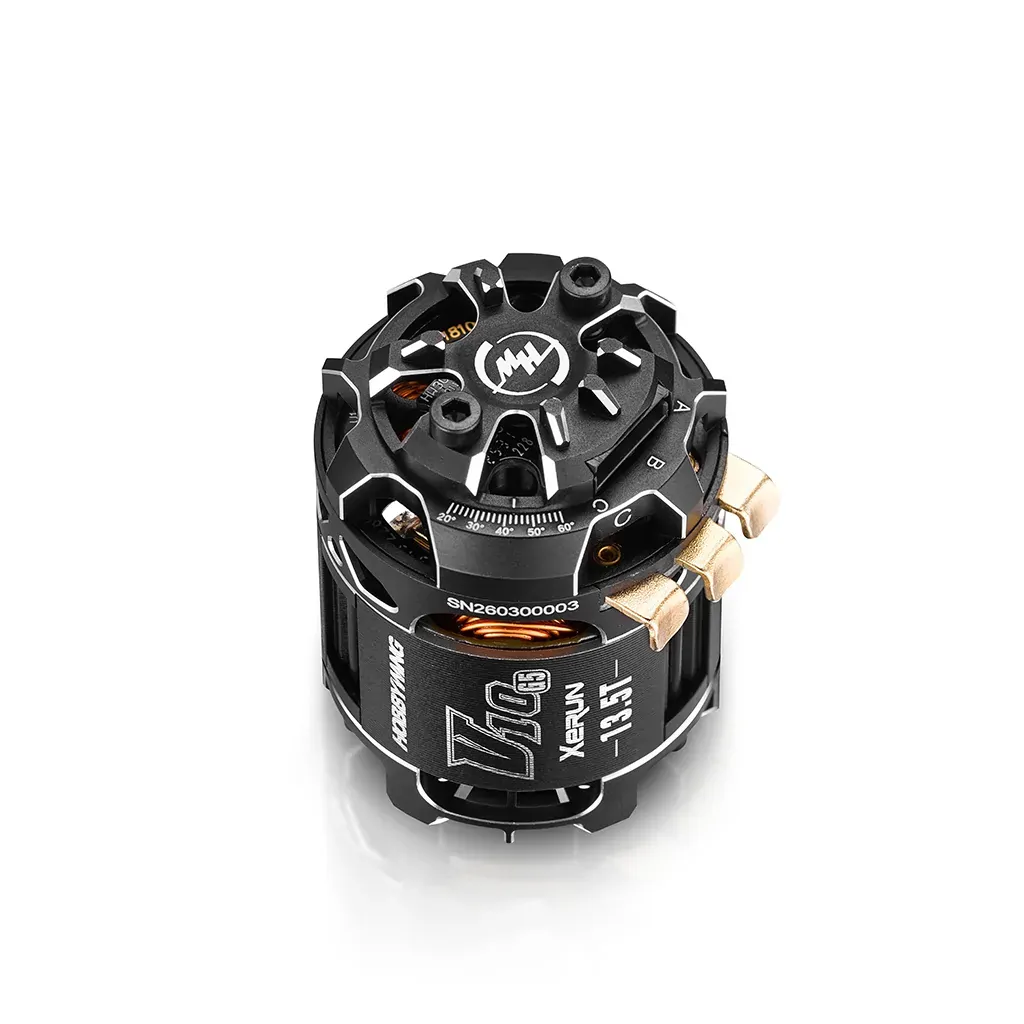

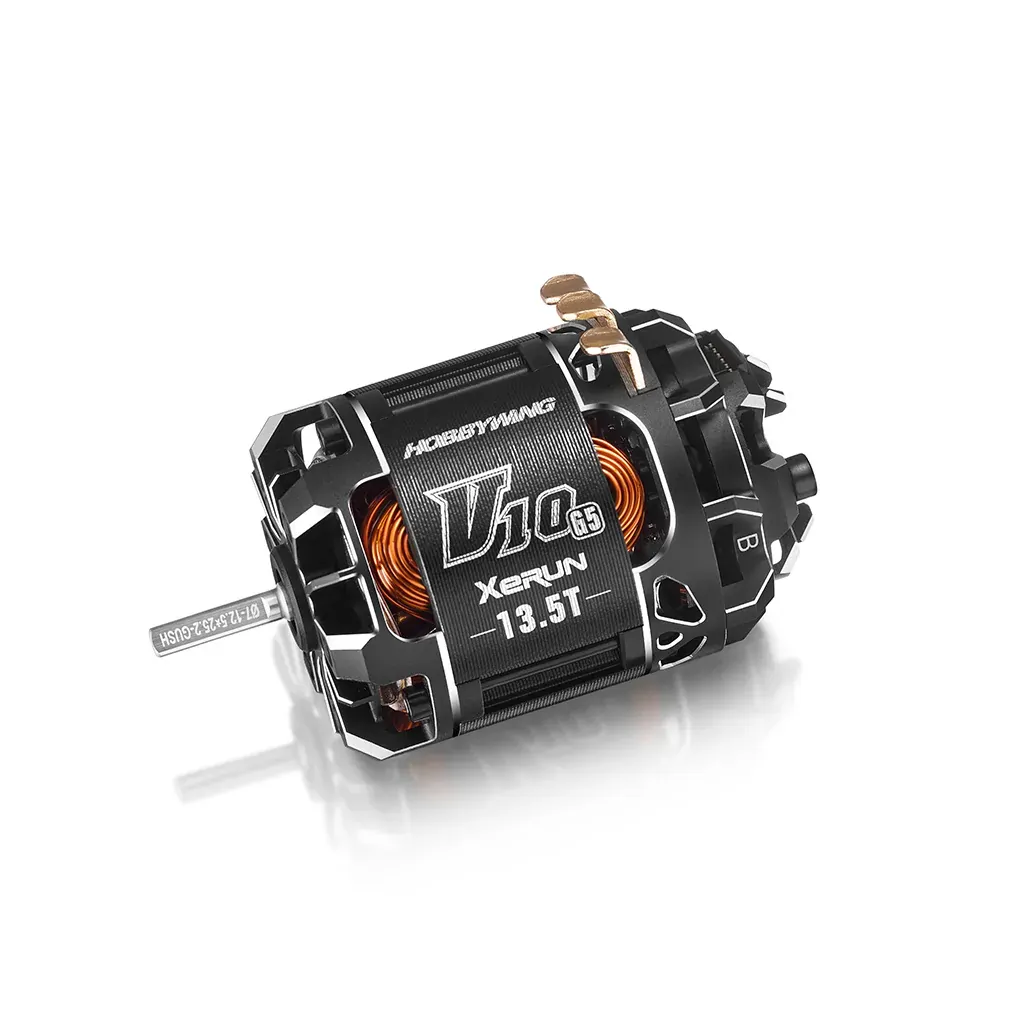

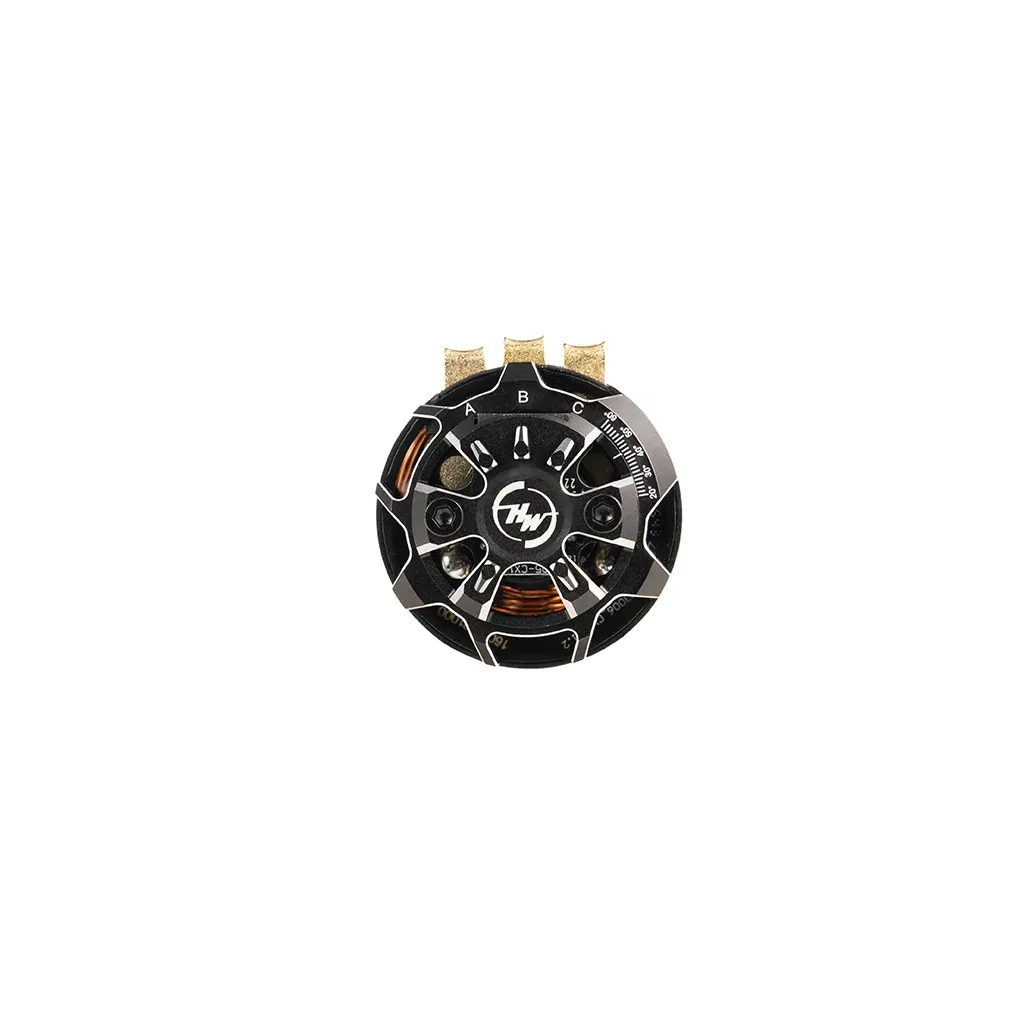

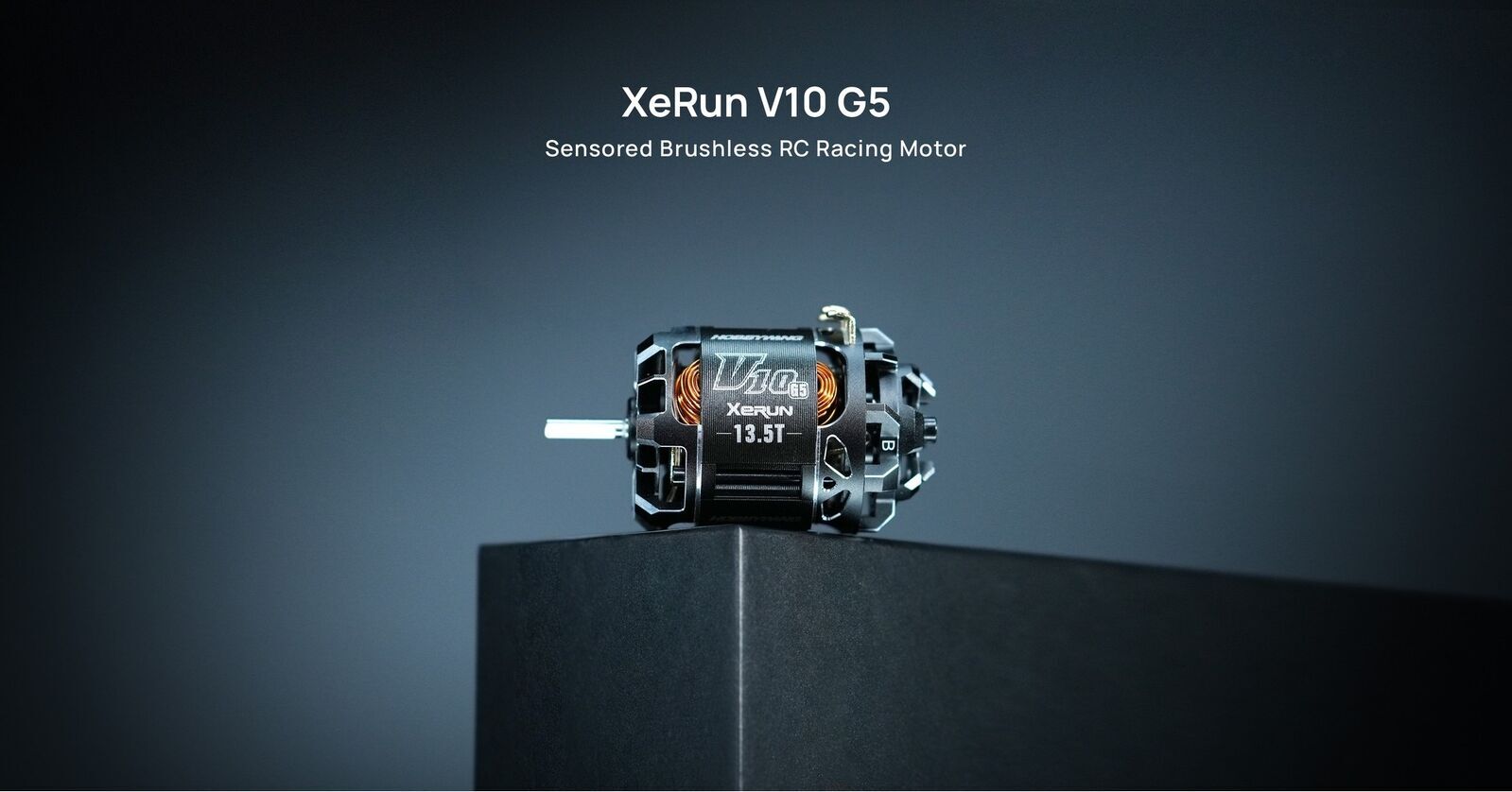

Hobbywing XeRun V10 G5 13.5T Brushless Motor

Built to be More than Just Fast!
Built from the ground up, the XeRun V10 G5 motor delivers more power and greater efficiency. It delivers a 3.9% boost in maximum output power and over 4% improvement in efficiency versus the V10 G4R 13.5T.

Excellent Heat Dissipation

New endbell design exposes more of the winding to allow better heat dissipation. Patented rotor cooling design, Thermal efficiency has been improved to reduce overall temperatures and provide better consistency.

Optimized Weight and Centre of Gravity

Redesigned inside and out, the new-generation G5 motor is 13g lighter than the G4R, The G5 has been designed to move the weight towards the centreline of the vehicle.

Adjustable Hall Timing Accuracy

The timing assembly introduces a new adjustment to allow further fine tuning of the sensors. This new angle adjustment means your motor will run smoother and be more efficient.

Adjustable Hall Sensing Distance

Rotor and sensor spacing is now easily adjustable. Three settings allow racers the ability to fine tune the response and feel of the power delivery.

Designed for Easy Maintenance

Modular design allows for quick and simple motor cleaning to allow racers to keep their motors performing at their best.

Built with Superior Materials

The V10 G5 motor is built to excel in the harshest race conditions.

Applications

• 1/10th & 1/12th STOCK Racing

Specifications

• KV: 4050KV
• T Count: 13.5T
• LiPo: 1-3S Lipo
• Shaft Diameter: Φ=3.175
• Diameter/Length: Φ=35.8mm L=51.5mm
• No-load Current(A): 5.4A
• Poles: 2
• Weight (g): 138g
