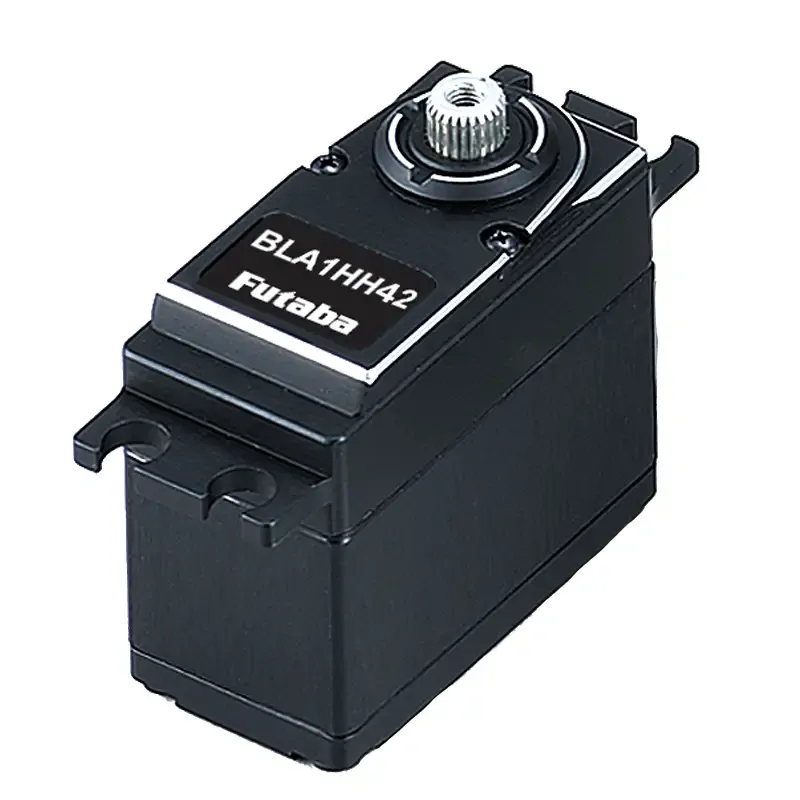

Futaba 24kg 0.05sec/60° (@14.8V) Industrial Servo

The Futaba BLA1HH42 is a high-performance industrial servo designed for applications requiring exceptional speed and torque. Operating at 14.8V, it delivers a torque of 24 kgf·cm (333 oz·in) and achieves a rapid speed of 0.05 seconds per 60° rotation. This servo features a robust metal gear construction housed within an aluminum casing, ensuring durability and reliability in demanding environments. With an IP64 rating, it offers protection against dust and water ingress, making it suitable for various industrial applications. The servo's dimensions are 40.5 x 21.0 x 38.4 mm, and it weighs 100 grams. It comes equipped with a 400 mm cable and a 6-pole connector, facilitating simple integration into your systems.

Brushless Digital Servo Specifications

• Construction: Metal gear with aluminum casing
• Cable Length: 400 mm
• Water/Dust Resistance: IP64 level
• Connector Type: 6-Pole (Signal, V+, GND, Position Monitor (+/-), Body-GND)
• Dimensions: 40.5 x 21.0 x 38.4 mm (1.59 x 0.83 x 1.51 in)
• Weight: 100 g (3.53 oz)
• Torque at 14.8V: 24 kgf cm (333 oz in)
• Speed ​​at 14.8V: 0.05 sec/60 degrees
