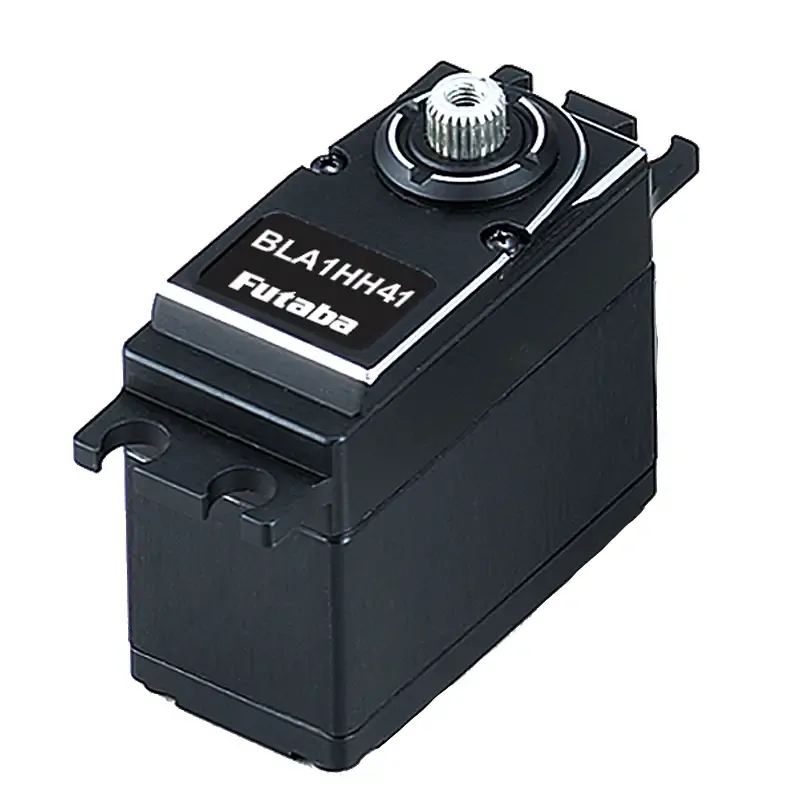

Futaba 44kg 0.10sec/60° (@14.8V) Industrial Servo

The Futaba BLA1HH41 is a high-performance industrial servo designed for applications requiring substantial torque and rapid response. Operating at 14.8V, it delivers an impressive torque of 44 kgf·cm (approximately 611 oz·in) and achieves a swift speed of 0.1 seconds per 60° rotation. This servo features a robust metal gear construction housed within an aluminum casing, ensuring durability and reliability in demanding environments. With an IP64 rating, it offers protection against dust and water ingress, making it suitable for various industrial applications. The servo's dimensions are 40.5 x 21.0 x 38.4 mm, and it weighs 100 grams. It comes equipped with a 400 mm cable and a 6-pole connector, facilitating simple integration into your systems.

Brushless Digital Servo Specifications

• Construction: Metal gear with aluminum casing
• Cable Length: 400 mm
• Water/Dust Resistance: IP64 level
• Interface: 6-Pole Connector (Signal, V+, GND, Position Monitor (+/-), Body-GND)
• Dimensions: 40.5 x 21.0 x 38.4 mm (1.59 x 0.83 x 1.51 in)
• Weight: 100 g (3.53 oz)
• Torque at 14.8V: 44 kgf cm (611 oz in)
• Speed ​​at 14.8V: 0.1 sec/60 degrees
