SKU: HW38030000
Hobbywing Combo WP16BL30 2435SL 4500KV G3 - HW38030000
$109.34
or 4 payments of $27.34 with
Info
Price Matchup
Description

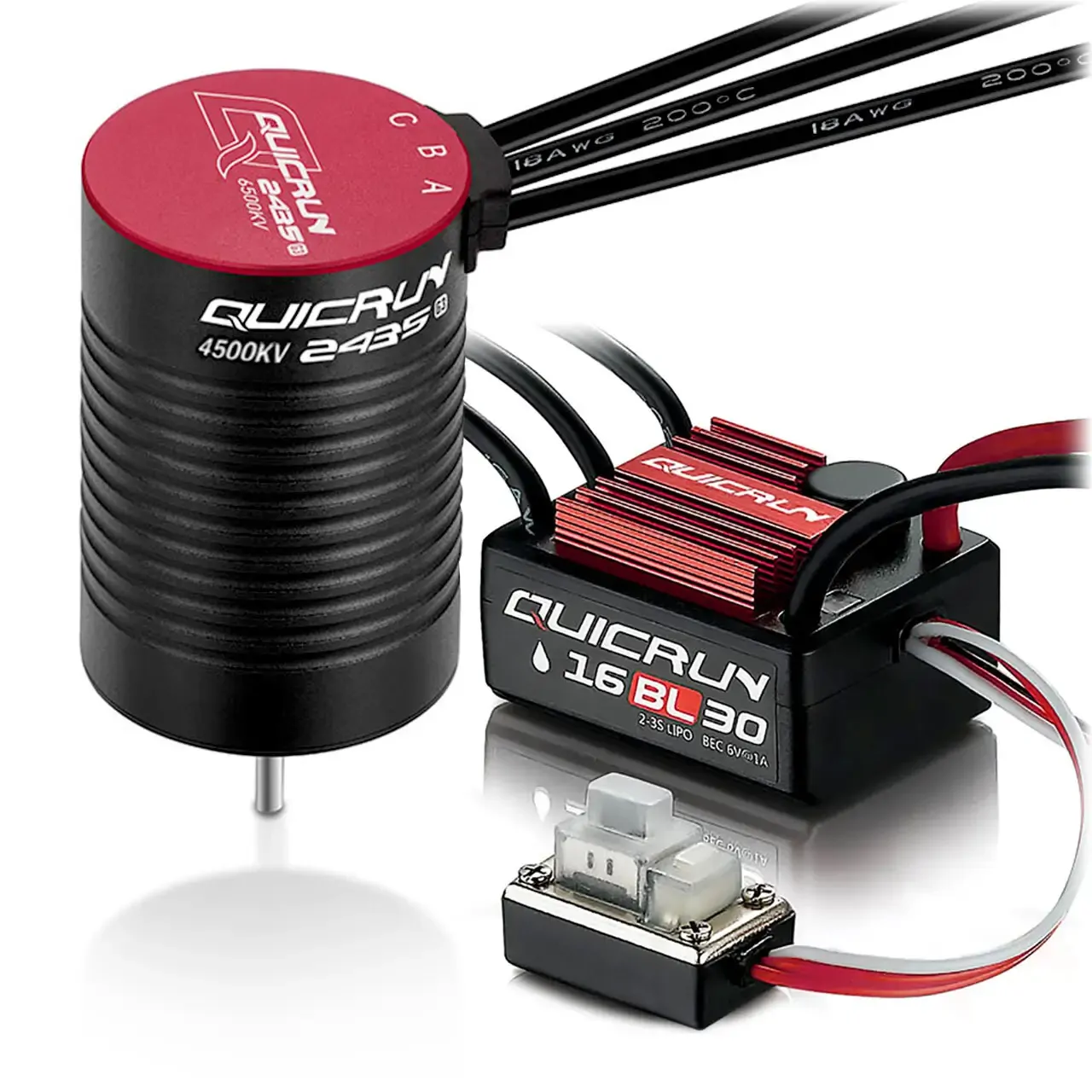

Hobbywing Combo WP16BL30 2435SL 4500KV G3
This Quicrun combo includes the all-time favorite WP16BL30 ESC as well as the 4500kV strong 2435 G3 series motors. This motor presents itself with a brand new 4-pole rotor, which has even more torque and from which the performance just shoots out. And compared to similar motors under the same load, the maximum output power is 60% higher and the efficiency is 5% higher, while the temperature has been reduced by almost 30 degrees. Due to the housing being sealed with a silicone rubber layer, the motor is particularly suitable for driving in more impassable environments in 1/16 or 1/18 scale.
Together with the WP16BL30 ESC, they form a cost-effective electronics team for beginners and advanced users alike.

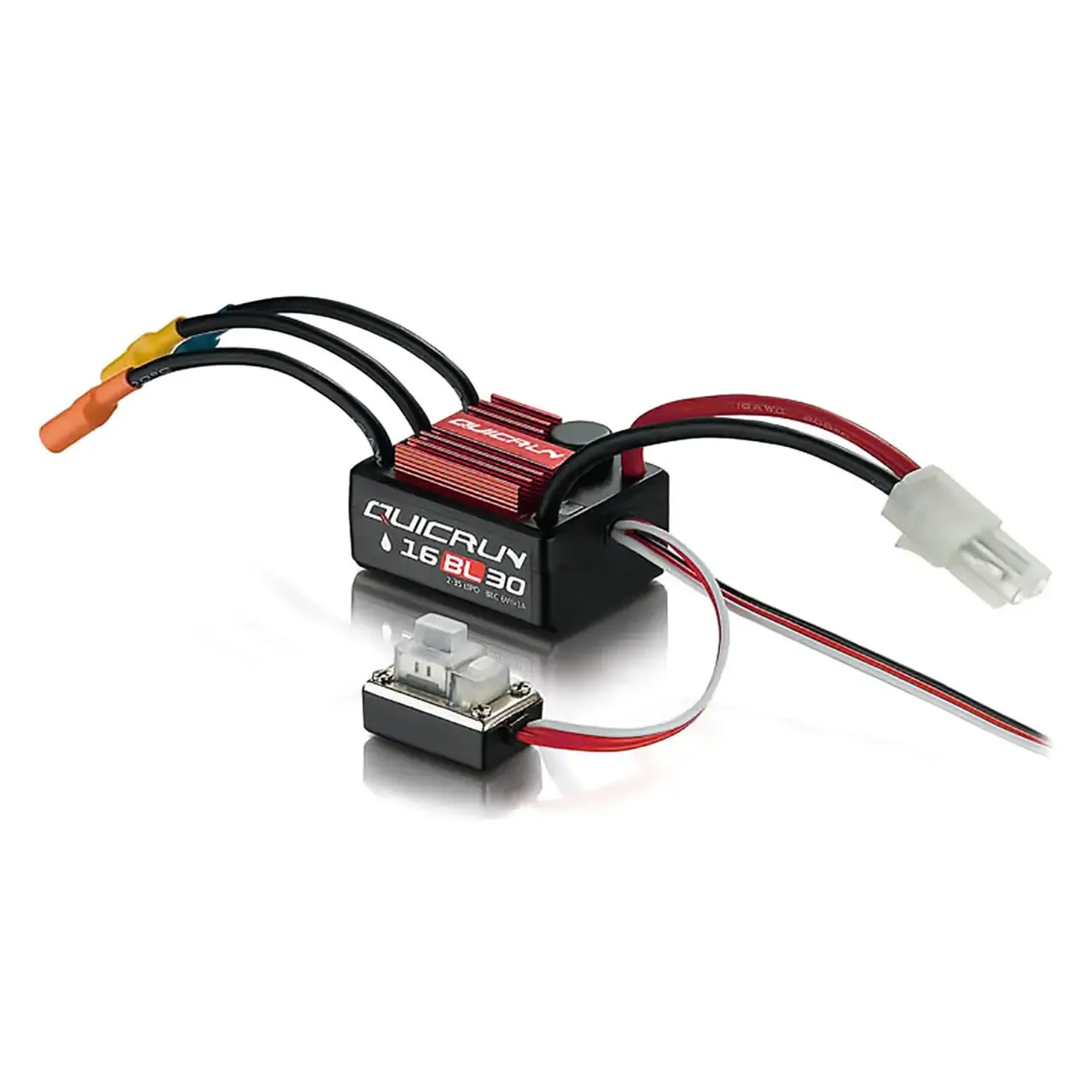

Features (ESC)
- Water-proof and dust-proof for all-weather races. (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
- Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
- 9 steps of acceleration (punch) adjustment from "soft" to "Very aggressive" to fit for different kinds of models, tires and tracks.
- One button (the "SET" button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
- Compatible with the optional portable digital LED Program Card, especially convenient for outdoor use.
- Multiple protections:
- Low voltage cut-off protection
- Over-heat protection
- Throttle signal loss protection
- Motor lock-up protection.

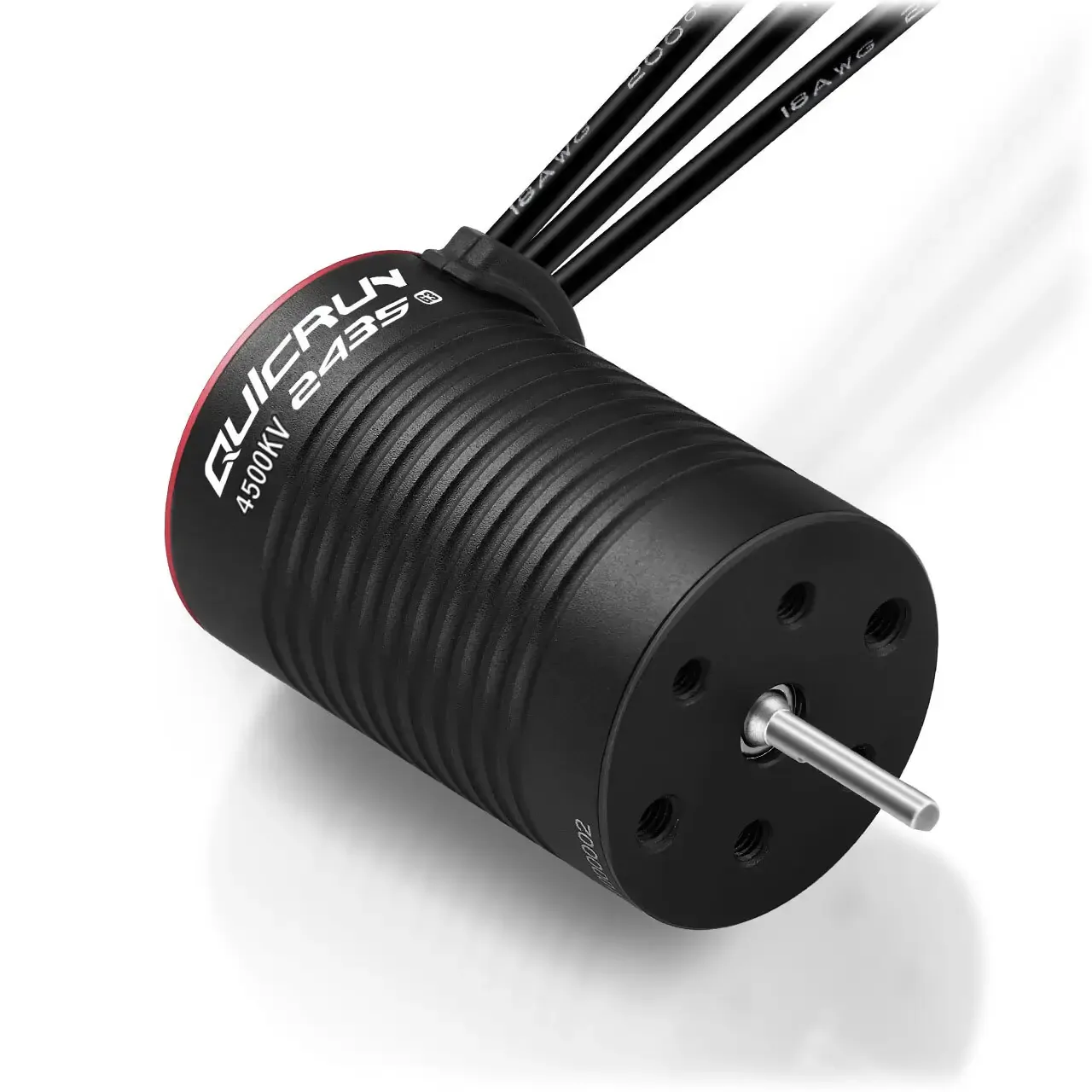

Features (Motor)
- 4-pole rotor design.
- Even more torque.
- Improvement in output power, efficiency and temperature development compared to the previous generation.
- Very high durability due to the used materials (e.g.: 0.2mm thick silicon steel laminations, high-strength explosion-proof rotor, high-temperature resistant coil, first-line brand, etc.).
- Plug'n'Play
What's In The Box
- 1x Quicrun WP16BL30 ESC
- 1x 2435SL G3 motor with 4500KV
Product Specifications
| ESC | |
| Type: | Brushless, Sensorless |
| Current (cont./peak): | 30A / 180A |
| Input Voltage: | 2-3S LiPo, 4-9 cells NiMH |
| BEC: | 6V @ 1A (Linear Mode) |
| Motor Types: | Brushless Sensorless Motors |
| Motor Limit: | For 2S LiPo or 6 cells NiMH
For 3S LiPo or 9 cells NiMH
|
| Fan: | No fan |
| Programming: | - SET Button - LED Program Box |
| Dimensions: | 36 x 28 x 16mm |
| Weight: | 38g |
| Application: | 1/10, 1/12 On-Road and Off-Road Tournament and Training (z.B. Touring cars, Buggy) |
| Motor | |
| Type: | Brushless / Sensorless |
| Poles: | 4 |
| kV Rating: | 4500kV |
| Turns: | - |
| Cells: | 2S |
| No-Load Current: | 2.1A |
| Outer Diameter: | 24mm |
| Motor Length: | 36mm |
| Shaft Diameter: | 2mm |
| Shaft Length: | 12mm |
| Weight: | 61.2g |
| Timing: | Fixed |
| Application: | 1/16 & 1/18 On-Road & Off-Road |
Description
SpecificationsHobbywing Combo WP16BL30 2435SL 4500KV G3
This Quicrun combo includes the all-time favorite WP16BL30 ESC as well as the 4500kV strong 2435 G3 series motors. This motor presents itself with a brand new 4-pole rotor, which has even more torque and from which the performance just shoots out. And compared to similar motors under the same load, the maximum output power is 60% higher and the efficiency is 5% higher, while the temperature has been reduced by almost 30 degrees. Due to the housing being sealed with a silicone rubber layer, the motor is particularly suitable for driving in more impassable environments in 1/16 or 1/18 scale.
Together with the WP16BL30 ESC, they form a cost-effective electronics team for beginners and advanced users alike.
Features (ESC)
- Water-proof and dust-proof for all-weather races. (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
- Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
- 9 steps of acceleration (punch) adjustment from "soft" to "Very aggressive" to fit for different kinds of models, tires and tracks.
- One button (the "SET" button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
- Compatible with the optional portable digital LED Program Card, especially convenient for outdoor use.
- Multiple protections:
- Low voltage cut-off protection
- Over-heat protection
- Throttle signal loss protection
- Motor lock-up protection.
Features (Motor)
- 4-pole rotor design.
- Even more torque.
- Improvement in output power, efficiency and temperature development compared to the previous generation.
- Very high durability due to the used materials (e.g.: 0.2mm thick silicon steel laminations, high-strength explosion-proof rotor, high-temperature resistant coil, first-line brand, etc.).
- Plug'n'Play
What's In The Box
- 1x Quicrun WP16BL30 ESC
- 1x 2435SL G3 motor with 4500KV
Product Specifications
| ESC | |
| Type: | Brushless, Sensorless |
| Current (cont./peak): | 30A / 180A |
| Input Voltage: | 2-3S LiPo, 4-9 cells NiMH |
| BEC: | 6V @ 1A (Linear Mode) |
| Motor Types: | Brushless Sensorless Motors |
| Motor Limit: | For 2S LiPo or 6 cells NiMH
For 3S LiPo or 9 cells NiMH
|
| Fan: | No fan |
| Programming: | - SET Button - LED Program Box |
| Dimensions: | 36 x 28 x 16mm |
| Weight: | 38g |
| Application: | 1/10, 1/12 On-Road and Off-Road Tournament and Training (z.B. Touring cars, Buggy) |
| Motor | |
| Type: | Brushless / Sensorless |
| Poles: | 4 |
| kV Rating: | 4500kV |
| Turns: | - |
| Cells: | 2S |
| No-Load Current: | 2.1A |
| Outer Diameter: | 24mm |
| Motor Length: | 36mm |
| Shaft Diameter: | 2mm |
| Shaft Length: | 12mm |
| Weight: | 61.2g |
| Timing: | Fixed |
| Application: | 1/16 & 1/18 On-Road & Off-Road |
