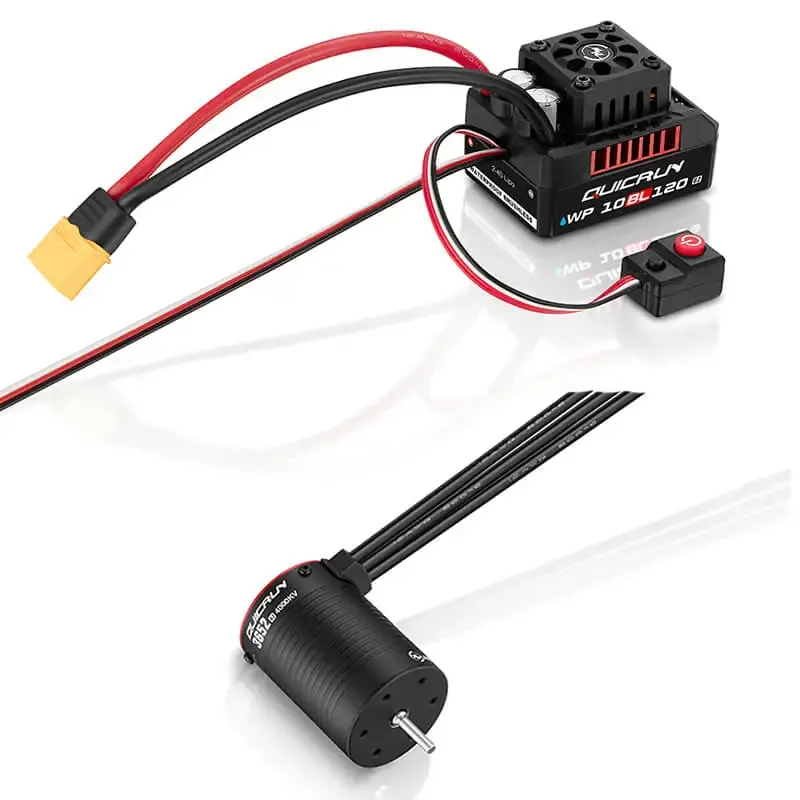

Hobbywing Quicrun Combo ESC G2 10BL120 & 3652SL 5400kv G2 Motor

QuicRun WP 10BL120 G2 Brushless Electronic Speed Controller and QUICRUN QR10BL120 G2 & 3652SL 5400KV G2 Combo.

ESC

• Intelligent freewheeling technology, greatly improved performance.
• The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.
• The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A. The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.
• The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat. These results an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state.
• Super large built-in capacitor, The built-in capacitor of the ESC is as high as 1640uF. External capacitors are not needed for 10th scale models on the market and helps improves ease of use.
• The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.

Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and splash, water and dust resistance are not permanently effective, and the level of protection may decline due to aging. Do not soak for a long time to avoid damaging the product.

ESC Specifications

• Scale: 1/10th
• Brushed/Brushless: BL
• Sensored/Sensorless: SL
• Waterproof: Yes
• Cont./Peak Current: 120A/760A
• Input: 1-4S LiPo
• BEC Output: Switch Mode 6V/7.4V @5A

MOTOR

• Taking 3652-3250KV as an example and comparing it with the same specification, there is 10% increase in power.
• The motor efficiency is significantly higher when comparing it with the same specification. Taking 3652-3250KV as an example, the efficiency of the rear section is 8% higher, motor temperature is lower under the same load condition.
• The rotor is designed with front and rear aluminum end plates, which greatly improves the overall balance. At the same time, the rotor is wound with high-strength tensile materials and has strong explosion-proof build.
• The motor adopts a modular detachable structure design, which is convenient for routine cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Motor Specifications

• Scale: 1/10th
• Brushed/Brushless: BL
• Sensored/Sensorless: SL
• Pole Count: 4
• KV Rating: 5400KV
• LiPo: 2-3s
• No-load Current(A): 6.8A
• O.D. (mm): 36
• Length (mm): 52
• Shaft Diameter (mm): 3.175
• Weight (g): 224g
• Front Bearing: D13*D5*T4
• Rear Bearing: D13*D5*T4
