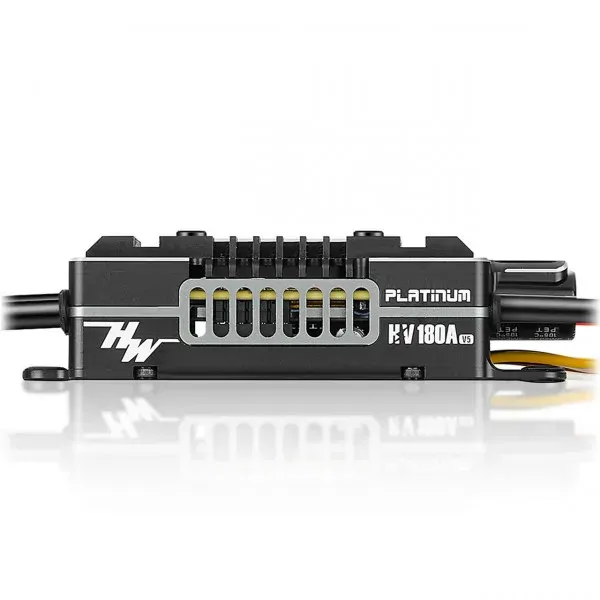

Hobbywing Platinum 180A HV SBEC V5 ESC

Product Specifications

• Product Name: Platinum HV 180A SBEC V5
• Product Number: 30209103
• Type: Brushed/Brushless (BL)
• High Voltage/Regular: High Voltage
• Continuous/Peak Current: 180A / 260A
• Input Voltage: 6-14S LiPo
• BEC Output:
  • Switch Mode: 5-12V
  • Continuous: 10A
  • Peak: 30A

Wires & Connectors

• Input Wires: Red-10AWG-255mm ×1 / Black-10AWG-255mm ×1
• Output Wires: Black-10AWG-150mm ×3
• Input Connectors: None
• Output Connectors: None

ESC Programming via

• Transmitter: Not Supported
• LED Program Card: Not Supported
• LED Program Box: Not Supported
• LCD Program Box: Supported
• OTA Programmer: Supported
• Program Port: Separate Program Port

Firmware

• Firmware Upgrade: Supported

Telemetry Function

• Compatible Systems: Mikado VBar, Futaba S.Bus2, etc.

Size & Weight

• Size: 100.6 × 45.5 × 26.1 mm (without fan)
• Weight: 250.6g (without fan)

Application Scope

• Helicopters: 550-700 class electric helicopters (main rotor length 550-700mm)
• Fixed-Wing: Supported
