Description

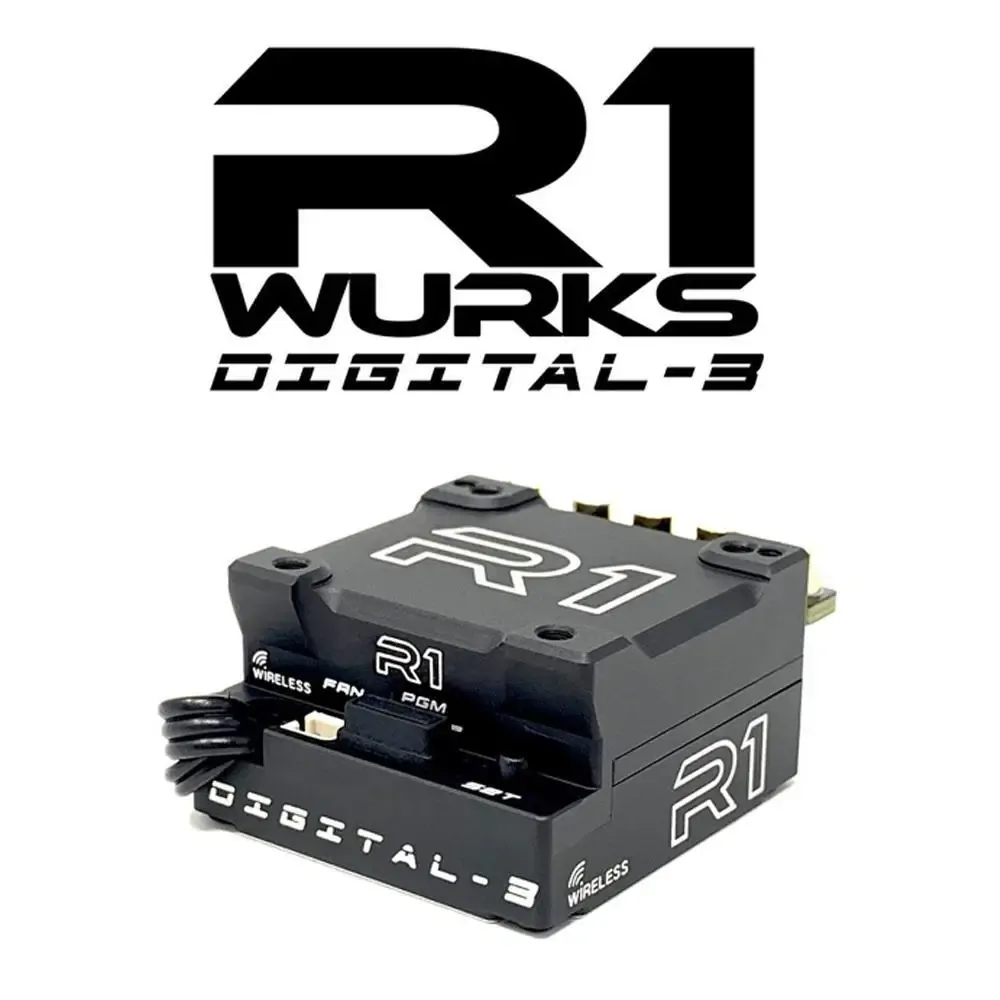

R1 Wurks 040007 Digital 3 Speed Controller
R1 WURKS DIGITAL 3 SPEED CONTROLLER
ROAR APPROVED!
Note: This ESC no longer supports 1S Batteries (1/12th) via B.E.C. An additional voltage booster must be installed.
FEATURES
- Full aluminium case and heat sink design
- Full compatibility with modified and stock racing
- Superlative FET and low-resistance power PCB design
- 30mm fan for maximum cooling
- Software/hardware upgrades increase speed by reducing motor temperature by modifying the commutation algorithm
- New turbo / boost timing setting and delay time setting
- New brake response mode and PWM / brake frequency allows various race and control types
- Data port for connecting to WiFi module
- WiFi module allows program parameter settings and firmware upgrades
- ESC and motor telemetry (speed, temperature, current, voltage, RPM and battery consumption) can be stored in real time with the data log
Programmable Items
- Model Type
- Select Battery
- Cut Off Voltage
- Power Curve
- Boost Max+TB
- Boost-TH. Limit
- Boost Min-rpm
- Boost Max-rpm
- Turbo Delay
- Turbo + Slope
- Turbo - Slope
- Acceleration
- Start Power
- Smooth Start Rate
- Smooth Start Range
- Reverse Function
- Reverse Delay
- M- Reverse Amount
- Neutral Width
- Motor Direction
- Brake Response
- FAN Control
- Drag Brake
- Min Brake Amount
- Mid Brake Amount
- Mid Brake Location
- Max Brake Amount
- Soft Brake
- Brake Freq
- Motor Freq
- Drag Freq
- Cut Off Temp
- Cut Off M-Temp
- B.E.C Voltage
- Motor Pole Num
- Gear Ratio
- Tire Diameter
- Motor-Wiring
- Units
- Download
- Factory Setting
- Current Voltage
- Current Temp
- Max Temperature
- Motor Temp
- Motor Max Temp
- Max Current
- Maximum Speed
- Maximum RPM
- Error History
Specification
- Motor Type - Sensored / 4Pole Sensored
- Motor Limit - >3.5T
- Operating voltage - 3.7-7.4V
- Forward / Brake / Reverse - yes
- Full aluminum case / heatsink - yes
- Typ. Voltage Drop @20A per phase - 0.0048V
- Rated Current per phase - 2549A
- Plugged 30x30x10mm Fan - yes
- BEC Output - 6V/7.4V Bulit-in DC Booster, Continuous Current of 3A
- Multi-Protection-System - yes
- “Boost 0” Mode - yes
- Multi-frequency system - yes
- Power Wires - 12Awg
- USB Software Updateability - yes
- Case Size(with out fan) - 32.9 x 34.6 x 21mm
- Weight(with out cable) - 50g
Description
SpecificationsR1 Wurks 040007 Digital 3 Speed Controller
R1 WURKS DIGITAL 3 SPEED CONTROLLER
ROAR APPROVED!
Note: This ESC no longer supports 1S Batteries (1/12th) via B.E.C. An additional voltage booster must be installed.
FEATURES
- Full aluminium case and heat sink design
- Full compatibility with modified and stock racing
- Superlative FET and low-resistance power PCB design
- 30mm fan for maximum cooling
- Software/hardware upgrades increase speed by reducing motor temperature by modifying the commutation algorithm
- New turbo / boost timing setting and delay time setting
- New brake response mode and PWM / brake frequency allows various race and control types
- Data port for connecting to WiFi module
- WiFi module allows program parameter settings and firmware upgrades
- ESC and motor telemetry (speed, temperature, current, voltage, RPM and battery consumption) can be stored in real time with the data log
Programmable Items
- Model Type
- Select Battery
- Cut Off Voltage
- Power Curve
- Boost Max+TB
- Boost-TH. Limit
- Boost Min-rpm
- Boost Max-rpm
- Turbo Delay
- Turbo + Slope
- Turbo - Slope
- Acceleration
- Start Power
- Smooth Start Rate
- Smooth Start Range
- Reverse Function
- Reverse Delay
- M- Reverse Amount
- Neutral Width
- Motor Direction
- Brake Response
- FAN Control
- Drag Brake
- Min Brake Amount
- Mid Brake Amount
- Mid Brake Location
- Max Brake Amount
- Soft Brake
- Brake Freq
- Motor Freq
- Drag Freq
- Cut Off Temp
- Cut Off M-Temp
- B.E.C Voltage
- Motor Pole Num
- Gear Ratio
- Tire Diameter
- Motor-Wiring
- Units
- Download
- Factory Setting
- Current Voltage
- Current Temp
- Max Temperature
- Motor Temp
- Motor Max Temp
- Max Current
- Maximum Speed
- Maximum RPM
- Error History
Specification
- Motor Type - Sensored / 4Pole Sensored
- Motor Limit - >3.5T
- Operating voltage - 3.7-7.4V
- Forward / Brake / Reverse - yes
- Full aluminum case / heatsink - yes
- Typ. Voltage Drop @20A per phase - 0.0048V
- Rated Current per phase - 2549A
- Plugged 30x30x10mm Fan - yes
- BEC Output - 6V/7.4V Bulit-in DC Booster, Continuous Current of 3A
- Multi-Protection-System - yes
- “Boost 0” Mode - yes
- Multi-frequency system - yes
- Power Wires - 12Awg
- USB Software Updateability - yes
- Case Size(with out fan) - 32.9 x 34.6 x 21mm
- Weight(with out cable) - 50g
R1 Wurks 040007 Digital 3 Speed Controller
R1 WURKS DIGITAL 3 SPEED CONTROLLER
ROAR APPROVED!
Note: This ESC no longer supports 1S Batteries (1/12th) via B.E.C. An additional voltage booster must be installed.
FEATURES
- Full aluminium case and heat sink design
- Full compatibility with modified and stock racing
- Superlative FET and low-resistance power PCB design
- 30mm fan for maximum cooling
- Software/hardware upgrades increase speed by reducing motor temperature by modifying the commutation algorithm
- New turbo / boost timing setting and delay time setting
- New brake response mode and PWM / brake frequency allows various race and control types
- Data port for connecting to WiFi module
- WiFi module allows program parameter settings and firmware upgrades
- ESC and motor telemetry (speed, temperature, current, voltage, RPM and battery consumption) can be stored in real time with the data log
Programmable Items
- Model Type
- Select Battery
- Cut Off Voltage
- Power Curve
- Boost Max+TB
- Boost-TH. Limit
- Boost Min-rpm
- Boost Max-rpm
- Turbo Delay
- Turbo + Slope
- Turbo - Slope
- Acceleration
- Start Power
- Smooth Start Rate
- Smooth Start Range
- Reverse Function
- Reverse Delay
- M- Reverse Amount
- Neutral Width
- Motor Direction
- Brake Response
- FAN Control
- Drag Brake
- Min Brake Amount
- Mid Brake Amount
- Mid Brake Location
- Max Brake Amount
- Soft Brake
- Brake Freq
- Motor Freq
- Drag Freq
- Cut Off Temp
- Cut Off M-Temp
- B.E.C Voltage
- Motor Pole Num
- Gear Ratio
- Tire Diameter
- Motor-Wiring
- Units
- Download
- Factory Setting
- Current Voltage
- Current Temp
- Max Temperature
- Motor Temp
- Motor Max Temp
- Max Current
- Maximum Speed
- Maximum RPM
- Error History
Specification
- Motor Type - Sensored / 4Pole Sensored
- Motor Limit - >3.5T
- Operating voltage - 3.7-7.4V
- Forward / Brake / Reverse - yes
- Full aluminum case / heatsink - yes
- Typ. Voltage Drop @20A per phase - 0.0048V
- Rated Current per phase - 2549A
- Plugged 30x30x10mm Fan - yes
- BEC Output - 6V/7.4V Bulit-in DC Booster, Continuous Current of 3A
- Multi-Protection-System - yes
- “Boost 0” Mode - yes
- Multi-frequency system - yes
- Power Wires - 12Awg
- USB Software Updateability - yes
- Case Size(with out fan) - 32.9 x 34.6 x 21mm
- Weight(with out cable) - 50g
| SKU | 040007 |
| Brand | R1 Wurks |
| Shipping Weight | 0.0300kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.010m |
| Shipping Length | 0.080m |
| Shipping Cubic | 0.000064000m3 |
-
