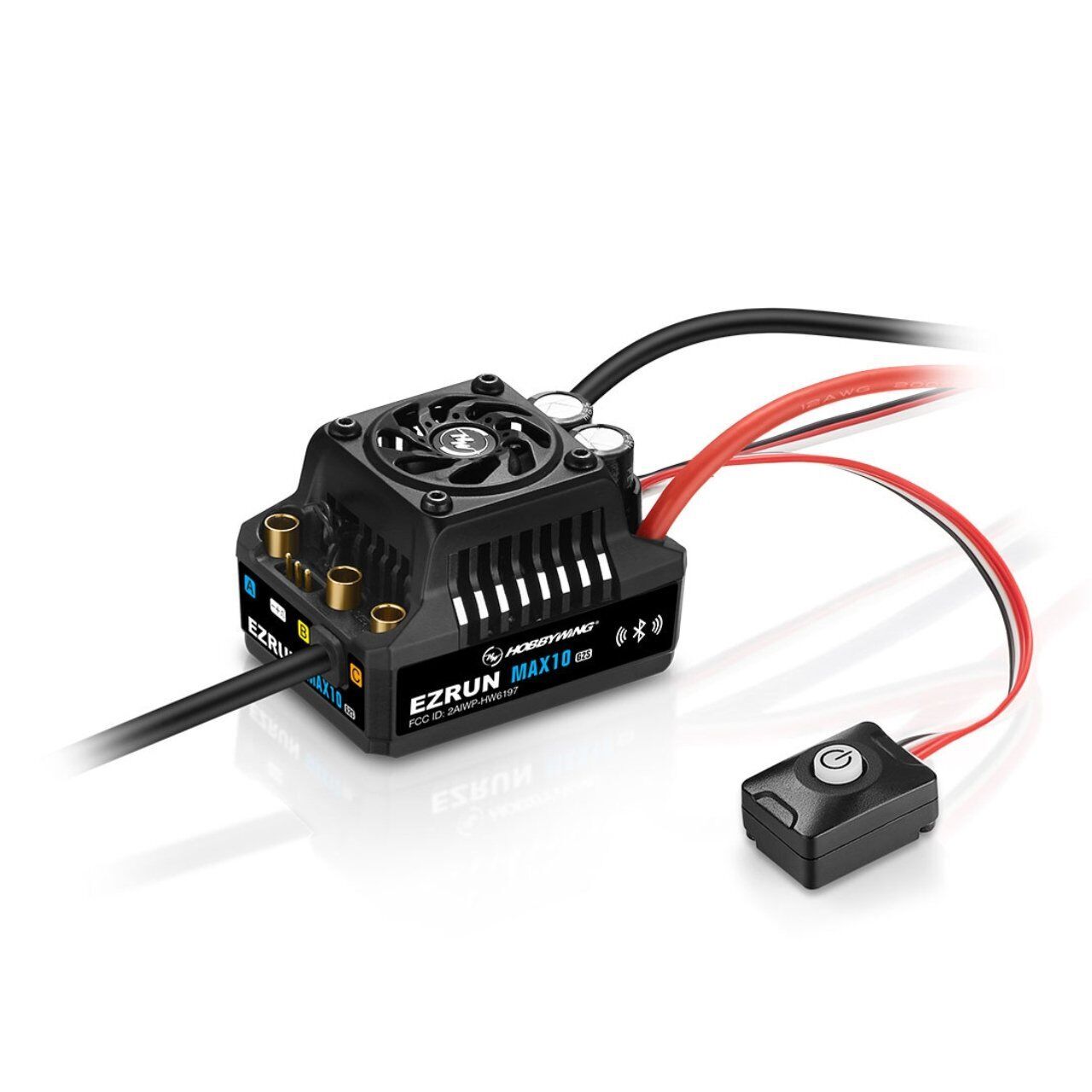

The Hobbywing EZRUN MAX10 G2S 140A Brushless ESC is the next evolution of the popular MAX10 G2 platform, combining the same proven power capability and compact housing with smarter programming, onboard data logging and expanded BEC functionality.

One of the biggest upgrades is the Bluetooth module integrated directly into the power switch. There is no need to connect additional Bluetooth programming hardware for everyday smartphone setup. Simply connect through the Hobbywing HW LINK app to adjust ESC parameters, review recorded data and perform firmware updates.

The MAX10 G2S supports both sensored and sensorless brushless motors. In sensored operation, it provides smooth and linear power delivery throughout the RPM range, giving drivers strong acceleration while retaining precise low-speed control and consistent performance under sustained throttle.

An integrated 10-minute data logging system records recent operating data internally. This information can then be displayed graphically through the HW LINK app, giving drivers an easy way to review performance after a run.

For additional top-end performance, the MAX10 G2S supports up to 32 degrees of Turbo Timing. When paired with a supported Hobbywing EZRUN 3652/3665 G3 motor, this can provide approximately 25% higher maximum motor RPM.

The adjustable switch-mode BEC provides 6.0V, 7.4V or 8.4V output at 5A continuous, allowing the ESC to support a wide variety of standard and high-voltage servos. A 3S or higher battery is required to access the 7.4V and 8.4V BEC settings.

Cooling is handled by the integrated heatsink and temperature-controlled frameless cooling fan. Rather than operating continuously, the fan remains switched off at lower temperatures and activates when the preset temperature threshold is reached. Its side-discharge design directs hot air away from the ESC.

Designed for demanding off-road use, the MAX10 G2S features an IP67 dust and waterproof design, including a waterproof sensor interface. Built-in protection functions cover low voltage, overheating, signal loss and capacitor overheating.

Programming can be performed through the integrated Bluetooth connection and HW LINK app or with a compatible Hobbywing LCD Program Box. Firmware can also be upgraded through the app.

Supporting 2S to 4S LiPo power with a continuous current rating of 140A and peak current of 880A, the MAX10 G2S is designed for powerful 1/10 short course trucks, trucks and monster trucks.

Available from Campbelltown Hobbies, the Hobbywing EZRUN MAX10 G2S combines serious brushless performance with convenient smartphone programming and onboard data analysis in a compact, durable package.

Required Items

  • Compatible Brushless Motor
  • 2S, 3S or 4S LiPo Battery
  • Compatible RC Radio System
  • Steering Servo

Specifications

Brand: Hobbywing
Model: EZRUN MAX10 G2S
Product Type: Brushless Electronic Speed Controller
Application: 1/10 Short Course Truck, Truck & Monster Truck
Motor Compatibility: Sensored & Sensorless Brushless
Continuous Current: 140A
Peak Current: 880A
Input Voltage: 2-4S LiPo
BEC: Switch Mode
BEC Output: 6.0V / 7.4V / 8.4V Adjustable
BEC Continuous Current: 5A
Turbo Timing: Up to 32°
Internal Data Logging: Last 10 Minutes
Bluetooth: Integrated into Power Switch
Smartphone App: Hobbywing HW LINK
Firmware Updates: Via App
Cooling Fan: Frameless, Temperature Controlled
Fan Power: BEC
Waterproof Rating: IP67
Sensor Interface: Waterproof
Input Connector: XT60
Motor Output: Gold Bullet Sockets
Programming Port: Separate 3-Pin
Programming Methods: Bluetooth / LCD Program Box / OTA Program Module
Dimensions: 53 × 39.5 × 37.2mm
Weight: 125g Including Wires & Connectors

Motor Limits

2S LiPo: ≤6000KV with 3652-size motor
3S LiPo: ≤4000KV with 3665-size motor
4S LiPo: ≤2600KV with 4268-size motor

Protection Features

  • Low Voltage Protection
  • Overheat Protection
  • Signal Loss Protection
  • Capacitor Overheat Protection
  • IP67 Dust & Water Protection

Important Notes

  • A 3S or higher battery is required to use the 7.4V or 8.4V BEC settings.
  • Turbo timing requires a supported Hobbywing motor, such as the EZRUN 3652/3665 SD G3.
  • Motor overheat protection requires a supported Hobbywing motor.
  • Effective Bluetooth range is approximately 5 metres by design.

What's Included

  • 1 × Hobbywing EZRUN MAX10 G2S 140A ESC

Optional Accessories

  • Hobbywing HW30502002 LCD Program Box Pro
  • Hobbywing HW30850400 OTA Bluetooth Program Module
