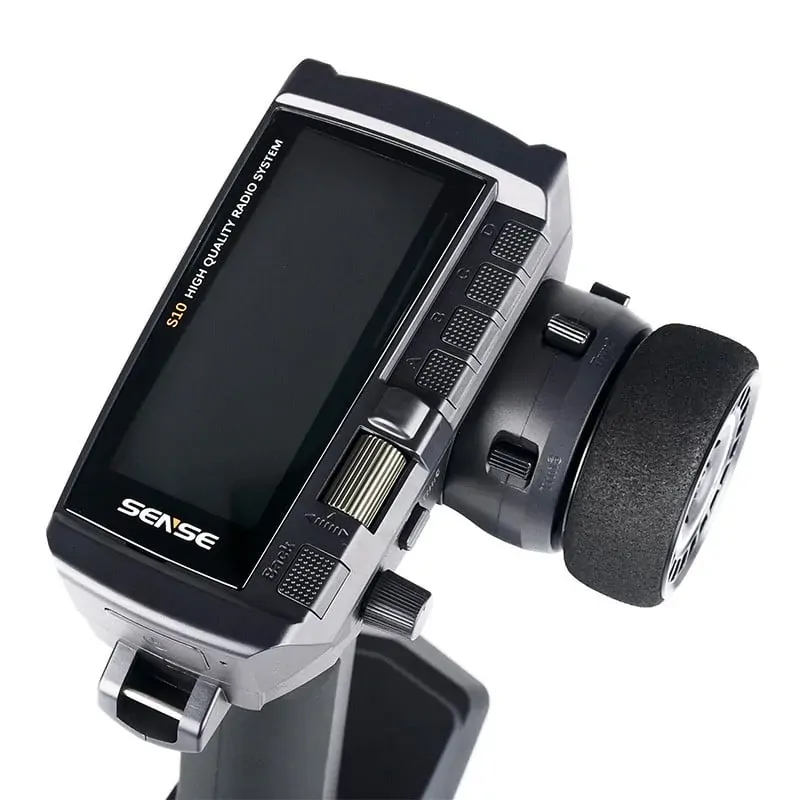

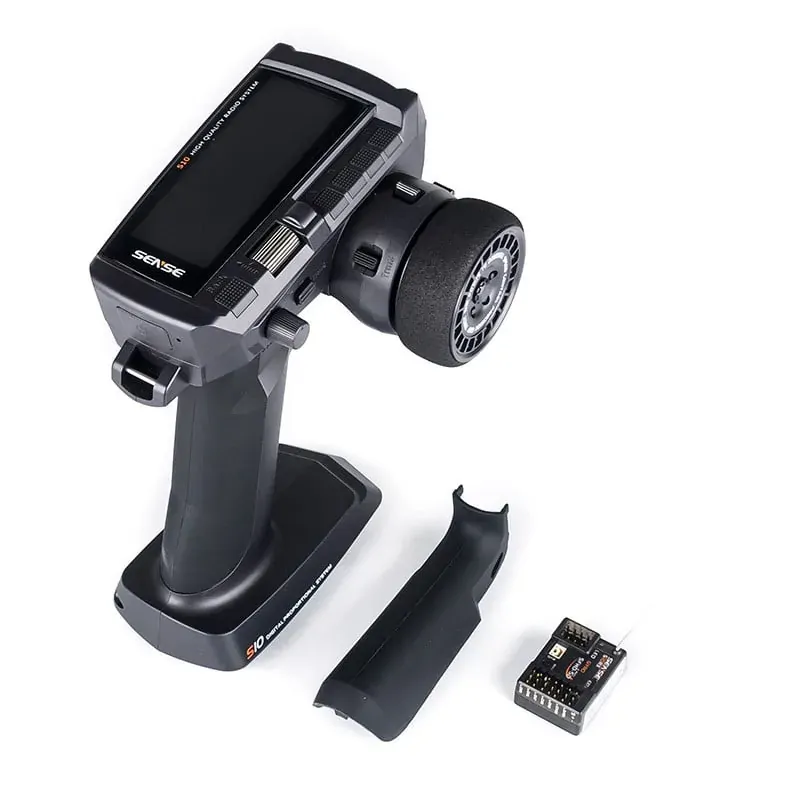

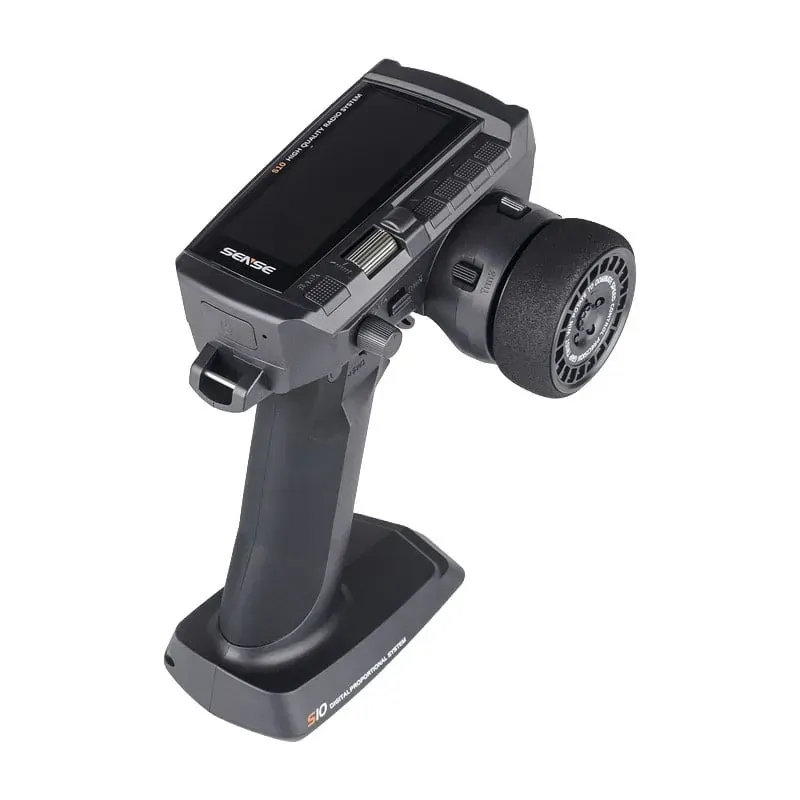

The Sense Innovations S10 10-Channel Surface Transmitter with 10-Channel Receiver is a feature-packed premium radio system designed for serious RC car and boat enthusiasts. Combining advanced wireless technology, real-time telemetry, an intuitive user interface and powerful programming capabilities, the S10 delivers the precision, reliability and flexibility demanded by modern hobbyists and competitive racers.

Supporting both unidirectional and bidirectional RF communication, the S10 gives users the choice between conventional control or full telemetry operation. In bidirectional mode, the receiver transmits real-time data including voltage, temperature, vehicle speed and attitude information back to the transmitter, allowing drivers to monitor vehicle performance while driving.

The integrated data passthrough system enables receiver parameter configuration and firmware updates using the same RF link, simplifying the system architecture while eliminating the need for additional programming devices.

Every transmitter and receiver features an independent identification system, creating a unique secure connection after binding. Before operation begins, the system verifies the identity of both devices, helping improve interference resistance and overall operational stability.

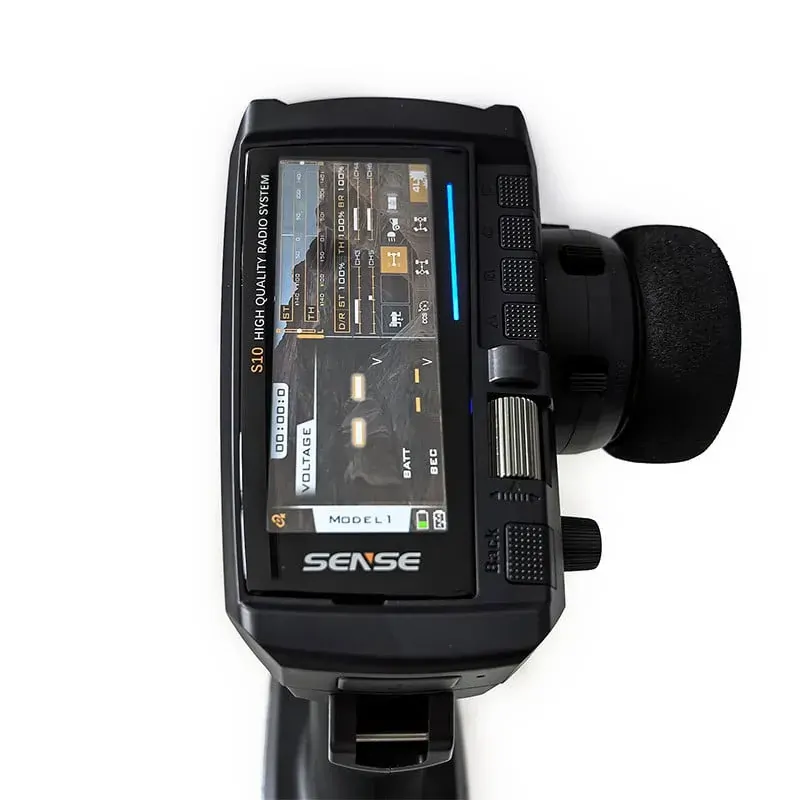

A large 3.13-inch IPS colour display with a resolution of 376 × 960 pixels provides crisp visuals and excellent viewing angles. The modern interface presents all programming menus and telemetry information clearly while customisable accent LED lighting offers five selectable colours to personalise the transmitter.

Firmware updates are performed wirelessly via Wi-Fi, allowing both the transmitter and receiver to receive new features and performance improvements without connecting to a computer.

The S10 also features an innovative dual battery backup system, combining a rechargeable 18650 lithium battery with four AAA batteries. If one power source becomes depleted, the system automatically switches to the other, providing uninterrupted operation and reducing the risk of unexpected shutdowns during driving sessions.

Offering 40 model memory, USB-C charging, audio and vibration alerts, extensive model programming and twelve assignable switches, trims and knobs, the Sense Innovations S10 is ready for everything from casual bashing to professional competition.

Available from Campbelltown Hobbies, the Sense Innovations S10 combines premium features, cutting-edge wireless technology and exceptional value in a highly capable 10-channel surface radio system.

---

Required Items

• 4 × AAA Batteries (optional backup power)
• Compatible RC Car or Boat
• Compatible Servos & Electronics

---

Specifications

Brand: Sense Innovations

Model: S10

Part Number: SENSES10SET

Product Type: Surface Radio System

Channels: 10

Compatible Models: RC Cars & Boats

Included Receiver: S10RX 10-Channel Receiver with Gyro

Transmitter Specifications

Wireless Protocol: SFHD-SD

RF Frequency: 2403–2480 MHz

Transmission Modes:

• Unidirectional
• Bidirectional Telemetry

Transmit Power: <100mW

Display:

• 3.13-inch IPS LCD
• 376 × 960 Resolution

Channel Resolution: 4096

Model Memory: 40 Models

Accent Lighting: 5 User Adjustable Colours

Firmware Updates: Wi-Fi OTA Supported

Data Passthrough: Supported

Battery Configuration:

• 1 × 18650 Li-Ion Battery
• 4 × AAA Backup Batteries

Charging: USB Type-C

Data Port: USB Type-C

Control Range: Over 200 metres (open area)

Antenna: Internal

Audio Alerts: Yes

Vibration Alerts: Yes

Operating Temperature: -10°C to +60°C

Operating Humidity: 20–95% RH

Dimensions: 128 × 101 × 188mm

Weight: 370g (without batteries)

Certifications:

• CE-RED
• FCC-ID
• RoHS

---

Receiver Specifications

Model: S10RX

Channels: 10

Gyro: Built In

Wireless Protocol: SFHD-SD

RF Frequency: 2403–2480 MHz

Operating Voltage: 5–9V DC

Output: PWM / PPM

Antenna: External Single

OTA Firmware Updates: Supported

Operating Temperature: -10°C to +60°C

Operating Humidity: 20–95% RH

Dimensions: 34.5 × 26 × 13.6mm

Weight: 10g

Certifications:

• CE-RED
• FCC-ID
• RoHS

---

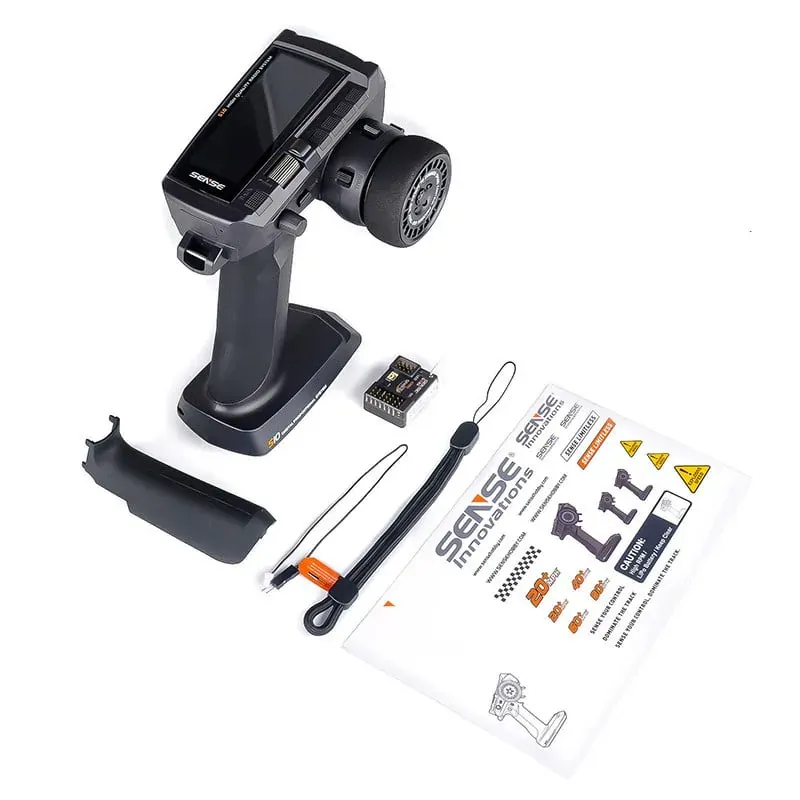

What's Included

• Sense Innovations S10 10-Channel Transmitter
• Installed 18650 Lithium Battery
• Small Silicone Grip (Installed)
• Medium Silicone Grip
• S10RX 10-Channel Receiver with Gyro
• 2 × Receiver Antenna Protectors
• USB Type-C Cable
• Battery Voltage Detector Cable (BVD)
• Wrist Strap
• Quick Start Guide

Frequently Asked Questions – Sense Innovations S10 10-Channel Surface Transmitter

What vehicles is the Sense Innovations S10 compatible with?

The Sense Innovations S10 is designed for RC cars and boats and includes a 10-channel S10RX receiver with built-in gyro.

Does the Sense Innovations S10 support telemetry?

Yes. The S10 supports bidirectional communication, allowing compatible receivers to transmit live telemetry data including voltage, temperature, speed and other system information back to the transmitter.

How many models can the S10 store?

The transmitter features memory for up to 40 different models, making it ideal for drivers with multiple vehicles.

Can the transmitter and receiver be updated?

Yes. Both the transmitter and receiver support convenient over-the-air firmware updates via Wi-Fi.

What power system does the Sense Innovations S10 use?

The transmitter uses an installed rechargeable 18650 lithium battery together with four AAA backup batteries, automatically switching between power sources when required.

Does the Sense Innovations S10 have a touchscreen?

No. The transmitter features a high-resolution 3.13-inch IPS LCD colour display with an intuitive menu system and excellent viewing angles.

What receiver is included?

The package includes the Sense Innovations S10RX 10-channel receiver with built-in gyro, supporting both PWM and PPM outputs.

Is the Sense Innovations S10 suitable for competition use?

Yes. With 10 channels, 4096-step resolution, telemetry, advanced programming, Wi-Fi updates and secure bidirectional communication, the S10 is well suited for both competitive and recreational RC drivers.
