CHR 25mm Red Aluminium ESC Fan

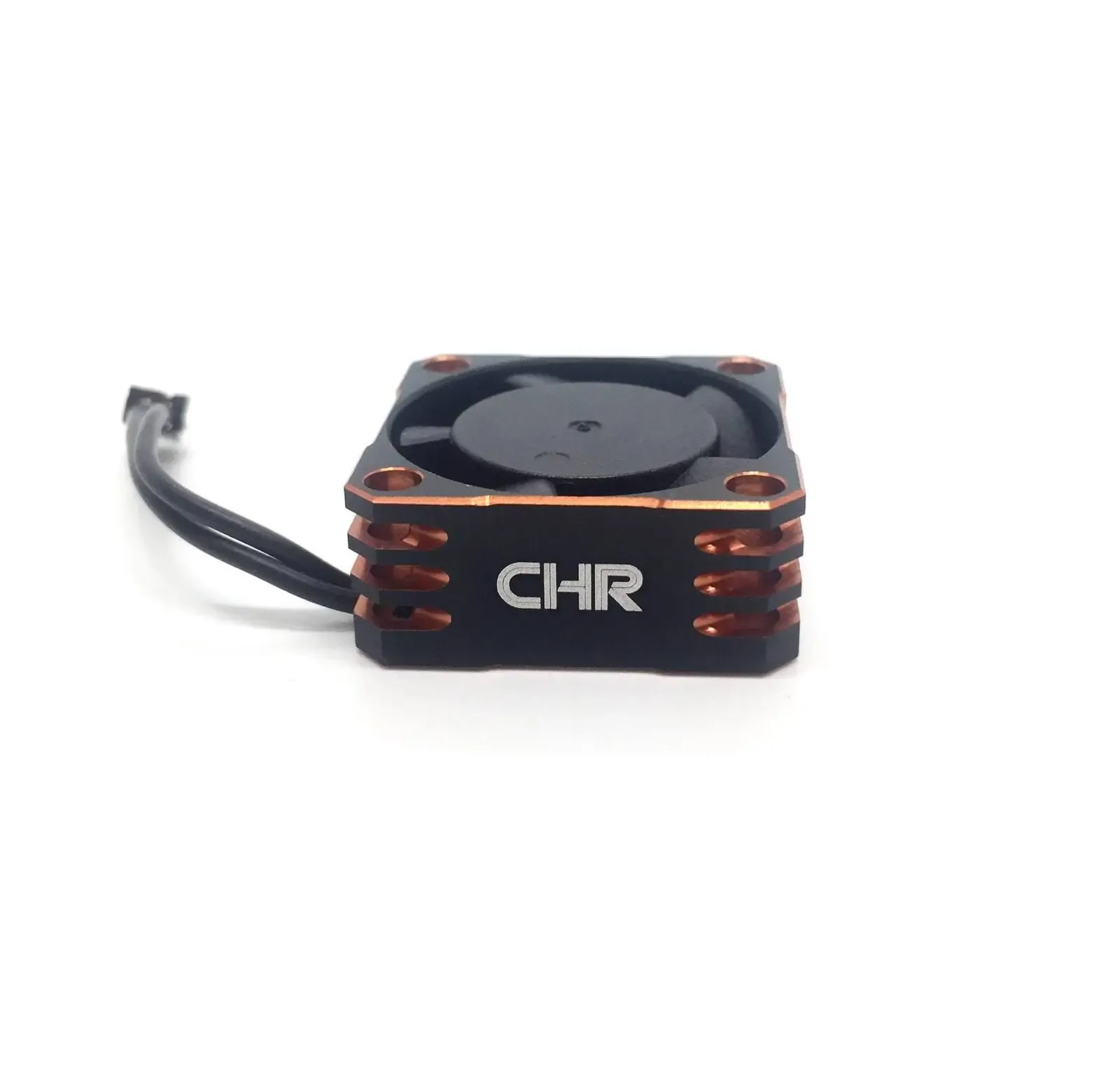

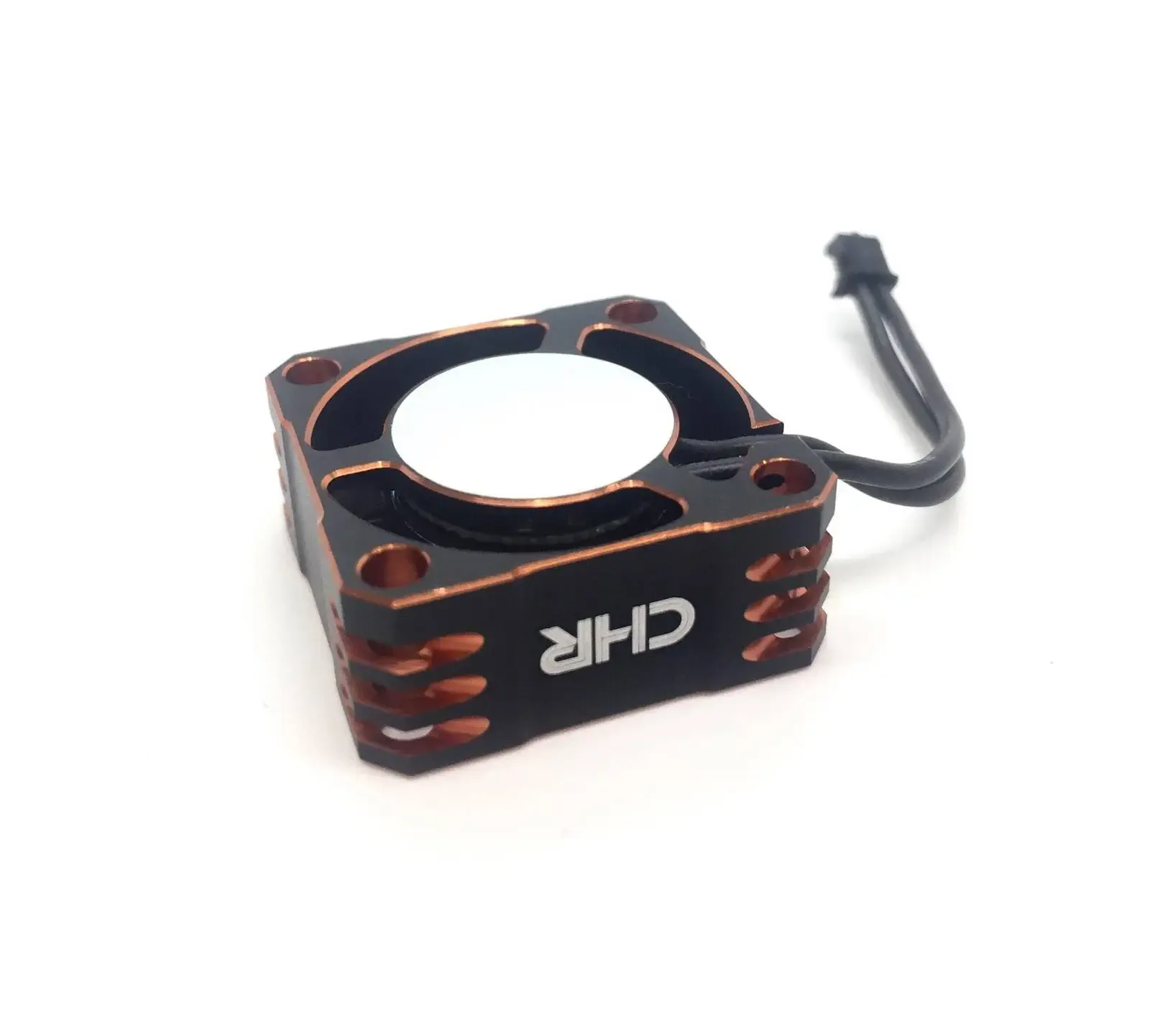

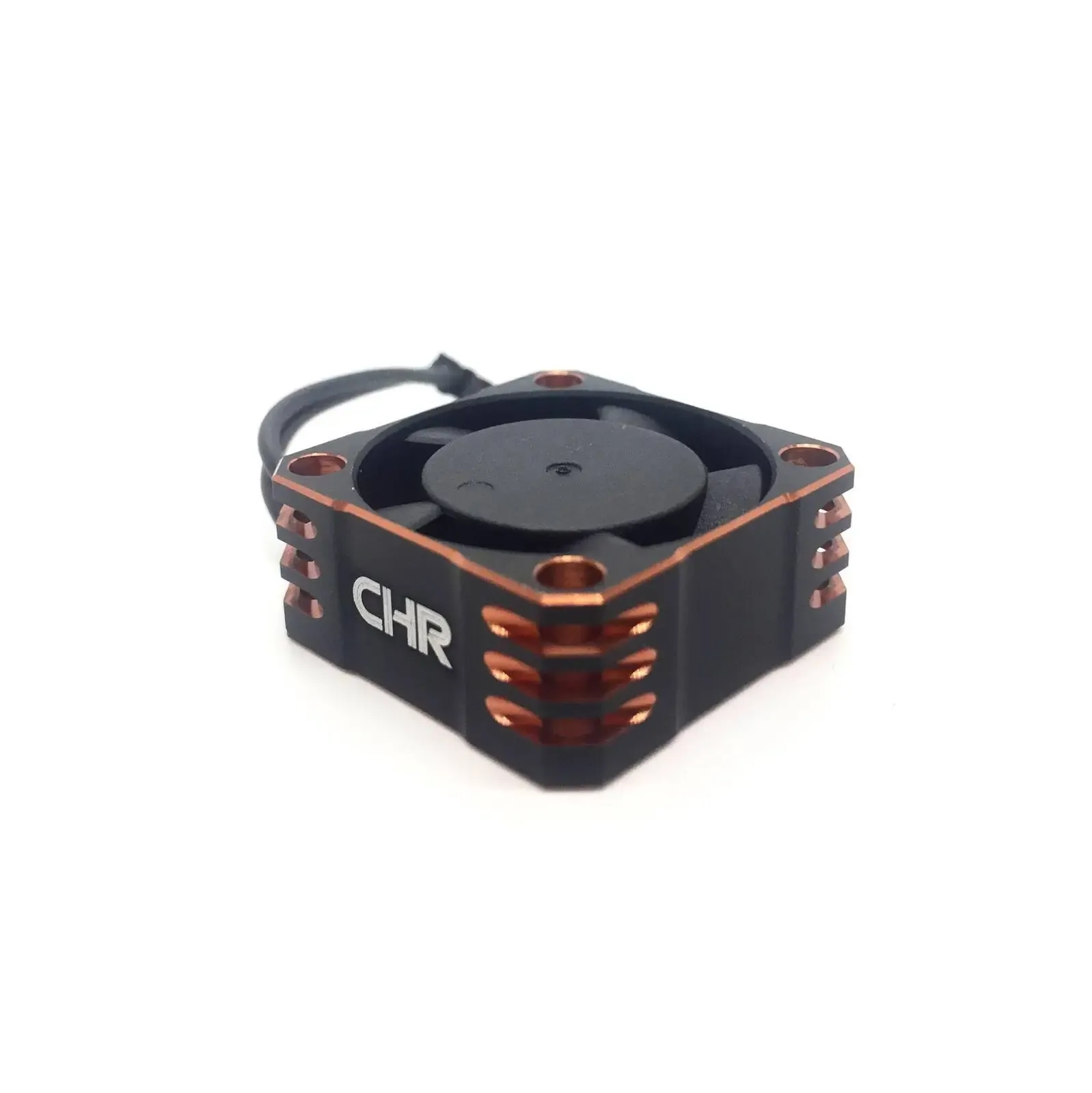

The CHR 25x25x10mm Aluminium Cooling Fan is a great option to keep your ESC tcool. The fan features a machined aluminium case that helps to dissipate heat, allowing cooler operation of the fan motor at high specs. The aluminium framework adds strength to the assembly, helping to protect the fan blades in the event of a crash.

The fan has been built to last with dual ball bearings and pre-wired 2 pin ESC connector.

Features:

• 25mm aluminium cooling fan
• Ideal for ESC applications
• Aluminium casing helps protect the fan blades
• Compatible with 2S HV LiPo systems (8.6V max)
• Anodized black with sliver chamferred edges
• Perfect for 1/12, 1/10 ESC
• 2 pin ESC connector for easy installation

Application

• 1/12, 1/10 ESC
• Fan Speed
• 32,000 RPM
• Dimensions (LxWxH)
• 25x25x10mm
• Material
• Aluminium Case w/Plastic Fan Blade
• Weight
• 9g
• Operation Voltage
• 5V – 8.6V
• Connector
• 2 Pin ESC
• Current
• 0.6A
